Description
Dispatch-Ready Hydraulics — ECO2700 units are configured against your site voltage and packed for container loading before the proforma is signed.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ECO2700 |
| Product Type | Hydraulic Clay Interlocking Block Making Machine |
| Overall Dimensions | 1000(L) × 1000(W) × 1800(H) mm |
| Total Weight | 1000 kg |
| Hydraulic Pressure | 16 MPa |
| Rated Power | 5.5 kW |
| Voltage & Frequency | 380V, 3-phase, 50Hz (customizable to buyer’s local voltage) |
| Shaping Cycle | 15–20 seconds (basis not stated in source — confirm block format and material) |

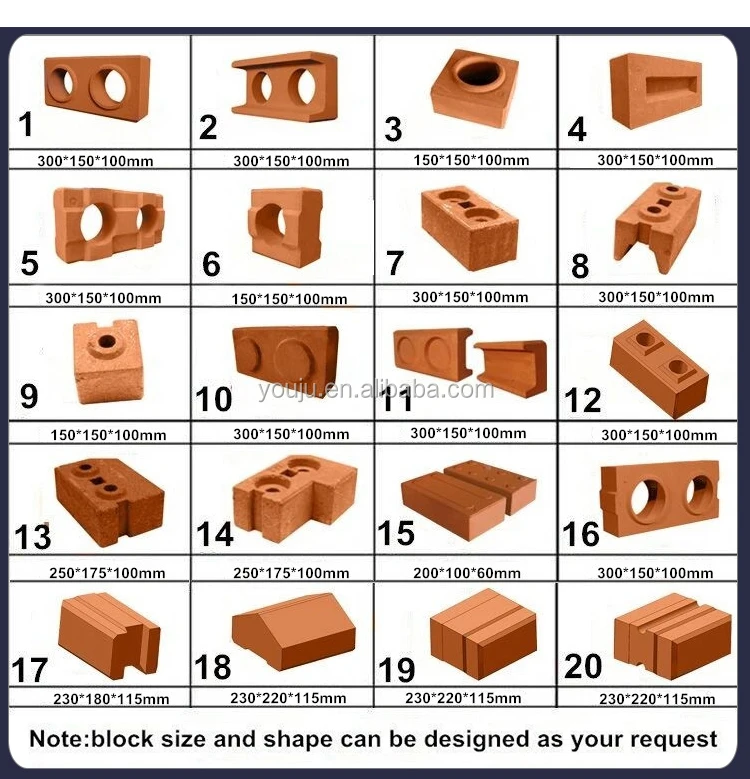

| Mould Format | Interlocking clay brick (specific dimensions to confirm) |
| Control System | Not stated in source |

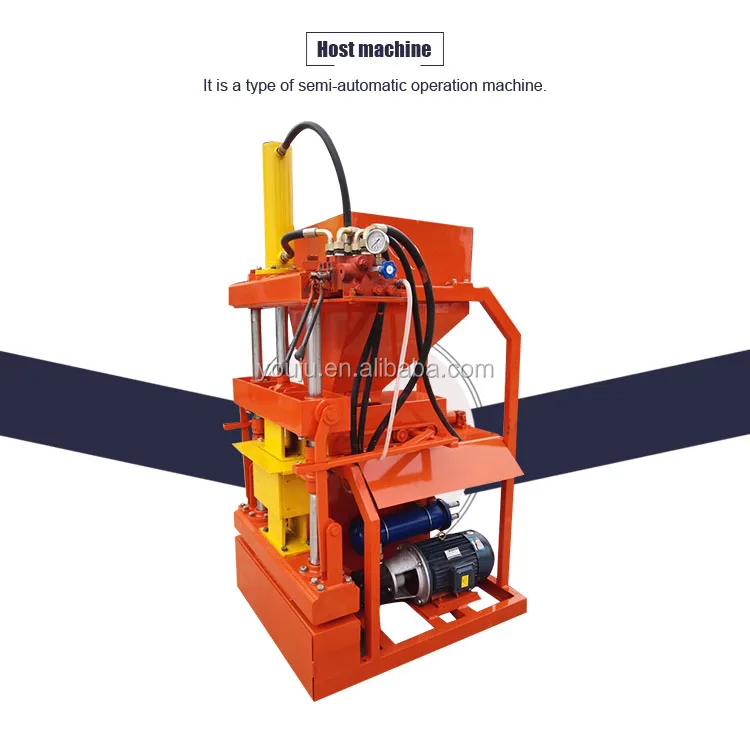

| Automation Level | Semi-automatic / manual operation |
| Warranty | 1 year |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site interlocking brick production for housing projects | Local clay and mud mixes |
| Small-scale brick workshop for rural supply | Clay, laterite, and stabilized earth |
| Low-investment block forming for community contractors | Site-sourced soil with cement stabilization |
Why "Fast Delivery" Means Nothing Without a Packing Plan
Confirm the container loading method before you confirm the order.
I have watched a contractor in Tanzania lose two weeks on a project deadline because the machine arrived with the hydraulic manifold disconnected and no reassembly instructions in the crate. The ECO2700 clay interlocking block making machine fast delivery promise only matters if the machine actually runs within days of reaching your site, not weeks. When a project schedule is measured in days, the gap between dispatch date and first brick is what counts [NEED_CITE: typical container transit and customs clearance timelines by destination port].
Compact Footprint Means Simpler Shipment
At 1000 × 1000 × 1800 mm and 1000 kg total weight, the ECO2700 fits inside a standard container without dismantling the main frame. That matters because every bolt removed before shipping is a bolt your crew must re-tighten on a job site where the right spanner may not be in the toolbox. The ECO2700 clay interlocking block making machine fast delivery advantage rests on this single fact: it ships assembled and ready for hydraulic connection.
Lead Time Starts With Voltage Confirmation
Default configuration is 380V, 3-phase, 50Hz. If your site runs on a different supply, the motor and hydraulic pump must be swapped before the machine leaves the factory — and that swap takes time off the clock. I always ask buyers for a photo of their site distribution board before we crate the machine. A mismatch discovered at commissioning means an idle machine and an idle crew [NEED_CITE: voltage and frequency standards by export market].
What the Shaping Cycle Actually Tells You
The 15–20 second shaping cycle is a press-close-to-press-open figure, not a bricks-per-hour number. Real output depends on how fast your team feeds clay into the mould, clears the finished brick, and resets for the next cycle. At 16 MPa hydraulic pressure, the press itself is not the bottleneck — material handling around the press is. Plan your crew size and clay preparation station accordingly. The interlocking format also demands careful mould alignment, which adds seconds that a catalogue cycle time does not show.
The Spare Parts You Forget Will Stop the Line
In my time on sites across East Africa and South Asia, the machines that sit idle are rarely the ones that broke down — they are the ones waiting on a seal or a liner that nobody thought to order. With the ECO2700, the hydraulic cylinder seals, mould wear liners, and high-pressure hose fittings are the items that wear through first. If those are not in the crate when the machine arrives, you are one worn liner away from a production halt while you wait for air freight.
Why Source This Machine Here
Single-focus block machinery supply means the ECO2700 ships with a mould matched to the interlocking format your market actually buys, not a generic mould swapped in from a concrete block line. Dispatch lead time is quoted against real stock status, not a catalogue promise. Voltage and frequency are confirmed before production so the motor and controls match your destination site. Packing photographs are shared before the container door closes, so you see exactly how the machine is braced for transit [NEED_CITE: CE machinery directive requirements for industrial equipment].
Documentation & Verification
- Factory test record running your specified interlocking mould before dispatch
- Voltage and frequency confirmation sheet matched to your site supply
- Hydraulic circuit schematic for on-site troubleshooting
- Packing photographs showing crate bracing before container loading
- CE declaration covering the hydraulic press assembly
Installation, Commissioning & Support
- Level concrete pad required; the 1000 × 1000 mm footprint keeps foundation work minimal
- Dedicated 3-phase circuit at confirmed voltage for the 5.5 kW motor and hydraulic pump
- Machine ships assembled; connect hydraulic lines and power on arrival
- First-run mould alignment and pressure calibration included in commissioning
- Mould wear liner and hydraulic seal kit recommended with initial shipment
- Operator training covers cycle rhythm, mould change, and daily hydraulic fluid checks
Before You Request a Quote
Tell us the interlocking brick dimensions your market requires and the clay or soil type available at your site. Confirm your local voltage and frequency so the motor is built to match. If you are working to a project deadline, share the target start date so we can confirm whether a stocked ECO2700 unit meets your timeline.
Frequently Asked Questions
Q: Is the ECO2700 currently in stock or what is the production lead time?
A: Stock status changes weekly. When you inquire, we confirm whether a finished ECO2700 unit is available for immediate dispatch or whether a production slot is needed. Lead time is quoted in writing before you commit, and it includes the mould configuration you specify.
Q: How is the machine packed and loaded for container shipment?
A: The ECO2700 is braced inside a standard container at its full assembled dimensions. We share packing photographs showing the securing method before the container is sealed, so you know the machine will arrive in the same condition it left the factory.
Q: What voltage options are available and do they affect delivery?
A: The default is 380V, 3-phase, 50Hz. Other voltages require a motor and pump change, which adds to the build schedule. Confirm your site voltage early so the correct configuration ships without delaying dispatch.

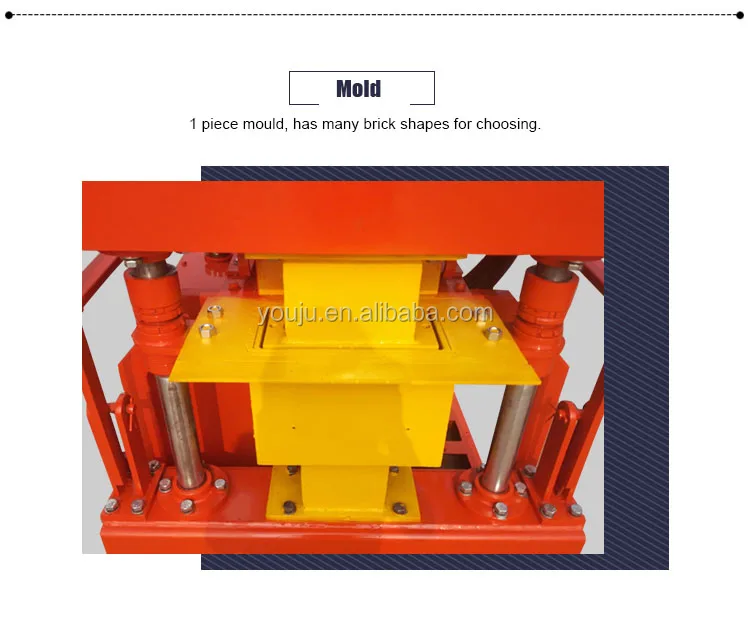

Q: Does the standard interlocking mould ship with the machine?
A: The interlocking mould is matched to your required brick dimensions. If your format is a standard size, it may ship from existing stock. Custom dimensions require mould fabrication, and we confirm that timeline alongside the machine lead time.
