Description

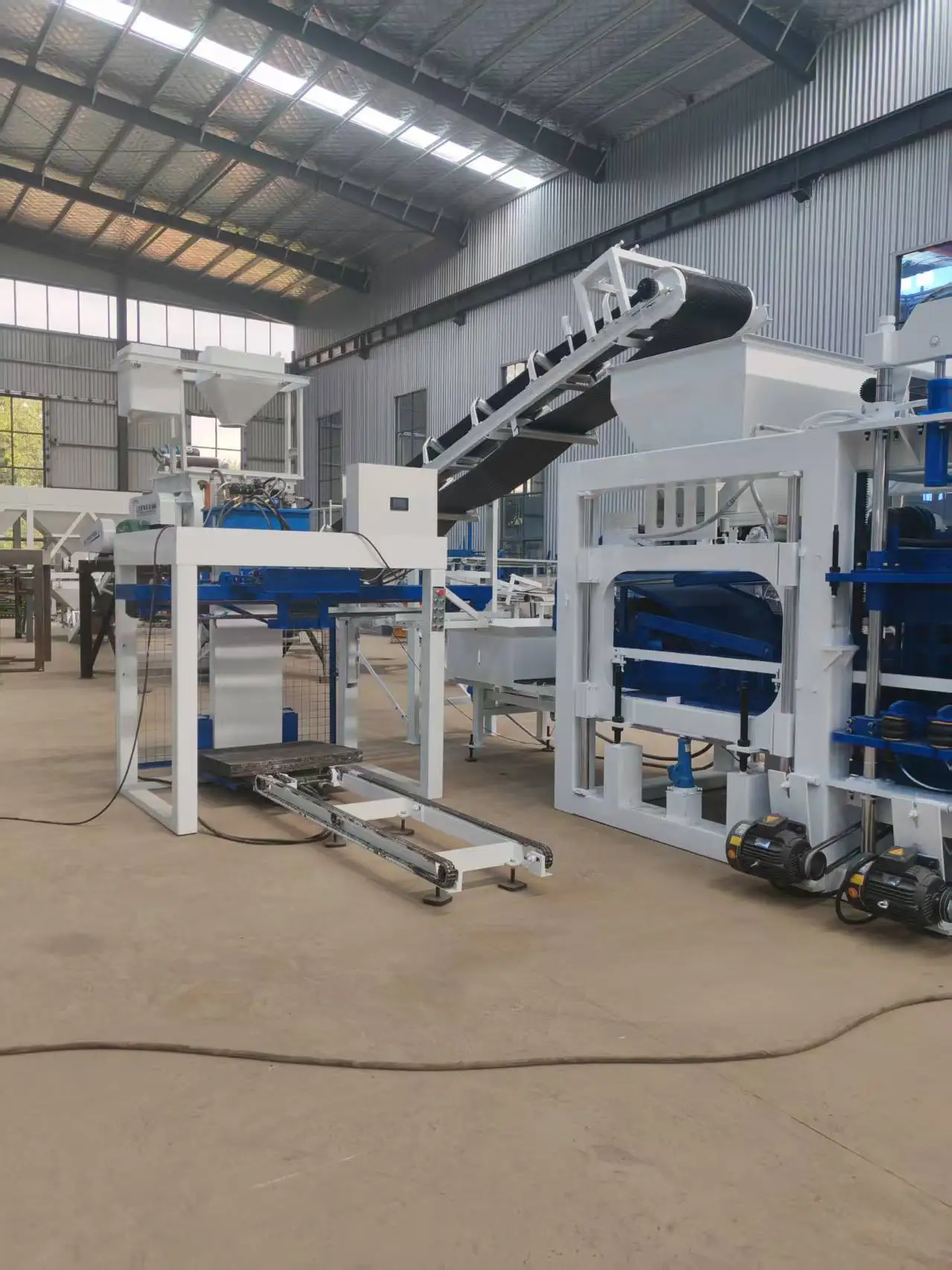

Matched System Dispatch — The QT8-15 ships as a complete block production unit with pallet feeder, host press, conveyor and hydraulic station pre-tested together, not assembled from separate suppliers at the port.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT8-15 |
| Product Type | Automatic Concrete Block Making Machine |
| Overall Dimensions (L×W×H) | 8300 x 1860 x 3000 mm |
| Rated Pressure | 21 MPa |
| Vibration Form | Platform Vibration |
| Pallet Size | 950 x 900 mm |
| Molding Cycle | 15–25s (basis to be confirmed by block format) |
| Overall Power | 46 kW |
| Vibration Frequency | 2800–4500 RPM |
| Control System | PLC with touch screen human-computer interface |
| Block Comprehensive Strength | 15 MPa |
| Hydraulic System | Independent integrated hydraulic station |
| Main Components | Pallet feeder, host machine, block conveyor, hydraulic station, PLC controller |

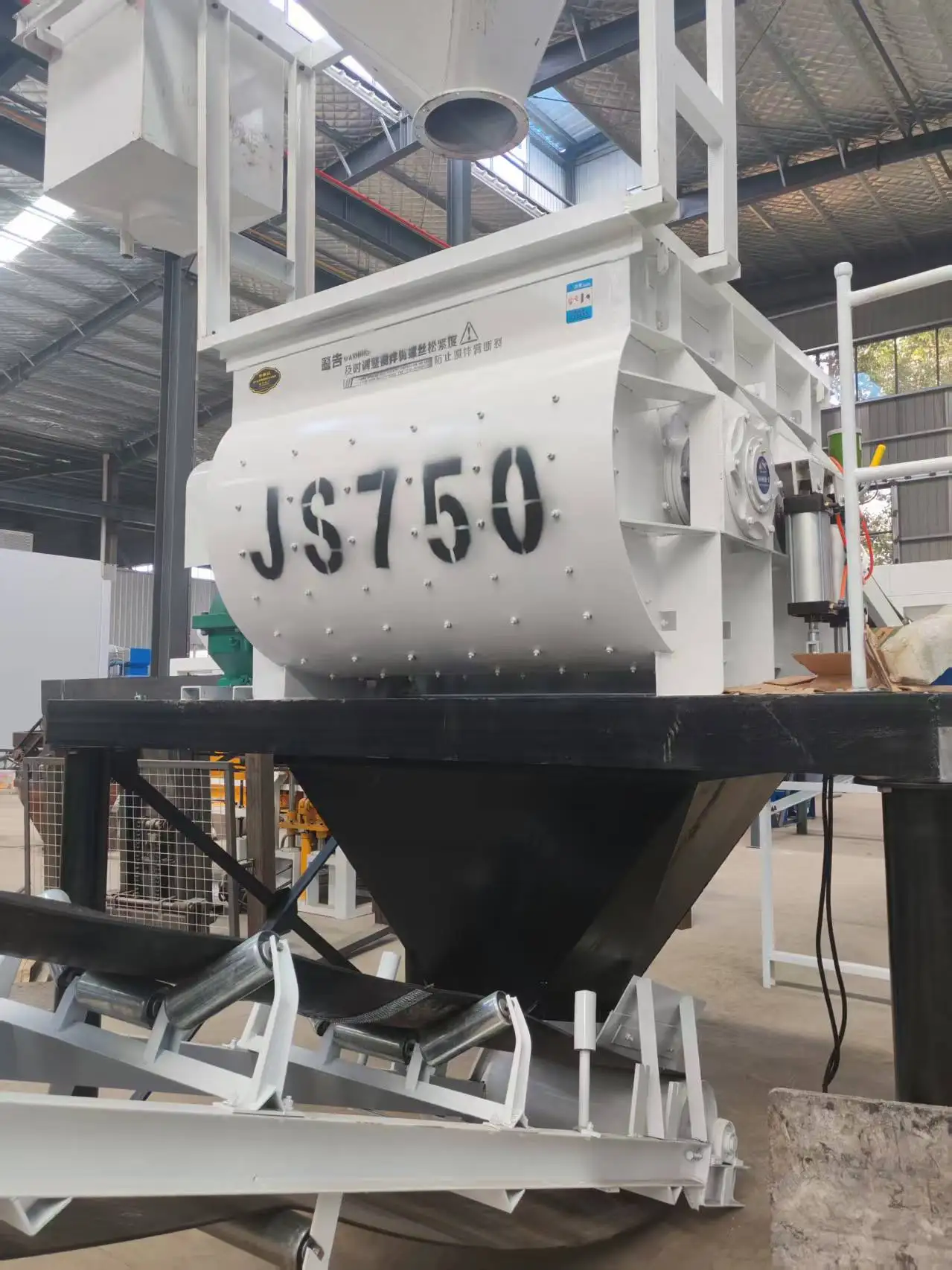

| Support Equipment Options | JS750 mixer, 8m belt conveyor, extra molds, automatic stacker (two pallets at one time, 3–6 layers) |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production | Crushed stone, sand, cement, fly ash aggregates |
| Solid block manufacturing | Dense aggregate mixes for load-bearing walls |
| Paving block production | High-strength concrete mixes for pedestrian and vehicular surfaces |
| Housing project on-site output | Standard masonry units for residential construction |
| Block plant capacity expansion | Multiple concrete masonry unit formats via mould change |
Why Voltage Confirmation Must Happen Before Dispatch
A QT8-15 automatic block machine fast delivery means nothing if the control cabinet cannot power on at your site.
I learned this the hard way years ago when a machine reached South America and sat idle for weeks because the local frequency did not match what the PLC expected. The transformer swap cost the buyer time they had already promised to their contractor. Since then, every QT8-15 automatic block machine fast delivery order I handle goes through a voltage and frequency checklist before the crate is sealed. [NEED_CITE: voltage and frequency standards by export market]
The electrical mismatch is one of the most common commissioning delays buyers face, and it is entirely avoidable when confirmed during the order stage rather than discovered at the port.
Stock Positioning and Dispatch Readiness
The QT8-15 is held as a stocked configuration, meaning the host press, pallet feeder, block conveyor and integrated hydraulic station are assembled and factory-tested before crating. For buyers working against a project completion deadline, this removes the typical multi-week production wait. The QT8-15 automatic block machine fast delivery timeline depends on container availability and port scheduling, but the machine itself does not add to the lead.
Container Loading and Machine Dismantling
Shipping a machine of this footprint requires partial dismantling — the hydraulic station, PLC cabinet and conveyor are detached and secured separately inside the container. Each component is photographed before crating so the buyer can verify condition on arrival. Container loading plans are shared in advance so the receiving team knows the unloading sequence. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Reading the Specs That Actually Matter
The 21 MPa rated pressure and platform vibration at 2800–4500 RPM work together to compact the concrete mix into the mould. Pressure alone does not determine block density; the vibration frequency must match the aggregate particle size in your local mix. A fine sand mix responds differently than a coarse crushed stone blend, and the PLC touch screen allows the operator to adjust cycle parameters within the 15–25s range to find the right combination.
The 950 x 900 mm pallet size is another specification that extends beyond the press itself. This dimension must align with your existing curing racks and forklift tine spacing. If your curing area was built for a different pallet footprint, you will either modify the racks or handle pallets manually — both of which slow the line down after the press has already done its work.
The 46 kW overall power draw determines your electrical supply requirement. The independent integrated hydraulic station sits isolated from dust and vibration, which helps maintain consistent pressure output over long production runs without the hydraulic fluid degrading prematurely.
The Hidden Cost of Skipping Pre-Dispatch Checks
When voltage, frequency and PLC display language are not confirmed before shipment, the machine arrives as dead weight. Commissioning stalls while local electricians source compatible transformers or rewire the control panel. Contractors miss milestone dates, and the buyer absorbs both the delay penalty and the rework cost. [NEED_CITE: common commissioning delays in exported industrial machinery]
The same applies to mould selection. A machine dispatched with only one mould format limits the buyer to a single product until replacement moulds arrive — and if those moulds were not included in the original order, the wait extends further.
Why Source This Machine Through Our Stock Channel
The QT8-15 ships as a matched system — press, pallet feeder, conveyor and hydraulic station are specified together, so cycle times align and the press is not left waiting for upstream or downstream stations.
Configuration is set against the buyer’s actual local aggregate and target block format, not pulled from a catalogue default. This means the vibration and pressure settings are relevant to your material from the first production run.
Standard moulds ship with the machine, and custom mould drawings are available for formats your local market demands. The 950 x 900 mm pallet specification is confirmed against your curing infrastructure before dispatch.
Voltage, frequency and control language are verified on every order before crating — a discipline born from past commissioning failures that I now treat as non-negotiable.
Factory test records, packing photographs and customs documentation are prepared in-house, so the paperwork moves as quickly as the machine itself.
Documentation & Verification
- Factory test record run on your specified block format before crating
- Voltage, frequency and PLC language confirmation sheet signed pre-dispatch
- Packing photographs showing dismantled components inside container
- Hydraulic and electrical schematic matching your as-shipped configuration
- Customs documentation prepared for your destination port requirements
Installation, Commissioning & Support
- Foundation must accommodate 8300 x 1860 mm footprint with level tolerance for the host machine
- Dedicated 46 kW electrical circuit required, voltage and frequency confirmed to your local supply
- Hydraulic station, PLC cabinet and conveyor reattached and aligned on-site after container unloading
- PLC touch screen parameters calibrated to your local aggregate during first production run
- Operator training covers mould change procedure and manual-to-automatic mode transition
- Wear parts list and mould maintenance schedule provided at handover
What We Need to Move Your Order Forward
To confirm stock availability and prepare a dispatch schedule, share your target block format, local aggregate type and daily output requirement. Let us know your site voltage, frequency and preferred PLC display language so the control cabinet is configured correctly before crating. If you have existing curing racks or forklifts, send the pallet dimensions they accommodate so we can verify compatibility with the 950 x 900 mm standard.
Frequently Asked Questions
Q: Is the QT8-15 currently in stock and what is the dispatch lead time?
A: The QT8-15 is maintained as a stocked configuration with the host press, pallet feeder and hydraulic station pre-assembled and factory-tested. Dispatch lead time depends on container scheduling and destination port, but the machine itself does not require a production build cycle. We confirm a realistic departure date at the time of order rather than quoting an optimistic estimate.
Q: How is the machine dismantled and loaded for container shipment?
A: The hydraulic station, PLC control cabinet and block conveyor are detached from the host press and secured separately inside the container. Each component is photographed before crating. A loading plan is shared with the buyer in advance so the receiving team understands the unloading sequence and can plan forklift and crane requirements at the destination port.
Q: What voltage and frequency configurations are available for immediate dispatch?
A: The QT8-15 automatic block machine fast delivery orders are configured to the buyer’s confirmed electrical supply before crating. Voltage, frequency and PLC display language are verified during the order stage to prevent commissioning delays on arrival. We do not ship a machine until these parameters are confirmed in writing against the buyer’s site electrical specification.
Q: Which standard moulds ship with the machine and how long does a mould change take?
A: The QT8-15 ships with a standard hollow block mould included, and additional moulds for solid blocks, paving blocks and other formats are available as options. The PLC-controlled system supports mould change, though the actual time depends on operator familiarity. We recommend buyers specify all required formats at order stage so moulds ship together with the machine.
Q: Do you provide arrival estimates and customs documentation for South America?
A: Yes. Customs documentation is prepared in-house to match the destination country requirements. Arrival estimates are quoted based on the shipping route and carrier schedule at the time of booking. Packing photographs, commercial invoice and certificate of origin documentation are included to support smooth clearance at the port of entry.
