Stationary block machine

Máquina de producción de bloques huecos de concreto de alta eficiencia con motor hidráulico PLC automático <DIV data-magic-global=%7B%22bizId%22%3A2561769025%2C%22pageId%22%3A21676691537%2C%22siteId%22%3A5005130668%7D id=detail_decorate_root>-20 Línea de fabricación de pavimentos Engranaje del motor

This product is currently out of stock and unavailable. SKU: Automatic Hydraulic PLC Motor QTF3-20 High-35644849 Category: Stationary block machine Description Additional information Table of ContentsDescriptionAdditional informationRelated productsQT8-15 Fully Automatic Hydraulic Hollow Block Paving Making Machine with Concrete Machine to Interlocking Cement Brick MachineQT8-15 Concrete Block Making Machine Cement Building Brick MachineManual Cement Hollow Concrete […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description

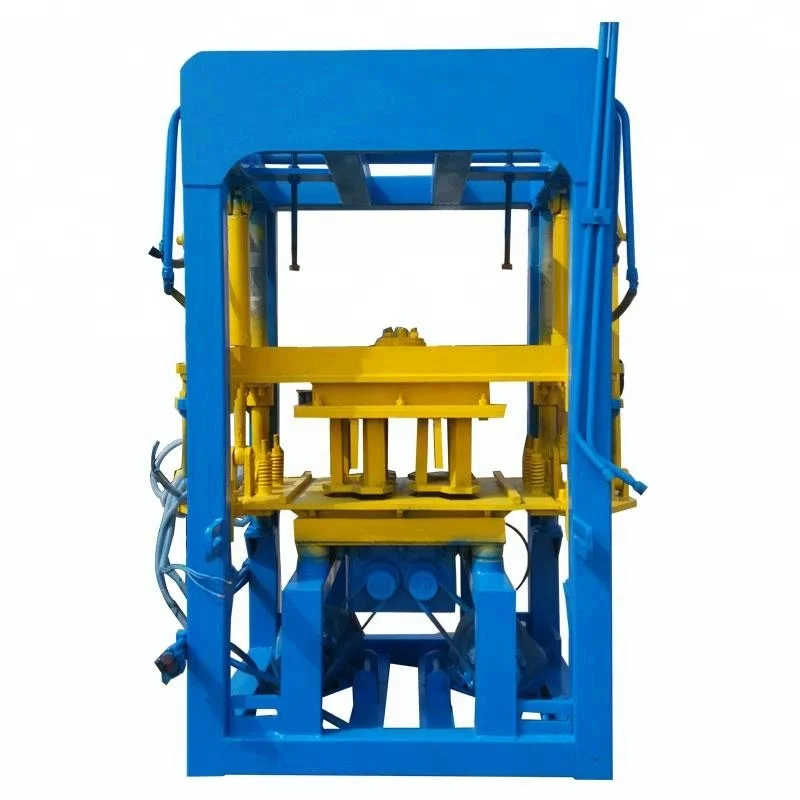

QTF3-20 Stationary Block Machine
QTF3-20 block machine is designed according to domestic condition.and the customer’s advice.high productivity.high quality.strong durability.it can adopts to several kinds of environmental brick. interlock brick.color pavers.park grass brick.hollow brick. porous brick. standard brick and so on.The brick made by QTF 3-20 is high compression strength. standard dimension. appearance beautiful.

QTF3-20 is consist of host machine. material feeding machine.color material machine.pallet feeder.block conveyor. hydraulic station.electricity box and so on.It can make up a simple line with JQ350 mixer.8 meters conveyor belt.
QTF3-20 BLOCK MACHINE
QTF3-20 block making machine is made for color paver brick.grass brick.Slope protection brick and so on.it apply to hydraulic system to drive. no Contact proximity switch to monitoring.double layer(raw material and color surface material). operate automatically. Mechanic.electricity.hydraulic and high vibration work together.The main electrical component.and hydraulic component is imported from Germany or Chinese famous brand.Press with vibration.control the height and density..high exciting power.compact structure.easy operate.convenient maintenance.operate reliable.This machine equipped with one belt. it can make brick with one normal mixer.its a perfect environmental construction equipment.
Main technical parameters
4000×3500×2300 mm
Dimension
Masa Total
2870kg
Formulario de Vibración

Plataforma de Vibración{{ZKF_2}}{{ZKF_3}}Potencia Total
17.5KW
Estilo de Control
Semi-Automático

Capacidad{{ZKF_2}}{{ZKF_3}}4320 pcs/día
Materia Prima
Cemento.Arena. Ceniza volante.Agregado grueso.Escoria.etc
QTF3-20 Host Machine
Host machine is consist of host machine structure.up mold parts.down mold parts.Station shaft sleeve.vibration system.
(1)Host machine structureThe host machine structure is designed overall frame structure.use #12 U-bar welding together.compact structure. strong resistance to vibration.(2)Up mold parts: it is consist of platform.up mold structure.press foot and up mold cylinder.(3)Down mold partIt is consist of mold box.demold cylinder.
(4)Station shaft sleeve partsIt is consist of down sleeve components. up sleeve components.and standing shaft components.
(5)Vibration systemIt is consist of vibration motor.vibration table.vibration box. vibration rubber block and spring
Blocks Samples
Packaging And delivery
