Stationary block machine

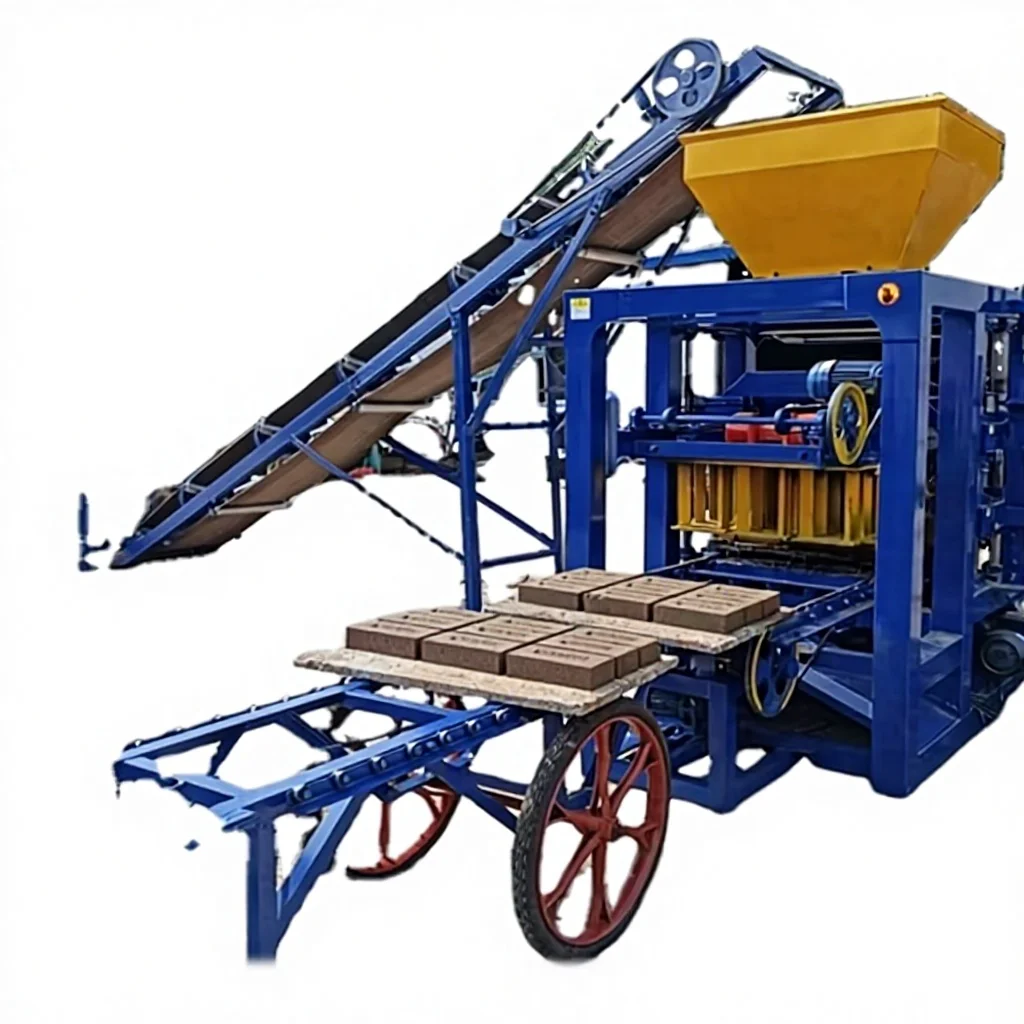

Block Moulding Machine QTJ4-24 Hollow Concrete Block Machine Hydraulic Pressure for Business Paving Bricks

This product is currently out of stock and unavailable. SKU: Block Moulding Machine QTJ4-24 Hollow Conc-35644704 Category: Stationary block machine Description Additional information Table of ContentsDescriptionMachine frameDelivery deviceAdditional informationRelated productsQT4-15 Building Brick Making MachineQT8-15 Concrete Block Making Machine Cement Building Brick MachineQT4-15 Hydraulic Solid Block Making MachineQT4-15 Hydraulic Brick Making Machine ManufacturerDescription Products Description QTJ4-24 […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description
QTJ4-24 SEMI AUTOMATIC BLOCK MACHINE
QTJ4-24 type block forming machine is made up of machine frame. elevating system. vibrating system. mold . material storing device. delivering device and electronic controlling part.
QTJ4-24 together with JQ350 mixer and 6m belt conveyor. makes a simple production line.QTJ4-24 type block forming machine. belongs to small size. is in stationery style with platform vibration. It adopts combination of being mechanical and electronic to finish kinds of action. The operation and maintenance are both easy and dependable.

Machine frame

The frame is dragon gate style and it is made of super steel. carrying strong resistance
to vibration and being dependable. Four vertical shafts is wear-resisting. which can guarantee the accurate position for the mold
.
Sistema de elevación
El sistema de elevación está compuesto por motor en forma de cono.
reductor de velocidad. brazo elevador. manguito deslizante. pasador de suspensión. pasador de posición y demás.
Cuando funciona. el motor impulsa el reductor de velocidad a través de una correa triangular en V. por lo que el molde inferior .
Sistema de vibración
There are two parts in this vibrating system. lower platform vibration and upper platform
vibration. Lower platform vibration uses two high speed motors whose power is both 3kw to drive a vibration box with same
excitation force to vibrate vertically. Upper vibration uses an attached vibration device whose power is 1.5kw.
MOLDE
Molde compuesto por caja de molde y molde superior. El molde superior y la viga se ubican en el orificio mediante pasador de suspensión y pasador de equilibrio, lo que permite que el molde superior se separe suavemente de la caja de molde. El molde superior, la viga y el manguito deslizante están todos conectados con pernos.
Dispositivo de almacenamiento de materiales
It is made up of material releasing hopper and material storing hopper. Material releasing
hopper is fixed on the top of machine frame by bolts while material storing hopper is fixed below releasing hopper by bolts.

Delivery device

Delivery device is made up of cycloidal pin wheel speed reducer. chains. v-shape triangle belt. delivery wheel. self-conveying frame and so on. cycloidal pin wheel speed reducer drives v-shape triangle belt to move in cycle through delivery device.
Technical parameters
Dimensión General
3600mm×1700mm×2560mm
(working state)
Masa Total
1750kgs
Molding Type

Plataforma de Vibración{{ZKF_2}}{{ZKF_3}}Tamaño de Palé
850mm×450mm
Potencia Total
14.25KW
Molding
390mm×190mm×190mm 4 pcs/mold  240mm×115mm×53mm 21 pcs/mold
SUPPORT EQUIPMENT
QTJ4-26 block machine production line Basic Equipment- concrete mixer JQ350 pan mixer
It mix the raw materials for the blocks production. one of basic items for the production line.
QTJ4-26 block machine production line Basic Equipment- 6m belt conveyor
It transfer the raw material from mixer to the machine material hopper.
QTJ4-26 block machine production line Optional Equipment- Auto stacker
It stack the blocks layer by layer. one pallet at one time. 3-6layer according to the blocks height.
You can choose or not according to your requirement.
QTJ4-26 block machine production line Basic Equipment- Trolley
It is free as gift to our client. it is used for take the blocks layer by layer to the curing yard.
It is different if without stacker.
There are also other related equipment for the blocks production. like the block clamper. diesel generator. wheel loader. forklift. etc. You can choose or not according to your project. We can customize them for you.
