Description
Rapid dispatch stock — this QMY4-30 mobile block machine leaves our Linyi yard only after voltage, frequency, and plug configuration are confirmed against your site supply, so it does not sit idle on arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QMY4-30 |
| Product Type | Mobile Concrete Block Making Machine |
| Rated Power | 5 kW |
| Voltage & Frequency | Configurable to buyer’s site requirement (to be confirmed before dispatch) |
| Control System | Semi-automatic / manual control options (to be confirmed) |
| Overall Dimensions (L×W×H) | 1200 × 1200 × 1100 mm |
| Net Weight | 950 kg |
| Output Capacity | 480 pcs/h based on 400×200×200 mm hollow block, 4 pcs/mold |
| Output Capacity | 600 pcs/h based on 400×150×200 mm hollow block, 5 pcs/mold |
| Output Capacity | 840 pcs/h based on 400×100×200 mm hollow block, 7 pcs/mold |
| Daily Output (8-hour shift) | 3,840 pcs based on 400×200×200 mm hollow block |
| Daily Output (8-hour shift) | 4,800 pcs based on 400×150×200 mm hollow block |
| Daily Output (8-hour shift) | 6,720 pcs based on 400×100×200 mm hollow block |
| Cycle Time | 30 seconds |
| Mould Format | Hollow block and solid brick (standard sizes; custom mould available on request) |
| Automation Level | Semi-automatic / mobile egg-laying type |
| Raw Materials | Cement, sand, crushed stones, slag |
| Warranty | 5 years |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site hollow block production for housing projects | Crushed stone, sand, and cement mixed locally |
| Small-scale solid brick manufacturing for startups | Cement and sand blends |
| Remote construction site block supply | Slag, crushed stones, and cement |
| Temporary development site production | On-ground egg-laying without fixed plant or pallets |
Why Voltage Confirmation Must Precede the Dispatch Date
A mobile concrete block machine fast delivery is meaningless if the motor does not match the site supply.
I once watched a mobile egg-laying unit sit in a Nigerian yard for three weeks because the motor arrived wired for 380V/50Hz while the site ran 415V/60Hz — nobody had asked before loading. That delay wiped out every day the buyer thought they were saving by ordering a stocked machine. [NEED_CITE: voltage and frequency standards by export market] Every dispatch sheet for the QMY4-30 now carries a confirmed voltage stamp before the container doors close, so a mobile block machine in stock arrives ready to run rather than waiting for a rewinding shop to open on Monday morning.
Stock Availability and What It Actually Means

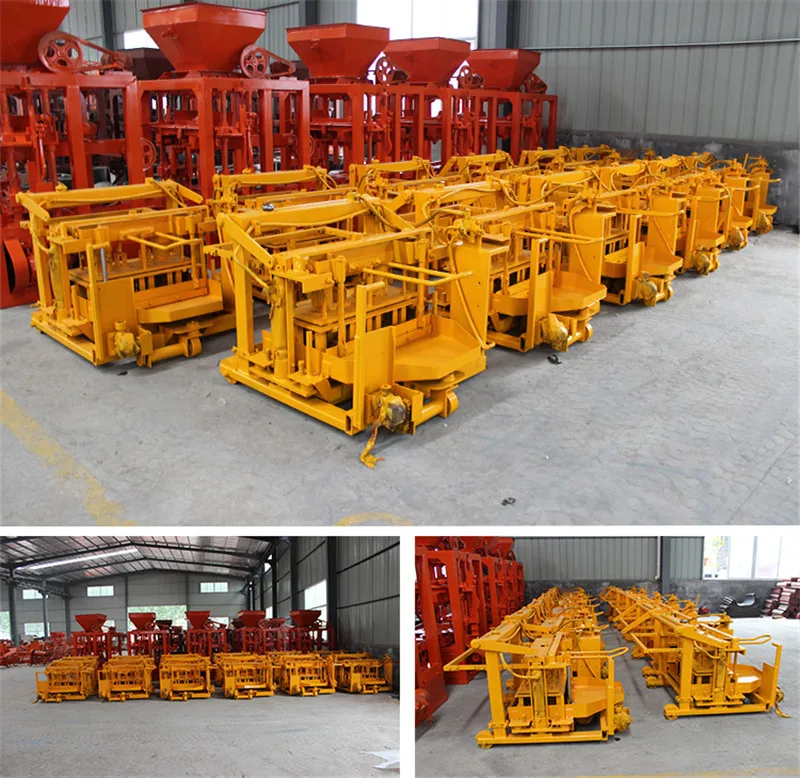

When we list the QMY4-30 as available, the machine is fully assembled, factory-tested, and standing in the yard — not scheduled for a production run. Buyers working against a construction milestone need this distinction because a mobile block machine in stock should ship within days of order confirmation, not weeks. Our dispatch lead time is quoted in writing alongside the packing plan so you can book freight with a real date rather than an estimate.
Container Loading and Arrival Timing
The QMY4-30 weighs 950 kg with an overall footprint of 1200 × 1200 × 1100 mm and a packing volume of roughly 3 m³, which means it fits cleanly into a shared container alongside additional moulds or spare parts. We provide a machine dismantling method for shipment and a loading diagram so the freight forwarder knows exactly what they are handling. Arrival estimates are quoted at inquiry based on your destination port, giving you a timeline to match against your project schedule. [NEED_CITE: typical ocean freight transit windows by destination region]
Reading the Specs Against Your Actual Block Format
The rated power of 5 kW drives a 30-second molding cycle across every block format this machine produces, but the hourly output shifts sharply depending on which mould is installed. With a 400×200×200 mm hollow block mould holding four cavities, you get 480 pieces per hour. Swap to a 400×100×200 mm mould with seven cavities and the same cycle delivers 840 pieces per hour. The difference matters because contractors who quote a job based on the highest number then find themselves short when the architect specifies a 200 mm wall block. Pallets are not required — the egg-laying design places blocks directly on a leveled ground surface, which eliminates pallet cost but demands a flat, prepared casting area.
What Happens When Dispatch Speed Overrides Configuration
Ordering a stocked unit purely on availability without confirming the control language or mould format leads to a machine that physically runs but cannot produce what your market actually buys. We have seen buyers receive a unit with a PLC display in a language none of their operators read, forcing a week of trial-and-error before the first usable block came off the ground. [NEED_CITE: common commissioning delays from unconfirmed control language] That kind of avoidable friction is why our pre-dispatch checklist now covers voltage, frequency, plug type, display language, and mould format — all confirmed before the machine moves toward the loading bay.
Why Sourcing the Mobile Block Machine Here Reduces Arrival Friction
Block machinery is our single focus, so the QMY4-30 ships as a matched system — machine, mould, and handling specified together rather than assembled from separate suppliers. The configuration is set against your local aggregate and target block format, not a catalogue default. Custom mould drawings are available if your market sells a size outside the standard hollow and solid range. We confirm automation level and voltage together so you can start semi-automatic and plan a future upgrade path. Installation support and operator training are included so the first production run happens with someone who has set up this class of machine before. [NEED_CITE: equipment commissioning best practices for mobile block production]
Documentation & Verification
- Factory test record run on your specified hollow block format before dispatch
- Machine specification sheet matching the confirmed voltage and control language
- Mould drawing and format list covering every cavity count in the quotation
- Packing photographs documenting the QMY4-30 condition before container loading
- Customs documentation support aligned to your destination port requirements
Installation, Commissioning & Support
- Leveled ground area of at least 10 × 10 m required for the 1200 × 1200 mm casting footprint
- Dedicated 5 kW circuit at the confirmed voltage and frequency for motor start-up
- Machine arrives partially assembled; final mould mounting completed on site
- First-cycle parameter setting for your local mix and aggregate completed during commissioning
- Operator training covering mould change procedure and daily maintenance schedule
- Wear parts list provided with recommended replacement intervals for hydraulic and mould components
What We Need to Confirm Before Quoting Dispatch
To give you an accurate arrival estimate and the correct dispatch configuration, share your target block format and daily output requirement, the voltage and frequency at your site, and the preferred PLC or manual display language. If you have an existing forklift or curing area layout, let us know so we can advise on stacking workflow around the egg-laying output.
Frequently Asked Questions
Q: Is the QMY4-30 currently in stock, and what is the dispatch lead time?
A: The QMY4-30 is held in stock as a fully assembled and factory-tested unit. Dispatch lead time depends on final voltage confirmation and mould selection, both of which are settled before the machine moves to the loading bay. We provide a written dispatch date alongside the quotation so you can arrange freight without guessing.
Q: How is the machine packed, and what container size is needed for shipment?
A: The QMY4-30 has a packing volume of approximately 3 m³ and a net weight of 950 kg, making it suitable for shared container loading alongside spare moulds or parts. A dismantling method for shipment and a loading diagram are provided so your freight forwarder can plan the load accurately.
Q: What is the estimated arrival time at my destination port?
A: Arrival timing is quoted at the inquiry stage based on your specific destination port and the current shipping schedule. We provide the estimate upfront so you can align the delivery window with your project milestones and contractor timelines.
Q: Can I order additional moulds in stock sizes with the same shipment?
A: Standard hollow block and solid brick moulds are available from stock and can be loaded in the same container as the QMY4-30. Custom moulds based on your drawings are also available with a lead time confirmed at the quotation stage.
Q: What voltage and plug configuration does the stocked unit carry?
A: The QMY4-30 voltage and frequency are not fixed until your site supply is confirmed. Once you provide the local voltage, frequency, and plug type, the motor wiring is adjusted or verified before dispatch so the machine connects directly on arrival.
