Description
Stock availability matched with format-specific capacity — We list exact output figures for each block dimension rather than quoting a single peak cycle number, so you know the QT6-15 will meet your plant schedule before it leaves our warehouse.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT6-15 |
| Product Type | Hydraulic Block Making Machine |
| Overall Dimension | 820017002950mm |
| Vibration Frequency | 0-60HZ |
| Vibration Form | Platform Vibration |
| Moulding Mode | Load automatically, vibration moulding |
| Pallet Size | 880*850mm |
| Molding Cycle | 15-20s |
| Overall Power | 37KW |
| Vibration Force | 45KN |
| Total Mass | 7T |
| Demolding Method | Hydraulic |
| Factory Area | 1200m2 |

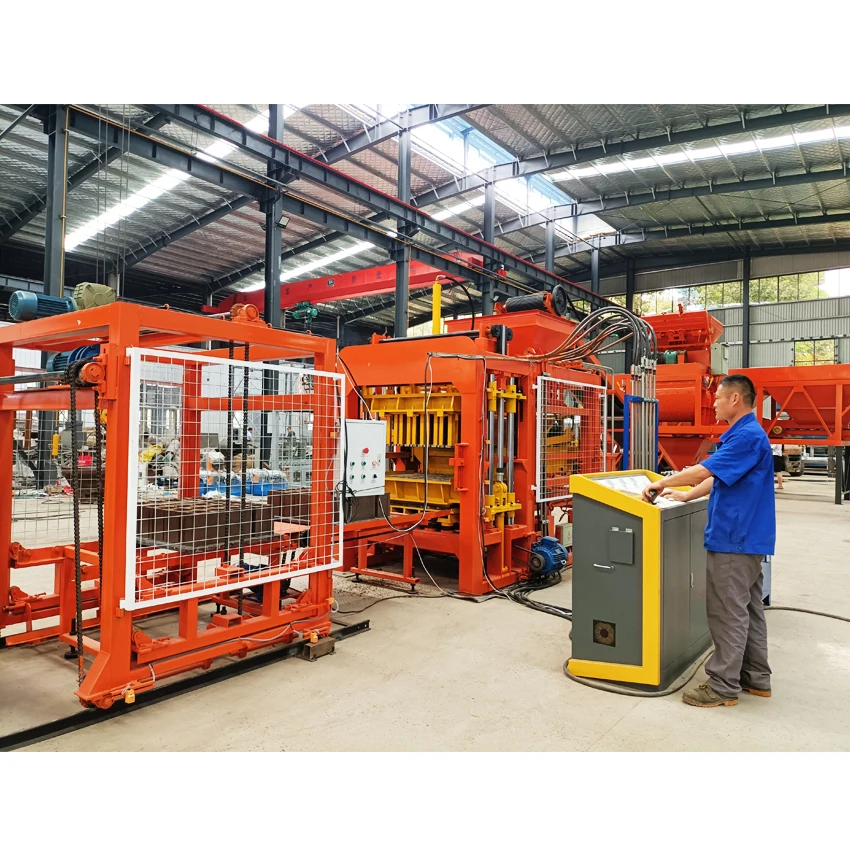

| Control System | PLC (Programmable Controller) with touch screen |
| Block Compressive Strength | More than 15 MPa |

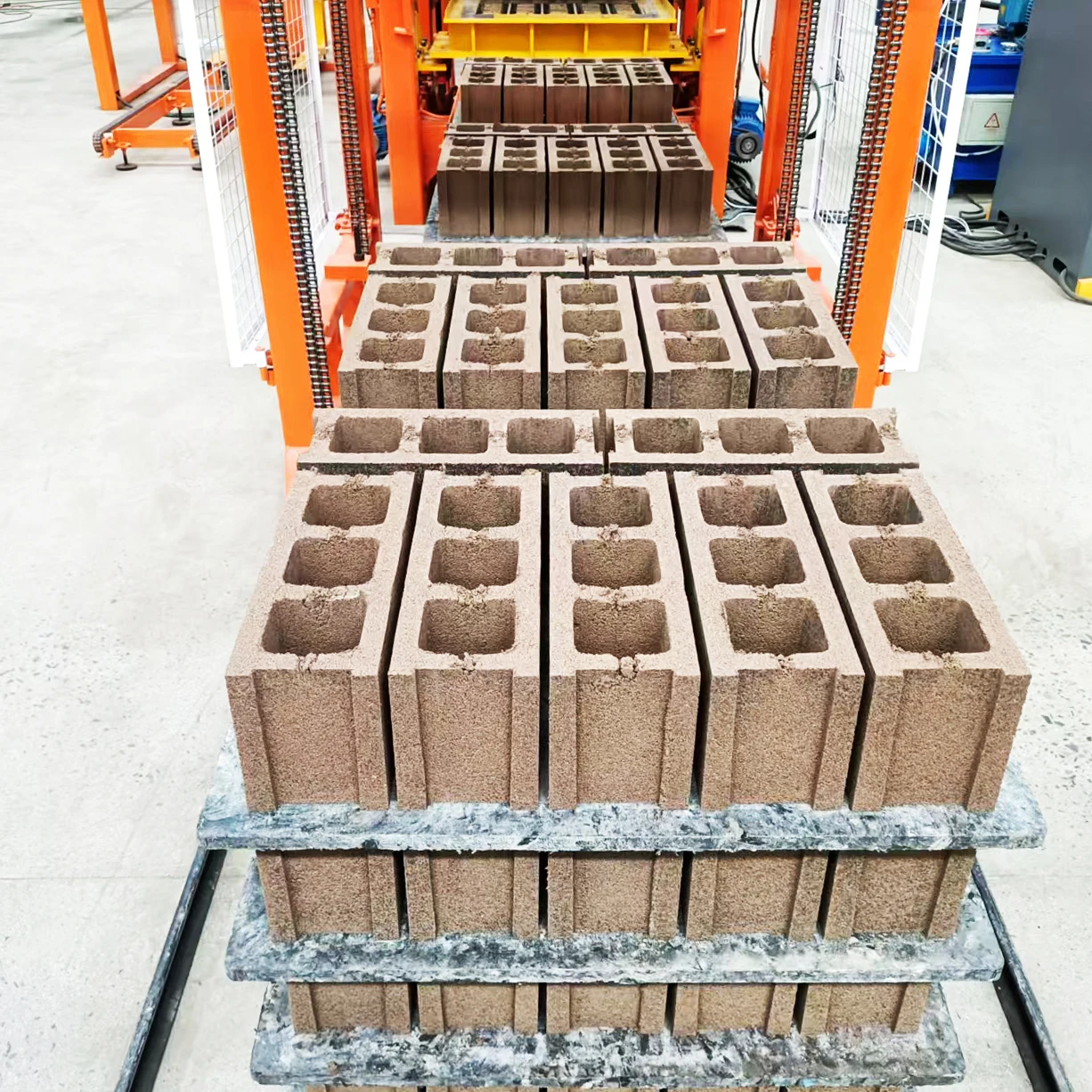

| Output Capacity | 1080-1440 pcs/hour (basis: 400x200x200mm hollow block) |
| Output Capacity | 1440-1920 pcs/hour (basis: 400x150x200mm hollow block) |
| Output Capacity | 5760-7680 pcs/hour (basis: 240x115x53mm solid brick) |
| Output Capacity | 2160-2880 pcs/hour (basis: 200x100x60mm rectangular brick, 20-25s cycle) |
| Output Capacity | 2160-2880 pcs/hour (basis: 225×112.5x60mm zigzag brick, 20-25s cycle) |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production | Crushed stone, cement, sand, fly ash |
| Solid brick production | Concrete mix, industrial slag |
| Paving brick production | Aggregate, pigment, cement binder |
| Rectangular brick production | Standard concrete, quarry dust |
| Zigzag interlocking brick | Cement-stabilized aggregate |
Why Voltage Verification Comes Before the Stock Promise
A QT6-15 block machine in stock is only ready if the electrical system matches your local grid.
I have watched containers arrive at port with the wrong frequency rating, forcing buyers to wait weeks for a replacement control panel while their curing area sits empty. The 37KW overall power draw on this machine requires a stable three-phase supply, and PLC logic built for 50Hz will trip protective relays on a 60Hz network. [NEED_CITE: industrial machinery voltage mismatch risks]
Ready Dispatch Without Electrical Surprises
Confirming frequency, voltage, and PLC display language takes less time than loading a container, and we complete it before the QT6-15 block machine in stock is crated. Every unit in our warehouse has been tested against specific parameter sheets so the touch screen speaks your operator’s language on day one.
Container Loading and Dismantling for Fast Arrival
The 7T total mass and 820017002950mm footprint require careful breakdown for standard shipping. We separate the hydraulic station, control cabinet, and host frame to fit a 40-foot container, then provide clear reassembly sequencing so the QT6-15 block machine in stock returns to full operating condition quickly after arrival. [NEED_CITE: heavy machinery container loading standards]
Vibration Force and Hydraulic Pressure Working Together
The 45KN vibration force combined with hydraulic demolding produces consistent density across the pallet surface. Platform vibration distributes energy evenly through the 880*850mm mould area, ensuring that whether you are pressing 400x200x200mm hollow blocks or 240x115x53mm solid bricks, the compressive strength holds above 15 MPa without excessive cement usage.
Pallet Size and Your Existing Curing Infrastructure
The 880*850mm pallet dimension was chosen to align with standard curing rack systems. If your forklift and curing area were sized for a different pallet format, daily handling slows down. We confirm your existing equipment compatibility before releasing any QT6-15 block machine in stock for shipment.
The Cost of Skipping Format-Specific Capacity Checks
Suppliers who quote peak cycles per hour without naming the block format leave buyers discovering their actual daily output falls short during the first production week. [NEED_CITE: block plant output expectation versus reality] A machine rated at 15-second cycles for solid bricks may need 25 seconds for interlocking pavers, cutting realistic throughput by a significant margin and delaying project deadlines that cannot slip.
Why Buyers Choose This Warehouse Source
We keep QT6-15 machines in stock because construction deadlines do not wait for factory build slots. Our dispatch lead time is quoted in days, not months, and container loading plans are finalized before payment clears. Every unit ships with factory test records showing actual mould performance on your specified block format, packing photographs documenting condition at departure, and complete electrical schematics matching your confirmed voltage and frequency.
Documentation & Verification
- Factory test record showing actual cycle time on your specified block format
- Machine specification sheet confirming voltage, frequency, and PLC display language
- Hydraulic and electrical schematic matching as-built configuration
- Packing photographs documenting machine condition before container loading
- Dispatch schedule with container loading plan quoted at order confirmation
Installation, Commissioning & Support
- Foundation requirements based on 820017002950mm footprint and 7T operating mass
- Dedicated power circuit sized for 37KW overall power draw
- Reassembly guidance after transport dismantling
- PLC touch screen parameter setup for local block format
- Mould change procedure training for format flexibility
- Hydraulic system commissioning and pressure calibration
What We Need to Confirm Your Dispatch
Share your target block dimensions and daily output requirement so we can match the correct mould set and verify realistic throughput from stock. We also need your local voltage, frequency, and preferred PLC display language to finalize electrical configuration before crating. Let us know if pallets and raw material feeding equipment should be included in the same container load.
Frequently Asked Questions
Q: What is the actual dispatch lead time for QT6-15 from stock?
A: Units currently in our warehouse can be prepared for container loading within several working days after electrical parameters are confirmed. We provide a specific dispatch date at quotation stage, not a vague production window, so your project timeline stays on track.
Q: Which block formats are included in the standard mould package?
A: The QT6-15 supports hollow blocks, solid bricks, rectangular pavers, and zigzag interlocking bricks. We confirm which moulds ship with the machine based on your market requirements, and custom mould designs are available if your project needs a non-standard format.
Q: How is the machine dismantled and loaded for container shipment?
A: We separate the hydraulic station, control cabinet, and main frame to fit standard 40-foot containers. Packing photographs show the dismantling configuration before departure, and reassembly documentation travels with the shipment.
Q: What voltage and PLC display language options are available?
A: We configure the electrical system to match your local three-phase supply and set the PLC touch screen to your operator’s language before dispatch. This verification step is completed before the machine is crated, not after arrival.
Q: Are pallets and supporting handling equipment included in the quotation?
A: We clarify upfront whether pallets, raw material feeders, and stacking equipment are part of your order. The 880*850mm pallet size must match your curing rack system, so we confirm compatibility before loading the container.
