Description
Matched Dispatch Windows — Every QT8-15 block machine in stock leaves our Linyi yard with a confirmed container loading date and arrival estimate matched to the buyer’s project milestone.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT8-15 |
| Product Type | Full Automatic Hydraulic Block Making Machine |
| Overall Dimension | 8300 × 1860 × 3000 mm |
| Rated Pressure | 21 MPa |
| Main Vibration Form | Platform Vibration |
| Vibration Frequency | 2800–4500 r/min |
| Pallet Size | 950 × 900 mm |
| Molding Cycle | 15–20 s |
| Overall Power | 55.5 kW |
| Vibration Force | 45 KN |
| Total Mass | 8 T |
| Demolding Method | Hydraulic |
| Factory Area | 300 m² |
| Applied Products | Concrete blocks, hollow/solid blocks, pavers, interlocking blocks, curbstone, colored pavers |
| Raw Material | Crushed stone, sand, cement, dust, fly ash, gravel, slag |
| Output Capacity | (basis to be confirmed — depends on block format, mix design and material) |
Application Suitability
| Application | Material or Output |
|---|---|

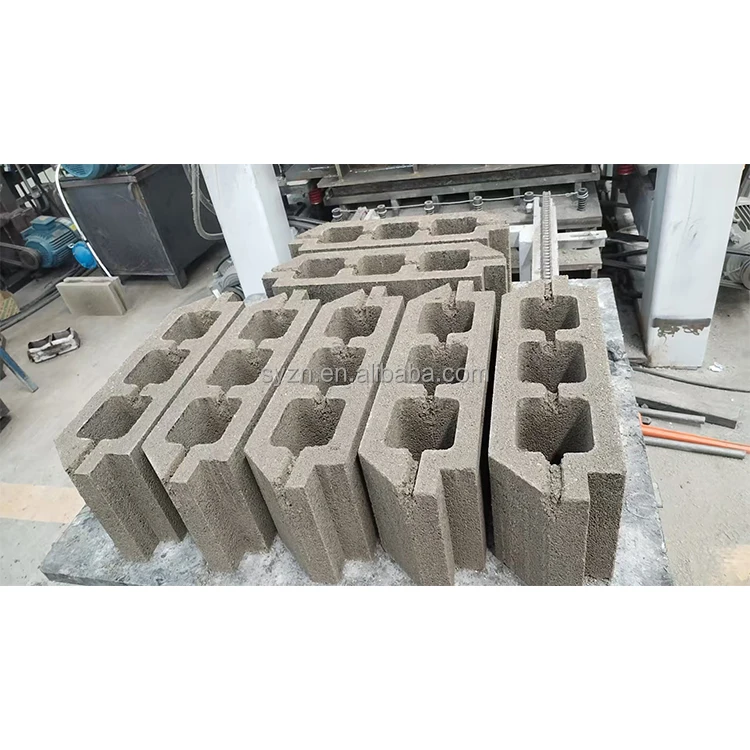

| Hollow block production for housing projects | Crushed stone, sand, cement, fly ash |
| Solid block manufacturing for load-bearing walls | Gravel, sand, cement blends |

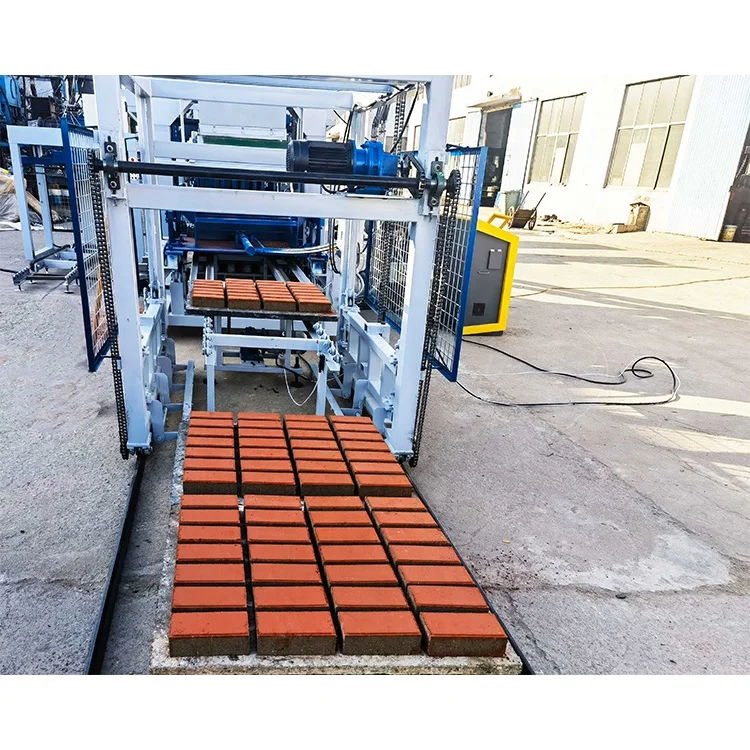

| Paving block and colored paver runs | Fine aggregate, cement, pigment additives |
| Interlocking block and curbstone production | Slag, dust, cement combinations |
| On-site block production for construction contractors | Locally sourced sand and crushed stone |
What "Molding Cycle 15–20 Seconds" Actually Means on Your Site
The cycle time printed on the spec sheet assumes a standard block format and a clean, well-graded aggregate — your local material may tell a different story.
When I first started shipping QT8-15 units overseas, buyers would see the 15–20 second molding cycle and assume every format ran at that pace. In reality, a tall hollow block with thin webs needs a longer vibration window than a solid paver, and aggregate with high clay content slows compaction noticeably. I have watched a buyer in West Africa lose an entire week of production because the sand arriving at their site contained far more fines than the samples we tested with. That is why the QT8-15 block machine in stock here ships only after we confirm your actual raw material behavior. [NEED_CITE: effect of aggregate fines on concrete block compaction cycle]
Container Loading and Dispatch Timing for the QT8-15

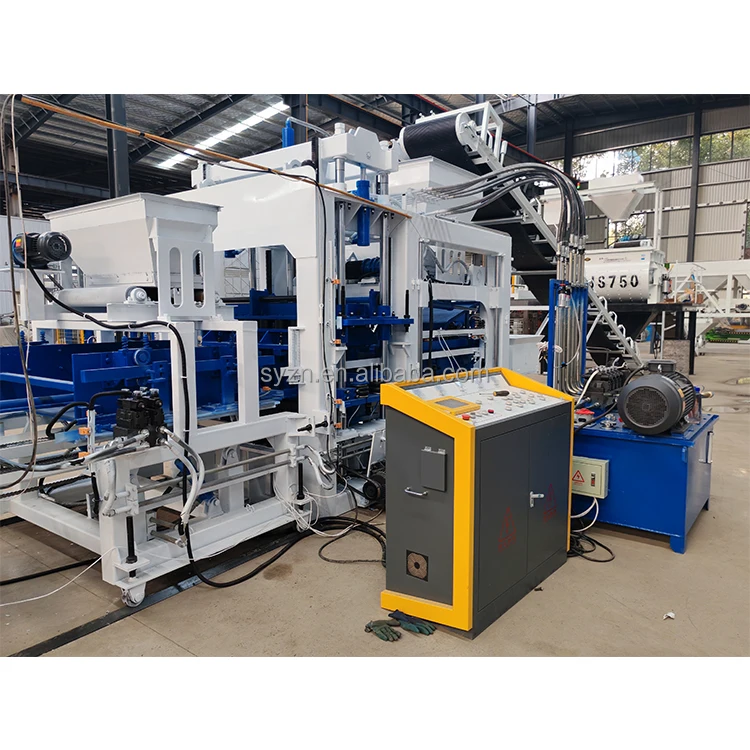

Stocked QT8-15 models with standard moulds sit in our Linyi yard ready for dismantling and container loading. When a buyer confirms an order against available inventory, we quote the dispatch lead time and port loading date at that moment — not weeks later after production scheduling. The QT8-15 block machine in stock is broken down into main frame, hydraulic station, vibration platform, and control cabinet for 40HQ container loading, and every dismantling step is documented so reassembly on your site follows a clear sequence.
Arrival Estimates Quoted Before You Commit
Project deadlines do not wait for shipping delays. For every QT8-15 block machine in stock, we provide an arrival estimate based on your destination port at the inquiry stage, covering inland transport to Qingdao or Lianyungang, ocean transit, and typical customs clearance windows. This lets construction contractors and housing project teams map machine arrival against their building schedule. Buyers working to a fixed completion date need this visibility before they commit, not after the container is already on the water. [NEED_CITE: typical ocean freight transit times from Chinese ports to major African and Southeast Asian destinations]
How Vibration Force and Hydraulic Pressure Shape Block Density
The QT8-15 delivers 45 KN of vibration force through platform vibration at 2800–4500 r/min, paired with 21 MPa hydraulic pressure during the compression stroke. These two forces work together: vibration settles the mix into the mould cavity while hydraulic pressure compresses it from above. If the vibration frequency is set too high for a coarse gravel mix, the aggregate segregates and block strength drops at the edges. If hydraulic pressure is applied before vibration has fully settled the material, voids remain trapped inside. The 950 × 900 mm pallet size means each cycle produces a full pallet of blocks, and the hydraulic demolding system releases them without manual prying, which protects block edges during the green stage.
The Cost of Skipping the Material Sample Step
Some buyers order a block machine based on catalogue cycle times and discover weeks later that their local sand requires a longer molding cycle, cutting daily output well below what they planned for. The QT8-15 block machine in stock can run across the 15–20 second range, but only if the mix design matches the vibration and pressure settings. When the material does not match, the operator ends up extending cycle times manually, which creates a bottleneck: the pallet feeder and stacking system are timed to a faster cycle, so the entire line stalls waiting for the press. I have seen this pattern repeat on sites where the buyer never sent a raw material sample before ordering. [NEED_CITE: common causes of concrete block machine throughput loss in field conditions]
Why Buyers Source This Machine Through Our Stock Program
Our Linyi facility focuses exclusively on block making machinery, so the QT8-15 press, moulds, pallets, and handling equipment are specified as one matched system rather than assembled from separate suppliers. Stocked units carry standard moulds that are ready to dispatch, and we confirm pallet size against the curing racks and forklifts you already have on site. Every QT8-15 block machine in stock ships with voltage and control language confirmed for your destination market, so commissioning is not delayed by electrical mismatches. Our sales process ties machine configuration to your actual block format and daily target, not a generic catalogue default, and installation support includes operator training on your specific mould set.
Documentation & Verification
- Factory test record run on your specified block format before dispatch
- Machine specification sheet with confirmed pallet size and voltage
- Mould drawing and format list for every standard mould included
- Hydraulic and electrical schematic matching the shipped configuration
- Packing photographs documenting dismantling and container loading state
Installation, Commissioning & Support
- Foundation pad sized to the 8300 × 1860 mm footprint with vibration isolation
- Dedicated power circuit rated for the 55.5 kW total load at confirmed voltage
- Dismantling sequence documented so reassembly follows a verified order
- Vibration frequency and hydraulic pressure tuned to your tested mix sample
- Operator training covering mould change procedure and daily maintenance checks
- Wear parts list provided with recommended replacement intervals
What We Need to Move Your Order Forward
Send us your target block format with dimensions, the daily output you need to hit your project schedule, and a sample of the sand or crushed stone you plan to use locally. Let us know your site voltage and frequency so the control cabinet is wired correctly before it leaves our yard. If you have existing curing racks or forklifts, share the pallet dimensions they accept so we match the 950 × 900 mm specification or adjust accordingly.
Frequently Asked Questions
Q: Which QT8-15 models and standard moulds are currently in stock?
A: Our Linyi yard maintains stocked QT8-15 units configured for hollow block, solid block, and paver production with standard moulds ready for immediate dismantling and container loading. Specific mould availability changes as orders ship, so we confirm the exact models and mould formats available at the time of your inquiry against your target block dimensions.
Q: What is the dispatch lead time from order confirmation to port loading?
A: For stocked QT8-15 machines with standard moulds, dispatch lead time covers final factory inspection, dismantling, container loading, and inland transport to the departure port. We quote this timeline at order confirmation based on current yard status and shipping schedules, giving you a firm loading date to plan around rather than an open-ended estimate.
Q: How is the machine dismantled and loaded into a 40HQ container?
A: The QT8-15 is broken into main frame, vibration platform, hydraulic station, control cabinet, and mould assemblies for container loading. Each component is secured with transport bracing, and the full dismantling sequence is photographed and documented so your site team can follow the reverse order during reassembly without guessing.
Q: Can I get an arrival estimate for my destination port before ordering?
A: Yes. At the inquiry stage we provide an arrival estimate covering inland transport, ocean transit to your named port, and typical clearance timelines. This estimate is based on current shipping schedules and your destination, letting you map machine arrival against your project milestone before you place the order.
Q: What is the warranty period and how are spare parts shipped if needed after arrival?
A: The QT8-15 ships with a warranty covering manufacturing defects, and a full wear parts and mould list is included in the documentation package. If replacement hydraulic seals, vibration springs, or mould inserts are needed after arrival, we arrange international courier shipment from our Linyi facility against your parts order with lead time quoted at request.
