Description

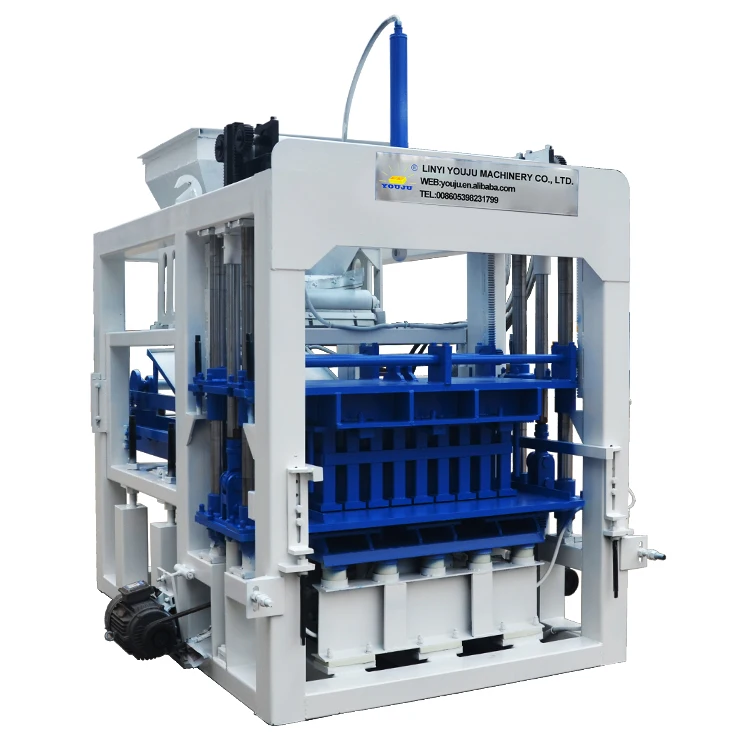

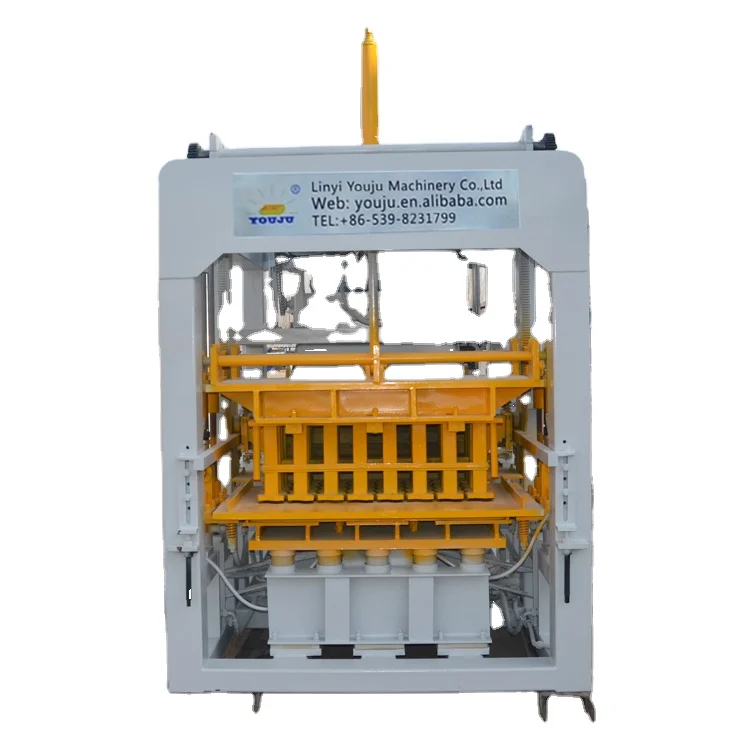

Ready Stock Mid-Tier Press — QT5-15 units are crated with voltage, panel language, and standard moulds confirmed before dispatch, eliminating site delays upon arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT5-15 |
| Product Type | Stationary Concrete Block Making Machine |
| Overall Dimensions (L×W×H) | 7400×1950×2800 mm |
| Weight | 6,000 kg |
| Rated Pressure | 21 MPa |
| Main Vibration Form | Hydraulic platform vibration |
| Vibrating Frequency | 2800–4500 rolls/minute |
| Cycle Time | 15–20 seconds |
| Pallet Size | 1100×550 mm |
| Motors Power | 26.5 kW |
| Voltage | Configurable to buyer requirement |
| Control System | PLC controlled with fault diagnosis system |
| Automation Level | Full automatic |
| Output Capacity (240×115×90 mm brick, 16 pcs/mould) | 23,040–28,800 pcs/8h |
| Output Capacity (400×115×53 mm brick, 32 pcs/mould) | 61,440–70,400 pcs/8h |
| Output Capacity (400×200×200 mm block, 5 pcs/mould) | 7,200–9,600 pcs/8h |
| Warranty | One year guarantee for the whole machine |
| Standards | CE referenced in documentation |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production for building contractors | Crushed stone, sand, cement, water — standard aggregate blends |
| Solid brick manufacturing for housing projects | Local river sand and cement at varying ratios |
| Paving brick production for infrastructure works | Fine aggregate with colour pigment where required |
| Multicellular brick runs for partition walls | Lightweight aggregate or pumice blends |
| Fixed-plant block manufacturing | Continuous daily runs in mid-tier output range |
What "Stock Availability" Actually Means for Your Project Deadline
A stocked stationary block machine in stock is only useful if it is configured for your site before crating.
Buyers often see "ready to ship" and assume the machine will run on day one. In my time installing block presses across West Africa, I watched a crew stand idle for three weeks because the motor was wired for 380V and the site supply was 415V. The contractor paid penalties while a transformer was sourced locally. When you evaluate a fast delivery QT5-15, the real question is whether voltage, frequency, and PLC display language are locked to your destination before the unit leaves the yard. [NEED_CITE: common causes of commissioning delays in exported industrial machinery]
Dispatch Lead Time and What Ships Together
A stocked unit reduces the typical multi-week production wait to a matter of container scheduling. The QT5-15 ships with its standard moulds and hydraulic platform vibration system assembled, while the pallet feeder and frame sections are dismantled to fit a standard container footprint. Confirming which standard moulds are on the shelf at the time of order determines whether your hollow block or paving brick format ships in the same container or follows later.
Container Loading and Arrival Estimation

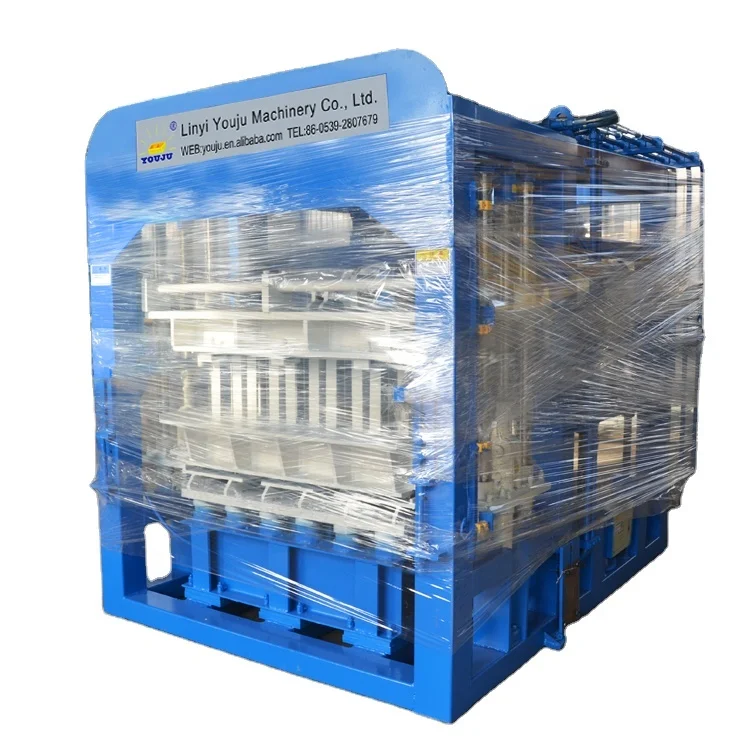

The QT5-15 weighs six tonnes and fits within standard open-top or flat-rack loading plans once the upper frame and hopper are separated. We provide a machine dismantling plan and packing photographs before crating, so your freight forwarder can confirm the container type. Arrival estimates depend on destination port, but quoting this upfront removes the guesswork from project scheduling. [NEED_CITE: container loading practices for heavy industrial block presses]
Reading the QT5-15 Specification Sheet for Real Output
The hydraulic platform vibration combined with 21 MPa rated pressure produces the densification that gives blocks their compressive strength. Vibration frequency ranges from 2800 to 4500 rolls per minute — the lower end suits heavier aggregate blends while the higher end works with finer sand mixes. The 1100×550 mm pallet size should be checked against your existing curing racks and forklift tine width before confirming the order.
Cycle time sits at 15 to 20 seconds per press, and the output figures vary by format: 23,040 to 28,800 standard bricks per eight-hour shift (based on 240×115×90 mm at 16 pieces per mould), and 7,200 to 9,600 hollow blocks per eight-hour shift (based on 400×200×200 mm at 5 pieces per mould). The PLC control with fault diagnosis reduces operator intervention during continuous runs, which matters when your shift crew is small.
What Happens When Arrival Details Are Overlooked
A machine sitting at the port because customs documentation was incomplete costs demurrage fees that erase any advantage of a fast dispatch. Voltage mismatches discovered at first power-up can damage motors before anyone understands what went wrong. I have seen buyers assume the panel interface would be in their language only to find the PLC displaying in one they could not read, adding days of operator confusion before production stabilised. [NEED_CITE: CE machinery directive documentation requirements for export]
Why Buyers Source This Machine Through a Stocked Inventory
Every unit undergoes a factory test before crating, with results documented so you can verify pressure and cycle performance against the specification. Voltage, frequency, and control panel language are confirmed in writing before the QT5-15 enters the container. The one-year machine warranty covers the full unit rather than selected components. Moulds are matched to the block format your market actually sells, and standard moulds from stock ship with the press rather than following in a separate consignment. Customs documentation is prepared to match your destination country’s import requirements, reducing the chance of port delays.
Documentation & Verification
- Factory test record confirming 21 MPa pressure and cycle time before crating
- Voltage and frequency confirmation sheet matched to your destination grid
- PLC language confirmation included in the control system documentation pack
- Machine specification sheet with pallet size and power requirements stated
- Customs documentation prepared for your destination import requirements
- Packing photographs provided before container sealing
Installation, Commissioning & Support
- 7400×1950 mm footprint requires a level concrete pad with anchor bolt preparation
- 26.5 kW motor load requires a dedicated circuit matching your confirmed voltage
- Machine ships dismantled; reassembly covers frame, hopper, and hydraulic connections
- First power-up supervised to verify PLC fault diagnosis and vibration frequency range
- Operator training covers mould change sequence and pallet feeding operation
- Wear parts list provided with hydraulic component replacement intervals
Requesting a Dispatch Quote
Provide your destination port, local voltage and frequency, and the block format you intend to produce first. Confirm whether you need the PLC display in a specific language. Let us know your project start date so the container loading schedule can be matched to your timeline.
Frequently Asked Questions
Q: What QT5-15 machines and standard moulds are currently in stock?
A: Stock levels change with each dispatch. Request a current inventory list specifying which standard mould formats are available alongside the QT5-15 press. Confirming the mould you need at the time of order determines whether everything ships in a single container or whether additional formats follow separately.
Q: What is the dispatch lead time from order confirmation to container loading?
A: Once voltage, frequency, and control language are confirmed in writing, a stocked unit moves to dismantling and crating. Container loading is scheduled with your freight forwarder. The timeline from order confirmation to gate-out is quoted at the time of inquiry based on current stock status.
Q: What arrival estimate can I expect at my destination port?
A: Arrival timing depends on the shipping route and destination port. We provide an estimated transit window at the quotation stage so you can plan site preparation and crew mobilisation around a known arrival date rather than a guess.
Q: Is voltage configuration available for my market and confirmed before shipment?
A: The QT5-15 voltage is configurable to your site supply. Before crating, we confirm the exact voltage and frequency in writing. I have seen what happens when this step is skipped — motors fail and crews stand idle — so this confirmation is mandatory before any unit leaves.
Q: What customs documentation support is included with the shipment?
A: Documentation is prepared to match the import requirements of your destination country. This includes the CE declaration where applicable, packing list, commercial invoice, and any additional forms your customs broker requires. Packing photographs are shared before container sealing for your records.
