Description
Stock and delivery focus — QT8-15 models staged for container loading with dismantling plans, packing photographs, and customs paperwork prepared before dispatch so project deadlines stay intact.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT8-15 |
| Product Type | Hydraulic Concrete Block Making Machine |
| Overall Dimensions (L×W×H) | 8300×1860×3000 mm |
| Rated Pressure | 21 MPa |
| Vibration Form | Platform Vibration |
| Vibration Frequency | 2800–4500 r/min |
| Vibration Force | 45 kN |
| Pallet Size | 950×900 mm |
| Molding Cycle | 15–20 s (basis to be confirmed) |
| Overall Power | 55.5 kW |
| Total Mass | 8 T |
| Demolding Method | Hydraulic |
| Factory Area Requirement | 300 m² |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|

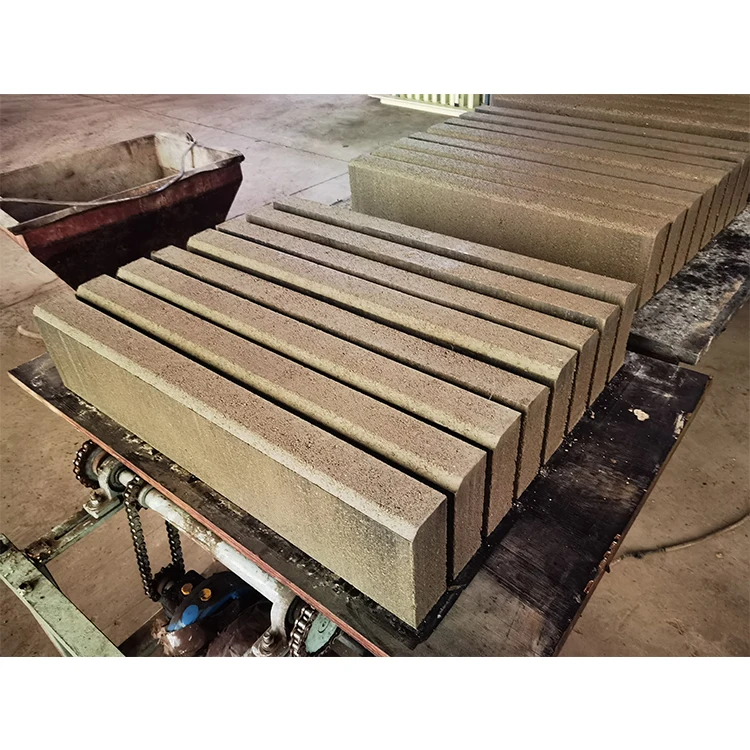

| Hollow block production for building walls | Crushed stone, sand, cement, fly ash |
| Solid block manufacturing for load-bearing structures | Gravel, sand, cement blend |
| Paving block and colored paver runs for walkways and yards | Cement, dust, fine aggregate |
| Interlocking block and curbstone forming | Slag, crushed stone, cement |
Why Voltage Confirmation Must Come Before Dispatch
We verify every QT8-15 electrical parameter against the destination site before it leaves the factory floor.
I once shipped a hydraulic block machine to West Africa without confirming the local voltage standard. The customer waited three weeks for an on-site transformer retrofit while their construction crew stood idle. That delay cost them more than the machine itself. Now every QT8-15 block machine in stock goes through a dedicated electrical check — voltage, frequency, and PLC display language — before the container doors close [NEED_CITE: voltage and frequency standards by export market].
Container Loading and Dismantling for Transit

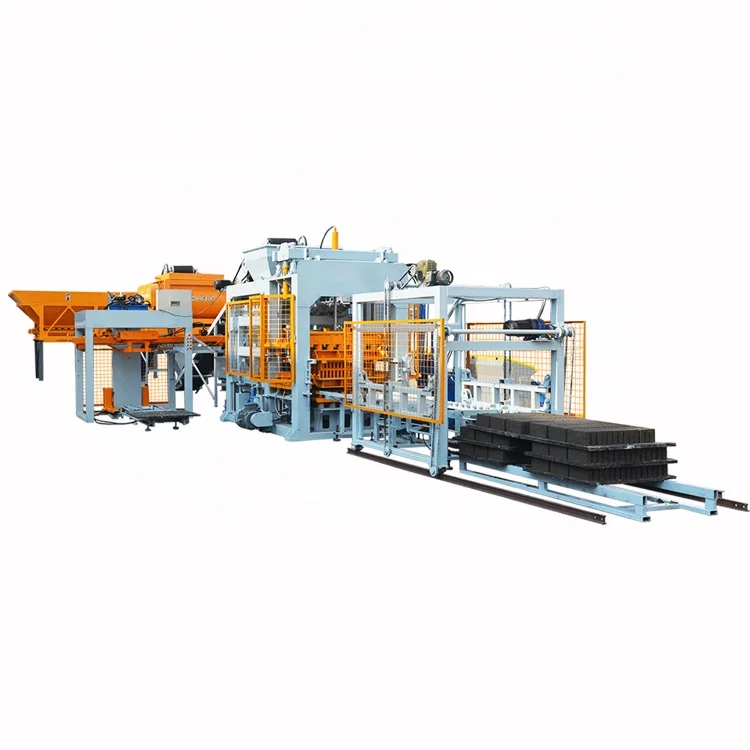

The QT8-15 hydraulic concrete block making machine is dismantled into major assemblies for 40HQ container loading. The hydraulic station, vibration platform, and control cabinet are separated and secured with timber bracing. We provide dismantling photographs and a reassembly sequence so your crew can reconstruct the machine on arrival without guesswork. This preparation is what makes fast delivery of the QT8-15 block machine in stock realistic rather than just a claim.
Dispatch Lead Time and Arrival Estimates
Stock availability is confirmed at inquiry stage, not after deposit. When a QT8-15 block machine in stock is reserved, we provide an estimated dispatch window and a port-to-port transit estimate so you can align foundation work and raw material delivery. Container booking is coordinated with the shipping line to avoid rollover delays [NEED_CITE: typical ocean freight transit times from Qingdao to major African and Southeast Asian ports].
Reading the Specs That Actually Matter on Site
Platform vibration at 45 kN paired with 21 MPa hydraulic pressure determines the density and compressive strength of each block — under-vibrate and hollow blocks crack during curing, over-press and the mould wears prematurely. The 950×900 mm pallet size must match the curing racks and forklift tines already at your site; ordering a mismatched pallet dimension means replacing your entire curing infrastructure. A 15–20 s molding cycle applies to standard hollow block formats, but thicker pavers or interlocking blocks will extend that timing. Total power draw of 55.5 kW requires a dedicated supply circuit — confirm your site transformer capacity before the machine arrives.
What Happens When Stock Machines Ship Without Site Verification
Buyers who prioritize speed over confirmation often receive a machine that cannot run on local power. The QT8-15 block machine in stock still requires voltage matching, control language setup, and pallet compatibility checks. Skipping these steps means your machine sits on the foundation while an electrician sources a step-down transformer and your block orders go unfilled [NEED_CITE: common commissioning delays in exported concrete machinery].
Why Sourcing From This Stock Pool Works
Block machinery is our single focus, so the QT8-15 is specified as a matched system — machine, mould, pallet, and handling — not assembled from unrelated suppliers. Configuration is set against your actual mix design and target block format rather than a catalogue default. Voltage and control language are confirmed pre-shipment, not discovered on arrival. Moulds and hydraulic wear parts are listed and available when your first replacement falls due. Factory test records document performance on your chosen block format before the machine is dismantled for loading.
Documentation & Verification
- Factory test record on your target block format before container loading
- Voltage, frequency, and PLC language confirmation sheet signed pre-dispatch
- Container loading plan with dismantling photographs for on-site reassembly
- Packing photographs and customs documentation package for port clearance
- Operation and maintenance manual with wear parts and mould replacement list
Installation, Commissioning & Support
- 300 m² factory area with level concrete foundation required before QT8-15 arrival
- 55.5 kW total power draw demands a dedicated three-phase circuit at confirmed voltage
- Machine dismantled into major assemblies for 40HQ loading, reassembled on site
- Hydraulic station and vibration platform calibrated to your block format during commissioning
- Operator training covers mould change procedure and daily maintenance intervals
- Wear parts list and mould inventory provided for first-year replacement planning
What We Need to Move Fast on Your Order
Tell us which block format you produce most — hollow, solid, paver, or interlocking — and the daily volume your project demands. Confirm your site voltage, frequency, and the language your operators need on the PLC display. Let us know the pallet size and curing rack layout you already have so the QT8-15 block machine in stock is configured to fit your existing setup, not the other way around.
Frequently Asked Questions
Q: Is the QT8-15 currently in stock and what is the fastest dispatch timeline?
A: Stock status is confirmed at the inquiry stage with specific units identified by serial number. Once your voltage and control language are verified, the machine is dismantled, photographed, and loaded into a 40HQ container. Dispatch typically follows within a short window after confirmation, depending on container availability at the port.
Q: How is the machine loaded into a 40HQ container and what dismantling is involved?
A: The QT8-15 is separated into the hydraulic station, vibration platform, mould assembly, and control cabinet. Each component is secured with timber bracing inside the container. Dismantling photographs and a reassembly guide are provided so your team can reconstruct the machine without external support.
Q: What is the estimated arrival time from order confirmation to my port?
A: Transit time depends on the destination port and current shipping line schedules. We provide a port-to-port estimate at the quotation stage based on confirmed sailing dates. Container booking is arranged immediately after dispatch to minimize waiting at the origin terminal.
Q: Are voltage and control language pre-confirmed before shipment?
A: Yes. Voltage, frequency, and PLC display language are verified against your site requirements before the machine is loaded. This step prevents the on-site electrical failures that cause weeks of commissioning delay.
Q: What customs documentation is provided to clear import quickly?
A: We supply a complete documentation package including commercial invoice, packing list, bill of lading, factory test record, and any certificates required by your destination port. Packing photographs are included to support visual inspection at customs.
