Shandong Shiyue Intelligent Machinery
Fully Automatic LY5-10 Hydraulic Interlocking Clay Brick Making Machine Lowest Price
In Stock · Ready to Ship
CE
Certified
ISO
9001:2015
108+
Countries
Clay interlocking brick

Fully Automatic LY5-10 Hydraulic Interlocking Clay Brick Making Machine Lowest Price

This product is currently out of stock and unavailable. SKU: Fully Automatic LY5-10 Hydraulic Interlock-35654654 Category: Clay interlocking brick Description Additional information Description Products Description LY5-10 Automatic Interlocking Clay Brick Making MachineAssembly of machines1、Put together the brick making machine in the style of the above picture.2、Connect the main circuit to the electric box according to […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description

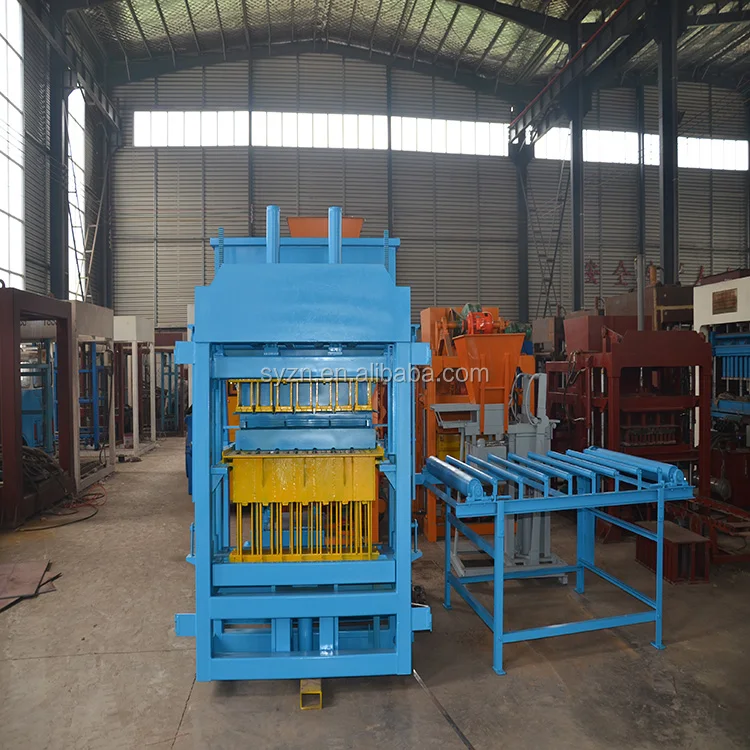

LY5-10 Automatic Interlocking Clay Brick Making Machine
Assembly of machines1、Put together the brick making machine in the style of the above picture.2、Connect the main circuit to the electric box according to the wiring diagram.3、Connect the crusher. screen. mixer. conveyor to the small control box.
Advantage:
* 1. PLC controlled.which can be easily operated by only one person
* 2.One or Two brick(according to the mold) would be made in less than 10 seconds.
* 3.By adjusting the screws.brick height can be changed.
* 4. Mould can be changed according to customer’s requirements.
* 5.High productivity.
* 6.Hydraulic to guarantee the brick's density and strength.
* 7. 14400pcs bricks a day.
Machine
LY5-10 Clay Brick Machine with PLC
Dimension
2260x1500x2380MM
Total Mass
2200 kgs
Power
15KW
Molding Cycle
10 s
Related Equipment
JQ500 Concrete Mixer. 6M Conveyor Belt. Soil Crusher. Soil Screening machine.Belt Conveyor 4m. Output conveyor
Raw Material
Clay.soil .cement or other construction dregs

Preparation before commissioning

1. add lubricating oil to each friction part2. add 70L anti-wear hydraulic oil to the hydraulic tank3. add the 15KG oil to the gearbox of mixer4.open the power control switch inside the electric box

Automatic Brick Making Machine Handling Precautions

1. First start the mixer. and then add raw materials to the mixer. first mix the clay and cement fully. then add water. water do not add too much. the state of the raw material is very scattered. grab a group with hands 2. In the process of running the machine. in case of emergency. press the Urgent stop button to stop the work of the brick making machine3. Clean up the unnecessary materials on the machine every day before work4. The hydraulic oil should be filtered or replaced according to the actual situation for 3-5 months5. Always check the fasteners and lubrication parts. do a good job of maintenance
Blocks Samples
loading and delivery
FAQ
Company Profile
Recommend Products

Buy with Confidence

From inquiry to commissioning -- 4 transparent steps

  1. 01

    Technical Consultation

    Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.

  2. 02

    Custom Solution Design

    3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.

  3. 03

    Production & Inspection

    Weekly progress photos, video reports, and virtual or on-site factory inspection.

  4. 04

    Installation & Lifetime Support

    On-site commissioning, operator training, spare parts supply and remote diagnostics.

Get a Quote

Talk to a senior engineer about Fully Automatic LY5-10 Hydraulic Interlocking Clay Brick Making Machine Lowest Price

Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.

Send Project Brief

By submitting, you agree to be contacted by Shandong Shiyue. We respect your privacy.

More Solutions

Related Products

View All Products →

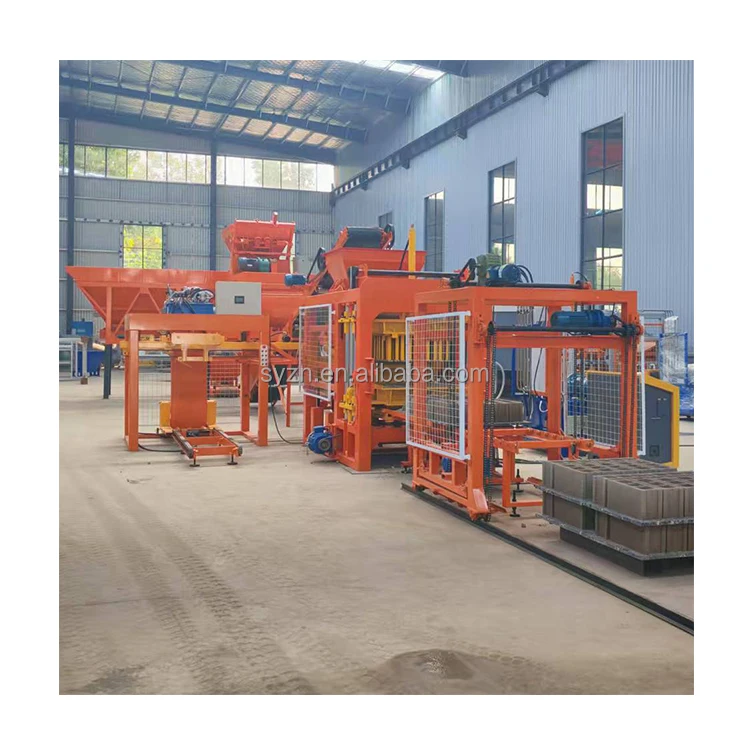

QT6-15 Automatic Brick Machine Brick Factory Brick Maker Machine
