Manufacturer Eco 2700 Plus Mini Hollow Paving Block Making Machine Clay Brick Engine Easy Operation Low Investment 1 Year

This product is currently out of stock and unavailable. SKU: Manufacturer Eco 2700 Plus Mini Hollow Pav-35654663 Category: Clay interlocking brick Description Additional information Table of ContentsDescriptionAdditional informationRelated productsLY4-10 Interlocking Brick Machine Clay Brick Making Machine Ecological Brick Machine2-40 Hand Press Manual Clay Interlocking Brick Molding Machine with Bearing & Gear High Efficiency for SaleLY2-40 […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description

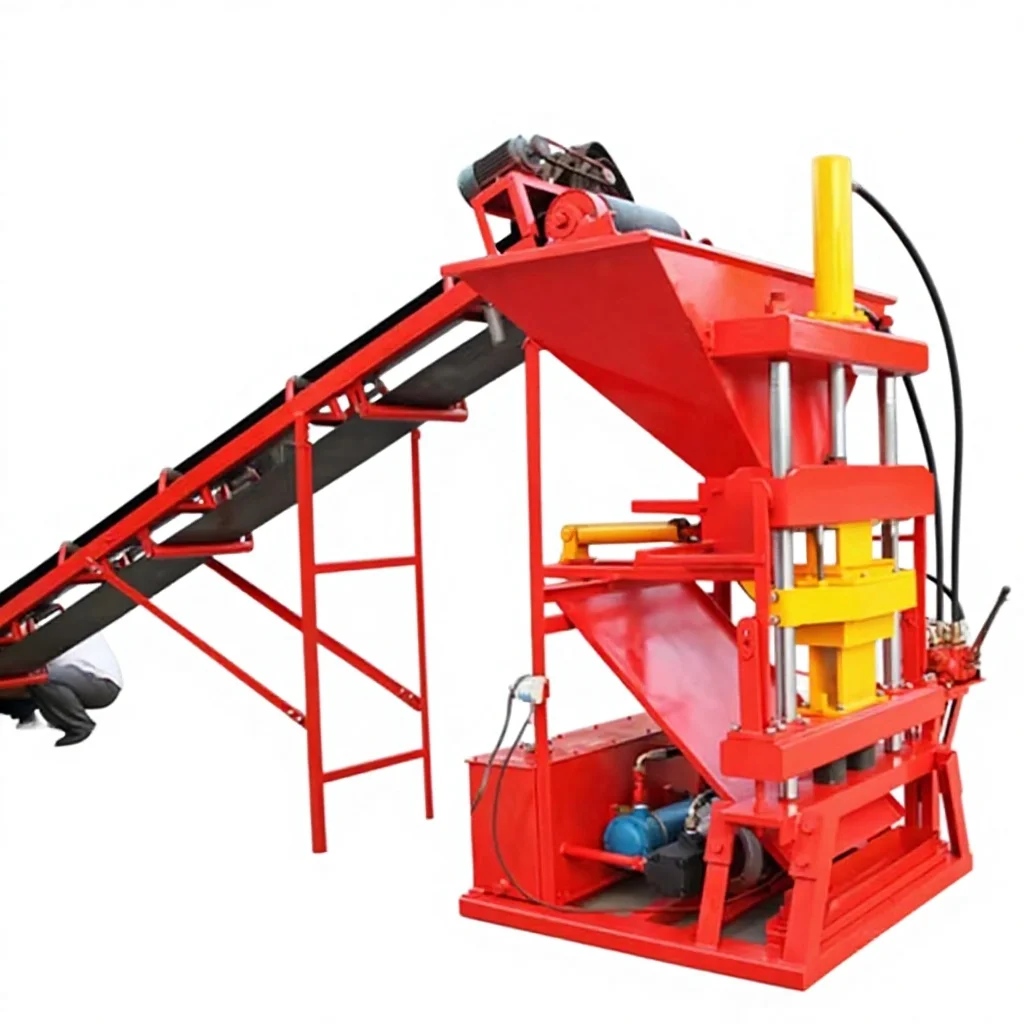

ECO 2700 CLAY BRICK MACHINE
The 2700 interlocking brick machine. is the special equipment which can make the construction interlocking bricks. There is a wide range raw material available cement. sand. clay. shale. fly ash and white lime or other materials. Various shapes and specifications of pavement bricks can be made by changing the moulds. Device driven by hydraulic system. Mainly electrical appliances and hydraulic components are imported original parts or domestic equipment of national famous brands.with exquisite structure. reliable performance.easy operation.low malfunction. strong applicability and simple maintenance as characteristic. Hydraulic cooling system is controlled by a temperature controlling switch. run automatically according to the hydraulic oil temperature. reducing energy consumption. Finished products molding from hydraulic system driver. hydraulic pressure to make it complete. The production of interlocking bricks bearing strength can reach above 12Mpa. high compactness. frost resistance. impermeability performance is good. sound insulation. heat insulation. and also heat preservation performance is good. appearance size accurate. is the ideal environmental protection and building materials equipment.
ECO 2700 CLAY BRICK MACHINE
Molds Changeable For Various Blocks
Attention!! When change the molds(1)Power off(2)Loosen bolts which fixed cavity and the upper and down molds and unload upper die and lower die.(3)Change the upper and down die that you want to produce. bolt does not need to fasten. you just need to tighten.(4)Open power. operating the lever. to make the the lower and upper molds match into the cavity.(5)Adjust the position of the upper and down mold with the mold cavity. so that they slide smoothly. a suitable gap (in normal. with a gap of 0.5mm between the upper and lower molds and the mold cavity). because the step (3) no fastening bolts. so at this time the upper and lower mold with molds cavity can be active. but may need tap to move.(6)After finishing adjustment.tightening the upper and lower mold cavity bolts and nuts. to lock effect.
Main technical parameters
Dimension
1600 x 1300 x 2330 mm
Total Mass
1100 kgs
Engine
7.5kw/12hp diesel engine
Pressure
16 Mpa
Molding Cycle
10-15s
Capacity
2800 pcs/day
Raw Material
Clay. Cement. Sand. Soil.etc
Blocks Samples
Material proportion
(1)cement(10%)+clay(90%)+water(appropriate)(2)cement(10%)+viscous material(20)+sands(70%)+water(appropriate)【viscous material??shale powder .white lime)etc??3)cement(10%)+Chemical accelerator(20%)+sands(70%)+water(appropriate)【Chemical accelerator??Na2SiO3.water glass)etc??Mark：Ratio listed is just for reference and production ratio should be made by the local situation)
