Description
Stocked configuration, matched to your deadline — the QT10-15 ships with dismantling scheme and container loading plan confirmed before payment, so site readiness and machine arrival stay aligned.
Technical Specifications
| Parameter | Value |
|---|---|

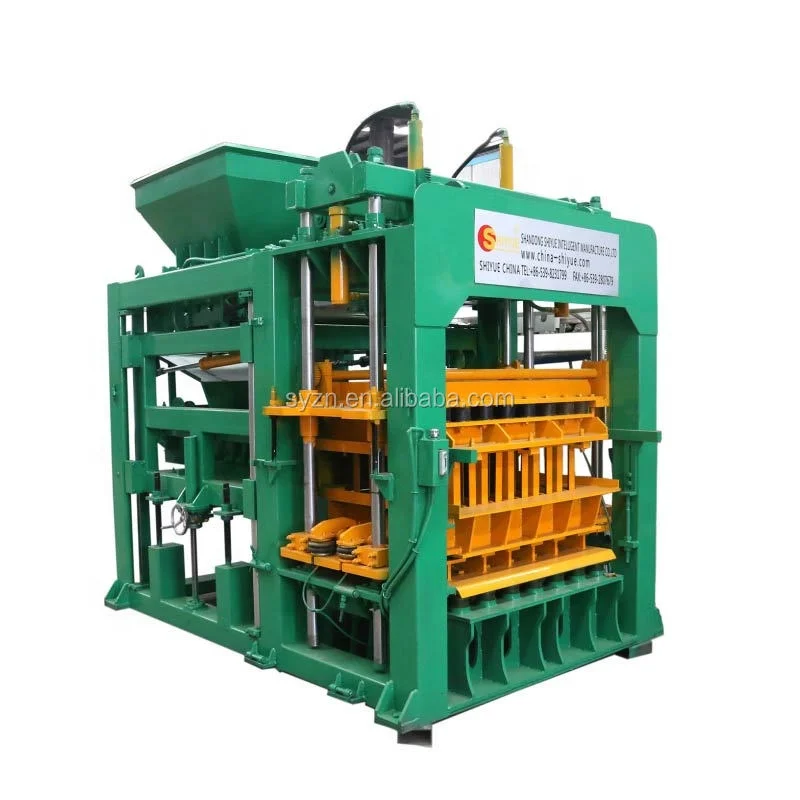

| Model | QT10-15 |
| Product Type | Automatic Concrete Block Making Machine |
| Moulding Cycle | 15-25s (basis not stated in source — confirm block format / material / thickness) |
| Mould Format | Hollow block, solid brick, paving brick, interlocking brick (via mould change) |
| Cycle Time: 400×200×200mm Hollow Block | 15-20s, 10 pcs/mould, 1,800-2,400 pcs/h, 14,400-19,200 pcs/8hr |
| Cycle Time: 400×150×200mm Hollow Block | 15-20s, 12 pcs/mould, 2,160-2,880 pcs/h, 17,280-23,040 pcs/8hr |
| Cycle Time: 240×115×53mm Solid Brick | 15-20s, 62 pcs/mould, 8,928-11,160 pcs/h, 71,424-89,280 pcs/8hr |
| Cycle Time: 200×100×60mm Paving Block | 20-25s, 27 pcs/mould, 5,184-6,480 pcs/h, 41,472-51,840 pcs/8hr |
| Cycle Time: 225×112.5×60mm Interlocking Brick | 20-25s, 24 pcs/mould, 4,032-5,040 pcs/h, 32,256-40,320 pcs/8hr |
| Automation Level | Automatic (PLC controlled) |
| Control System | PLC control cabinet |
| Hydraulic System | Independent integrated hydraulic station |
| Vibration Mode | Vertical station mode resonance, automatic FM-AM |

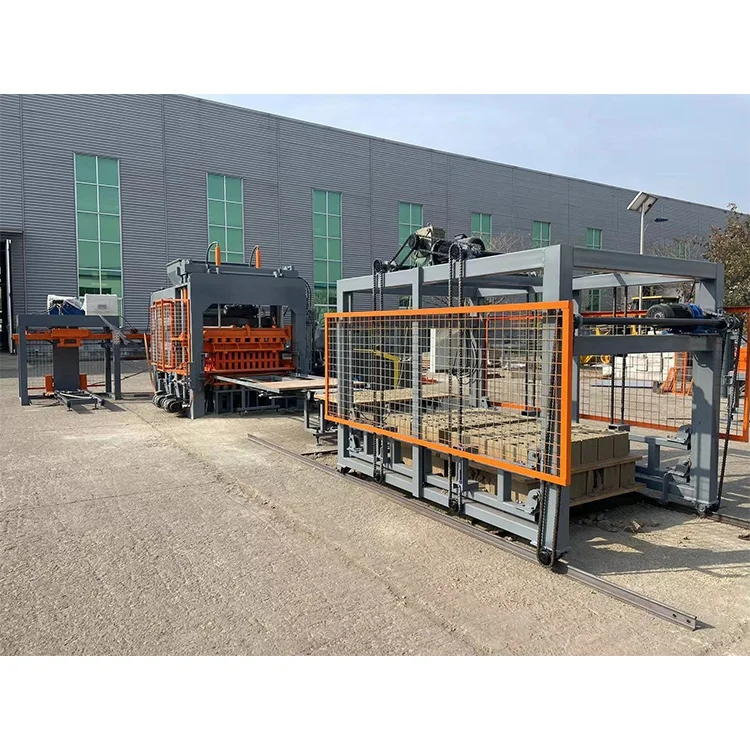

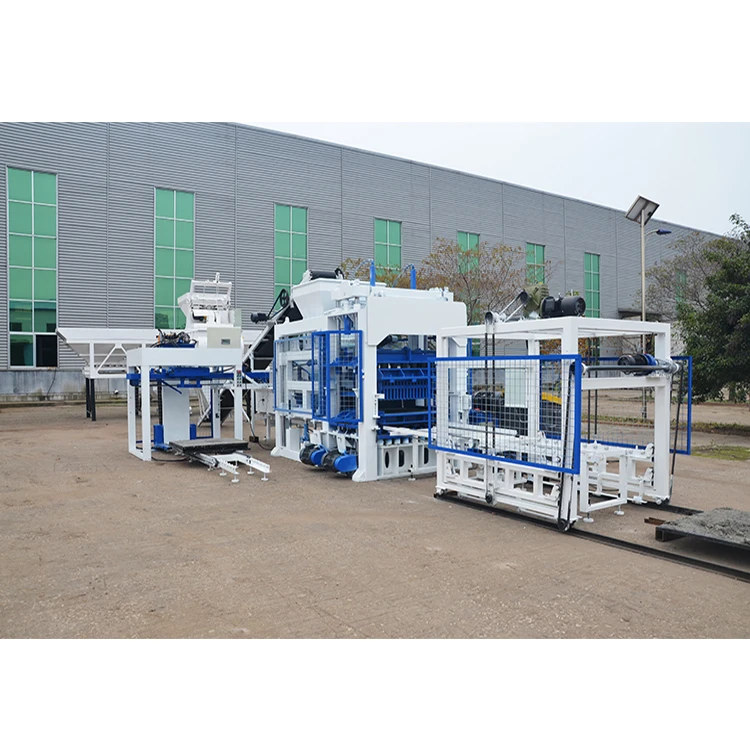

| Components Included | Pallet feed machine, block making machine, storage hopper, conveyor, hydraulic unit, PLC control cabinet |
| Warranty | 1 year (excluding spare parts) |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production for building construction | Cement, crushed stone, sand, fly ash aggregates |
| Solid brick production for masonry | Cement-bound granular mixes, local quarry dust |
| Paving block production for roads and walkways | High-density concrete mixes with fine aggregate |
| Interlocking brick production for landscaping | Interlocking profile moulds with standard concrete |
| On-site or plant-based concrete product manufacturing | Raw material feed via storage hopper and conveyor |
Dispatch Lead Time: What Buyers Actually Need Before Ordering
The QT10-15 block machine in stock status must be confirmed at inquiry, not after payment. When a contractor commits to a foundation schedule, the machine arrival date drives every downstream trade — bricklayers, plasterers, scaffolding hire. A quoted lead time that shifts after the deposit clears forces renegotiation with the entire site crew. [NEED_CITE: typical construction scheduling dependencies on equipment arrival]
For a project-deadline buyer, the useful conversation starts with current inventory position: which units are fully assembled in the yard, which are in final assembly, and which are built-to-order with a confirmed slot. Container loading plans, including dismantling sequence and securing photographs, should form part of the order acknowledgment. This is what separates a usable delivery date from a hopeful one.
Availability, Stock Position and Dispatch Timing
Confirming whether the QT10-15 block making machine fast delivery claim matches current yard inventory is the first real step in the purchase. Machines listed as stocked may be in various states — fully assembled and tested, partially dismantled for storage, or completed but awaiting a prior buyer’s shipment. Asking for a dated photograph of the actual unit, with serial plate visible, establishes a baseline that brochure images cannot. [NEED_CITE: industrial equipment stock verification practices]
Container Loading and Dismantling for Shipment
A high-capacity automatic block machine does not ship as a single piece. The QT10-15 requires partial dismantling of the hydraulic station, control cabinet, and pallet feed assembly to fit standard flat-rack or open-top container configurations. The loading plan should specify which components are secured to the main frame, which are crated separately, and how hydraulic lines are capped and labeled for reassembly. Missing this detail before dispatch turns a two-day installation into a week of figuring out which hose connects where.
Arrival Estimate and Port Clearance
From order confirmation to port of destination, the timeline depends on sailing schedule, transshipment routing, and destination port congestion. A realistic arrival estimate accounts for factory dispatch to port, customs export clearance, ocean transit, and discharge at destination. Providing the HS code and a complete packing list before the vessel sails allows the buyer’s clearing agent to prepare documentation in parallel, reducing hold time at the destination port.
Reading the Capacity Table Without Getting Misled
The cycle time figures for this QT10-15 block machine in stock are stated per block format, which is how they should be read. A 15-20 second cycle producing 400×200×200mm hollow blocks yields a different hourly count than the same cycle range producing 240×115×53mm solid bricks, simply because the mould cavity count differs — 10 per press versus 62. When planning daily output, match the row to the format your site actually sells, not the row with the highest number.
The independent integrated hydraulic station sits isolated from the main vibration frame. This matters because continuous vibration transmits through bolted connections and degrades hydraulic valve seals over time. Separating the station extends seal life and keeps oil temperature stable across a shift, which in turn maintains consistent pressing force from the first block to the last.
Vibration Force and Format Flexibility
Vertical station mode resonance with automatic FM-AM vibration adjusts frequency and amplitude based on the mould installed. A hollow block with thin walls needs high-frequency, low-amplitude vibration to consolidate the mix without collapsing the cores. A thick paving block needs the opposite — lower frequency with higher amplitude to drive the denser mix into the mould corners. Without this adjustment, the operator manually guesses settings, and block strength varies across formats. [NEED_CITE: vibration parameter effects on concrete block density]
The automatic FM-AM system reads the mould type and adjusts accordingly. This removes a variable from the operator’s workload and keeps block-to-block consistency when switching between hollow block, solid brick, paving block, and interlocking formats on the same machine within a single shift.
What Happens When Voltage and Language Get Skipped
Buyers who confirm price and capacity but skip voltage, frequency, and PLC display language verification before shipment face delays that have nothing to do with the machine itself. A PLC programmed in a language the operator cannot read means every fault code requires a phone call. A motor wound for a frequency the local grid does not supply runs at the wrong speed, altering vibration characteristics and producing blocks outside strength tolerance. These are commissioning failures, not machine failures, and they cost weeks. [NEED_CITE: voltage and frequency standards by export market]
Why This Machine Ships From a Single Source
The QT10-15 block making machine fast delivery is supported by a configuration process that locks specifications before production. Machine, mould, pallet, and handling components are specified as a matched set from one source, eliminating the integration gaps that occur when a buyer assembles a line from separate suppliers. Pallet size is confirmed against the buyer’s existing curing area and forklift capacity, not selected from a catalogue default.
The hydraulic station, vibration system, and PLC control cabinet are factory-matched and tested together before dismantling for shipment. Factory test records are provided with the documentation package, showing the machine ran under load with the buyer’s specified mould installed. This is different from a bench test of the press alone.
Documentation & Verification
- Factory test record showing cycle times with buyer-specified mould installed before dispatch
- Packing photographs documenting dismantling sequence, crating, and container securing
- Voltage, frequency, and PLC display language confirmation sheet signed before production
- Hydraulic and electrical schematic matching as-built configuration for on-site troubleshooting
- Customs documentation package with HS code and packing list for destination port clearance
- Operation and maintenance manual with wear parts list and first replacement intervals
Installation, Commissioning & Support
- Foundation pad must accommodate the main frame footprint and pallet feed machine length with level tolerance specified
- Dedicated electrical circuit required for the hydraulic station motor, separate from the vibration motor feed
- Machine arrives partially dismantled; hydraulic lines are capped and labeled for reassembly sequence
- First production run supervised with parameter adjustment to the buyer’s local aggregate and mix design
- Operator training covers PLC fault code reading, mould change procedure, and daily vibration system inspection
- Wear parts list identifies hydraulic seals, vibration springs, and mould liner replacement intervals
What to Include in Your Inquiry
To get a useful response on the QT10-15 block machine in stock position and delivery timeline, provide the block format you will produce most, your target daily output in that format, and your site’s available curing area dimensions. Confirm local voltage and frequency, the language required for the PLC display, and whether you have existing pallets and forklifts that the system must integrate with. This lets the quotation address your actual setup rather than a generic configuration.
Frequently Asked Questions
Q: What is the dispatch lead time — is the QT10-15 in stock or built to order?
A: Stock position varies. At inquiry, we confirm whether a completed unit is in the yard, in final assembly, or scheduled for build. Dispatch lead time is quoted based on current position, not a generic estimate, and is stated in the order acknowledgment alongside the dismantling and container loading plan.
Q: How is the machine dismantled for container loading and what container type is required?
A: The hydraulic station, PLC cabinet, and pallet feed assembly are separated from the main press frame. Components are crated or secured to the frame with labeled connection points. Container type depends on the configuration — typically a flat-rack or open-top for the main frame with standard containers for auxiliary components.
Q: What is the estimated arrival timeline from order to port of destination?
A: The timeline includes factory dispatch, export clearance, ocean transit, and destination discharge. Sailing schedules and transshipment routing affect this. We quote an arrival estimate at order confirmation based on the nearest available vessel, and update it if the sailing date shifts.
Q: Which standard moulds ship with the machine and which are made-to-order?
A: Standard hollow block, solid brick, paving block, and interlocking brick moulds are listed in the catalogue. Custom formats or non-standard dimensions are built to drawing. Mould availability is confirmed at order — stocked moulds ship with the machine, while custom moulds carry their own lead time stated in the quotation.
Q: What documentation is provided for customs clearance at destination?
A: The documentation package includes the commercial invoice, packing list with weights and dimensions, HS code, bill of lading, and CE declaration where applicable. We provide these documents in draft form before vessel departure so the buyer’s clearing agent can review and flag any requirements specific to the destination port.
