QT4-15 Hydraulic Solid Block Making Machine
In Stock · Ready to Ship
CE
Certified
ISO
9001:2015
108+
Countries
Stationary block machine

QT4-15 Hydraulic Solid Block Making Machine

This product is currently out of stock and unavailable. SKU: QT4-15 Hydraulic Solid Block Making Machine-35644669 Category: Stationary block machine Description Additional information Table of ContentsDescriptionwelcome your inquiryAdditional informationRelated productsQT8-15 Concrete Paver Block Making Machine ColourQT4-15 Hollow Block Making Machine Hollow Block Machine Cement Brick MachineQT4-15 Building Brick Making MachineQT4-15 Hydraulic Brick Making Machine ManufacturerDescription […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Product Description

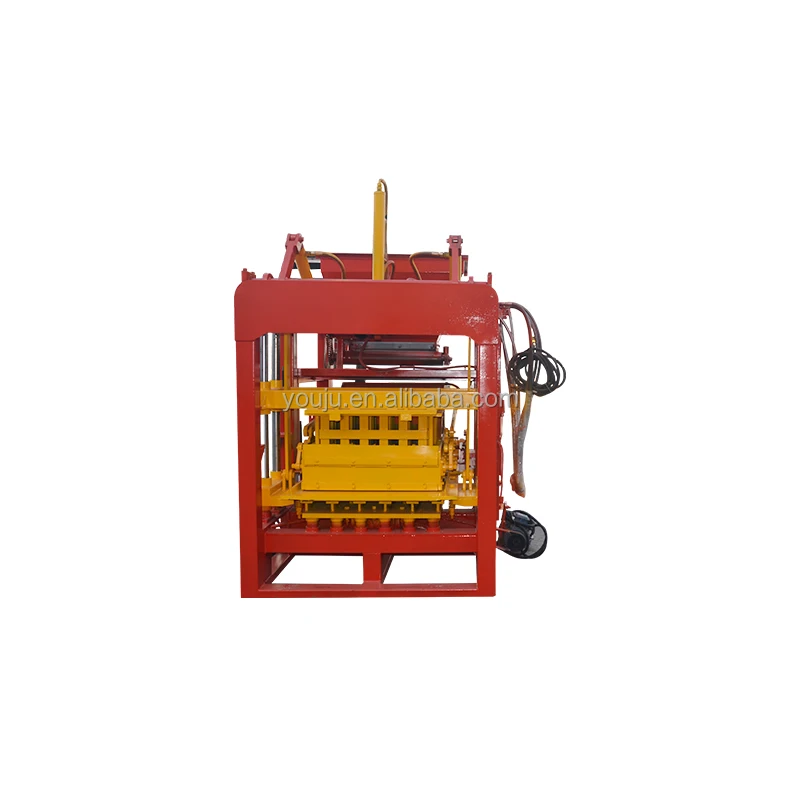

The QT4-15 Hydraulic Brick Making Machine Hollow Block Cement Making Machine is our newest design machine and controlled by the PLC. And this machine is considered to used with the middle and small factory.
model
QT4-15 Hydraulic Brick Making Machine Hollow Block Cement Making Machine
Molding cycle
15-30s
pallets size
900x500mm
Vibration type
platform vibration
Product height
50-220mm
overall power
24.5kw
Demolding method
hydraulic
Vibration frequency
50-70HZ

  • features of QT4-15 automatic block machine

1.This machine can use flyash. slag. gangue and other kind industrial residue then with sand. water. crushed stone. cement all kind material to make all kind hollow block. paver brick. solid bricks just changing the moulds.
 2.The whole process of this machine is controlled by PLC and powered by the hydraulic system. Monitoring with the approach switch. machinery. electric.hydraulic and vibrating system work together to make pallets feeding. material feeding. vibrating. demoulding process work automatically. And its characteristic is high efficient. easy-operated and easy-maintained.3.All the electrical and hydraulic parts are original imported or with China famous brand. So this machine is stable and with less faults.
4.Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. Our machine is assembled with our own patent vibrating system and with high power and frequency.5.The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation and dimensions are precise. the blocks are more consistency and low waster rate.

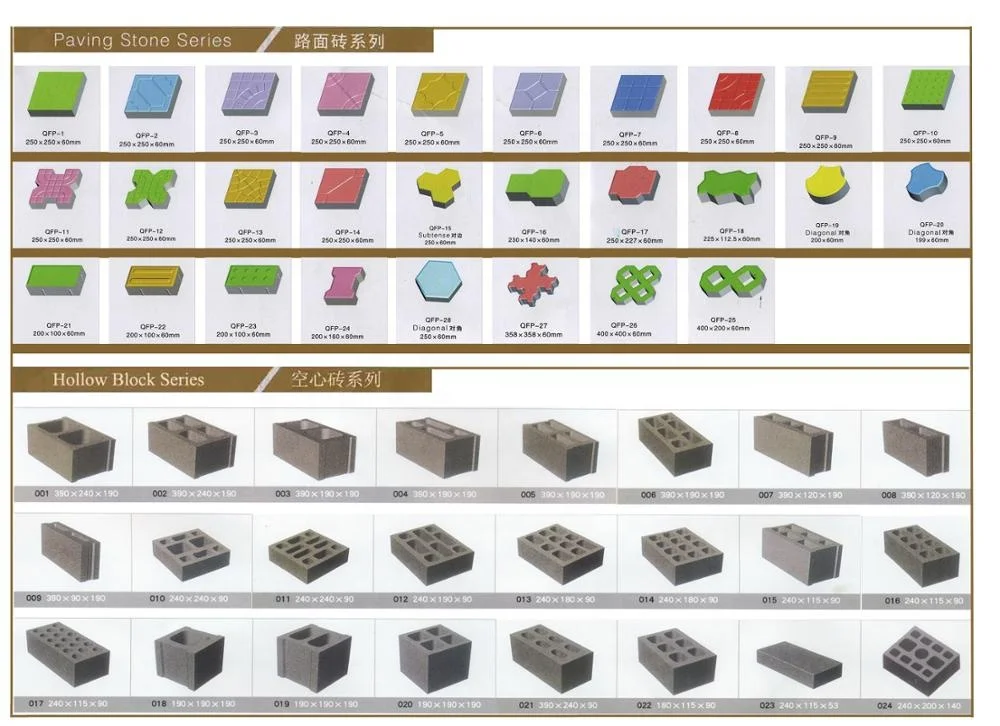

common blocks capacity and Block samples
blocks type
Size
(mm)
Molding cycle
Qty/Mould
(pcs)
Qty/hour
(pcs)
Qty/8hr
(pcs)
hollow blocks
400x200x200
15-20s
4
900-1200
7200-9600
hollow blocks
400x150x200
15-20s
5
1080-1440
8640-11520
hollow blocks

400x100x200

15-20s

8

1440-1920

11520-15360
paver mould

200×100*60

15-20s
16

2880-3840

23040-30720
solid mould

240x115x53

15-20s
28
5930-6720
47400-53700
Related Products

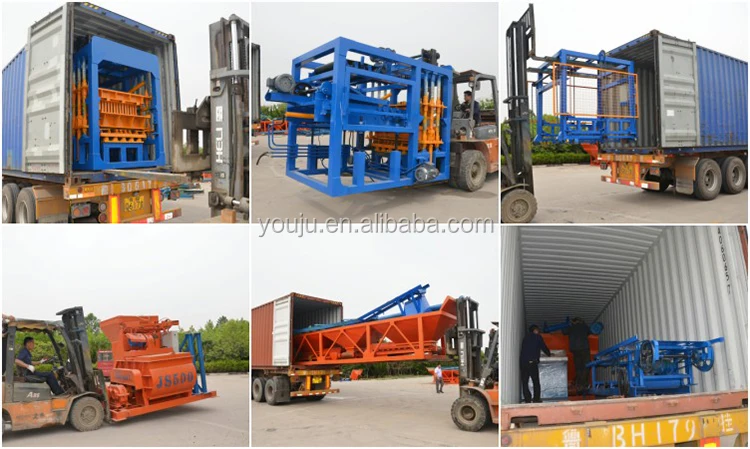

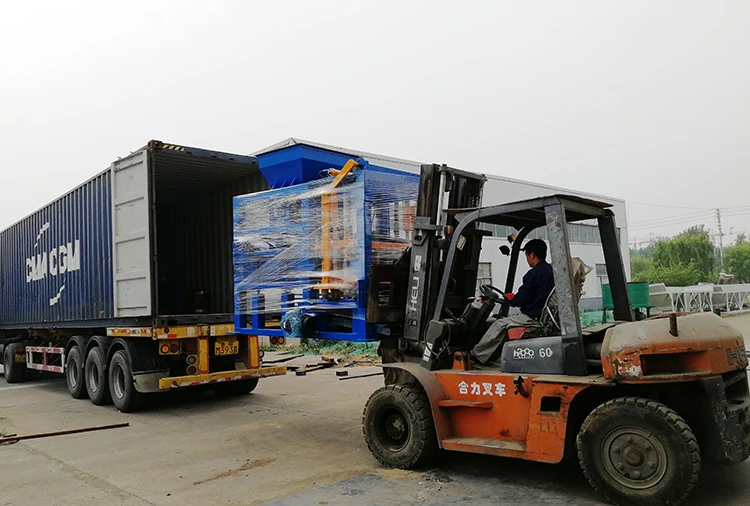

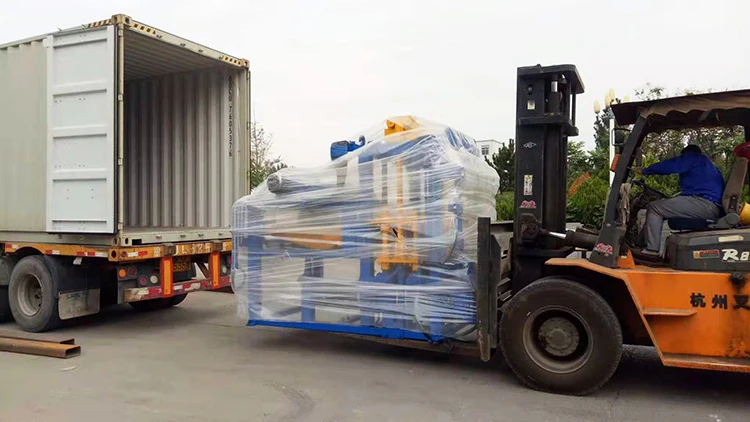

Packing&Shipping
After Sales Service

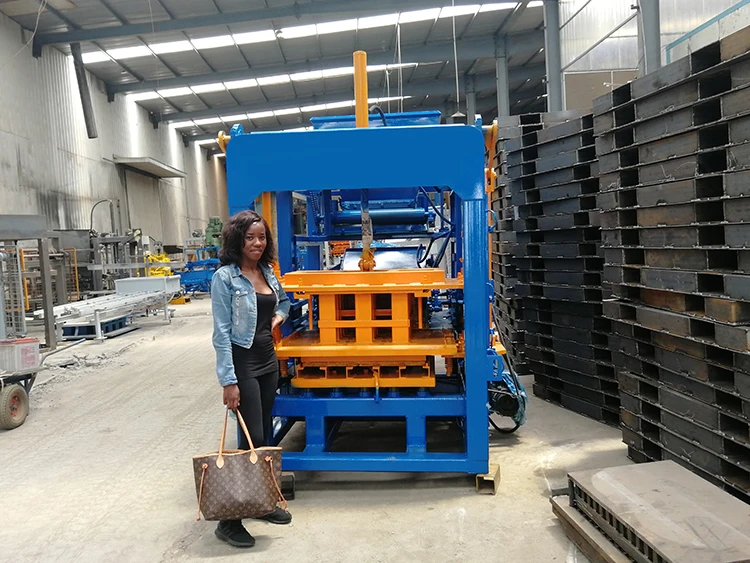

customer working site
after the machine delivery. we will offer service in these ways:
1.we will offer the machine foundation drawing. the electric wiring diagram. and the block machine operation manuel instruction book.
2.if necessary. we will sent engineer fly to customer site for installation and train until the worker can operate and maintain the machine skilled.
3.online video instruction and offer spare parts free.

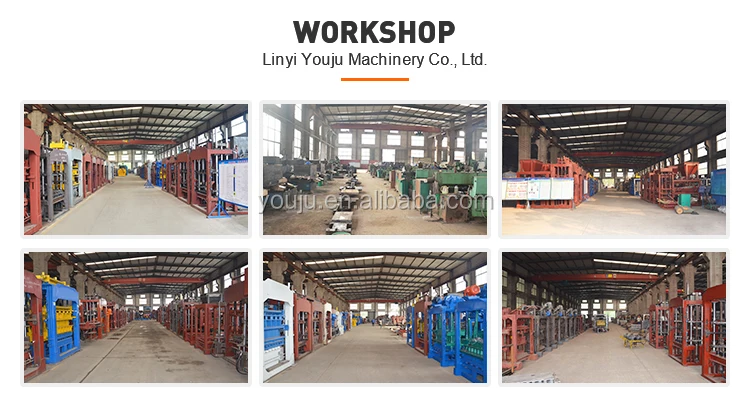

Company Introduction
Linyi Youju Machinery CO.. LTD is a professional manufacturer which is engaged in independently researching and developing. manufacturing and selling crushing equipment.block machine etc construction building machines. We have exported product to many countries. such as Mongolia. Russia. Philippines.India. Vietnam. Uzbekistan. Kyrgyzstan. Kazakhstan. Nigeria. South Africa.Oman .Botswana. America etc. What’s more.we receive good feedback about service and quality. We are not main for sales. but also for development of the market all over the world. Do our best to satisfy customers’ need and guarantee quality is our principal .With 27 years’ brick block machine manufacture & export experience.welcome all the customers to our company and build business relationship with us.

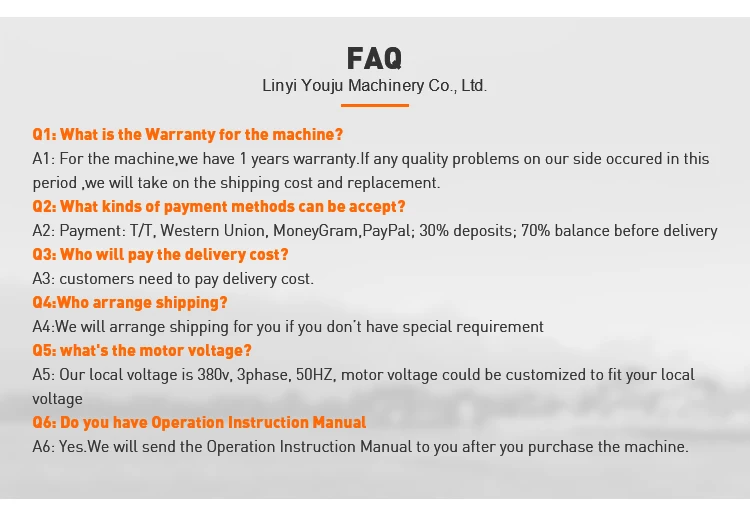

FAQ
Customer Photos

welcome your inquiry

Cathy
TEL/Whatsapp:+8618615393558

Buy with Confidence

From inquiry to commissioning -- 4 transparent steps

  1. 01

    Technical Consultation

    Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.

  2. 02

    Custom Solution Design

    3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.

  3. 03

    Production & Inspection

    Weekly progress photos, video reports, and virtual or on-site factory inspection.

  4. 04

    Installation & Lifetime Support

    On-site commissioning, operator training, spare parts supply and remote diagnostics.
