QT4-18 Concrete Hollow Block Making Machine / Cement Solid Brick Machinery / Automatic Bricks Blocks Mould Manufacturing Product
This product is currently out of stock and unavailable. SKU: QT4-18 Concrete Hollow Block Making Machin-35655167 Category: Semi automatic block Description Additional information Description Products Description QT4-18 AUTOMATIC BLOCK MAKING MACHINEIt is composed of mixer. pallet conveyor. molding machine. block conveyor. hydraulic station. and electronic console(PLC).A.The power of the pallets feeder is supplied of the […]
- European-Patented Airbag Damping System
- Four-Motor Synchronous Vibration Technology
- Siemens PLC Smart Control · Lifetime Tech Support
- Customized Solution for Local Materials & Voltage
- Lead Time
- 30 days
- Warranty
- 12 mo
- Sold
- 500+
Technical Excellence
Engineered for performance, built to last
Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.
Product Description
Products Description
QT4-18 AUTOMATIC BLOCK MAKING MACHINE
It is composed of mixer. pallet conveyor. molding machine. block conveyor. hydraulic station. and electronic console(PLC).
A.The power of the pallets feeder is supplied of the hydro-cylinder. and when after the demould process. the hydro-cylinder push the pallets feeder to make the pallets onto the vibrating platform and at the same time push the products into the block receiver. Then pallets feeder gets back and starts the next cycle.
B.Material feeder system: This system is made up with hopper. feeding box. feeding platform and conveyor system
C.The molding system is made up with the frame. vibrating platform. moulds and synchronizing mechanism system
D.The block receiver is made up of the frame. convey system and idler wheels. The product and pallet are conveyed to the front idler wheels with the motor and reducer and triangle belt. Then convey the products to the maintain yard manual or machinery.
QT4-18 BLOCK MACHINE
Machine installation plane arrangement should according to area. product technological requirements. In principle. it should make the mixer. pallet feeding. host machine molding. conveyor. curing and pallet recycle without interfering with each other. It should make as the installation foundation drawing.
Before installation. the worker should prepare the install plan and check the dimension of the foundation according to the drawing and make sure all levelness is same with the drawing and foundation should be poured with cement.
Technical parameters
Overall Dimension | 2500*1750*2200mm |
Rated Pressure | 16Mpa |
Vibration Form | Platform Vibration |
Pallet Size | 950x550mm |
Molding Cycle | 18-25s |
Overall Power | 27.5kw |
machine advantages
Distribution belt hopper: helps the raw materials to be fully mixed.make better finished blocks:
The 4-18 flagship version uses double-sided synchronous gears to lift the mold
The 4-18 flagship version have Frequency converter. plc control accomplish machine talk with person. more convenient to control
Electrical components are from internationally renowned brands such as Schneider
SUPPORT EQUIPMENT
JQ500 concrete pan mixer. easy operation. suitable for QT4-15A block machine production.
8m belt conveyor. transfer the mixed material to the machine hopper.
6m belt is also ok for choose.
Stacker- take the blocks layer by layer. convenient for worker take the blocks to curing yard.
Block clamper- one of hot sale equipment for dry blocks take off from the pallets. or take blocks to truck.
Extra molds- one block machine has one free hollow mold. extra mold will be paid and can be customized.
Trolley- take the blocks out from the stacker. different kinds trolley for different production line. It is free.
Cement silo- storage cement. fly ash or other powder raw materials. If your cement is in bag. it is no need this silo.
Batching plant. storage the raw materials. different hoppers for different raw material.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Common blocks capacity and Block samples
Changing moulds:
1.Discharge mould
Upper mould up .the down mould down.feeding box back .pallets feeder forward and hopper closed.(The block machine has the feeding color machine .draws out the bolt which connet the feeding color machine and block machine .and push out the feeding color machine ).Rise bottom mould 100mm .And draw out both sides M24 blots which fixed moulds.
Afterwards put two pallets under the mould box .press mould box button and let bottom mould down .At the same time .put one pallet on the upper mould. Immediately .press “pressure head down”button and the upper mould down to the mould box.
Use wrench draw out the four bolts which fixed the upper mould .Press the pressure head and rise up.Start the block conveyor .press “forward ’button . conveyor the upper and bottom moulds to the block conveyor machines .(Use a metal induction mould spacing before pallet machine forwards .otherwise the pallet feeder machine don’t move) .After conveyor the block .places the blocks with the small forklift.
2.Install the block mould
Put one pallet on bottom mould .then the upper mould one the bottom mould. Put the upper and bottom moulds on the block conveyor machine by using the small forklift. (Put 2-3 pallets on the block conveyor machine in advance.and put 3-4 pcs 20-30mm tubes on the pallet). Exchange the motor sequence of block conveyor machine and let the motor retrograde . Sent the upper and bottom moulds to the vibration platform port. Push the upper and bottom moulds to the above of vibration platform (when tube pipes on the mould bottom)by manual . Rise mould box .Aiming the screw hole and fix the bottom mould. Take out the pallet and tube pipes which paded down the bottom mould .
Packing & Delivery
Customer working site
Recommend Products
VR
Buy with Confidence
From inquiry to commissioning -- 4 transparent steps
-
01
Technical Consultation
Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.
-
02
Custom Solution Design
3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.
-
03
Production & Inspection
Weekly progress photos, video reports, and virtual or on-site factory inspection.
-
04
Installation & Lifetime Support
On-site commissioning, operator training, spare parts supply and remote diagnostics.
Get a Quote
Talk to a senior engineer about QT4-18 Concrete Hollow Block Making Machine / Cement Solid Brick Machinery / Automatic Bricks Blocks Mould Manufacturing Product
Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.
- Vicky Lin sales1@sdshiyue.com
- WhatsApp +86 186 5397 5262
- Helen Ren sales7@sdshiyue.com
- WhatsApp +86 186 5392 9981
More Solutions
View All Products →
Related Products

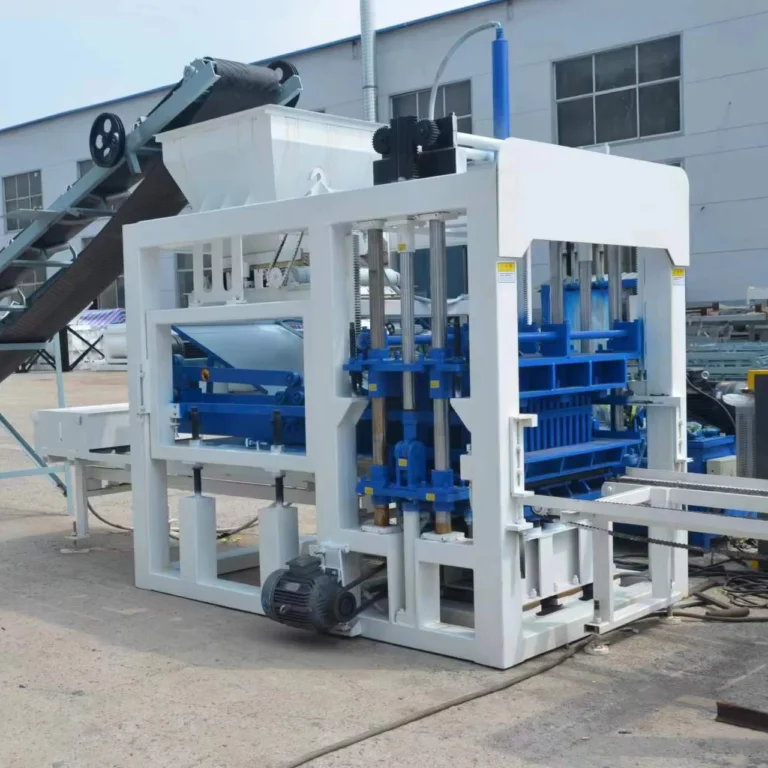

Construction Materials Bricks QT6-15 Brick Making Machineryblock Making Machine Business Ideas with Small Investment 2024
View Details

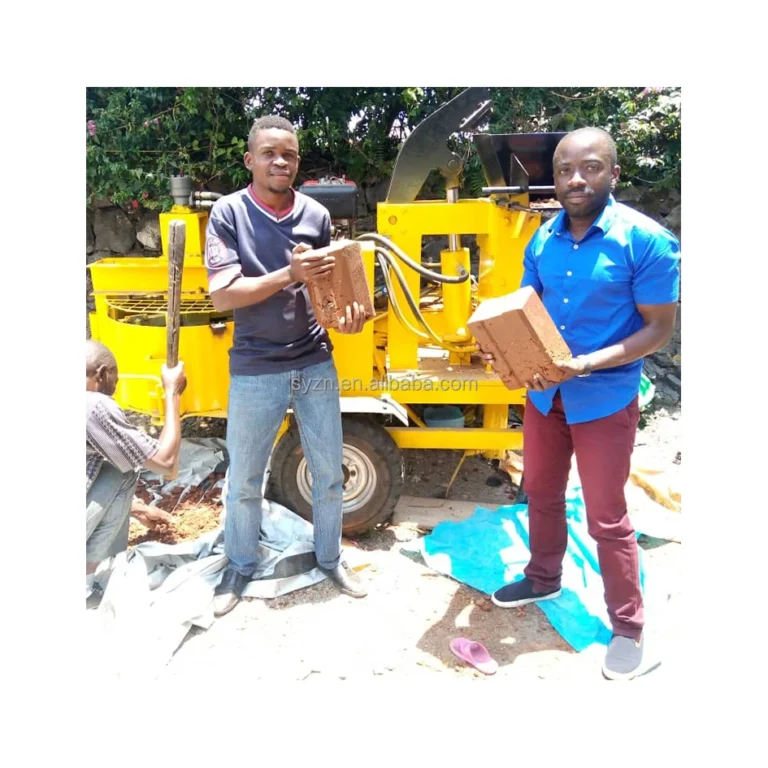

Shiyue Factory Custom M7MI Compressed Mobile Earth Clay Interlocking Clay Brick Making Extruder Machine 7.5kw Ghana
View Details

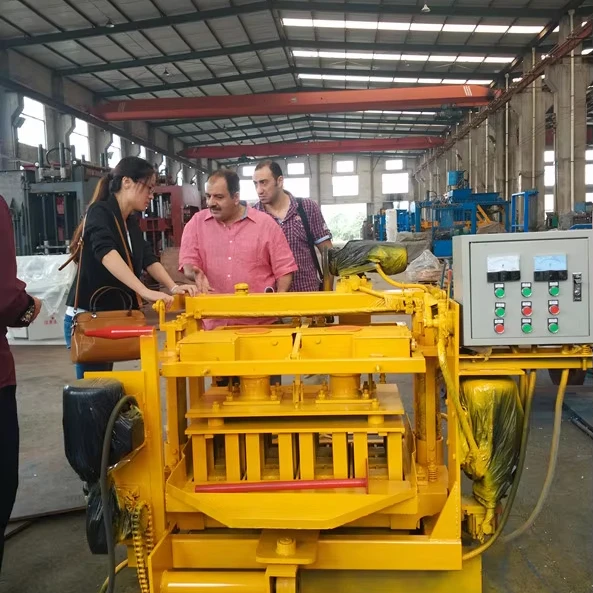

Semi Automatic Concrete Block Moulding Machine for Sale in Nigeria
View Details

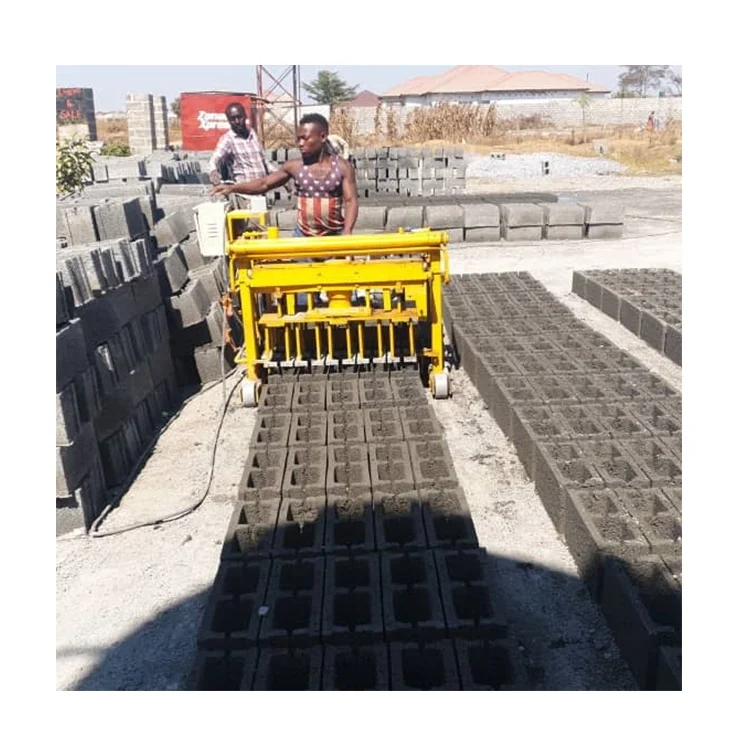

Mobile Hydraulic Concrete Block Making Machine QMY4-30 Hollow Brick Machine with Factory Supply and Direct Price
