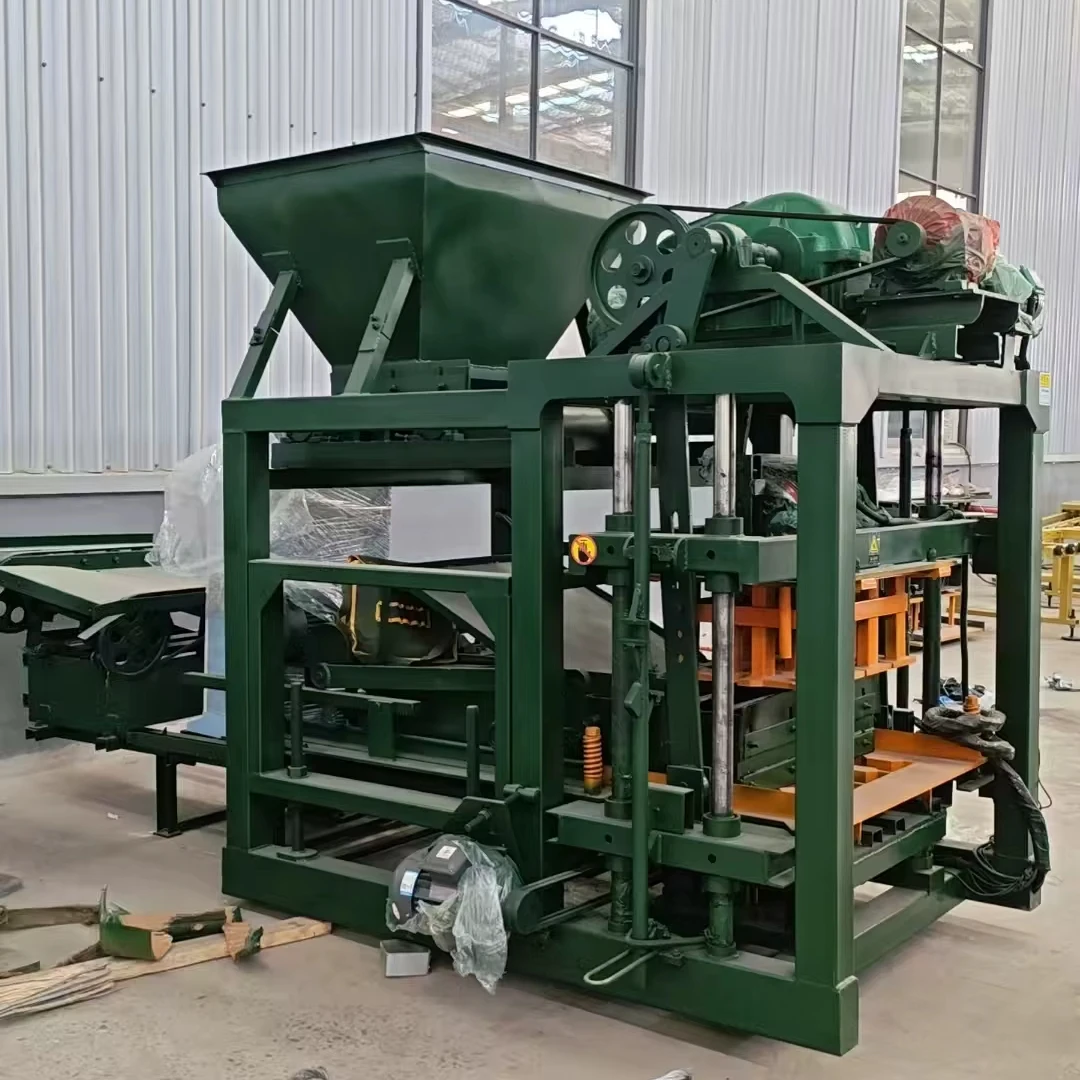

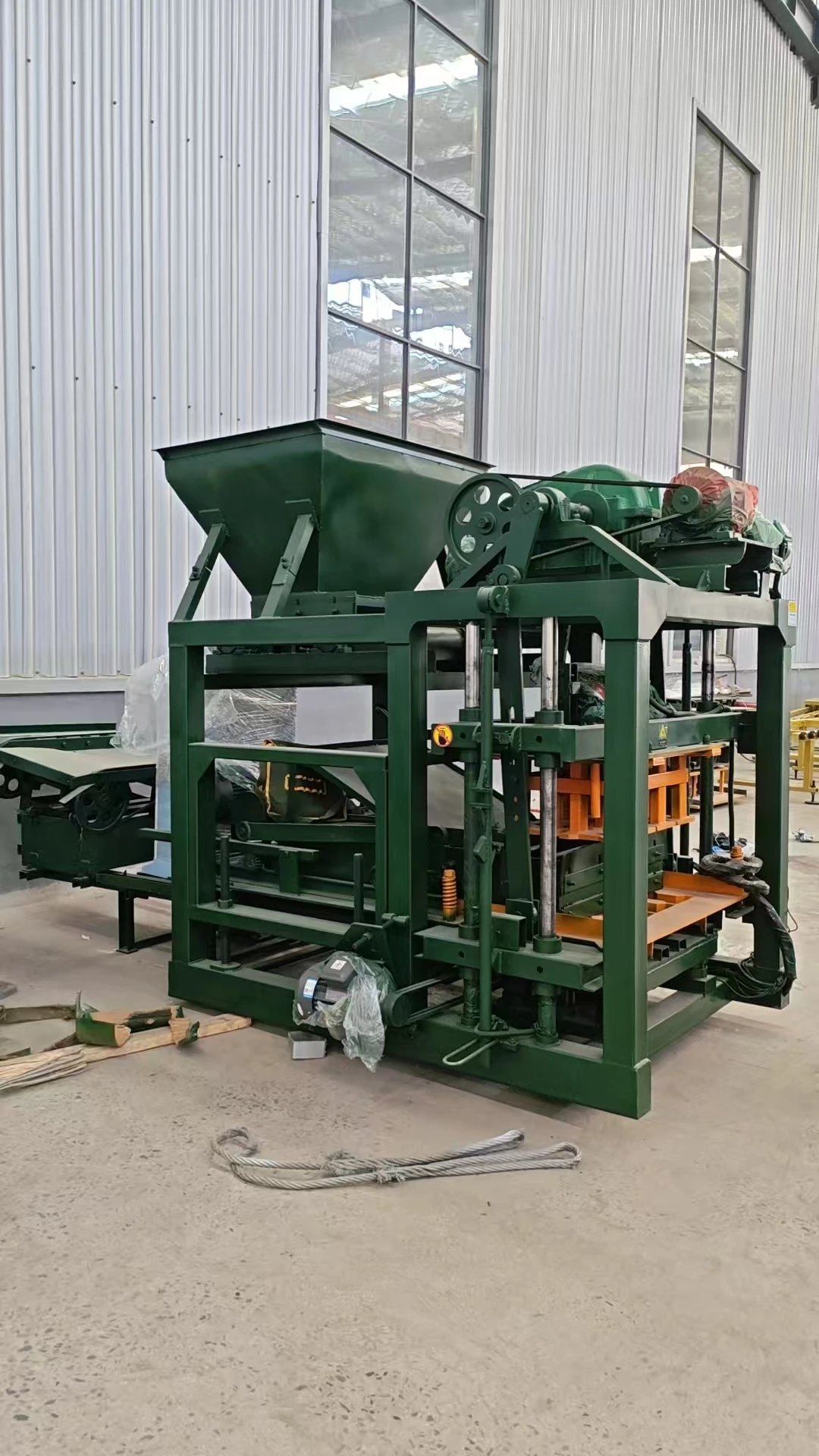

QT4-25 PLC-Controlled Automatic Cement Making Machine Heavy-Duty Construction Vibration Molding High Efficiency Stable
This product is currently out of stock and unavailable. SKU: QT4-25 PLC-Controlled Automatic Cement Mak-35644754 Category: Stationary block machine Description Additional information Description Products Description Product Introduction Description of GoodsQTJ4-25 motor concrete block making machineProduct capacity400x200x200mm??4pcs/mould Rated Power17.9KWOverall Size6400*1500*2700mmMolding Cycle (S)25sPallet Size850*550*20mmVibration Frequency2800 r/minTotal Mass (KG)2500KGconfigurationhost machine 1set??Block mould 1set??JQ350 mixerExciting power60KN QTJ4-25 motor concrete block making […]
- European-Patented Airbag Damping System
- Four-Motor Synchronous Vibration Technology
- Siemens PLC Smart Control · Lifetime Tech Support
- Customized Solution for Local Materials & Voltage
- Lead Time
- 30 days
- Warranty
- 12 mo
- Sold
- 500+
Engineered for performance, built to last
Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.
Product Description
Product Introduction | ||||
Description of Goods | QTJ4-25 motor concrete block making machine | |||
Product capacity | 400x200x200mm??4pcs/mould | |||
Rated Power | 17.9KW | |||
Overall Size | 6400*1500*2700mm | |||
Molding Cycle (S) | 25s | |||
Pallet Size | 850*550*20mm | |||
Vibration Frequency | 2800 r/min | |||
Total Mass (KG) | 2500KG | |||
configuration | host machine 1set??Block mould 1set??JQ350 mixer | |||
Exciting power | 60KN | |||
QTJ4-25 motor concrete block making machine introduction
Q1: What machines do I need for this production?
A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the machine forming.Place the bricks on the board. stack them up. and move them to a dry place with a trolley 5.trolley and tools is free 6.you need choose the mould you want to do 7.pallet you can choose for loading and place the formed brick and place them here for drying. I suggest buy 300-500 pieces.
Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.
Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.
Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .960pcs/hour.7680pcs/day.If you want to know other size.please send message to me.
Q5: Is there anything I can do without buying?
A5: 1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local
market.some may do the wooden pallet is also can be used.It up to you.
1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.
QTJ4-25 block making machine can make the paver. solid.hollow curbstone only need change the mould. It is easy to operate.It adopts the hydraulic station so the pressure is high and make machine runs stable..It can protect machine then will make machine's use life much longer.Always ship to Jamaica. including Saint Thomas.Kingston. Saint Catherine. Manchester. Clarendon. West more land and so on. Machines are working very well with high production efficiency. block machine has become one of most popular block machine brand in Jamaica Welcome your inquiry. Shiyue factory will help you to achieve success in block business
YOU JU CO. LTD
From inquiry to commissioning -- 4 transparent steps
-
01
Technical Consultation
Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.
-
02
Custom Solution Design
3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.
-
03
Production & Inspection
Weekly progress photos, video reports, and virtual or on-site factory inspection.
-
04
Installation & Lifetime Support
On-site commissioning, operator training, spare parts supply and remote diagnostics.
Talk to a senior engineer about QT4-25 PLC-Controlled Automatic Cement Making Machine Heavy-Duty Construction Vibration Molding High Efficiency Stable
Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.
- Vicky Lin sales1@sdshiyue.com
- WhatsApp +86 186 5397 5262
- Helen Ren sales7@sdshiyue.com
- WhatsApp +86 186 5392 9981
Related Products
Qt4-18 Block Making Machines Dubai Brick Paving Machine Brick Pressing Machine
View Details
QT4-15 Concrete Block Machine Block Making Machine Fully Automatic
View Details
QT4-15 Brick Making Machinery Automatic Paving Machine
View Details

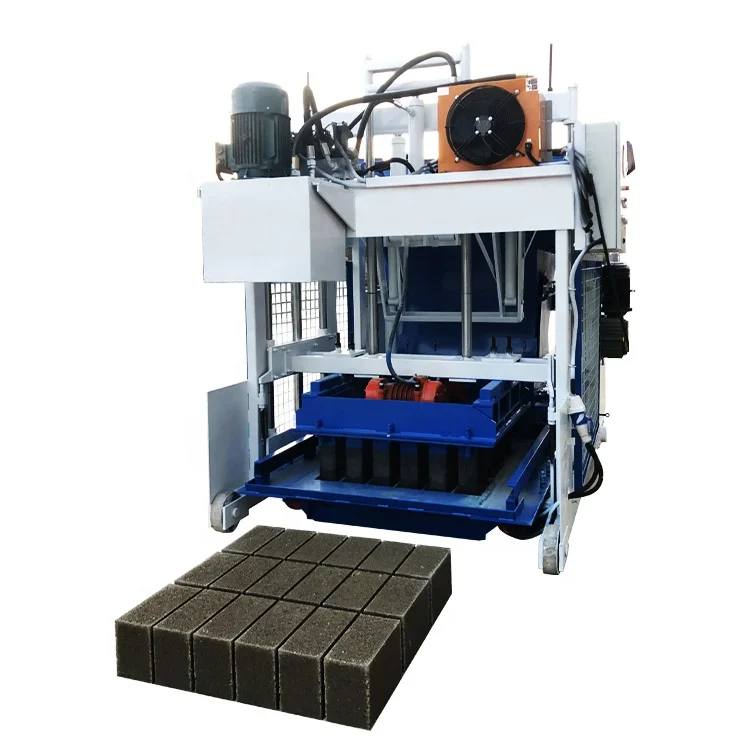

QMY18-15 Egg Laying Hollow Concrete Block Making Machine
