Description
Stock-to-Ship Readiness — QT5-15 block machine in stock with standard moulds, container loading plans, and dispatch lead times confirmed before you commit.
Technical Specifications
| Parameter | Value |
|---|---|

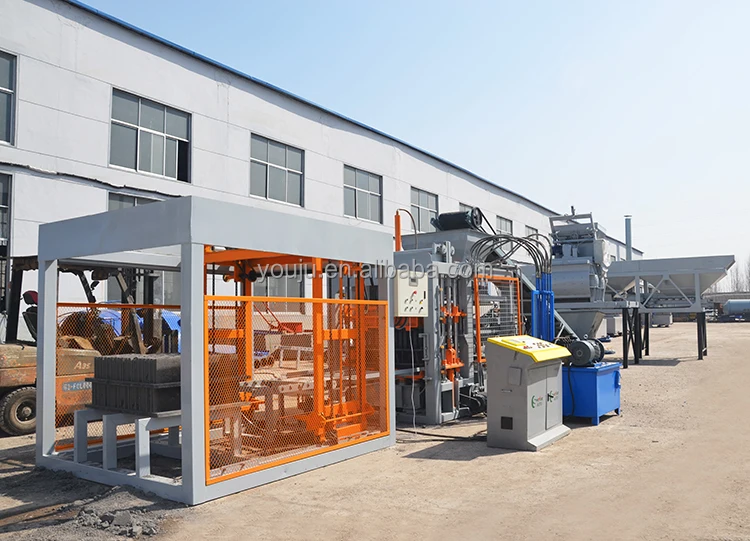

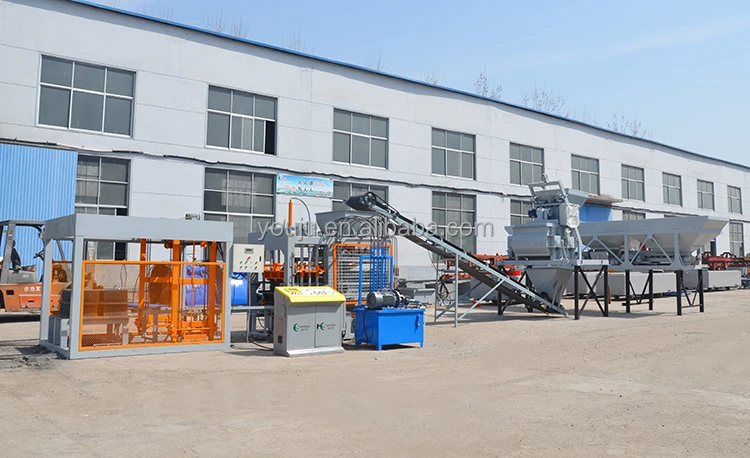

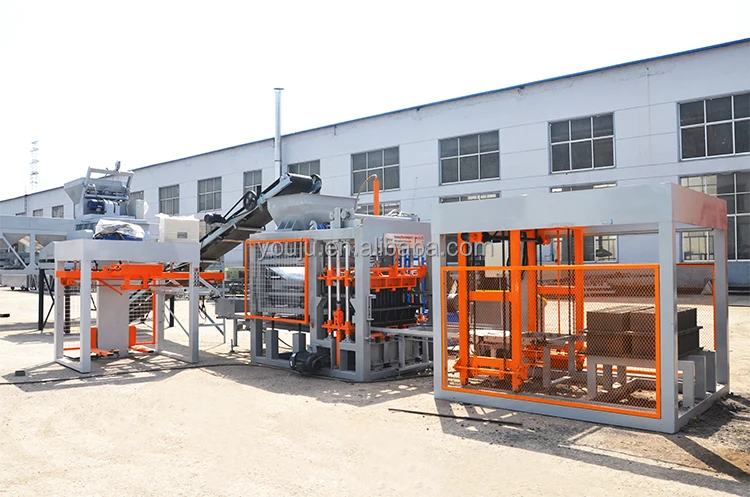

| Product Type | Stationary Automatic Concrete Block Making Machine |
| Model | QT5-15 |
| Overall Dimensions (L×W×H) | 7400 × 1950 × 2800 mm |
| Rated Hydraulic Pressure | 21 MPa |
| Main Vibration Form | Hydraulic platform vibration |
| Vibrating Frequency | 2800–4500 rolls/min |
| Cycle Time | 15–20 seconds |
| Total Motor Power | 26.5 kW |
| Pallet Size | 1100 × 550 mm |
| Net Weight | 6 T |
| Voltage | Configurable to buyer requirement (basis to be confirmed) |
| Control System | PLC with fault diagnosis and long-distance controlling system |
| Automation Level | Full automatic |
| Output Capacity | 7,200–9,600 pcs per 8-hour shift (based on 400×200×200 mm hollow block, 5 pcs/mould) |
| Output Capacity | 23,040–28,800 pcs per 8-hour shift (based on 240×115×90 mm solid brick, 16 pcs/mould) |
| Output Capacity | 61,440–70,400 pcs per 8-hour shift (based on 400×115×53 mm paver, 32 pcs/mould) |
| Warranty | One year for the whole machine |
Application Suitability
| Application | Material or Output |
|---|---|

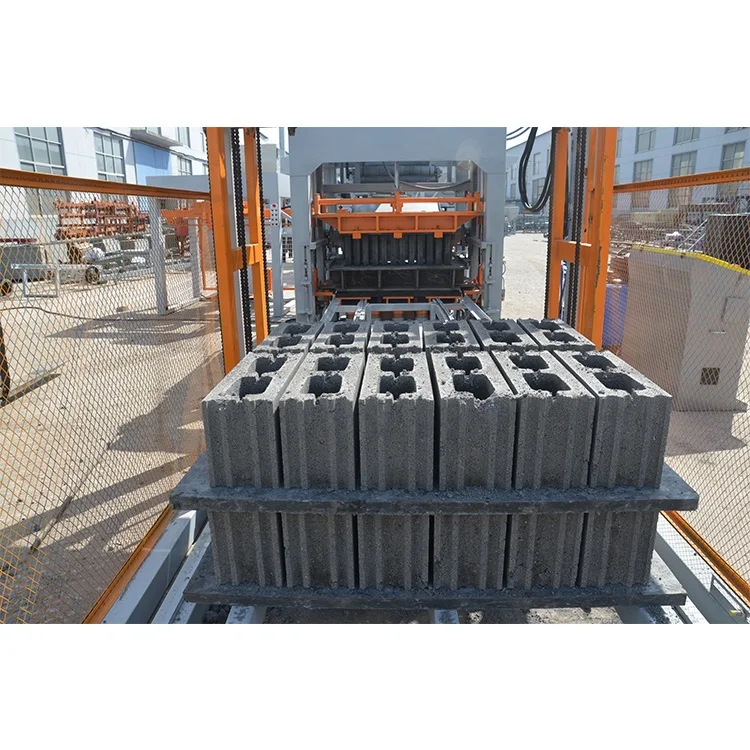

| Hollow block production for load-bearing walls | Crushed stone, sand, cement, and fly ash blends |
| Solid brick manufacturing for masonry projects | Fine aggregate and cement mixtures |

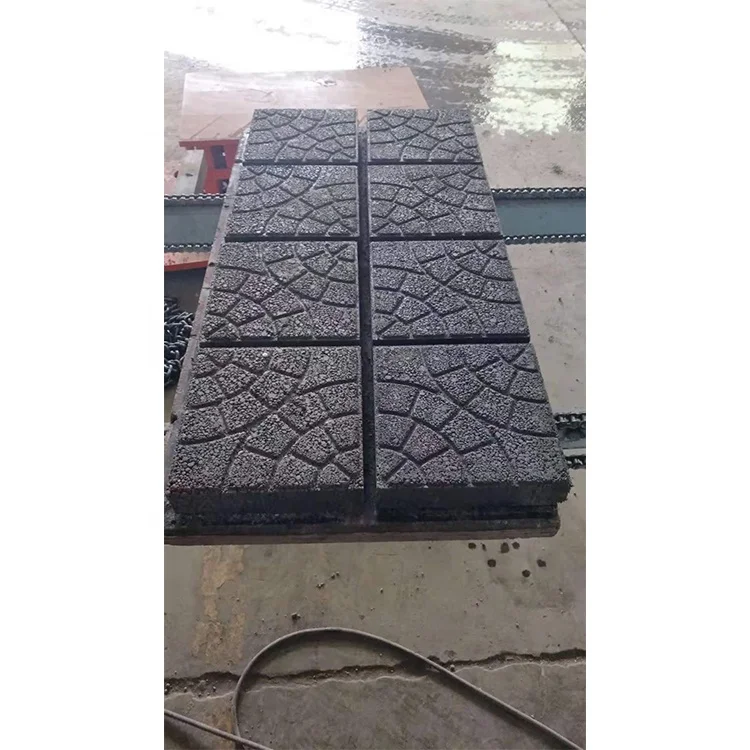

| Paving block production for walkways and yards | High-density concrete mixes with pigment options |
| On-site block production for housing developments | Locally sourced aggregates matching regional standards |
Why the "In Stock" Label Matters Before You Sign
A QT5-15 block machine in stock is only useful if the moulds, voltage configuration, and container loading plan are also ready to move.
When a contractor is three weeks behind schedule and the block supply chain collapses, the last thing they need is a twelve-week build lead. I have seen project managers commit to a machine based on a catalogue cycle time, only to find the unit they wanted requires a custom mould that takes weeks to fabricate. The QT5-15 block machine in stock with fast delivery means the press, the standard moulds, and the pallets are physically on the floor, not sitting in a production queue [NEED_CITE:].
Dispatch Lead Time Quoted Upfront
The entire ordering process for a QT5-15 block machine in stock should produce a written arrival estimate before payment changes hands. This means confirming which standard mould formats ship immediately, which require fabrication, and how the machine will be dismantled for container loading. Buyers working against a project deadline do not have room for a lead time that shifts after the deposit is wired.
Container Loading and Machine Dismantling Arrangement
A 6-tonne stationary press does not simply roll into a container. The QT5-15 is dismantled into major assemblies — the main frame, the hydraulic station, the vibration platform, and the control cabinet — each secured against transit movement. The pallet size of 1100 × 550 mm determines how many pallets can share container space, and this calculation must be done before the packing list is finalized [NEED_CITE:].
Matching Voltage and Control Language Before the Crate Closes
The QT5-15 ships with a PLC control system featuring fault diagnosis and remote monitoring capability. If the destination market runs on a different voltage and frequency standard, the motors and control cabinet must be configured before assembly, not rewired on a job site. The PLC display language is equally critical — an operator reading fault codes in an unfamiliar script adds hours to every breakdown [NEED_CITE:].
What the Specs Actually Mean on the Floor
The 21 MPa rated hydraulic pressure and the 2800–4500 rolls/min adjustable vibration frequency work together to compact the mix. Higher pressure alone does not guarantee block strength; the vibration must fluidize the aggregate so the hydraulic head can compress it uniformly. The 15–20 second cycle time applies across formats, but the actual pieces per shift depend entirely on which mould is mounted — five hollow blocks per cycle produces a fundamentally different daily total than thirty-two pavers per cycle.
The Cost of Ordering Blind
Skipping the stock verification step leads to a machine that arrives with the wrong mould, the wrong voltage, or a pallet size that does not fit the curing racks already built on site. I once saw a contractor receive a stationary press configured for a 380V supply at a location running 415V, delaying commissioning by weeks while transformers were sourced locally. A QT5-15 block machine in stock should eliminate these delays, not create them [NEED_CITE:].
Why Source From This Workshop
Every QT5-15 leaving the Linyi assembly floor is tested as a matched system — press, mould, pallet, and handling equipment specified together rather than pulled from separate vendors. Standard moulds for hollow blocks, solid bricks, and pavers are kept on the shelf so a buyer ordering a QT5-15 block machine in stock can confirm format availability on the same day. The voltage, frequency, and PLC display language are locked in during the quotation stage, not discovered during uncrating. Factory test records are generated on the buyer’s target block format before the machine is dismantled for shipment.
Documentation & Verification
- Factory test record showing cycle time on your specified block format before dispatch
- Machine specification sheet confirming voltage, frequency, and PLC display language
- Mould drawing and format list for every standard mould included in the shipment
- Container loading plan with dismantling arrangement and pallet count confirmed upfront
- Hydraulic and electrical schematic matching the as-built configuration
Installation, Commissioning & Support
- Foundation must support 6 T net weight plus dynamic vibration loads across the 7400 × 1950 mm footprint
- Dedicated power circuit sized for 26.5 kW total motor load at confirmed voltage and frequency
- Machine arrives dismantled; reassembly covers frame, hydraulic station, vibration platform, and control cabinet
- PLC fault diagnosis system configured in operator’s language during initial parameter setup
- Standard mould change procedure demonstrated on site with buyer’s production crew
Before You Request a Quote
Provide the block format your market sells most, the daily volume your project requires, and the voltage and frequency standard at your site. If you already have curing racks and forklifts in place, share the pallet dimensions they accommodate so the 1100 × 550 mm pallet can be verified or adjusted. Confirm which standard moulds you need immediately and which formats can follow later.
Frequently Asked Questions
Q: Which QT5-15 models and mould formats are currently in stock?
A: The QT5-15 stationary automatic press is held in stock with standard moulds for hollow blocks, solid bricks, and pavers. Before you commit, we confirm exactly which formats are on the shelf and ready to ship, and which require a fabrication lead time. This prevents ordering a machine that arrives without the mould you need first.
Q: What is the dispatch lead time and estimated arrival date?
A: A QT5-15 block machine in stock with standard moulds typically ships within days of order confirmation and voltage verification. We provide a written arrival estimate based on your destination port before payment is made, so your project timeline is not guessing at a departure date.
Q: How is the machine dismantled and loaded into the container?
A: The QT5-15 is broken down into major assemblies — main frame, hydraulic station, vibration platform, and control cabinet — each secured for ocean transit. The container loading plan, including pallet count based on the 1100 × 550 mm size, is confirmed and shared with you before the crate is sealed.
Q: Are voltage, frequency, and control language confirmed before shipment?
A: Yes. The 26.5 kW motor set and PLC control cabinet are configured to your site’s voltage and frequency standard during assembly. The PLC display language, including fault diagnosis readouts, is set before the machine leaves the factory to avoid commissioning delays.
Q: What is included in the shipping package?
A: Each shipment includes the QT5-15 press, confirmed standard moulds, pallets sized to 1100 × 550 mm, a documented set of wear parts, and full technical documentation. The packing list details every component so you can verify the consignment against your order on arrival day.
