Automatic block machine

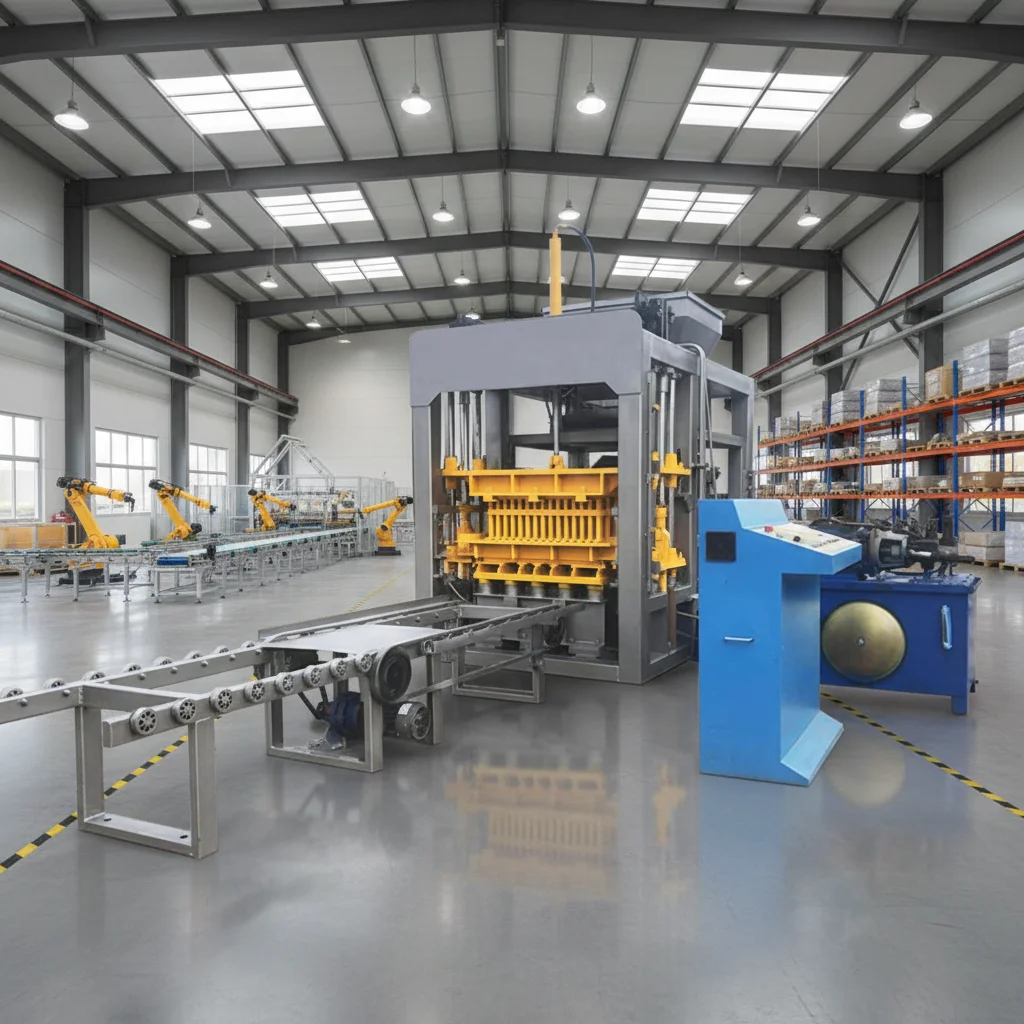

QT5-15 Concrete Interlocking Bricks Making Machine
This product is currently out of stock and unavailable. SKU: QT5-15 Concrete Interlocking Bricks Making Machine-35655075 Category: Automatic block machine Description Additional information Table of ContentsDescriptionElectronically controlled intelligentHydraulic system reliabilityBlock machine with strong adaptabilityComponent of block machine and functioncompany simple introductionAdditional informationRelated productsNew Design Press Insulated Brick Automatic Concrete Hollow Block Machine in Tunisia for […]
- European-Patented Airbag Damping System
- Four-Motor Synchronous Vibration Technology
- Siemens PLC Smart Control · Lifetime Tech Support
- Customized Solution for Local Materials & Voltage
- Lead Time
- 30 days
- Warranty
- 12 mo
- Sold
- 500+
Technical Excellence
Engineered for performance, built to last
Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.
Product Description
Main technical parameters
Overall Dimension | 7400*1950*2800mm |
vibration frequency | 0-60HZ |
Vibration Form | Platform Vibration |
moulding mode | load automatically.vibration moulding |
Pallet Size | 1100x550mm |
Molding cycle | 15-20s |
Overall Power | 32 KW |
Vibration Force | 80 KN |
Total Mass | 5000kgs |
Demolding method | Hydraulic |
Factory Area | 1000m2 |
Products Description
1.This machine can use flyash. slag. gangue and other kind industrial residue then with sand. water. crushed stone. cement all kind material to make all kind hollow block. paver brick. solid bricks just changing the moulds. And the percentage of the flyash can reach 70%.2.The whole process of this machine is controlled by PLC and powered by the hydraulic system. Monitoring with the approach switch. machinery. electric. hydraulic and vibrating system work together to make pallets feeding. material feeding. vibrating. demoulding process work automatically. And its characteristic is high efficient. easy-operated and easy-maintained.3.All the electrical and hydraulic parts are original imported or with China famous brand. So this machine is stable and with less faults. Also it is can be used many years and easy to maintaining.4.Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. Our machine is assembled with our own patent vibrating system and with high power and frequency.5.The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation and dimensions are precise. the blocks are more consistency and low waster rate.6.Moulds system is working synchronized and can ensure the products with same thickness and stable.7.Products come out together then can be stacked efficient and cut off the power consumption and the labour cost.8. This machine is specially for making standard solid bricks and is the better option for environmental protection and construction equipments.
Electronically controlled intelligent
Automatic process of selection of foreign advanced PLC (Programmable Logic Controller) intelligent control. with products process data input. storage. touch screen. ideal. flexible interactive interface. Imports of electrical and hydraulic components and essentially trouble-free operation. random testing of advanced control systems for remote control of the two systems. fault diagnosis.
Hydraulic system reliability
Preferred technique. well-made hydraulic parts. supporting reasonable hydraulic system. design using independent integrated hydraulic station. avoid the host vibration. dust influence hydraulic system. in order to ensure the reliability of the hydraulic system.
Block machine with strong adaptability
The vertical station mode resonance. automatic FM-AM. and realize the "more function with one machine". through the simple replacement of the mold. the products can quickly adjust production. the maximum extent to meet the market demand. so that the equipment maximize performance.
Component of block machine and function
Block machine is consisted of: pallet feed machine. block making machine. storage hopper. conveyor. hydraulic unit. PLC control cabinet
Common blocks theoretical Capacity and common blocks samples
Type | Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) |
Hollow block | 400x200x200 | 15-20s | 5 | 900-1200 | 7200-9600 |
Hollow block | 400x150x200 | 15-20s | 6 | 1080-1440 | 8640-11520 |
Solid brick | 240x115x53 | 15-20s | 32 | 5760-7680 | 46080-61440 |
Rectangular brick | 200x100x60 | 20-25s | 25 | 3600-4500 | 28800-36000 |
Zigzag brick | 225×112.5×60 | 20-25s | 16 | 2304-2880 | 18432-23040 |
Packaging And Shipping
Customer Visiting and customer working site
Company Profile
company simple introduction
Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
FAQ
1> Is this block machine suitable for us to use?Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you..2>Which industry did this block machine usually be used in?Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc3>How to use the block machine?Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you purchase the machine.4>How about the after sale service of block machine?Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you. 5>what's your payment termour common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
