QT8-15 Block Moulding Machine High Efficiency 15-20s Cycle Time for Making Various Paving and Hollow Blocks

This product is currently out of stock and unavailable. SKU: QT8-15 Block Moulding Machine High Efficie-35655132 Category: Automatic block machine Description Additional information Description Products Description QT8-15 Block making machine of QT8-15 Concrete Block Making Machine New Condition Widely Used Brick Production Line HyderabadFEATURES:High degree of automation. intelligent electronic control. automatic process is controlled by […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description
QT8-15 Block making machine of QT8-15 Concrete Block Making Machine New Condition Widely Used Brick Production Line Hyderabad
FEATURES:High degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC (Programmable Controller). input and store of process data and touch screen. it have ideal of flexible Human Conversation Interface. Good reliability. Hydraulic system choosing improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system. Make sure process reliability of hydraulic system.The machine is well-adapted. It can produce different blocks by changing mould. maximal degree cater to marketplace. Plays a mechanical maximum functionality.

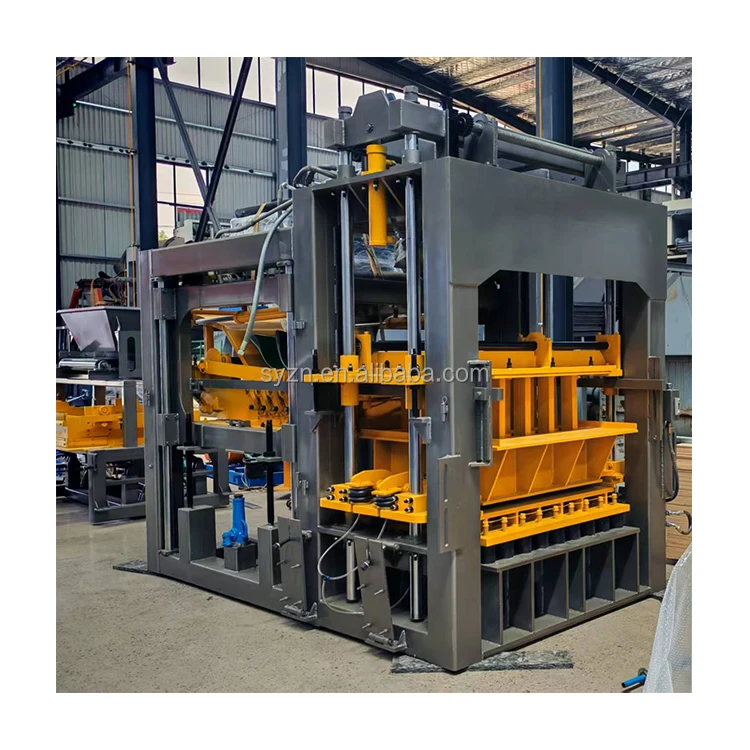

QT8-15 BLOCK MACHINE
This equipment QT8-15 Block Molding Machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic press. mechanical to assist. vibrate and press to finish molding blocks. The comprehensive strength of finished blocks can reach 15 Mpa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation.external dimensions are precise. the blocks are more consistency with low waster rate.

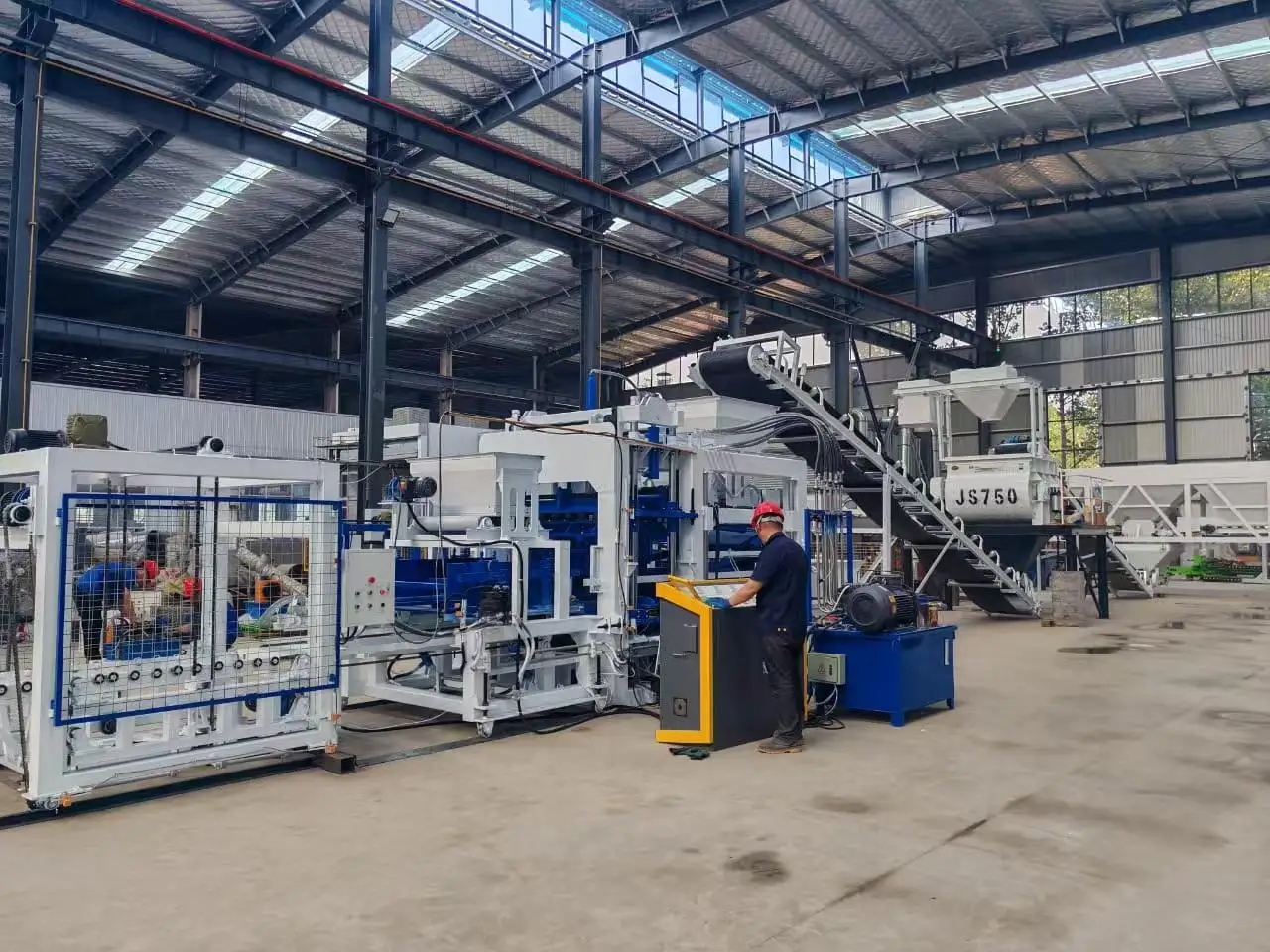

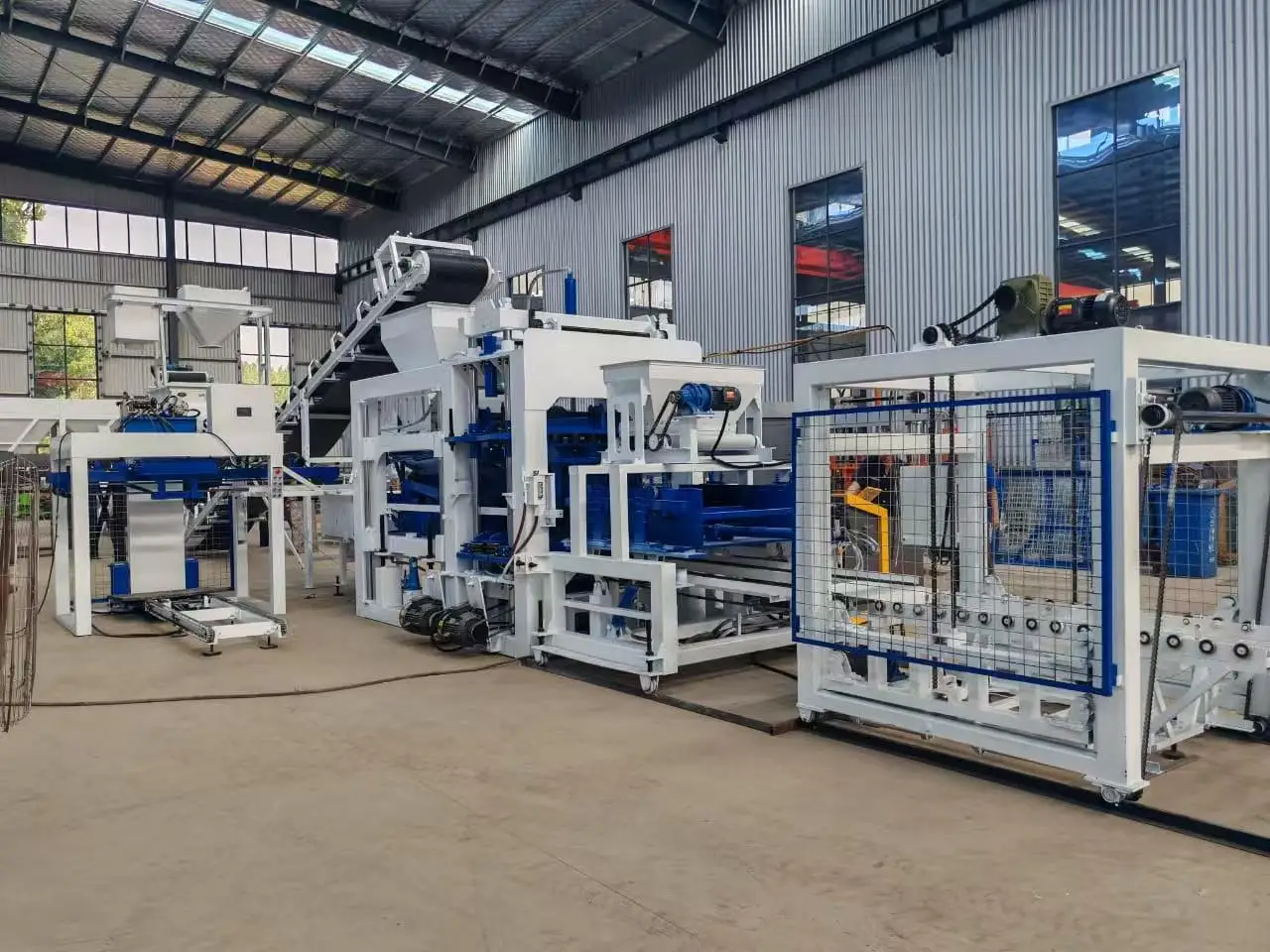

It is mainly composed of pallet feeder. host machine. block conveyor. hydraulic station and PLC controller.
PLC controllerControl system include PLC control box. expand parts. touch screen human-computer interface. intermediate relay. exchange contactor and so on. all parts can work in manual or automatic type. For example. the press head up and down mold box working. material box working. vibrate. molding. demolding. pallet go and back all can control automaticlly. And can adjust the feeding times and vibration time.Control parts include indicator light. control button. programmable operation panel. Through control the electric component. can know the machine situation. it can transition between manual mode and automatic mode. When changing the technical parameter. or there’s problem about the machine. should cut down electric in time. make sure the machine and person safe.
Main technical parameters
Dimension
8300 x 1860 x 3000 mm
Rated Pressure
32Mpa
Vibration Form
Platform Vibration
Pallet Size
950 x 900 mm
Molding Cycle
15-25s
Overall Power
47 KW
Vibration Frequency
2800-4500RPM
Dimension
8300 x 1860 x 3000 mm
Rated Pressure
21 Mpa
Vibration Form
Platform Vibration
Pallet Size
950 x 900 mm
Molding Cycle
15-25s
Overall Power
46 KW
Vibration Frequency
2800-4500RPM

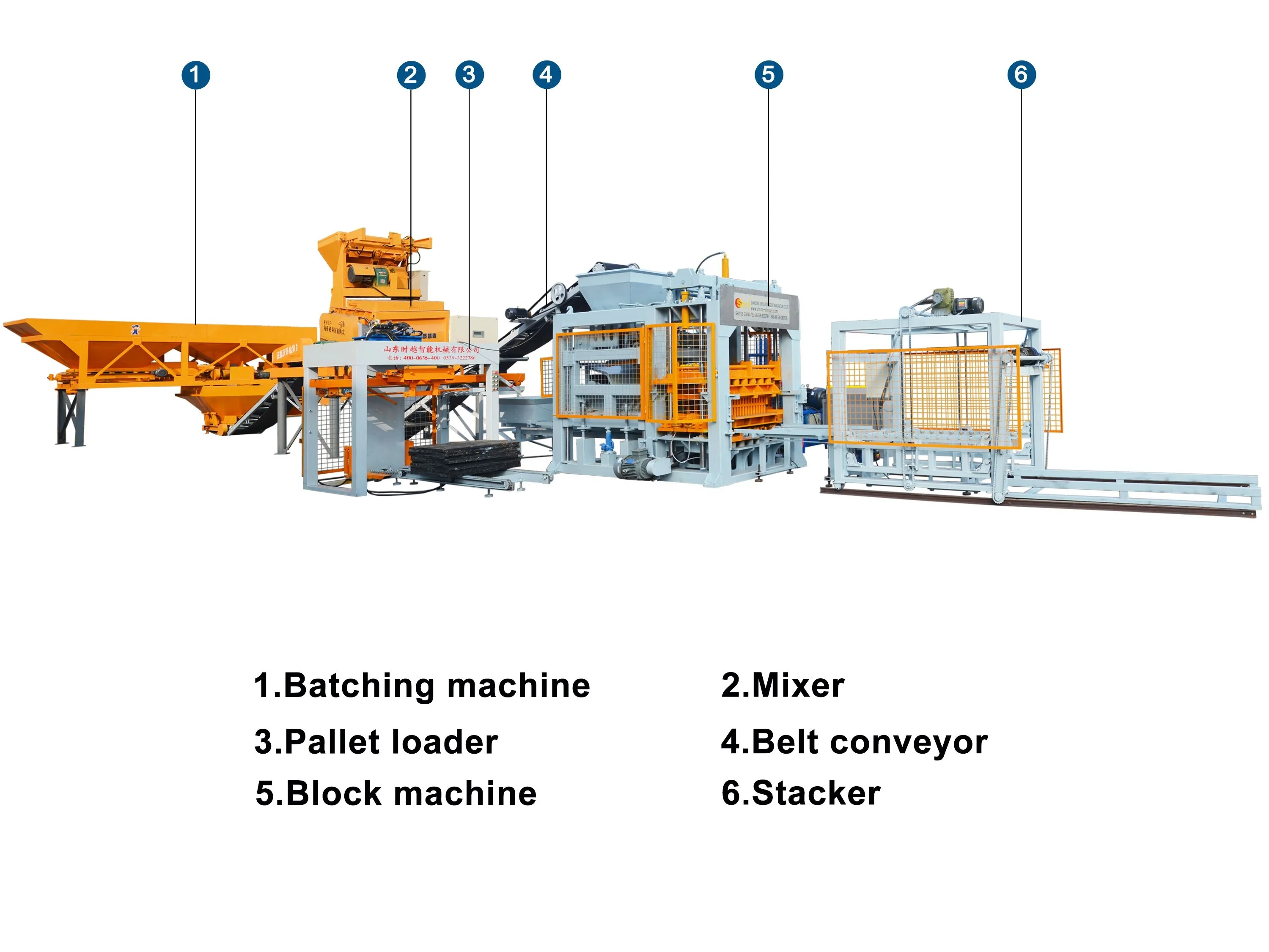

Support Equipment

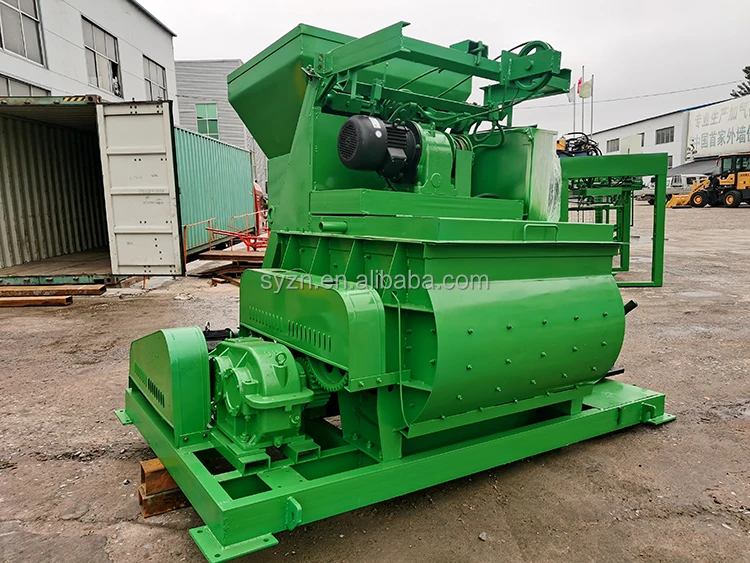

Basic equipment for the simple production line- JS750 mixer
mixed raw material for the blocks production
Basic equipment for the simple production line- belt conveyor- 8m. transfer material from mixer to machine.
Basic equipment for the simple production line- Extra molds. there is one free hollow mold with the machine. extra mold will be paid according to your needs.

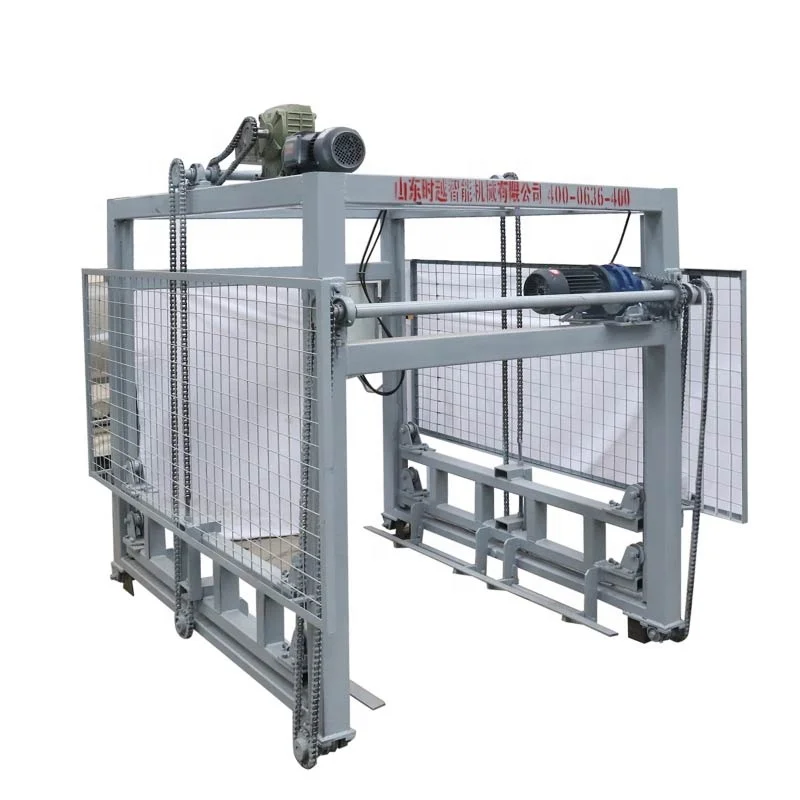

Basic equipment for the simple production line- Automatic stacker- two pallets at one time. 3-6 layers according to the block height.

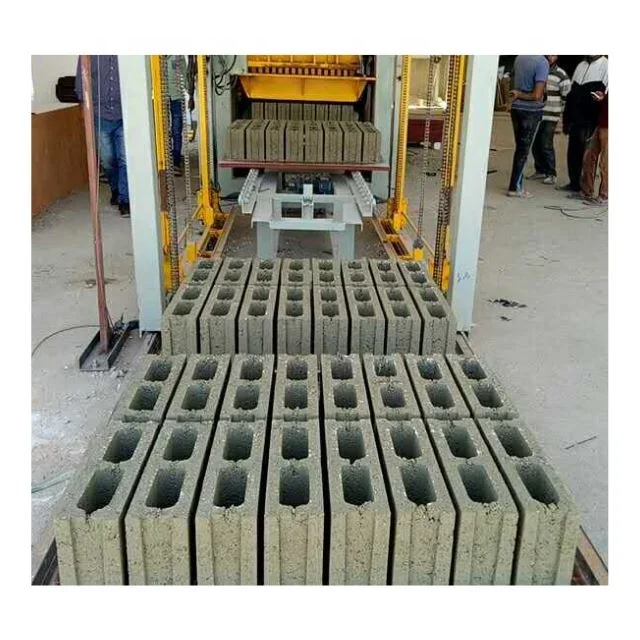

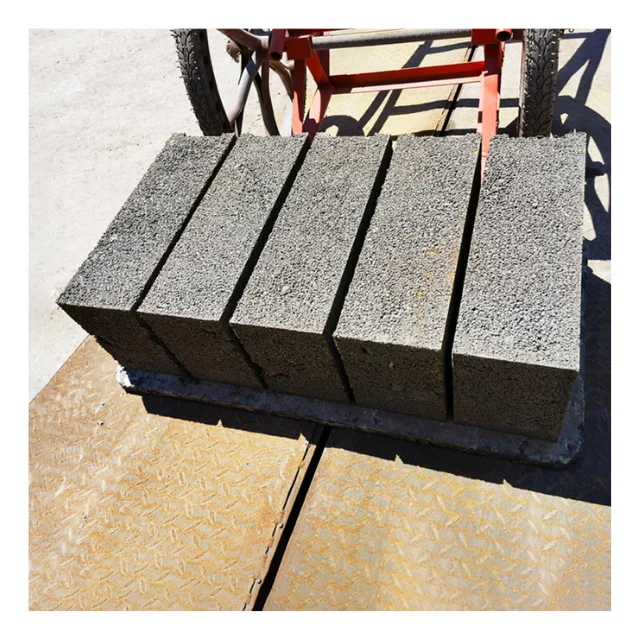

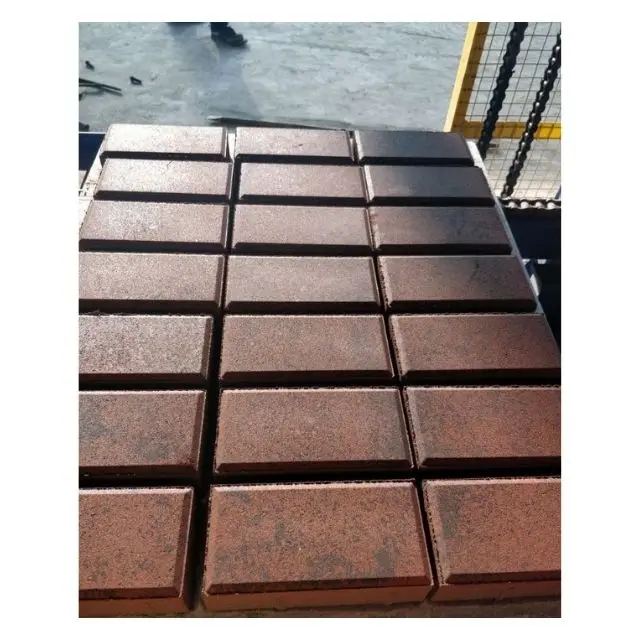

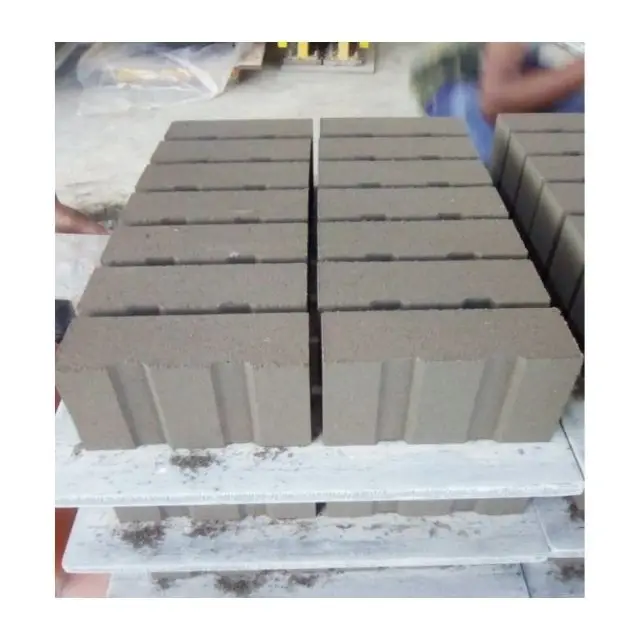

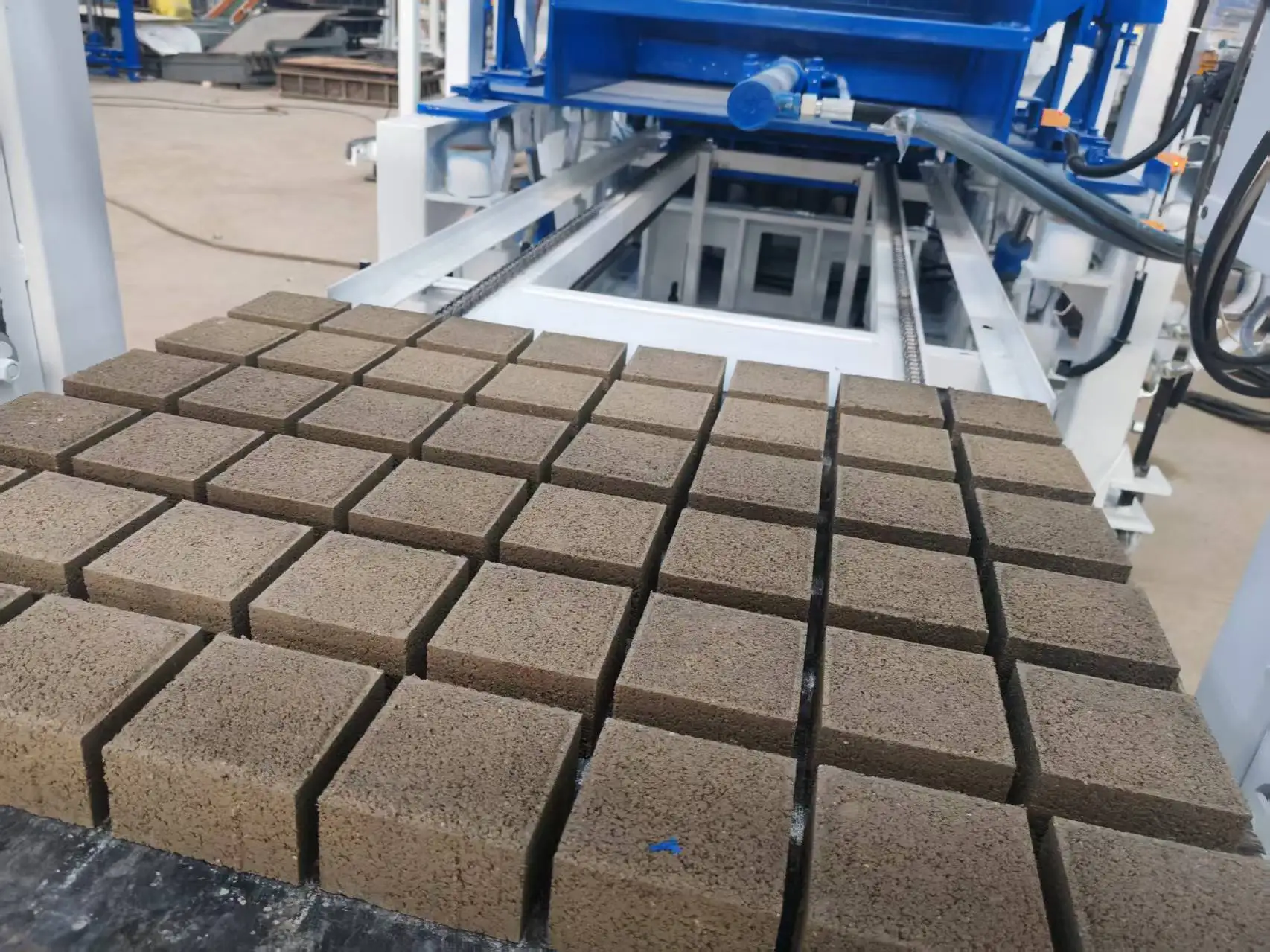

common blocks samples

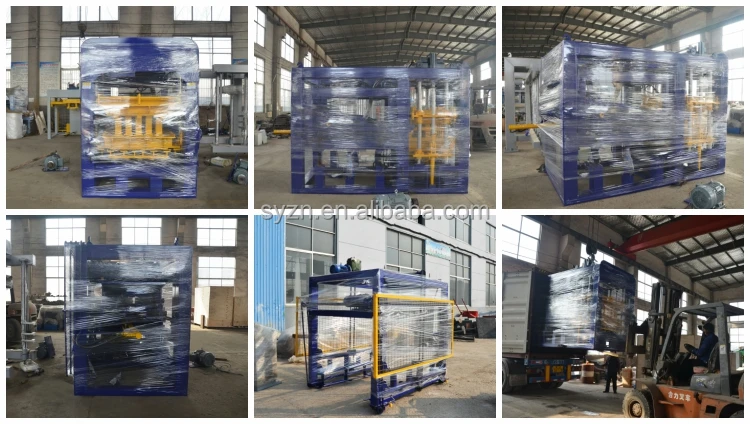

loading and delivery
Company Profile
Recommend Products

Buy with Confidence

From inquiry to commissioning -- 4 transparent steps

  1. 01

    Technical Consultation

    Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.

  2. 02

    Custom Solution Design

    3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.

  3. 03

    Production & Inspection

    Weekly progress photos, video reports, and virtual or on-site factory inspection.

  4. 04

    Installation & Lifetime Support

    On-site commissioning, operator training, spare parts supply and remote diagnostics.

Get a Quote

Talk to a senior engineer about QT8-15 Block Moulding Machine High Efficiency 15-20s Cycle Time for Making Various Paving and Hollow Blocks

Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.

Send Project Brief

By submitting, you agree to be contacted by Shandong Shiyue. We respect your privacy.

More Solutions

Related Products

View All Products →
QMJ4-45 Manual Small Mobile Affordable Concrete Block Making Machine Low Investment

QMJ4-45 Manual Small Mobile Affordable Concrete Block Making Machine Low Investment

View Details
QT8-15 Interlocking Brick Machine Brick Machine Manufacturer

QT8-15 Interlocking Brick Machine Brick Machine Manufacturer

View Details

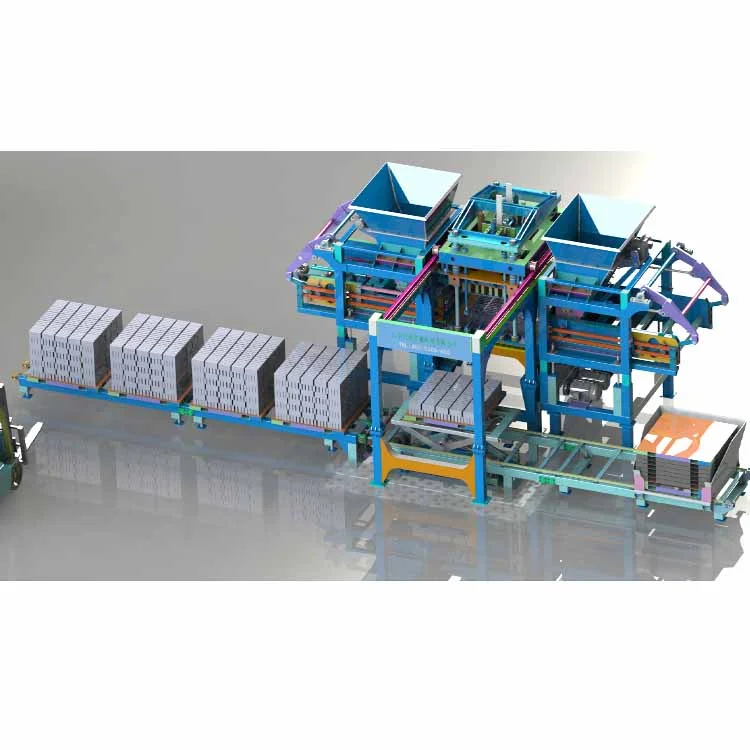

QT18-25 Fully Automatic Block Brick Production Line Fully Automatic Hydraulic Pallet-free Hollow Brick Machine Sales in Turkiye
