QTF3-20 Automatic Hydraulic Hollow Concrete Block Brick Moulding Machine Color Paving Machine PLC Engine Motor High Efficiency

This product is currently out of stock and unavailable. SKU: QTF3-20 Automatic Hydraulic Hollow Concret-35644810 Category: Stationary block machine Description Additional information Description Products Description QTF3-20 Stationary Block MachineQTF3-20 block machine is designed according to domestic condition.and the customer’s advice.high productivity.high quality.strong durability.it can adopts to several kinds of environmental brick. interlock brick.color pavers.park grass […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description

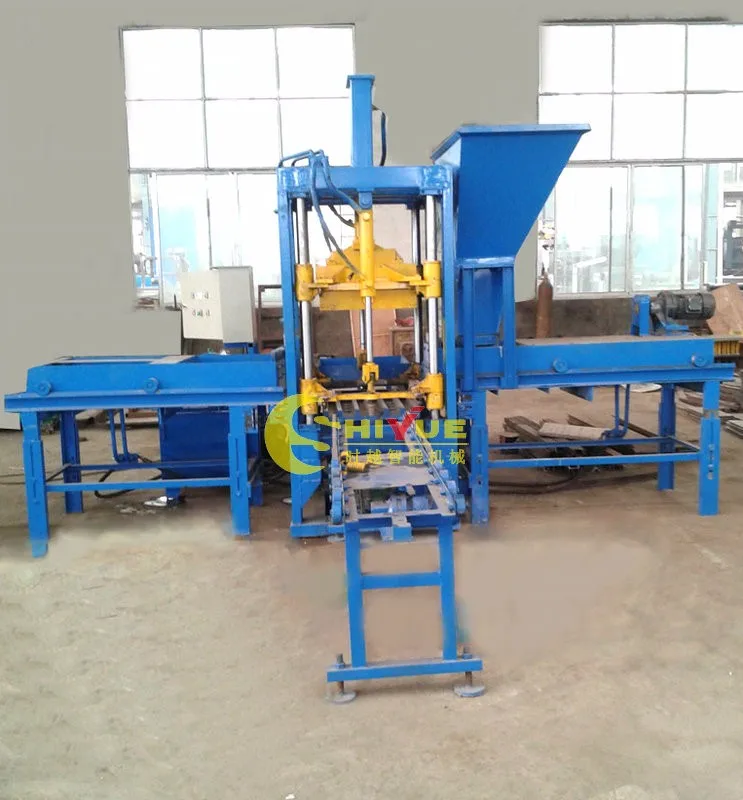

QTF3-20 Stationary Block Machine
QTF3-20 block machine is designed according to domestic condition.and the customer’s advice.high productivity.high quality.strong durability.it can adopts to several kinds of environmental brick. interlock brick.color pavers.park grass brick.hollow brick. porous brick. standard brick and so on.The brick made by QTF 3-20 is high compression strength. standard dimension. appearance beautiful.

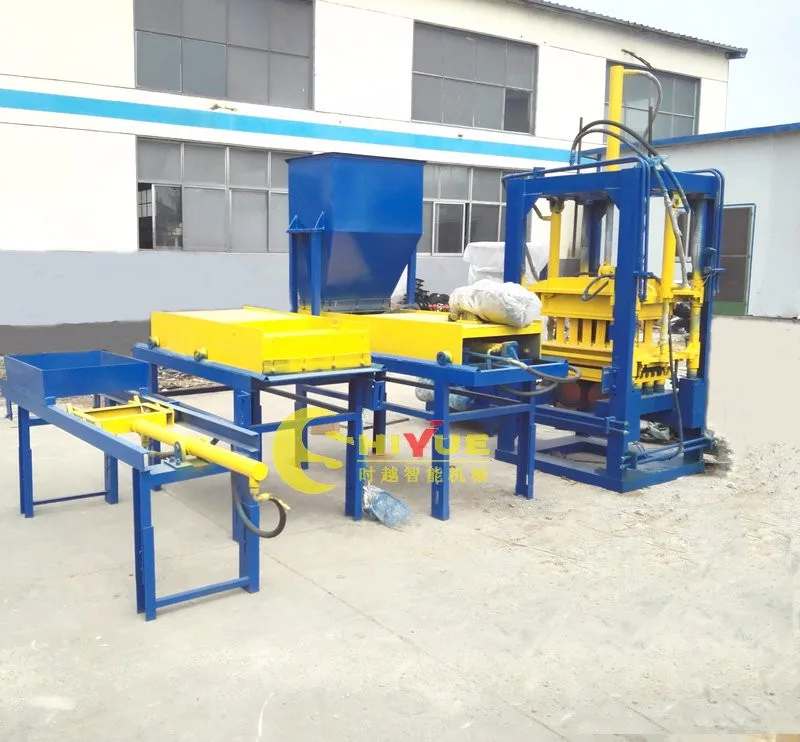

QTF3-20 is consist of host machine. material feeding machine.color material machine.pallet feeder.block conveyor. hydraulic station.electricity box and so on.It can make up a simple line with JQ350 mixer.8 meters conveyor belt.

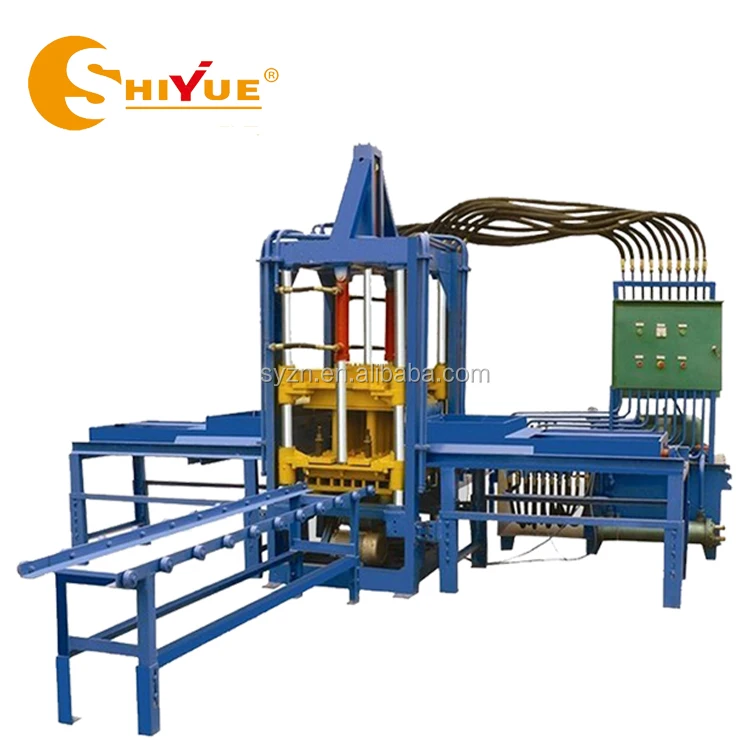

QTF3-20 BLOCK MACHINE
QTF3-20 block making machine is made for color paver brick.grass brick.Slope protection brick and so on.it apply to hydraulic system to drive. no Contact proximity switch to monitoring.double layer(raw material and color surface material). operate automatically. Mechanic.electricity.hydraulic and high vibration work together.The main electrical component.and hydraulic component is imported from Germany or Chinese famous brand.Press with vibration.control the height and density..high exciting power.compact structure.easy operate.convenient maintenance.operate reliable.This machine equipped with one belt. it can make brick with one normal mixer.its a perfect environmental construction equipment.
Main technical parameters
Dimension
4000×3500×2300 mm
Total Mass
2870kg
Vibration Form
Platform Vibration
Total Power
17.5KW
Control Style
Semi-Automatic
Capacity
4320 pcs/day
Raw Material
Cement.Sand. Fly Ash.Coarse aggregate.Slag.etc

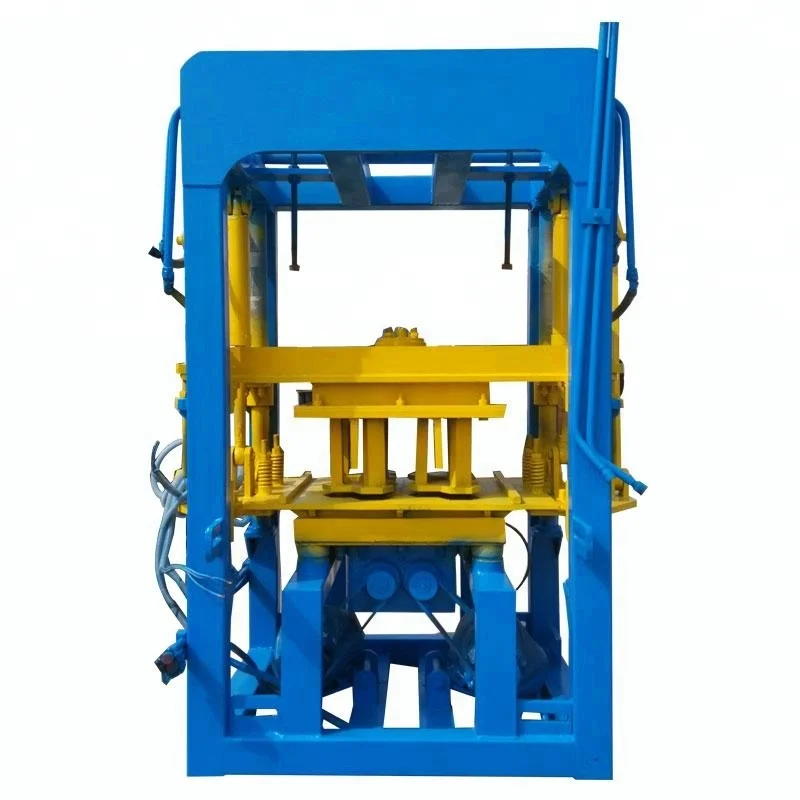

QTF3-20 Host Machine
Host machine is consist of host machine structure.up mold parts.down mold parts.Station shaft sleeve.vibration system.
(1)Host machine structureThe host machine structure is designed overall frame structure.use #12 U-bar welding together.compact structure. strong resistance to vibration.(2)Up mold parts: it is consist of platform.up mold structure.press foot and up mold cylinder.(3)Down mold partIt is consist of mold box.demold cylinder.
(4)Station shaft sleeve partsIt is consist of down sleeve components. up sleeve components.and standing shaft components.
(5)Vibration systemIt is consist of vibration motor.vibration table.vibration box. vibration rubber block and spring

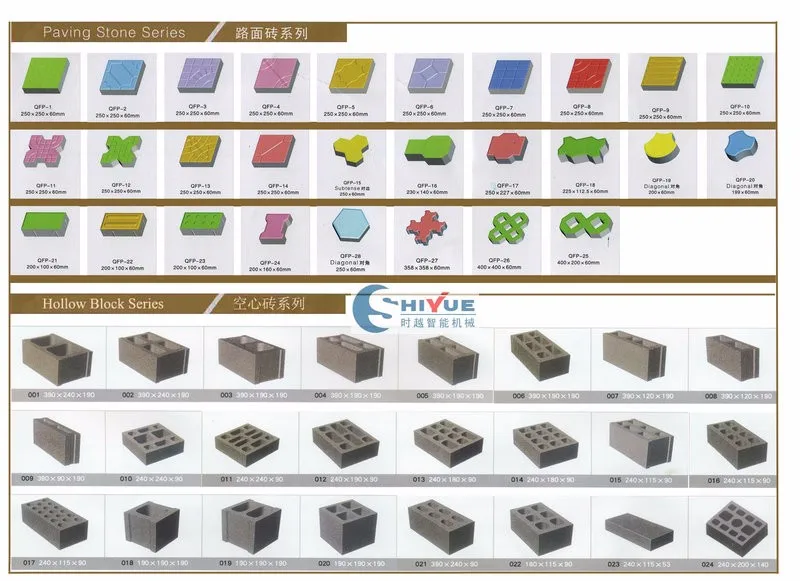

Blocks Samples

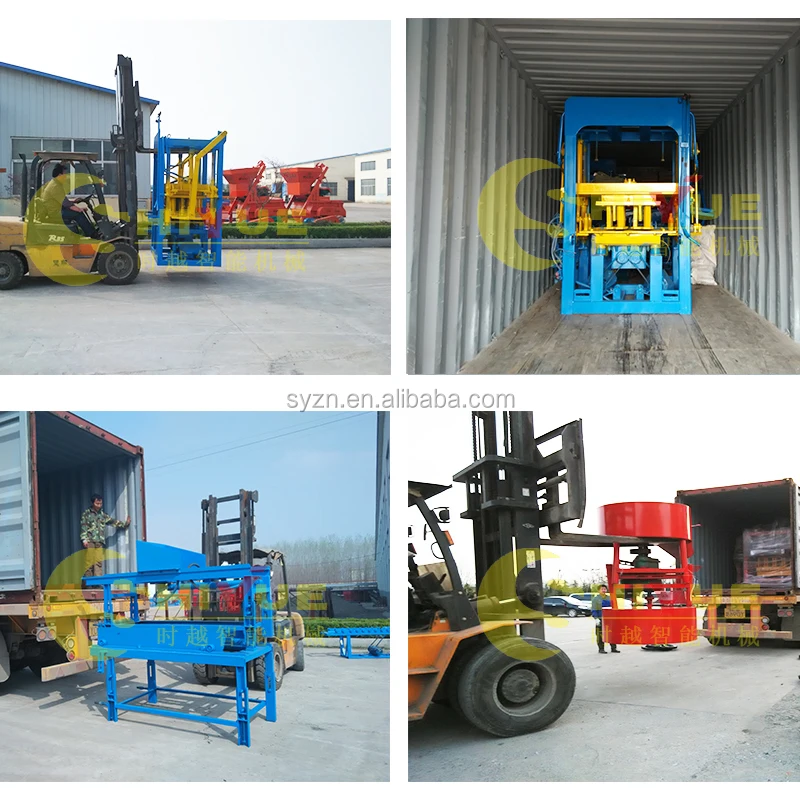

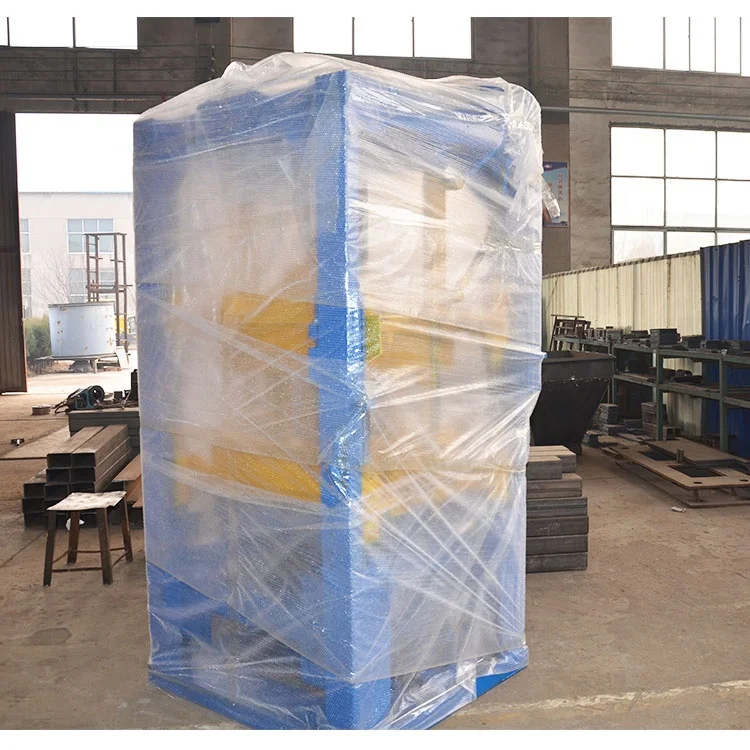

Packaging And delivery
Company Profile
Recommend Products

Buy with Confidence

From inquiry to commissioning -- 4 transparent steps

  1. 01

    Technical Consultation

    Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.

  2. 02

    Custom Solution Design

    3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.

  3. 03

    Production & Inspection

    Weekly progress photos, video reports, and virtual or on-site factory inspection.

  4. 04

    Installation & Lifetime Support

    On-site commissioning, operator training, spare parts supply and remote diagnostics.

Get a Quote

Talk to a senior engineer about QTF3-20 Automatic Hydraulic Hollow Concrete Block Brick Moulding Machine Color Paving Machine PLC Engine Motor High Efficiency

Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.

Send Project Brief

By submitting, you agree to be contacted by Shandong Shiyue. We respect your privacy.

More Solutions

Related Products

View All Products →
SHIYUE Siemens Motor QT8-15 Automatic Cement Interlocking Block Making Machine Brick Maker Sales

SHIYUE Siemens Motor QT8-15 Automatic Cement Interlocking Block Making Machine Brick Maker Sales

View Details
YOUJU Concrete Interlock Brick Machine QT12-15 Cement Paving Blocks Production Line Automatic Fly Ash Block Making Machinery

YOUJU Concrete Interlock Brick Machine QT12-15 Cement Paving Blocks Production Line Automatic Fly Ash Block Making Machinery

View Details
QTJ4-35 Block Machines for Small Businesses at Home

QTJ4-35 Block Machines for Small Businesses at Home

View Details

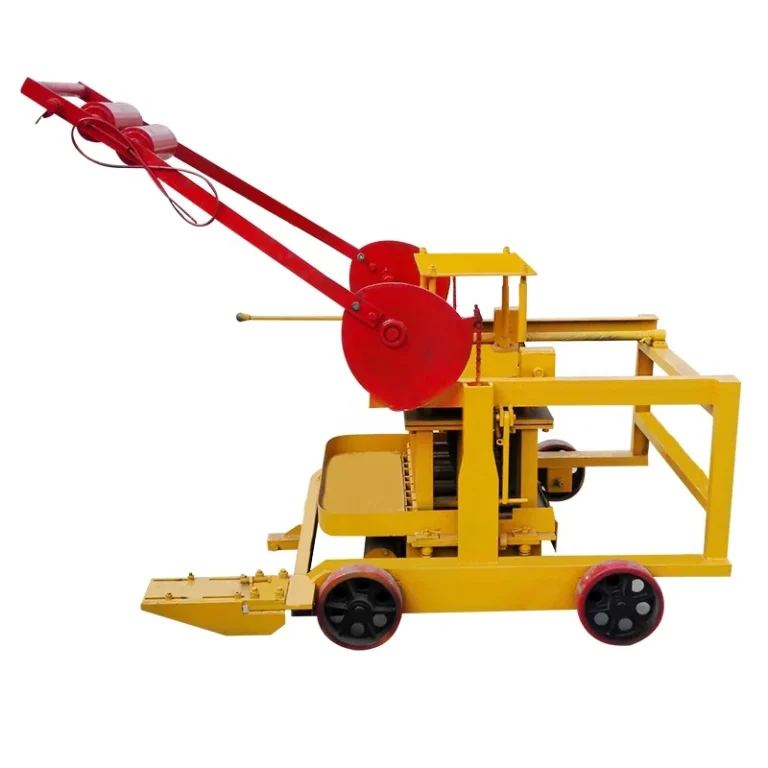

Hollow Block Making Machine QMR4-45 Mobile Concrete Diesel Engine Brick Production Line
