SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
In Stock · Ready to Ship
CE
Certified
ISO
9001:2015
108+
Countries
Automatic block machine

SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine

This product is currently out of stock and unavailable. SKU: SHIYUE LY4-10 Full Automatic Soil Clay Int-35655058 Category: Automatic block machine Description Additional information Description Products Description LY4-10 Interlocking Clay Brick Making MachineSHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making MachineAssembly of machines1、Put together the machine in the style of the above picture.2、Connect the […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description
LY4-10 Interlocking Clay Brick Making Machine
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Assembly of machines1、Put together the machine in the style of the above picture.2、Connect the main circuit to the electric box according to the wiring diagram.3、Connect the crusher. screen. mixer. conveyor to the small control box.
Advantage:
* 1. PLC controlled.which can be easily operated by only one person
* 2.Four brick(according to the mold) would be made in less than 10 seconds.
* 3.By adjusting the screws.brick height can be changed.
* 4.Mould can be changed according to customer’s requirements.
* 5.High productivity.
* 6.Hydraulic to guarantee the brick's density and strength.
* 7.11520pcs bricks a day.
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine

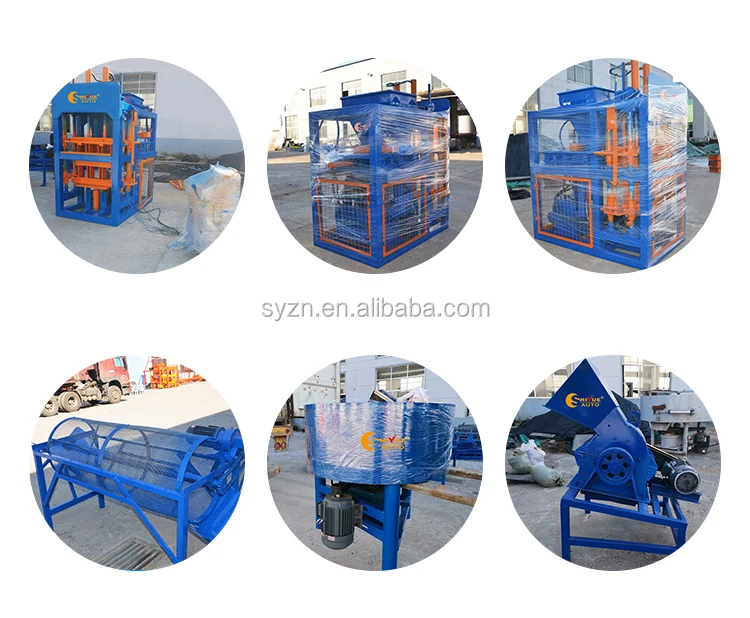

Machine
LY4-10 Clay Brick Machine with PLC
Dimension
1600 x 1400 x 2100 mm
Total Mass
1600 kgs
Power
11KW
Molding Cycle
10 s
Basic Equipment
JQ350 Concrete Mixer. 6M Conveyor Belt
Raw Material
Clay.soil .cement or other construction dregs
We can make molds following your requirement

SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Preparation before commissioning

1. add lubricating oil to each friction part2. add 70L anti-wear hydraulic oil to the hydraulic tank3. add the 15KG oil to the gearbox of mixer4.open the power control switch inside the electric box

SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Handling Precautions

1. First start the mixer. and then add raw materials to the mixer. first mix the clay and cement fully. then add water. water do not add too much. the state of the raw material is very scattered. grab a group with hands 2. In the process of running the machine. in case of emergency. press the Urgent stop button to stop the work of the machine3. Clean up the unnecessary materials on the machine every day before work4. The hydraulic oil should be filtered or replaced according to the actual situation for 3-5 months5. Always check the fasteners and lubrication parts. do a good job of maintenance
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Blocks Samples

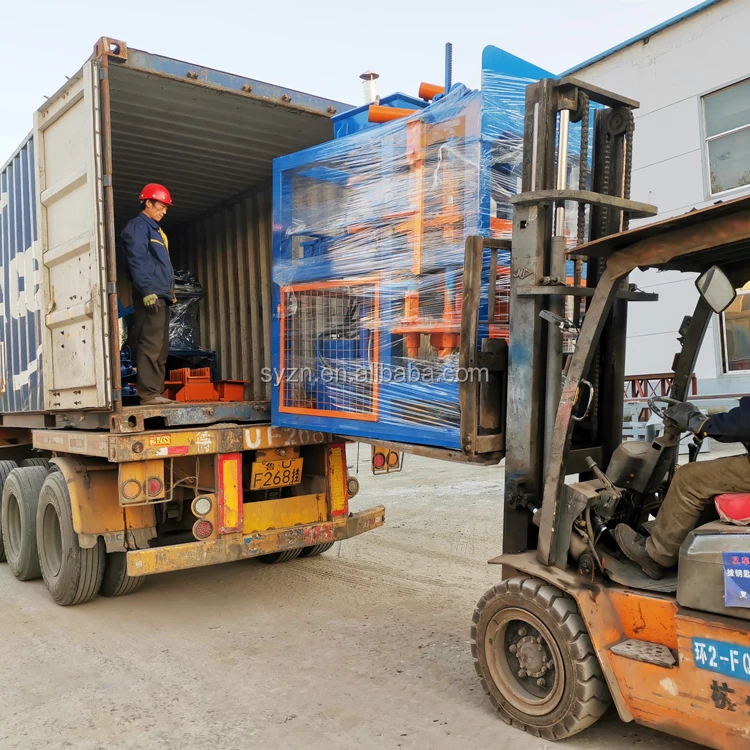

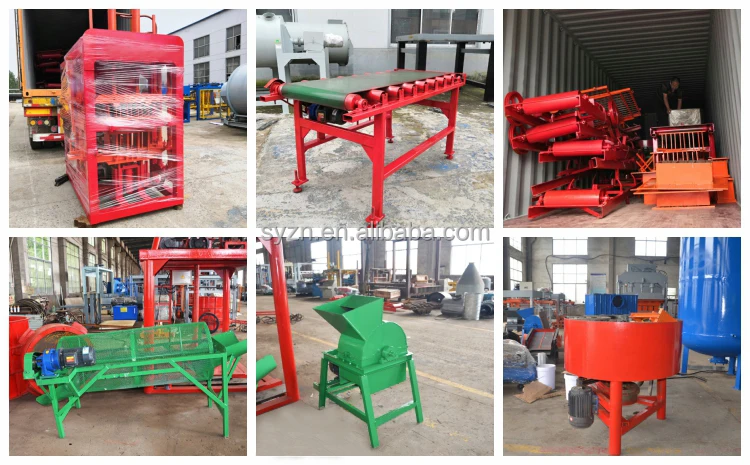

loading and delivery
