YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant Briquette Machine Kenya

This product is currently out of stock and unavailable. SKU: YOUJU Small Scale Block Making Machine Pro-35644657 Category: Stationary block machine Description Additional information Description VR Products Description QTJ4-40 MANUAL CONCRETE BLOCK MAKING MACHINEYOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine PlantQTJ4-40 type concrete block making machine is made […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

VR
Products Description

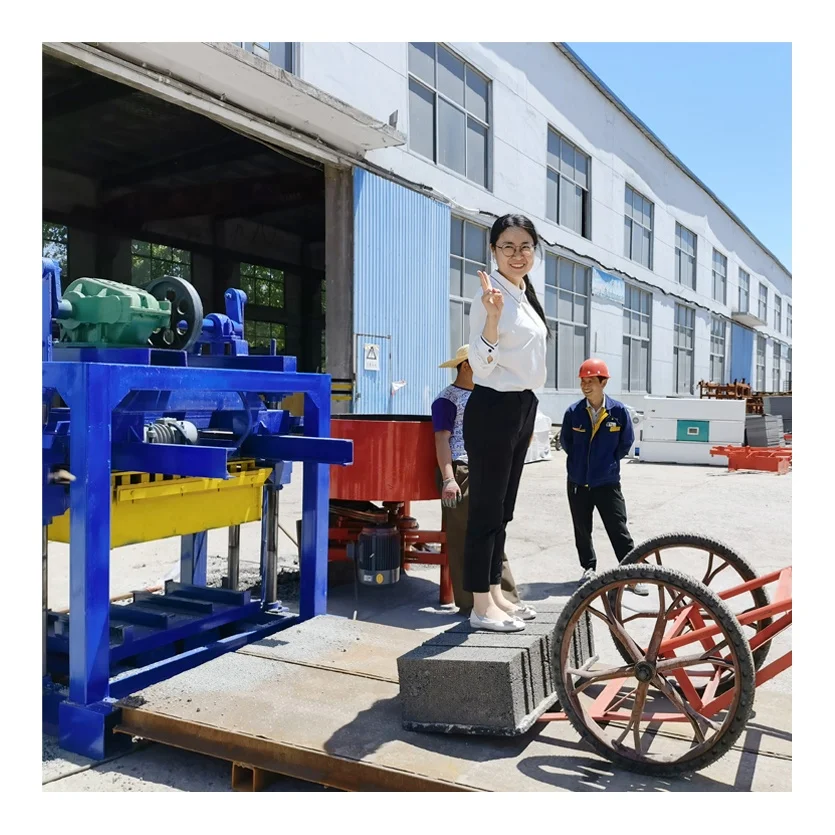

QTJ4-40 MANUAL CONCRETE BLOCK MAKING MACHINE
YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant
QTJ4-40 type concrete block making machine is made up of the machine frame. lifting system. vibration system. mould assembly. electrical control components etc.
The QTJ4-40 hollow block making machine stationary type small platform vibration concrete block making machine adopts mechanical and electric combination type to make all kinds of action. It is easy to operate . work and maintain. Block production adopts table vibration feeding material .fluctuation vibration molding.block forming speed. good compactness. high strength. Mould lifting. block forming in place. Upper and lower vibrator start with the completion of the electrical control and mechanical parts interworking .devices running precisely. reduce the faulty operation damage.
YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant
QTJ4-40 HOLLOW BLOCK MACHINE
Material needed before installation
1??Electric leakage protector(three-phase four-wire) 100A×1piece 2??General power line specifications (Chinese standard) :External use 16 square. the host with 10 square to introduce switch. mixer with 6 square.3??35 # gear oil 10 kg (For the mixer)4??Engine oil 2 kg (host machine lubrication)5??Tool: spanner which the head lived. open spanner 14-17. 19-22. 24-27. 30-36. the plum blossom screwdriver. wire clamp. fur brush(40mm).
YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant
QTJ4-40 CEMENT BLOCK MACHINE EQUIPMENT INSTALLATION
YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant
Requirements(1)The assembling place should be flat. foundation should be solid. have enough place for storing raw material and putting finished products. (2) Power source. water supply and raw material need to do well necessary rain and moisture-proof measures.
Installation(1) Put the main block machine in the precast cement ground. after putting down. make level and alignment. the vibration platform with four angle as a benchmark. unevenness ≤1°. (2) To Assemble the mixer. usually use the vertical type 350.(3) The electric switch of host machine and mixer assembled near to operator. in order to convenient to operate. Switch on the power. adjust the motor steering. If the down vibrator appears vibration power small. can change the vibrator steering and exchange the two phase power line’ wire line. that can reach good vibration power.(4) After assembled. check the 250 reducer(have been added the engine oil before leave factory). the shaft sleeve and other need to lubricate. all fill the lubrication oil.In the mixer should fill 10kgs 35# engine oil or gear oil. then assemble the motor on mixer. be careful the parallel and firmness of triangle belt. Check every parts of screw whether solid. if loose. tightening in time.
YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant
Technical parameters
YOUJU Small Scale Block Making Machine Production Line QTJ4-40 Concrete Hollow Paver Block Machine Plant
Overall Dimension
1350 x 1460 x 1800 mm
Pallet Size
850 x 450 mm
Overal Power
9.5KW
Capacity
2880 pcs/day
Vibration Frequency
2800 RPM
Vibration Force
35KN
Block Samples
