Description

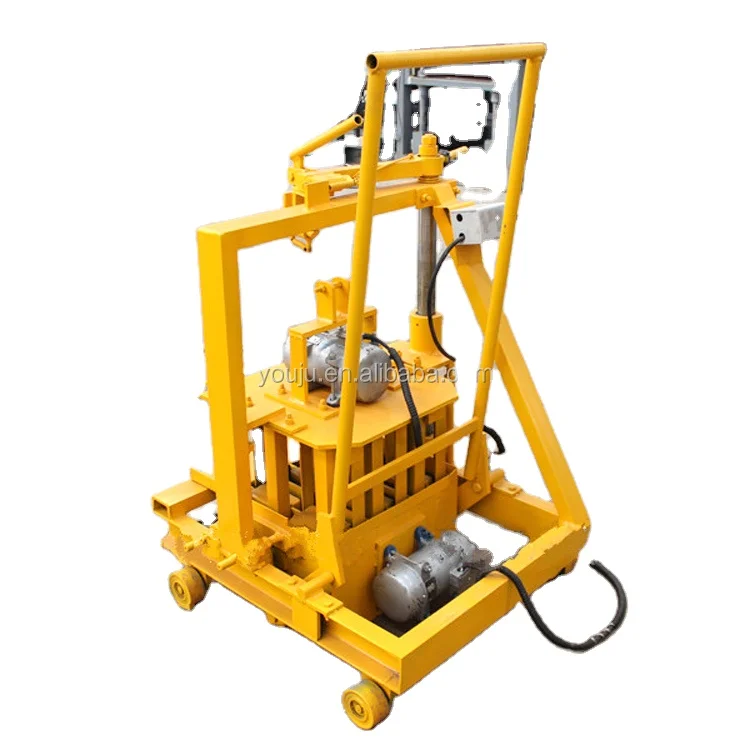

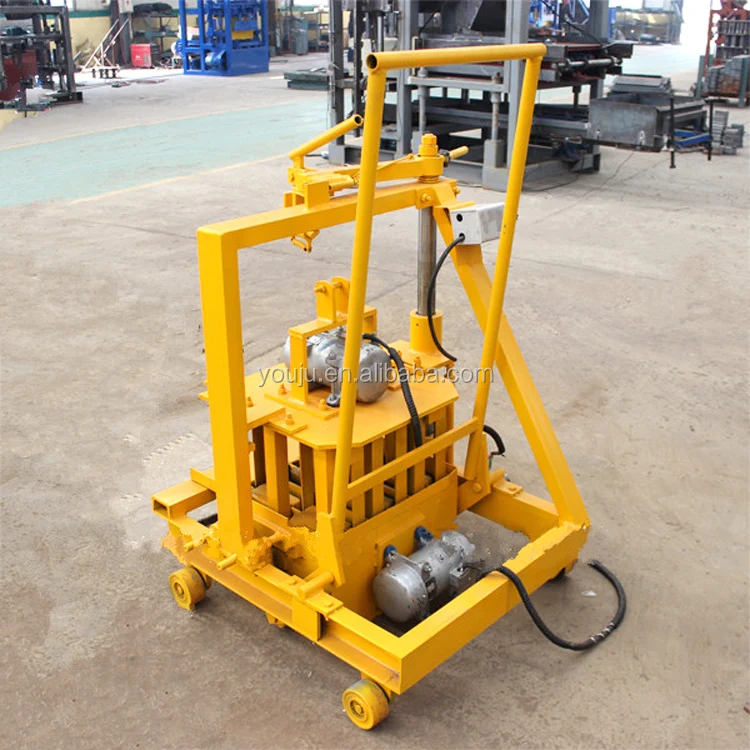

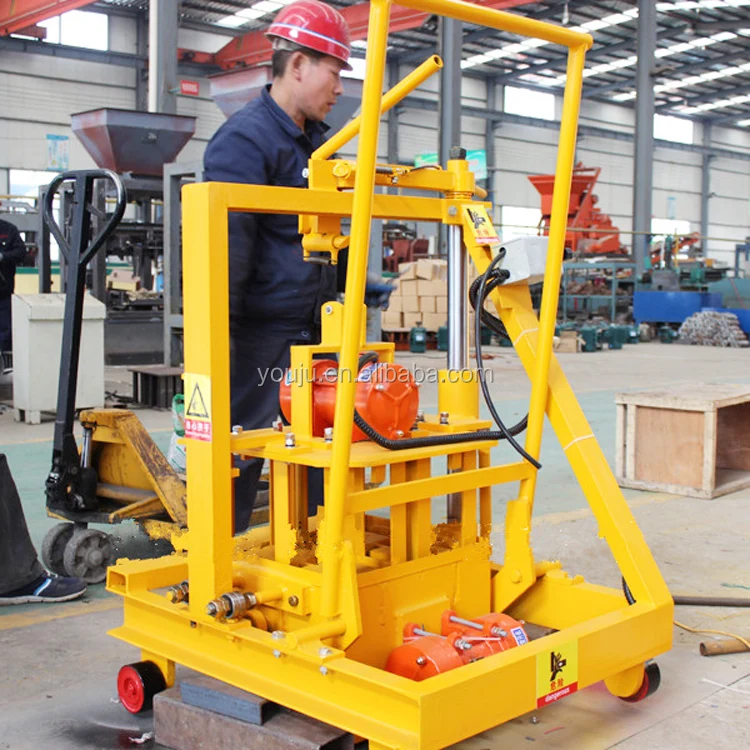

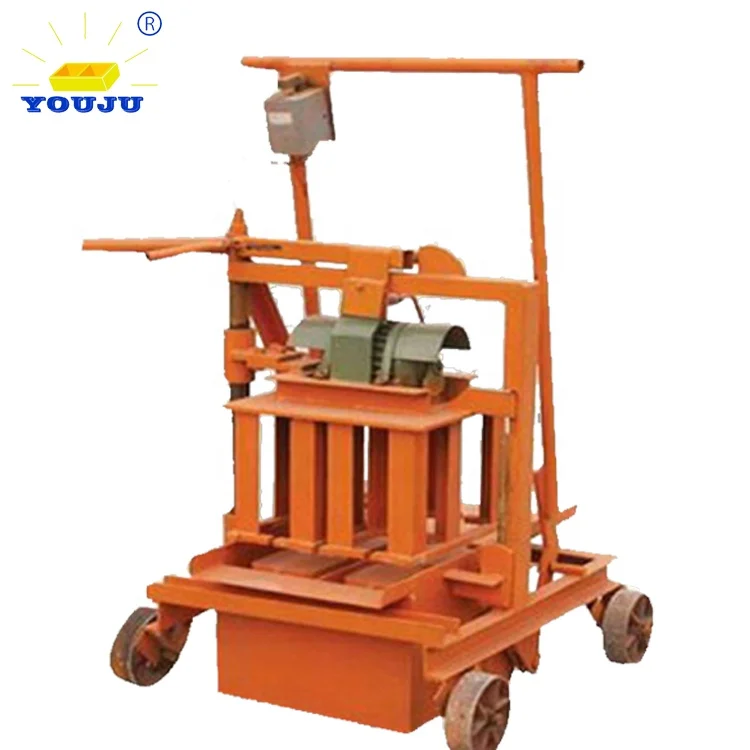

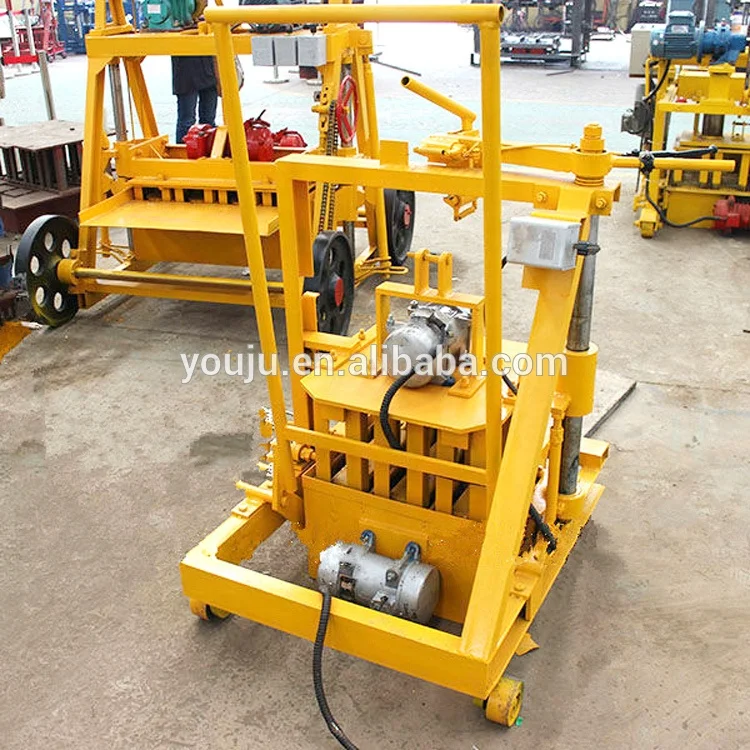

Ready to Ship — QMJ2-45 mobile block making machine units held in stock with standard hollow brick moulds, dispatched on a timeline quoted before payment rather than after.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QMJ2-45 |
| Product Type | Mobile Block Making Machine |
| Machine Type | Manual egg-laying mobile block machine |
| Mould Format | Hollow brick (multiple sizes via mould change) |
| Pallet Requirement | No pallets required |
| Labor Requirement | 1 to 3 workers |
| Space Requirement | Small work site operation |
| Cycle Time (400×200×200mm) | 25–30 s |
| Output per Mould (400×200×200mm) | 2 pcs |
| Output per Hour (400×200×200mm) | 160 pcs (basis: 25–30 s cycle, 2 pcs/mould) |
| Output per 8 hr (400×200×200mm) | 1280 pcs (basis: 160 pcs/h continuous) |
| Cycle Time (400×150×200mm) | 25–30 s |
| Output per Mould (400×150×200mm) | 3 pcs |
| Output per Hour (400×150×200mm) | 240 pcs (basis: 25–30 s cycle, 3 pcs/mould) |
| Cycle Time (400×100×200mm) | 25–30 s |
| Output per Mould (400×100×200mm) | 4 pcs |
| Output per Hour (400×100×200mm) | 320 pcs (basis: 25–30 s cycle, 4 pcs/mould) |
| Output per 8 hr (400×100×200mm) | 2560 pcs (basis: 320 pcs/h continuous) |
| Control System | Manual operation |
| Automation Level | Manual |
| Stacking Method | Blocks laid directly on ground |
| Standards | ISO9001:2000, CE |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site hollow block production for housing projects | Crushed stone, sand, cement mix laid on prepared ground |
| First block plant with minimal setup | Small footprint, no fixed power infrastructure required |
| Contractor self-supply of hollow bricks | Local aggregate and cement, 400×200×200 / 400×150×200 / 400×100×200mm formats |
| Remote or space-constrained build sites | Egg-laying operation without pallet inventory or curing racks |
Why the Voltage Question Must Come Before Dispatch
Confirming local voltage and frequency against the machine nameplate is the single step that prevents a three-week site standstill.
I once loaded a mobile block machine for a West African contractor without cross-checking the destination grid. The unit left our Linyi yard wired for 380 V, arrived at a 415 V site, and tripped the breaker the moment the crew powered it on. The contractor waited for a step-down transformer while the build schedule slipped. Since then, every unit I schedule for dispatch has the nameplate photograph matched to the buyer’s local supply confirmation before the container is booked [NEED_CITE: voltage and frequency standards by export market]. A stocked QMJ2-45 mobile block making machine in stock ships fast, but speed only matters if the machine actually runs on arrival.
Stocked Units and Immediate Dispatch
The QMJ2-45 mobile block making machine in stock sits assembled and tested in our Linyi yard, not waiting on a production slot. Standard hollow brick moulds for the three most-requested formats — 400×200×200, 400×150×200, and 400×100×200mm — are shelved alongside the press, so the full package moves onto the container floor in a single loading session. Buyers working to a construction deadline tell us the arrival date matters more than the order date, which is why we quote the estimated transit window before the proforma invoice is issued.
Container Loading and Dismantling for Shipment
Because the QMJ2-45 is a compact egg-laying unit with no pallet system or conveyor to dismantle, loading is straightforward. The machine is secured upright in a standard dry container, and the moulds are crated separately to prevent hydraulic line or frame contact during ocean transit. At destination, the crew unbolts the travel braces, reconnects the power cable, and the machine is ready to lay blocks on a prepared concrete floor the same day.
Reading the Capacity Numbers Honestly
The QMJ2-45 runs a 25–30 second manual cycle, and output figures only hold meaning when tied to the block format being produced. At 400×200×200mm, each mould drops two hollow blocks, yielding 160 pieces per hour under continuous operation and 1,280 pieces across an eight-hour shift. Switch to the 400×100×200mm mould and each cycle produces four blocks, raising hourly output to 320 pieces [NEED_CITE: typical manual cycle consistency under field conditions]. These figures assume uninterrupted material supply and a level working surface; any pause in the mix feed or ground preparation directly reduces the daily count. The egg-laying design eliminates pallet handling, which removes one bottleneck but places the entire output on the ground for natural curing, so the curing area must be sized accordingly.
What Happens When Arrival Timing Is Left Vague
Contractors who order a block machine without a written dispatch date often discover that "fast delivery" meant the factory still needed to source components. The project crew sits idle, formwork rental accumulates, and the builder either purchases blocks from a local supplier at a premium or delays the next construction phase entirely. With the QMJ2-45 mobile block making machine in stock, the unit exists physically in the yard, and the container booking can proceed within days of payment clearance rather than weeks [NEED_CITE: typical shipping lead time variability from Chinese ports].
Why Buyers Source This Machine Here
Block machinery is the only product line we handle, so the QMJ2-45 is specified, tested, and shipped by the same team that manages the mould inventory and spare parts shelf. Every stocked unit is matched against the buyer’s stated voltage and frequency before dispatch, eliminating the grid-mismatch standstill I described earlier. Standard moulds ship from the same warehouse as the press, meaning no second supplier and no second shipment to coordinate. We confirm the container loading plan and transit estimate before the buyer commits, so the arrival date is known before payment leaves the account.
Documentation & Verification
- Factory test record showing cycle timing on your specified hollow block format before dispatch
- Nameplate voltage and frequency photograph cross-checked against your local grid confirmation
- Container loading plan with brace and crating layout for the QMJ2-45 and moulds
- Operation manual covering mould change sequence and daily maintenance checkpoints
- CE declaration documentation for customs clearance at destination port
Installation, Commissioning & Support
- Prepared concrete floor required; the QMJ2-45 lays blocks directly without pallets or a fixed foundation
- Voltage and frequency confirmed against your site supply before the machine leaves our yard
- Travel braces removed and power cable reconnected on arrival for same-day operation
- Manual cycle operation means no PLC setup; crew training covers mould change and mix feeding rhythm
- Standard wear parts list supplied with the machine for first replacement planning
Before You Send the Inquiry
Tell us which hollow block format your local market sells most, the destination port, and your site voltage and frequency so we can confirm the correct electrical configuration against a stocked unit. If your project has a fixed start date, share that timeline so we match the dispatch and transit window to your schedule.
Frequently Asked Questions
Q: Is the QMJ2-45 currently in stock and what is the dispatch lead time?
A: Yes, QMJ2-45 units and the three standard hollow brick moulds are held in our Linyi yard. Once payment is confirmed and the voltage check is complete, the container is typically booked within days. We quote the dispatch date and estimated arrival before the order is finalized.
Q: How is the machine packed for container loading?
A: The QMJ2-45 is secured upright inside a standard dry container with travel braces bolted to the frame. Moulds are crated separately to avoid contact with the machine during transit. The loading plan is shared with the buyer before the container is sealed.
Q: What is the estimated arrival time for my destination port?
A: Transit time depends on the destination port and current shipping schedules. We provide an arrival estimate based on the confirmed port of discharge before payment, so you can plan your site crew and material delivery around a known date.
Q: Which standard hollow brick moulds ship with the machine?
A: The stocked QMJ2-45 ships with moulds for 400×200×200mm, 400×150×200mm, and 400×100×200mm hollow blocks. Additional format moulds can be added from stock at the time of ordering to avoid a second shipment later.
Q: What voltage options are available for immediate dispatch units?
A: Stocked units are configured for common industrial voltages. We verify your site voltage and frequency before dispatch and reconfigure or confirm the nameplate match so the machine runs without a transformer on arrival.
