Description

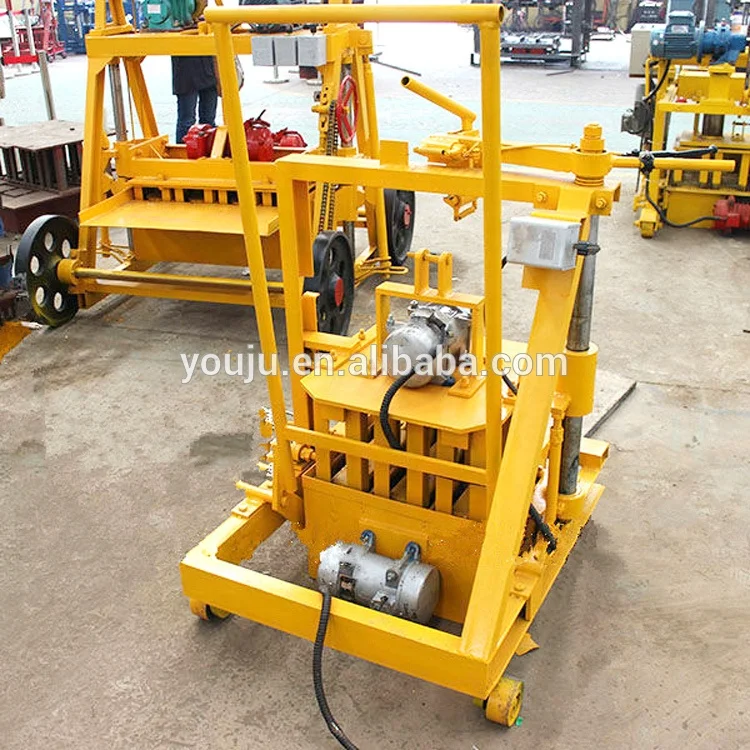

Stocked Mobile Block Machine Range — QMJ2-45 units held in Linyi yard, container loading arranged within days rather than weeks, with dismantling plan and arrival estimate confirmed before you pay.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QMJ2-45 |
| Product Type | Mobile Block Making Machine |
| Mould Format | Hollow brick (multiple size options via mould change) |
| Cycle Time | 25-30 seconds per mould |
| Output (400×200×200mm) | 2 pcs/mould, 160 pcs/h, 1280 pcs/8hr |
| Output (400×150×200mm) | 3 pcs/mould, 240 pcs/h, 4800 pcs/8hr (basis not stated in source) |
| Output (400×100×200mm) | 4 pcs/mould, 320 pcs/h, 2560 pcs/8hr |
| Pallet Requirement | None (egg-laying / palletless design) |
| Power Source | Electric engine |
| Labor Requirement | 1 to 3 workers |
| Mobility | Free-moving, no fixed plant required |
| Space Requirement | Small space compatible |
| Mould Change | Manual, supports multiple hollow brick formats |
| Automation Level | Manual |
| Standards | ISO 9001:2000, CE |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site hollow block production | Crushed stone, sand, cement, water — no fixed batching plant needed |
| Small-scale contractor supply | 400×200×200mm and 400×100×200mm hollow blocks for residential walls |
| Rural and remote build projects | Electric-powered egg-laying on compacted ground or concrete slab |
| First-venture block entrepreneurship | Low-capital entry with 1-3 workers, no pallet or curing rack investment |
Why "In Stock" Only Matters If the Machine Fits Your Site
A stocked QMJ2-45 mobile block machine ships fast, but a voltage mismatch or wrong mould format turns quick delivery into a long delay.
I have seen machines arrive on site within the promised window only to sit idle because the control panel was wired for 380V/50Hz while the local grid runs 220V/60Hz, or the hollow brick mould loaded was 200mm wide when the market only buys 150mm. Dispatch speed means nothing if the machine cannot run the day it is unloaded. That is why every QMJ2-45 we prepare for shipment has voltage, frequency, and mould format locked in writing before the container is booked [NEED_CITE: voltage and frequency standards by export market].
Dispatch Readiness From the Linyi Yard
Stocked units are not just sitting assembled — each QMJ2-45 is inspected, test-run on standard sand, and then dismantled to a container-friendly footprint before crating. The mobile block machine in stock today can typically be loaded into a 20ft container with the mould, power cable, and basic tool kit included in the same shipment. Lead time from order confirmation to gate-out is measured in days, not weeks, because the machine is already built and only waiting for your configuration details.
What Arrival Timing Actually Depends On
Once the QMJ2-45 leaves the yard, transit time depends on your port and current shipping schedules. We quote the arrival estimate upfront so you can plan your ground preparation and crew hiring around a known date rather than a guess. Container loading photographs are sent before the doors are sealed, so you see exactly how the machine is secured and which crate holds the moulds and spare parts [NEED_CITE: typical ocean freight transit windows from Qingdao to major African and Southeast Asian ports].
Reading the Specs Beyond the Brochure Numbers
Cycle time of 25-30 seconds per mould is consistent across all three listed hollow brick formats, but output per hour changes sharply with block size. A 400×200×200mm hollow brick yields 2 pieces per mould for 1,280 pieces in an 8-hour shift, while the 400×100×200mm format yields 4 pieces per mould for 2,560 pieces in the same shift. The palletless egg-laying design means blocks are laid directly on the ground, eliminating pallet investment entirely but requiring a flat, compacted production surface. Manual mould change lets you switch formats, though you should expect the changeover to take a portion of a shift the first few times until your crew builds familiarity. Electric power removes diesel fuel logistics from the equation, but you must confirm your site has a stable grid connection at the specified voltage before the machine arrives.
What Happens When Configuration Is Skipped
Machines dispatched without confirmed site voltage or local aggregate data create problems that no amount of dispatch speed can fix. A QMJ2-45 tuned for standard sand will produce weak, crumbly blocks when fed volcanic ash or laterite because the vibration force and water ratio no longer match the material. Similarly, a control panel built for the wrong frequency burns out motors within the first week. These are not warranty issues — they are configuration failures that could have been caught with a ten-minute exchange before loading [NEED_CITE: common causes of block machine commissioning failures in export markets].
Why Buyers Return for a Second Machine
We focus on block machinery alone, so the QMJ2-45 is supplied as a matched unit — machine, mould, and electrical system specified together rather than assembled from unrelated sources. Configuration is set against your actual block format and local material, not a catalogue default. Mould design covers the hollow brick sizes your market actually buys, with custom drawings available if your region uses a non-standard dimension. The manual automation level means you can start small and add a static press or pallet-based line later without scrapping what you already own. Installation guidance and operator training are included so your crew is producing acceptable blocks within the first day on site.
Documentation & Verification
- Factory test record run on the hollow brick format you will produce
- Voltage and frequency confirmation sheet signed before dispatch
- Container loading photographs showing machine securing and crate placement
- Mould drawing and format list matching your ordered block sizes
- Operation and maintenance manual in your preferred control language
- CE declaration and ISO 9001:2000 compliance documentation
Installation, Commissioning & Support
- Flat compacted ground or concrete slab required — no fixed foundation for QMJ2-45
- Dedicated circuit at confirmed voltage and frequency for the electric engine
- Machine arrives dismantled; reassembly covers frame, mould, and power connection
- First-day parameter tuning for your local aggregate and water ratio
- Operator training on mould change procedure and cycle timing
- Wear parts list and first mould replacement availability confirmed at order
Before You Request a Quote
Tell us which hollow brick sizes your local market buys, the daily output you need to hit your project timeline, and the voltage and frequency at your site. If your raw material is anything other than standard sand — volcanic ash, laterite, crusher dust, fly ash — share the details so we can adjust the vibration and mix guidance before the QMJ2-45 leaves our yard. Let us know your destination port and we will return the arrival estimate with the quotation.
Frequently Asked Questions
Q: What hollow brick sizes can the QMJ2-45 produce, and what is the realistic daily output for each format?
A: The QMJ2-45 supports 400×200×200mm at 1,280 pieces per 8-hour shift, 400×100×200mm at 2,560 pieces per shift, and 400×150×200mm at a rate to be confirmed based on your specific wall thickness and mix. Cycle time stays at 25-30 seconds per mould regardless of format, so the piece count per mould is what changes your daily total.
Q: Is the machine currently in stock, and what is the dispatch lead time and estimated arrival?
A: QMJ2-45 units are held in our Linyi yard ready for configuration and loading. Gate-out lead time is measured in days once voltage, frequency, and mould format are confirmed. Arrival estimate at your port is quoted with the order based on current shipping schedules from Qingdao, so you can plan ground preparation accordingly.
Q: What voltage and frequency is the unit configured for, and can it be matched to my country’s grid before shipment?
A: Each QMJ2-45 is configured to your site voltage and frequency after you confirm them in writing. We do not dispatch a machine on default settings. The electrical specification sheet is signed off before the container is loaded, preventing the motor burnout and control panel failures that commonly stall commissioning.
Q: How is the machine packed for container loading, and is dismantling required for shipment?
A: The QMJ2-45 is dismantled to fit a 20ft container, with the frame, mould, power cable, and tool kit loaded together. Loading photographs are sent before the container doors are sealed. Reassembly on site covers frame bolting, mould mounting, and power connection — no heavy crane or specialist rigging is needed.
Q: Are replacement moulds and wear parts available from stock when the first replacement is due?
A: Moulds and wear parts for the QMJ2-45 are stocked alongside complete machines. When you place your order we confirm which parts are likely to need first replacement based on your production volume and material abrasiveness, and we can include a spares kit in the same container to avoid any production pause later.
