Description
Fast Dispatch Guarantee — The QT10-15 block machine in stock ships within days, not weeks, because we pre-stage standard moulds and control panels at our Linyi facility before your order even hits the production schedule.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT10-15 |
| Product Type | Automatic Concrete Block Making Machine |
| Control System | PLC control cabinet |
| Hydraulic System | Independent integrated hydraulic station |
| Vibration Mode | Vertical station mode resonance with automatic FM-AM |
| Mould Change | Simple replacement, multi-function with one machine |
| Core Components | Pallet feed machine, block making machine, storage hopper, conveyor, hydraulic unit, PLC control cabinet |
| Output Capacity (Hollow Block 400×200×200mm) | 1,800–2,400 pcs/hour based on 10 pcs/mould, 15–20s cycle (basis not stated in source for pallet size/material) |
| Output Capacity (Hollow Block 400×150×200mm) | 2,160–2,880 pcs/hour based on 12 pcs/mould, 15–20s cycle (basis not stated in source for pallet size/material) |
| Output Capacity (Solid Brick 240×115×53mm) | 8,928–11,160 pcs/hour based on 62 pcs/mould, 15–20s cycle (basis not stated in source for pallet size/material) |

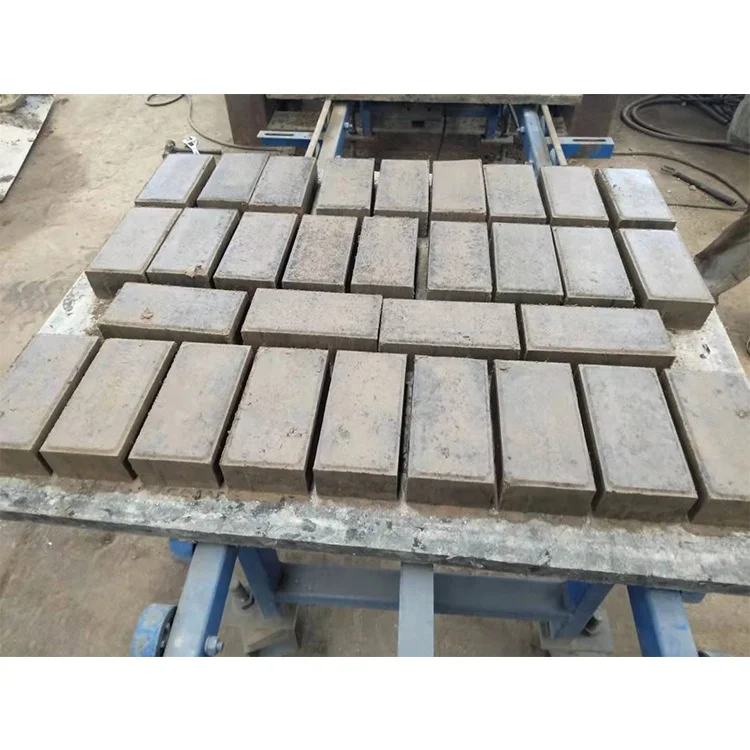

| Output Capacity (Paving Block 200×100×60mm) | 5,184–6,480 pcs/hour based on 27 pcs/mould, 20–25s cycle (basis not stated in source for pallet size/material) |
| Output Capacity (Paving Block 225×112.5×60mm) | 4,032–5,040 pcs/hour based on 24 pcs/mould, 20–25s cycle (basis not stated in source for pallet size/material) |
| Cycle Time (Hollow Blocks) | 15–20s |
| Cycle Time (Paving Blocks) | 20–25s |
| Voltage & Frequency | Configurable to buyer’s local standard (basis to be confirmed) |
| Hydraulic Pressure | Dependent on block format / material / thickness (basis to be confirmed) |
| Vibration Force | Dependent on block format / material / thickness (basis to be confirmed) |
| Pallet Size | Dependent on block format / material / thickness (basis to be confirmed) |
| Overall Dimensions | Dependent on block format / material / thickness (basis to be confirmed) |
| Net Weight | Dependent on block format / material / thickness (basis to be confirmed) |
| Rated Power | Dependent on block format / material / thickness (basis to be confirmed) |
| Assembly State | Requires on-site installation and commissioning |
| Warranty | 1 year for whole machine (excluding spare parts) |
| CE Declaration | Available where applicable |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production plants | Crushed stone, sand, cement blends for 400×200×200mm and 400×150×200mm hollow blocks |
| Multi-cellular brick manufacturing | Lightweight aggregate and cement mixes for cellular formats |
| Paving block production | High-density aggregate and pigment blends for 200×100×60mm and 225×112.5×60mm interlocking pavers |
| Standard solid brick production | Sand, fly ash, and cement for 240×115×53mm solid bricks |
| On-site construction block production | Locally sourced aggregate for housing and development project contractors producing blocks at the job site |
What "Ready to Ship" Actually Means for Your Project Timeline
Stocked configurations leave the factory within days; made-to-order units take typical multi-week lead times — know which one you’re buying before you commit.
I’ve watched project deadlines collapse because a buyer assumed "in stock" meant every configuration was sitting on the warehouse floor. The reality is more nuanced. Standard QT10-15 setups with common mould formats ship fast, but swap the PLC language or request a non-standard voltage and you’re suddenly on a production queue. [NEED_CITE: typical lead time variations for industrial machinery exports]. That’s why I confirm stock status and dispatch dates in writing before any deposit changes hands.
Dispatch Readiness for Standard Configurations
The QT10-15 block machine in stock typically includes configurations running common hollow block and paving block moulds that account for the majority of export orders. These units have completed factory testing and sit with standard hydraulic and electrical configurations ready for voltage confirmation. When your target market uses 380V/50Hz or 440V/60Hz and English-language PLC displays, the dispatch window compresses significantly because those are the configurations we stage most frequently.
Container Loading and Machine Dismantling Protocol
The QT10-15 requires dismantling for container shipment — the press frame, hydraulic station, PLC cabinet, pallet feed system, and conveyor each separate into manageable sections. I’ve overseen enough loading operations to know that poor dismantling documentation causes reassembly delays at destination. Every QT10-15 block machine in stock ships with numbered component tags and packing photographs taken before container doors close. This isn’t optional courtesy; it’s the difference between your installation crew starting work on day one or spending days figuring out which hydraulic line connects where.
Arrival Estimates That Account for Reality
Calculating arrival requires more than transit days from Qingdao to your port. Customs clearance speed, local trucking availability, and whether your import agent has the correct HS codes all shift the timeline. When buyers ask me for arrival estimates, I build in buffer for the variables I can’t control while locking down the variables I can — like ensuring CE documentation and customs paperwork are complete before the container leaves Linyi. [NEED_CITE: export documentation requirements for concrete machinery].
How Vibration and Hydraulic Pressure Determine Block Density
The QT10-15 uses vertical station mode resonance with automatic FM-AM vibration paired with an independent integrated hydraulic station. These two systems work together — hydraulic pressure compresses the material while vibration eliminates air pockets and ensures uniform density throughout the block cross-section. The specific hydraulic pressure and vibration force settings depend on your mix design and target block format. A hollow block requires different force profiles than a dense paving block, which is why these parameters need confirmation against your actual aggregate and cement ratios before we finalize the configuration. The 15–20 second cycle time for hollow blocks and 20–25 second cycle time for paving blocks reflects this difference in compaction requirements.
The Configuration Mismatch That Delays Commissioning
I once shipped a fully automatic QT10-15 to a West African project site only to discover the PLC display defaulted to Chinese characters. The local operator couldn’t navigate the menu, and commissioning stalled for two days while we sent English firmware files via email. Now I treat voltage, frequency, and control language confirmation as non-negotiable checkpoints before any machine leaves our facility. [NEED_CITE: international machinery control language standards]. Getting these wrong doesn’t damage the machine, but it does burn project days that your construction schedule can’t absorb.
Why Stock Purchases Demand Extra Verification
Buying a QT10-15 block machine in stock offers speed advantages, but it also requires careful specification matching. Stocked units reflect configurations that other buyers commonly order — that might align perfectly with your needs, or it might require modifications that push you back into made-to-order territory. The pallet size your existing curing racks accommodate, the voltage your site transformer delivers, and the block formats your market actually purchases all need verification against the specific stocked unit before you commit. Speed only matters if the machine that arrives can actually run your production from day one.
Documentation Package for Smooth Import Clearance
- Factory test record documenting cycle times across your specified block formats before dispatch
- CE declaration documentation prepared to match your destination country’s import requirements
- Hydraulic and electrical schematics showing confirmed voltage, frequency, and component specifications
- Packing photographs taken during container loading with numbered component identification
- Operation and maintenance manual translated to your specified control language
- Customs documentation package with correct HS codes and export certificates
Installation, Commissioning & Support
- On-site assembly required for dismantled press frame, hydraulic station, and PLC cabinet components
- Voltage and frequency verification against your local electrical supply before first power-up
- Commissioning includes cycle time testing and mould change procedure demonstration with your operators
- Operator training covers PLC navigation, mould replacement, and daily maintenance routines
- Wear parts inventory list provided with reorder specifications for hydraulic seals and mould components
- First-week production monitoring support to verify output matches configuration calculations
What We Need to Confirm Your Dispatch Timeline
Send us your target block format and daily output requirement so we can identify which stocked configurations match your production needs. Include your local voltage and frequency specifications along with your preferred PLC display language. If you have existing pallet handling equipment or curing racks, share those dimensions so we can verify pallet size compatibility before committing to a specific stocked unit.
Frequently Asked Questions
Q: Which QT10-15 configurations and mould formats are currently in stock and ready for dispatch?
A: Standard configurations producing hollow blocks in 400×200×200mm and 400×150×200mm formats, plus common paving block sizes, typically ship from stock. Units configured for 380V/50Hz or 440V/60Hz with English PLC displays move fastest. Custom mould formats or non-standard voltage requirements shift into made-to-order status with typical multi-week lead times. We confirm exact stock status at inquiry.
Q: What is the lead time from order confirmation to container loading, and how is the arrival estimate calculated?
A: Stocked QT10-15 units load within days after payment confirmation and documentation finalization. Made-to-order configurations require typical multi-week production time. Arrival estimates add ocean transit days to your destination port plus buffer for customs clearance and local transport. We provide written dispatch dates and transit calculations so you can plan your project schedule with realistic timelines.
Q: How is the machine dismantled and loaded into containers, and what packing documentation is provided?
A: The QT10-15 separates into the press frame, hydraulic station, PLC cabinet, pallet feed system, storage hopper, and conveyor sections for container loading. Each component receives numbered identification tags. We photograph the complete loading process and provide these images with the shipping documentation. This ensures your installation team can verify all components arrived and understand the reassembly sequence.
Q: Can voltage, frequency and PLC language be confirmed and adjusted before dispatch to match the destination country?
A: Yes, and this confirmation happens before the machine leaves our facility. Stocked units with standard electrical configurations can ship immediately if they match your requirements. Units needing voltage adjustments or PLC language changes require brief reconfiguration time. We verify these specifications in writing during the inquiry stage to prevent commissioning delays at your site.
Q: What customs documentation and certification support is included to ensure smooth import clearance?
A: We provide CE declarations where applicable, complete customs documentation with correct HS codes, and export certificates required by your destination country. The documentation package includes factory test records, technical specifications, and compliance certificates that your import agent needs for clearance. We coordinate with your freight forwarder to ensure all paperwork accompanies the shipment and arrives before the container reaches port.
