Description
Configuration matched to your local aggregate and project timeline — we verify your raw material and site conditions before confirming the dispatch date for the QT6-15, so the machine that arrives is calibrated to what you actually have on the ground.
Technical Specifications
| Parameter | Value |
|---|---|

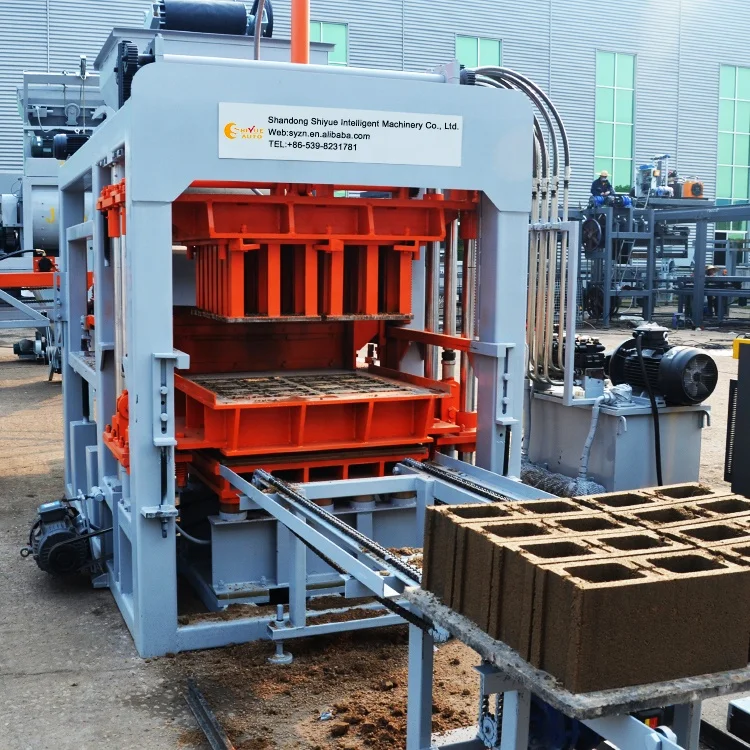

| Model | QT6-15 |
| Product Type | Automatic Hydraulic Concrete Block Making Machine |
| Overall Dimensions (L×W×H) | 8200×1700×2950 mm |
| Vibration Frequency | 0-60 Hz |
| Vibration Form | Platform Vibration |
| Vibration Force | 45 kN |
| Moulding Mode | Automatic loading, vibration moulding |
| Pallet Size | 880×850 mm |
| Molding Cycle | 15-20 s (standard formats) |
| Demolding Method | Hydraulic |
| Overall Power | 37 kW |
| Total Mass | 7 T |
| Control System | PLC with touch screen HMI |
| Hydraulic System | Independent integrated hydraulic station |

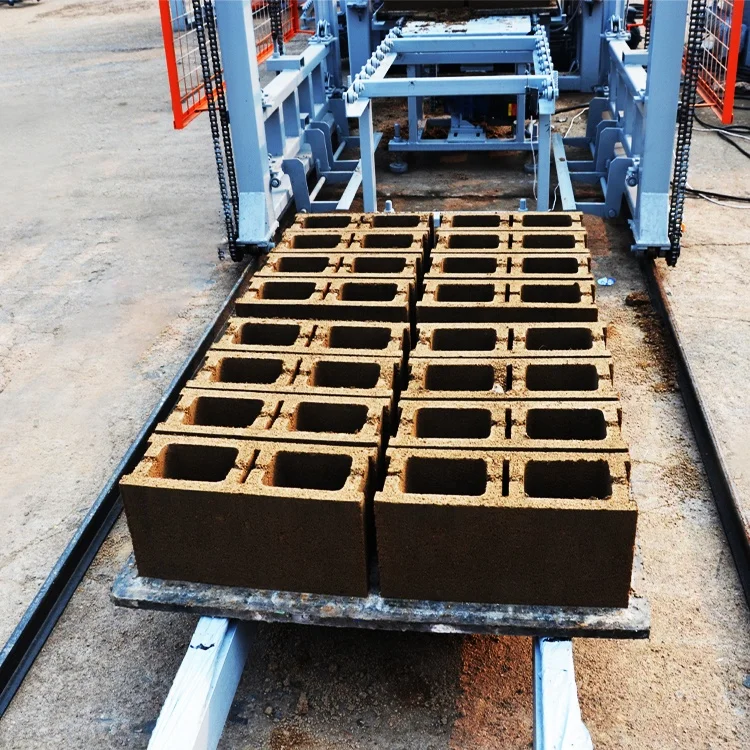

| Output Capacity (Hollow Block 400×200×200 mm) | 1080-1440 pcs/h, 8640-11520 pcs/8hr |
| Output Capacity (Hollow Block 400×150×200 mm) | 1440-1920 pcs/h, 11520-15360 pcs/8hr |
| Output Capacity (Solid Brick 240×115×53 mm) | 5760-7680 pcs/h, 46080-61440 pcs/8hr |
| Output Capacity (Rectangular Paver 200×100×60 mm) | 2160-2880 pcs/h at 20-25s cycle, 17280-23040 pcs/8hr |
| Block Compressive Strength | >15 MPa (basis to be confirmed against specific mix design) |
| Recommended Factory Area | 1200 m² |
| Standards | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production for housing projects | Crushed stone, cement, and local sand aggregates |
| Solid brick manufacturing for masonry walls | Cement, fly ash, slag, and fine aggregate blends |
| Rectangular paving brick for roads and walkways | Cement and coarse aggregate with pigments |
| Interlocking zigzag paver for driveways | High-strength concrete mix with surface color layer |
| On-site block production for contractors | Waste ash, slag, and locally sourced aggregates |
What the Stock Status Actually Means for Your Project Deadline
A QT6-15 block machine in stock fast delivery listing only matters if the supplier can tell you which container it fits in and when the vessel closes.
Buyers working against a construction milestone or a land-lease start date cannot absorb vague lead-time estimates. When a quotation says "to be advised" on dispatch, the real risk is not the machine itself but the downstream delays — crane bookings, curing rack installation, and crew scheduling all shift [NEED_CITE: typical construction project penalty clauses for milestone delays]. I have watched contractors lose weeks because the voltage confirmation was left until the machine was already crated.
Stock Availability and Dispatch Timing
Confirming a QT6-15 block machine in stock fast delivery means you receive the specific container loading plan before payment — which sections of the main frame are dismantled, how the hydraulic station is secured, and which standard moulds ship in the same container. Stock status is updated against actual orders in the queue, not a static catalogue listing.
What Arrives at Your Port and When
The arrival estimate is quoted at the order stage, not after the bill of lading is issued. This includes the machine’s total mass of 7 tonnes distributed across the frame and hydraulic components, the pallet and mould package, and the control cabinet. Port congestion and customs inspection windows remain external variables [NEED_CITE: container shipping transit time variables by route], but the dispatch date from the factory is a fixed point you can plan around.
Reading the Molding Cycle in Context
The 15-20 second cycle applies to standard hollow block and solid brick formats. Rectangular and zigzag pavers run at 20-25 seconds due to the denser surface layer requirement. These figures assume a consistent raw material feed and matched vibration frequency — the QT6-15 block machine in stock fast delivery ships with the PLC pre-configured for your confirmed block format, so the cycle stated here is what you should expect on day one of production.
How the Hydraulic and Vibration System Interacts
The independent integrated hydraulic station sits isolated from the main frame vibration, which serves two purposes. First, it prevents the constant 0-60 Hz vibration from degrading hydraulic seals during transit — a frequent source of commissioning delays when machines arrive with weeping fittings. Second, the 45 kN vibration force and hydraulic demolding pressure work together to compact the mix uniformly across the 880×850 mm pallet surface. The platform vibration form directs energy upward through the mould cavity rather than laterally, which matters when you are running mixes with higher aggregate content.
When the Wrong Configuration Costs You Weeks
Ordering a QT6-15 without confirming the pallet size against your existing curing racks means either replacing the racks or accepting a manual transfer step that bottlenecks your output. Similarly, a machine dispatched with a PLC display in a language your operators cannot read sits idle until the interface is reconfigured on site — [NEED_CITE: PLC language configuration options for exported industrial equipment]. These are not defects in the machine but mismatches that a QT6-15 block machine in stock fast delivery process should catch before crating.
Why This Supplier for a Deadline-Driven Order
Block machinery is the single focus here, so the machine, mould, pallet, and handling equipment are specified as one matched system rather than assembled from separate suppliers. The QT6-15 block machine in stock fast delivery process includes confirming voltage, frequency, and control language at the order stage — not at commissioning. Standard moulds for hollow block, paver, and solid brick formats are stocked alongside the machine, which eliminates the typical gap where the press arrives but the moulds follow weeks later. Packing photographs and customs documentation are prepared before the vessel departs, giving your clearing agent what they need in advance.
Documentation & Verification
- Factory test record run on your specified block format before dispatch
- Voltage, frequency, and PLC language confirmation sheet signed at order
- Container loading plan showing dismantled sections and securing points
- Packing photographs documenting crate condition before vessel departure
- Mould drawing and format list matching your confirmed production range
Installation, Commissioning & Support
- 1200 m² recommended factory area with level concrete slab for the 8200×1700 mm footprint
- 37 kW overall power requirement with dedicated circuit for the independent hydraulic station
- Machine reassembly on site with hydraulic line reconnection and vibration calibration
- PLC touch screen configured to your language with cycle times set per confirmed block format
- Operator training covering mould change procedure and pallet handling sequence
- Wear parts and mould replacement list provided with first-shipment documentation
Before You Request a Quote
Tell us which block format you need to produce, your target daily output for that specific format, and your project start date. We also need your local voltage and frequency, the aggregate type available at your site, and whether you have existing curing racks or forklifts that the 880×850 mm pallet must be compatible with. This determines whether the QT6-15 block machine in stock fast delivery path or a scheduled production slot fits your timeline.
Frequently Asked Questions
Q: What is the dispatch lead time for a QT6-15 in stock versus a production slot?
A: Stocked units with standard moulds ship within a short window after order confirmation and payment clearance. If your required voltage, frequency, or mould format is not part of the current stock configuration, a production slot is scheduled with a confirmed dispatch date provided before you commit. The lead time includes factory testing on your specified block format.
Q: How is the QT6-15 dismantled for container loading and what is the arrival estimate?
A: The main frame is separated into transportable sections, the hydraulic station is secured independently, and the control cabinet is crated separately. A container loading plan is provided before payment showing the exact dismantling scheme. Arrival estimates to your port are quoted at the order stage based on current shipping schedules and route conditions.
Q: Are standard moulds for hollow block, paver, and solid brick in stock with the machine?
A: Standard moulds for common formats including 400×200×200 mm hollow block, 200×100×60 mm rectangular paver, and 240×115×53 mm solid brick are typically stocked alongside the machine. Custom mould formats require a production lead time that is confirmed at the quotation stage and included in your dispatch schedule.
Q: What voltage and frequency configurations ship immediately from stock?
A: Common industrial voltage configurations are held in stock for major export markets. If your site requires a less common voltage or frequency combination, the electrical system is configured during a short production run with the dispatch date confirmed upfront. The PLC display language is set and verified before the machine is crated.
Q: What customs documentation and packing records come with the shipment?
A: The shipment package includes CE declaration where applicable, factory test records, packing photographs, and a full customs documentation set prepared before the vessel departs. This gives your import clearing agent the commercial invoice, packing list, and certificate of origin needed to begin clearance while the container is still in transit.
