14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds

This product is currently out of stock and unavailable. SKU: 14 Bricks Once Hollow Block Machine QT5-15-35655052 Category: Automatic block machine Description Additional information Description Products Description 14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block MoldsQT5-15 automatic interlock block maker machine. is fixed special equipment for building construction. The concrete hollow […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds
QT5-15 automatic interlock block maker machine. is fixed special equipment for building construction. The concrete hollow block machine can widely use fly ash. cinder. coal gangue and other industrial waste residue and river sand. gravel. cement. and other materials.It can make hollow block. porous brick. road kerb. road brick and grassing brick. ring tree brick. slope protection brick and concrete products. Add the color material feeding machine (color pigment) can produce colored products.
This automatic cement block making machine is one comprehensive technical equipment of mechanical. hydraulic. computer automatic control . with features of high efficiency. reasonable design. compact structure. simple operation and convenient maintenance.Block molding takes hydraulic as priority . mechanical vibration pressure to finish. The producing compressive strength can reach 15 mpa (mpa) above. with high compactness. antifreeze. impermeable performance is good. with sound insulation. heat insulation. heat preservation performance is good. physical size is accurate. rejection rate is low.
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds

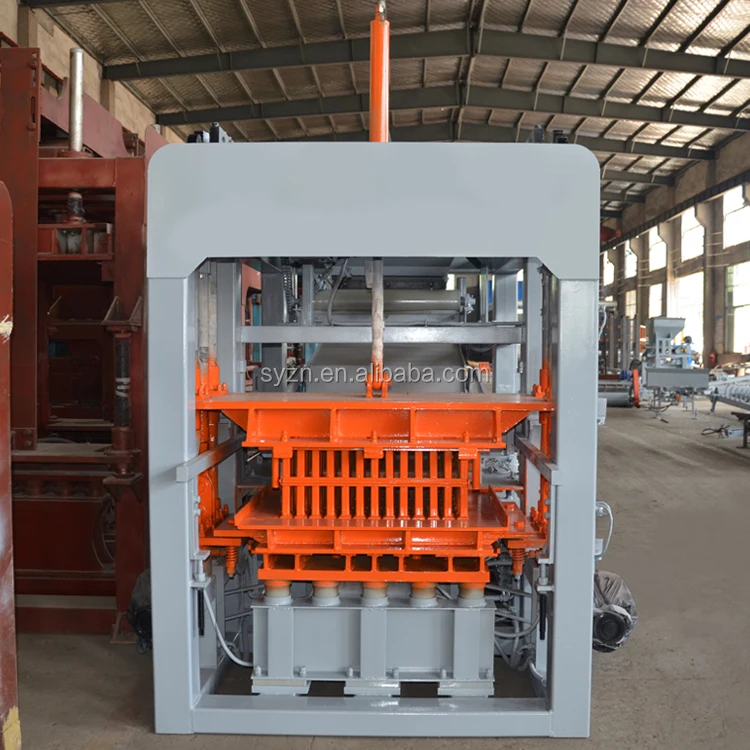

QT5-15 BLOCK MAKER MACHINE
A high degree of automation. intelligent electronic control. automatic process adopts foreign advanced PLC (programmable controller) intelligent control. equipped with products process data input. storage. touch screen. have ideal and soft man-machine dialogue interface. Automatic control system contains advanced safety logic circuit to control the action interlocking. and a fault diagnosis system.
QT5-15 Full Automatic Interlocking Concrete Block Making Machine Price List In Nigeria
The simple production line of this including the host machine. stacker. mixer. belt conveyor. etc.

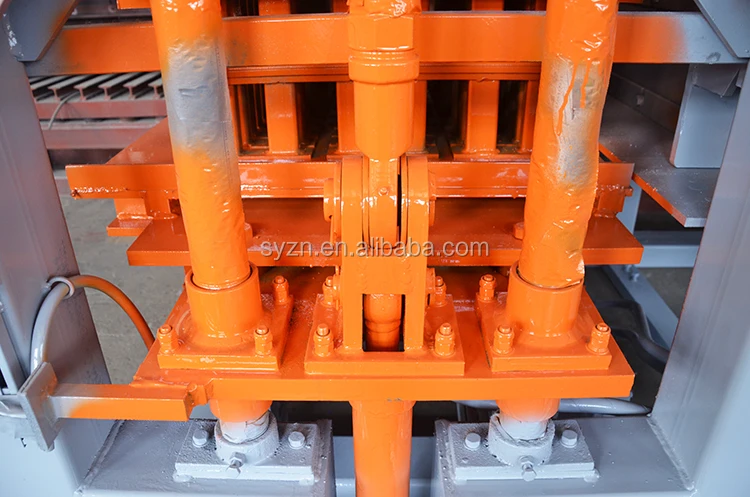

Good reliability. hydraulic system optimization technology to improve. excellent hydraulic parts matched with reasonable hydraulic system design. adopts the independent integrated type hydraulic pump station. avoid the effect of host vibration and dust to the hydraulic system. so as to ensure the reliability of the hydraulic system.
Good adaptability of raw materials. advanced step vibration molding technology. can make use of various waste ash slag. reasonably reduce the cement dosage. produce all kinds of high quality bearing or not bearing block products.
Equipment adaptability is strong. through changing mould easily. can quickly adjust block production. the greatest degree cater to the market demand. make best equipment effectiveness.

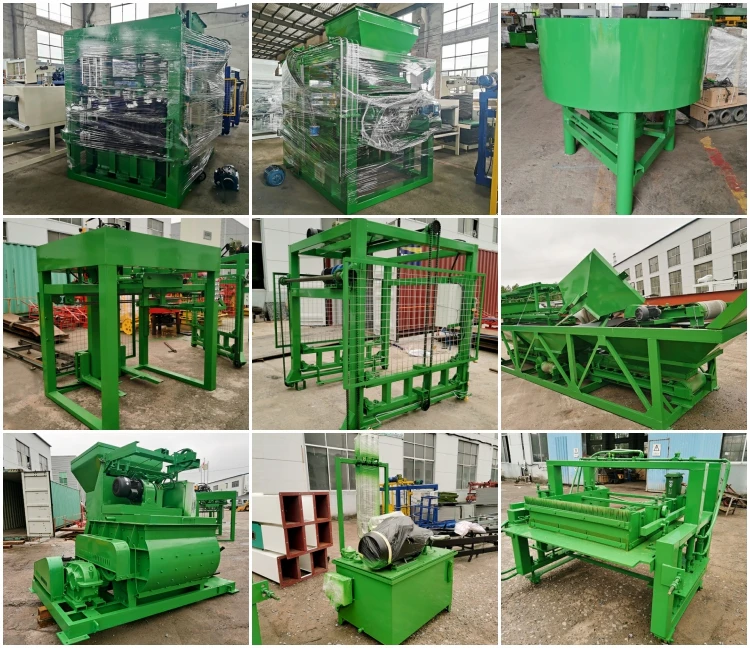

Composition of Automatic Block Machine Production Line ??/SPAN>
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds

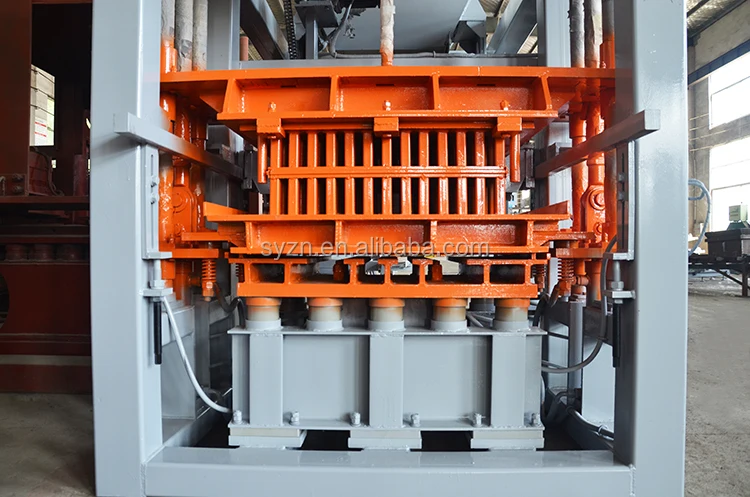

Main technical parameters
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds
Dimension
7400 x 1950 x 2800mm
Vibration Form
Platform Vibration
Vibration Frequency
4500-5100RPM
Brick Height
50-200 mm
Pallet Size
1100x550mm
Molding Cycle
15-20s
Power
30.5kw
Weight
6200kgs

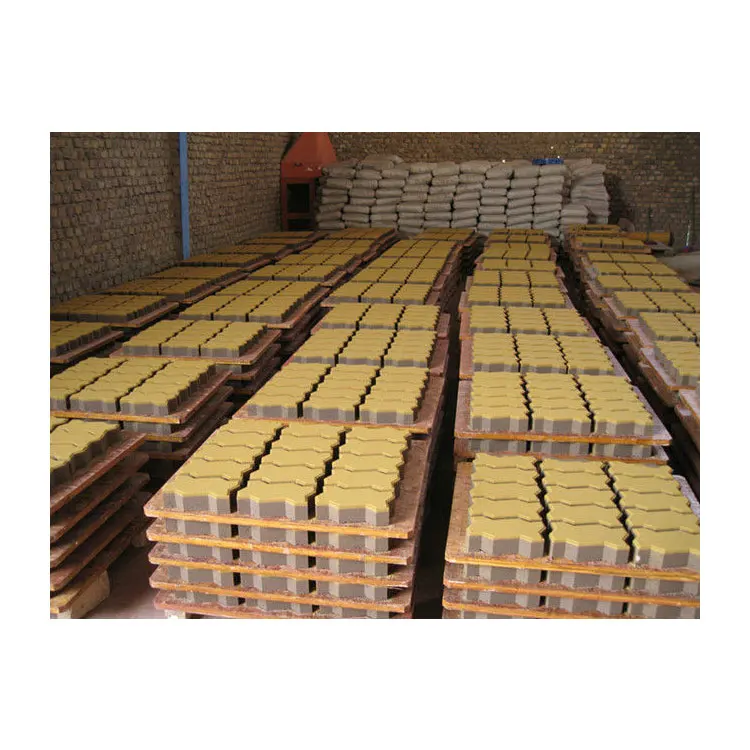

Blocks Samples
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds
Main Block Size And Capacity
Size (L x W x H) mm
Pcs/Mold
Pcs/Hour
Pcs/Day(8Hours)
400 x 200 x 200
5
1200
9600
400 x150 x 200
6
1437
11500
240 x 115 x 90
16
2880
23040
240 x 115 x 53
32
7680
61440
225 x 112.5 x 60
16
2000
16000
200 x 100 x 60
20
4800
38400

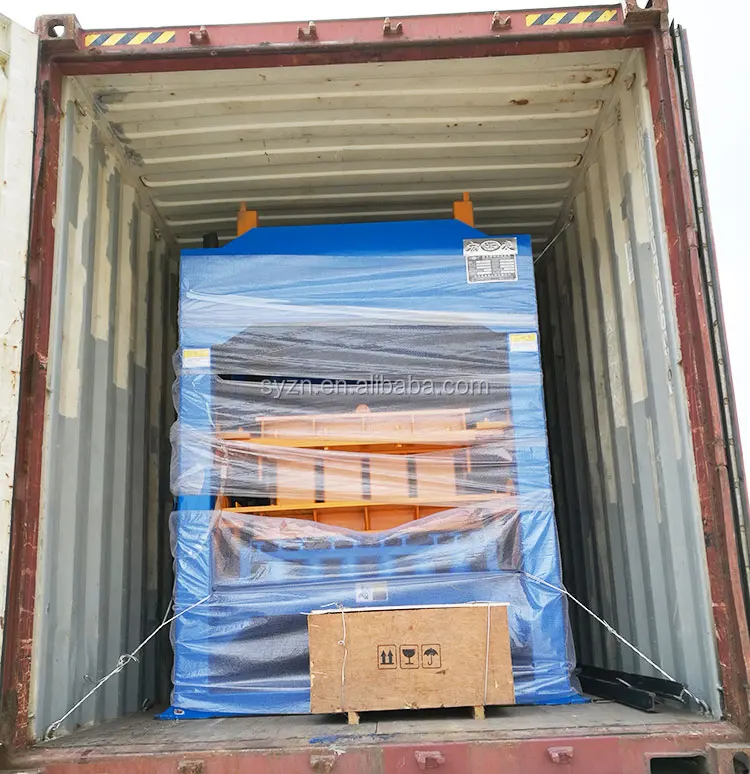

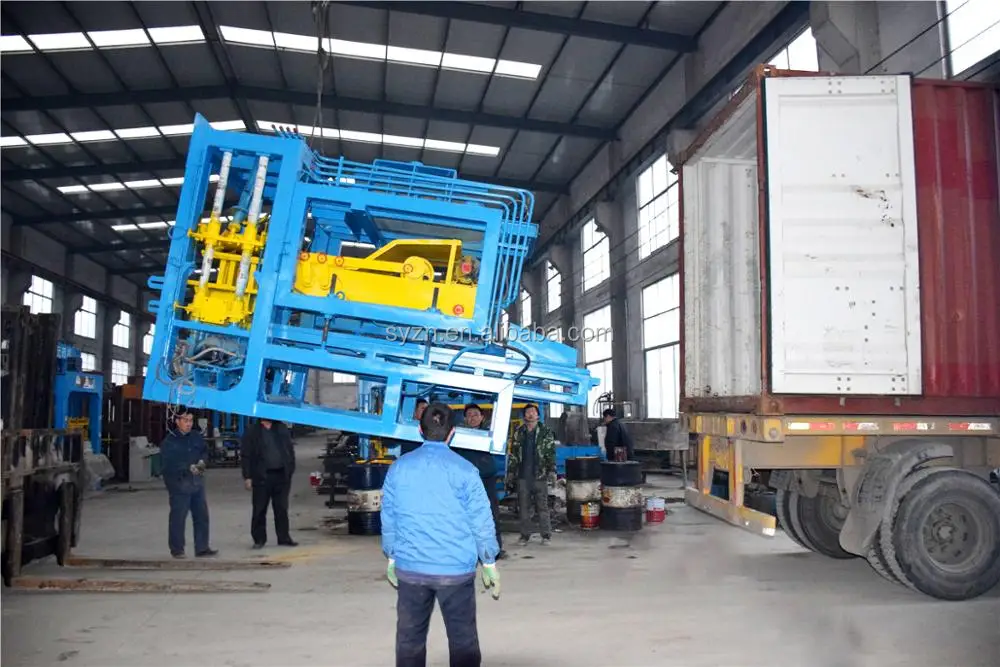

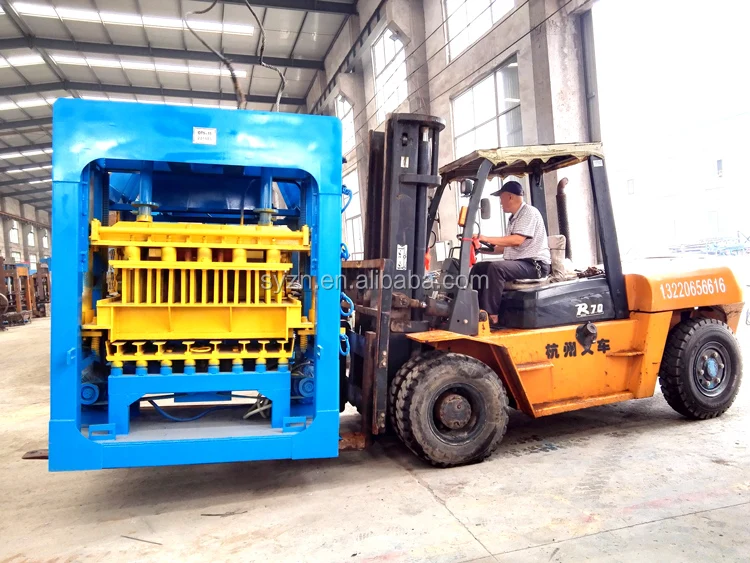

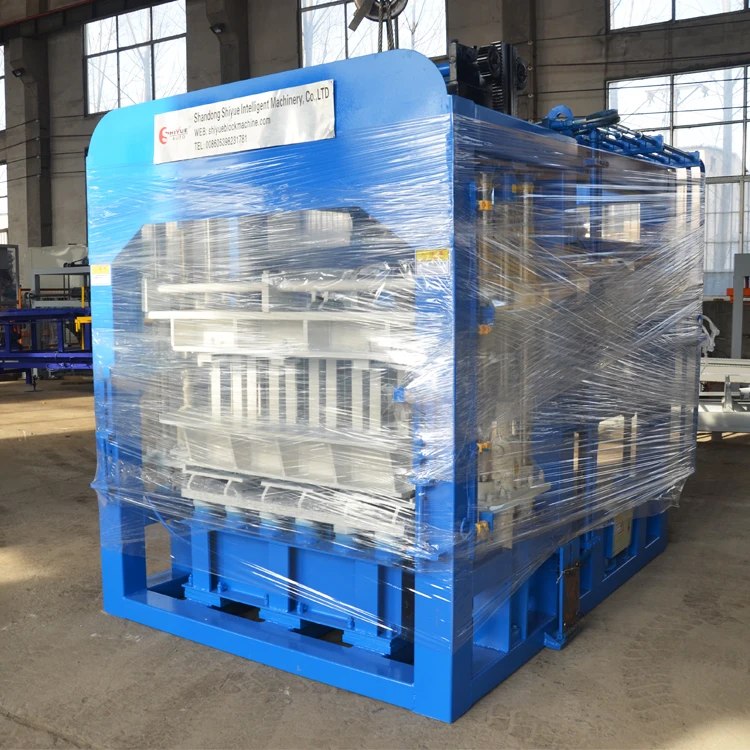

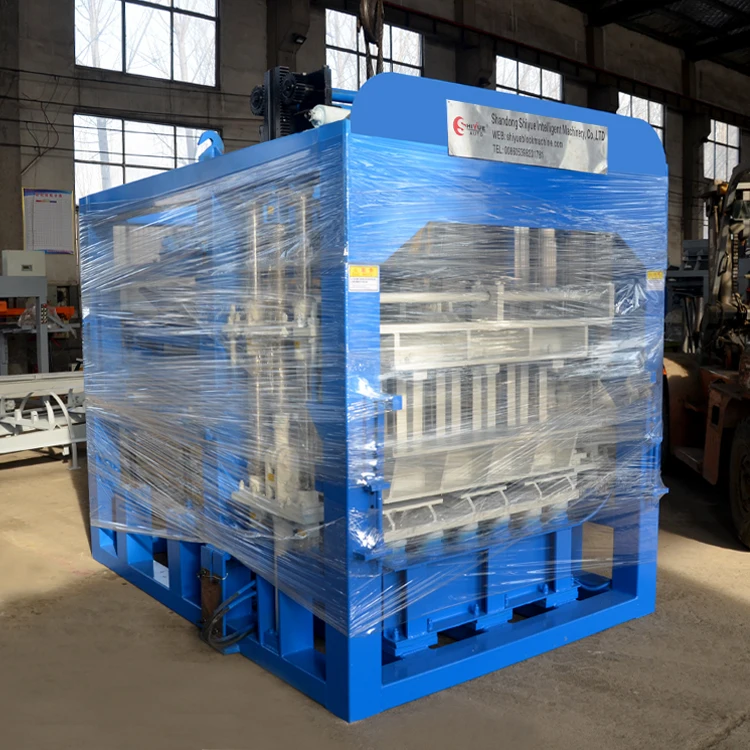

Packaging And delivery

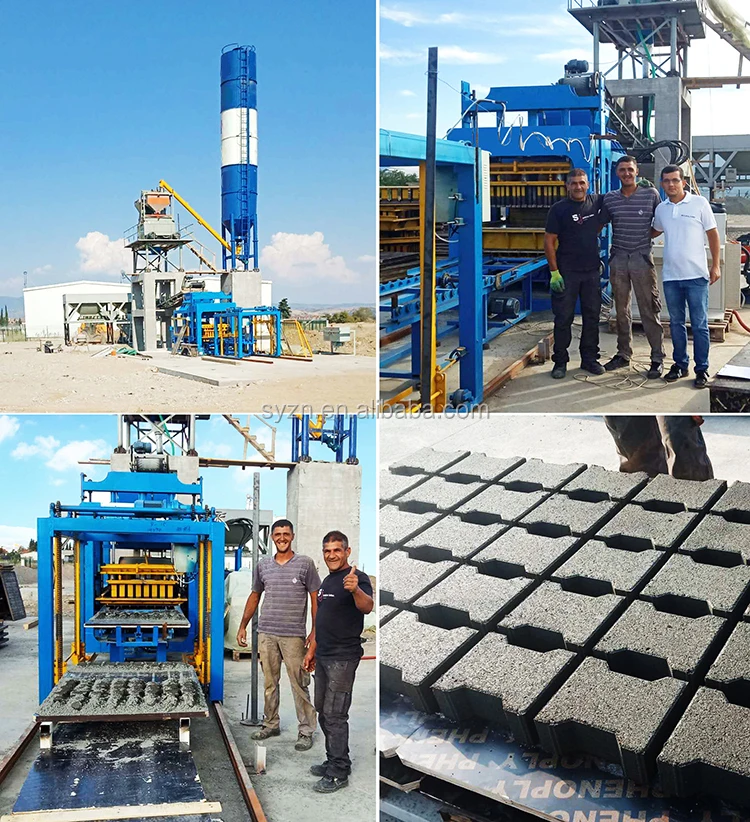

customer working site
