Semi automatic block
High Capacity Fly Ash Concrete Block Machine QT6-15 Fully Automatic Block Machine with Hydraulic Pressure Brick Making Machine
This product is currently out of stock and unavailable. SKU: High Capacity Fly Ash Concrete Block Machi-35655152 Category: Semi automatic block Description Additional information Description Product Description QT6-15 Automatic sidewalks color paving brick making machine line produce different shape and sizes of pavement bricks by changing molds. It can also produce various hollow blocks and […]
- European-Patented Airbag Damping System
- Four-Motor Synchronous Vibration Technology
- Siemens PLC Smart Control · Lifetime Tech Support
- Customized Solution for Local Materials & Voltage
- Lead Time
- 30 days
- Warranty
- 12 mo
- Sold
- 500+
Technical Excellence
Engineered for performance, built to last
Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.
Product Description
Product Description
QT6-15 Automatic sidewalks color paving brick making machine line produce different shape and sizes of pavement bricks by changing molds. It can also produce various hollow blocks and solid bricks. just design the mold accordingly and remove the color pigment feeding machine. and our factory design wheels for it so can be easy to move.
The simple brick production line includes the mixer. conveyor belt and stacker. The more automatic block production line also includes the cement silo. screw conveyor. cement scale. batching machine. pallets loader as wheel as block and pallets seperator.
Rated Pressure | 21mpa |
Molding way | Vibration and hydraulic pressing |
Molding cycle | 15s-20s |
Pallet size | 900x700mm |
Main machine weight | 6000KGS |
Direction for use
使用说明
QT6-15 Automatic sidewalks color paving brick making machine line uses mixing concrete of cement. sand. flyash. stone power. slag and so on. produce hollow blocks. pavers. curbstons. pavement bricks and so on for buildings.
Simple production line
使用效果描述
The simple brick production line includes the JS500 mixer. 8M conveyor belt and automatic stacker. we will offer one hollow block mold and two hydraulic trolley for free so client can start normal production soon after get the block machine installed.
Detailed Images
Before loading to the container. as the machine is very high. need to take off the top cylinder. and here is the views of the machine from different sides.
Size Information
Productivity in theory
Block type | Size mm | Pieces per pallet | Pieces per hour | Pieces per 8 hours |
Hollow block | 400x200x200 | 6 | 1440 | 11520 |
Paving brick | 200x100x60 | 21 | 5040 | 40320 |
Solid brick | 240x115x53 | 32 | 7680 | 61440 |
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service
(0) Foundation and mold drawing supply
(1) The engineer will guide to carry out the plant at the clients side if needed.(2) Set up. fix. and operate (3) offer training to the operator until they are satisfied at clients side.(4) Skill support the whole using life.(5) Recall clients regularly .get feedback in time.keep well communication with each otherCompany Introduction
1. Group company with factory for manufacturing block machines and importing & exporting company for international trading.2. 30 years history of deleloping block machinery experience with three workshops.3. We are in Linyi. Shandong province. having many flights from cities like Beijing. Shanghai and Guangzhou.4. Export to over 100 countries like Algeria. Zambia. Saudi Arabia Russia. Kazakhstan. India.Philippines. the USA. Peru. Brazil and so on .5. Mainly manufacture QT series stationary and QMY series mobile concrete block machines with different molds as well as their supporting equipments like concrete mixers. conveyor belts. silos. batching machines and so on.
Our Services & Strength
Direct factory price
Perfect 24/6 online services;Special design according to the customers’requirement;
FAQ
Q1: What is the Warranty for the machine?A1: For the machine.we have 1 years warranty(except the wearing part ).If any quality problems on our side occured in this period .we will take on the shipping cost and replacement.Q2: What kinds of payment methods can be accept?A2: Payment: T/T. Western Union. Trade assurance. etc; 30% deposits; 70% balance before deliveryQ3: Who will pay the delivery cost?A3: Because block machine need to be delivery by sea or road. so customers will in charge of the delivery cost.Q4: what's the motor voltage?A4:Motor voltage could be customized to fit your local voltageQ5: Do you have Operation Instruction ManualA5: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
Buy with Confidence
From inquiry to commissioning -- 4 transparent steps
-
01
Technical Consultation
Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.
-
02
Custom Solution Design
3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.
-
03
Production & Inspection
Weekly progress photos, video reports, and virtual or on-site factory inspection.
-
04
Installation & Lifetime Support
On-site commissioning, operator training, spare parts supply and remote diagnostics.
Get a Quote
Talk to a senior engineer about High Capacity Fly Ash Concrete Block Machine QT6-15 Fully Automatic Block Machine with Hydraulic Pressure Brick Making Machine
Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.
- Vicky Lin sales1@sdshiyue.com
- WhatsApp +86 186 5397 5262
- Helen Ren sales7@sdshiyue.com
- WhatsApp +86 186 5392 9981
More Solutions
View All Products →
Related Products

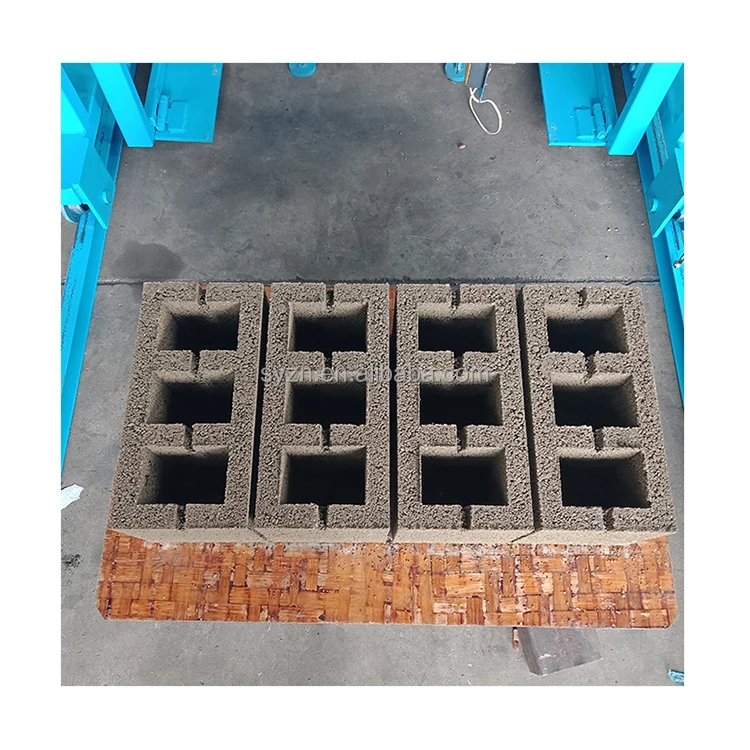

QTJ4-25 Building Material Machinery Automatic Block Manufacturing Machines
View Details

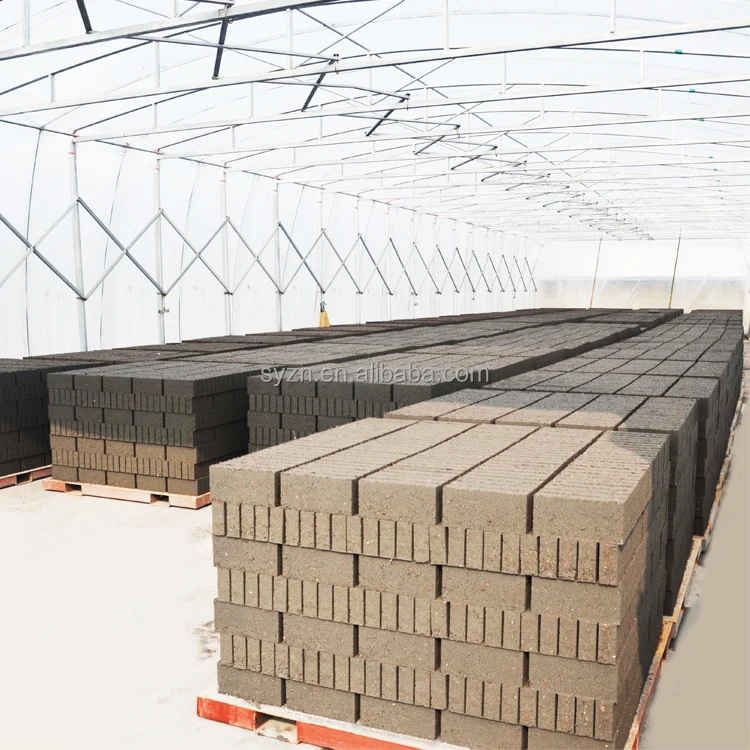

Factory QT18-25 Fully Automatic Pallet-free Hollow Solid Block Brick Making Machinery Production Line
