Mobile block machine

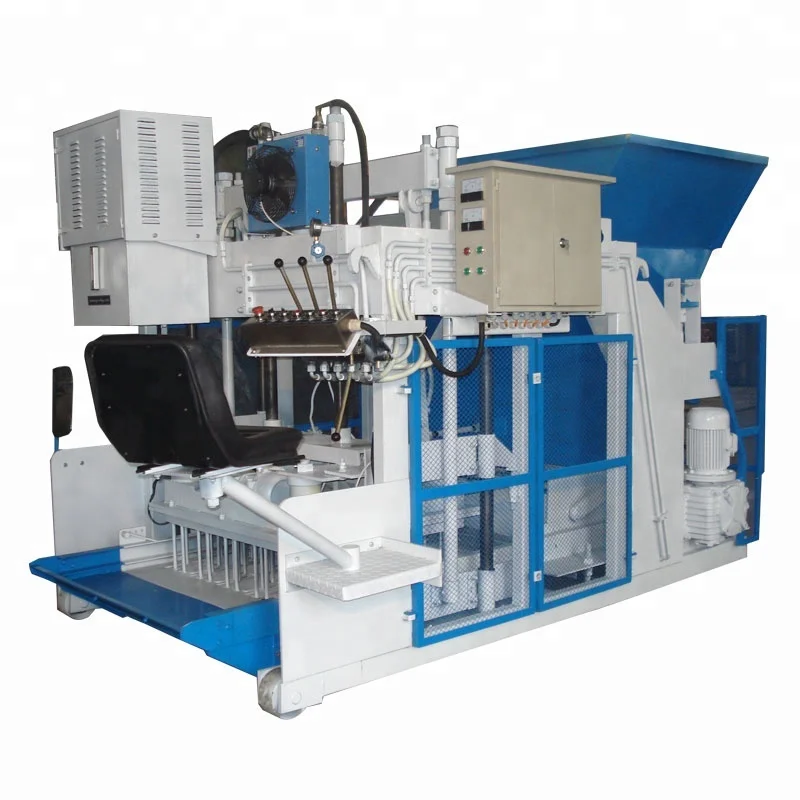

QMY12-15 Movable Egg Laying High Capacity Hydraulic Pressure High Density Hollow Porous Solid Paver Block Making Machine
This product is currently out of stock and unavailable. SKU: QMY12-15 Movable Egg Laying High Capacity -35644491 Category: Mobile block machine Description Additional information Description Product Description QMY12-15 is fixed special equipment for building construction. The machine can widely use fly ash. cinder. coal gangue and other industrial waste residue and river sand. gravel. cement. […]
- European-Patented Airbag Damping System
- Four-Motor Synchronous Vibration Technology
- Siemens PLC Smart Control · Lifetime Tech Support
- Customized Solution for Local Materials & Voltage
- Lead Time
- 30 days
- Warranty
- 12 mo
- Sold
- 500+
Technical Excellence
Engineered for performance, built to last
Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.
Product Description
Product Description
QMY12-15 is fixed special equipment for building construction. The machine can widely use fly ash. cinder. coal gangue and other industrial waste residue and river sand. gravel. cement. and other materials.It can make many types hollow block. porous brick. road kerb. road brick and grassing brick as so on by changing moulds.This machine is one comprehensive technical equipment of mechanical. hydraulic. computer automatic control .main electric.hydraulic parts use famous brand.with features of high efficiency. reasonable design. compact structure. simple operation and convenient maintenance.Block molding takes hydraulic as priority . mechanical vibration pressure to finish. The producing compressive strength can reach 15 mpa (mpa) above. with high compactness. antifreeze. impermeable performance is good. with sound insulation. heat insulation. heat preservation performance is good. physical size is accurate. it is a good equipment for environmental protection and building.
Overall dimension | 3250*2100*2300mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 12Pcs/mold(400*200*200 mm) |
Moving method | Automatically move and hydraulic steering |
Vibration mode | Three-dimensional mold vibration |
feature and advantage 1
This kind of brick machine is manufactured on the base of technical modifications to the original block shaping machines. that is changing the former one-time-vibration into twice-vibrations of molding core. So the block density becomes higher. shaping speed quicker and block strength more even.
feature and advantage 2
Advanced techniques made the host machine designed reasonably. and achieved box vibration. hydraulic stripping. multidirectional automatically movement.
High quality of steel and precision welding made the machine a longer service life and hydraulic system made less fault during
work.
work.

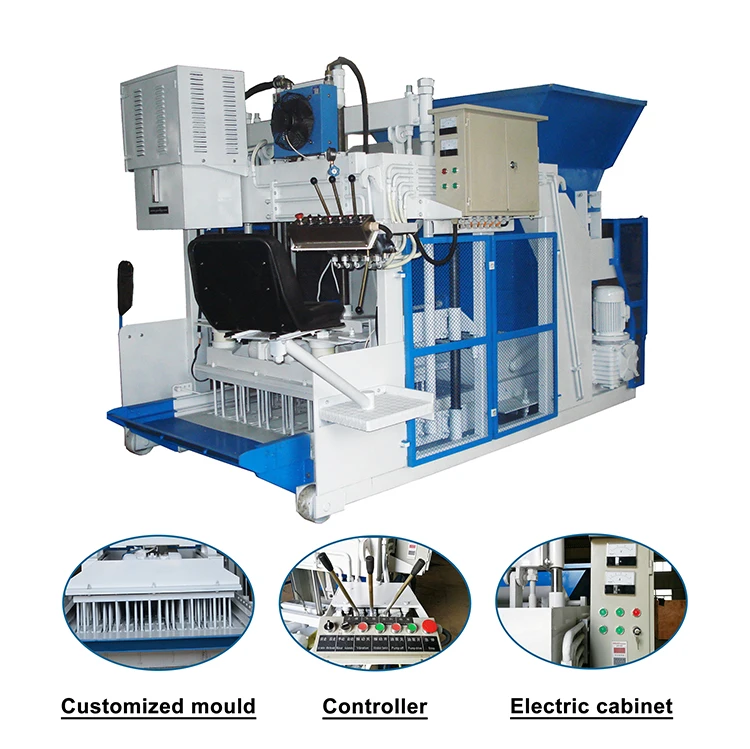

Detailed Images

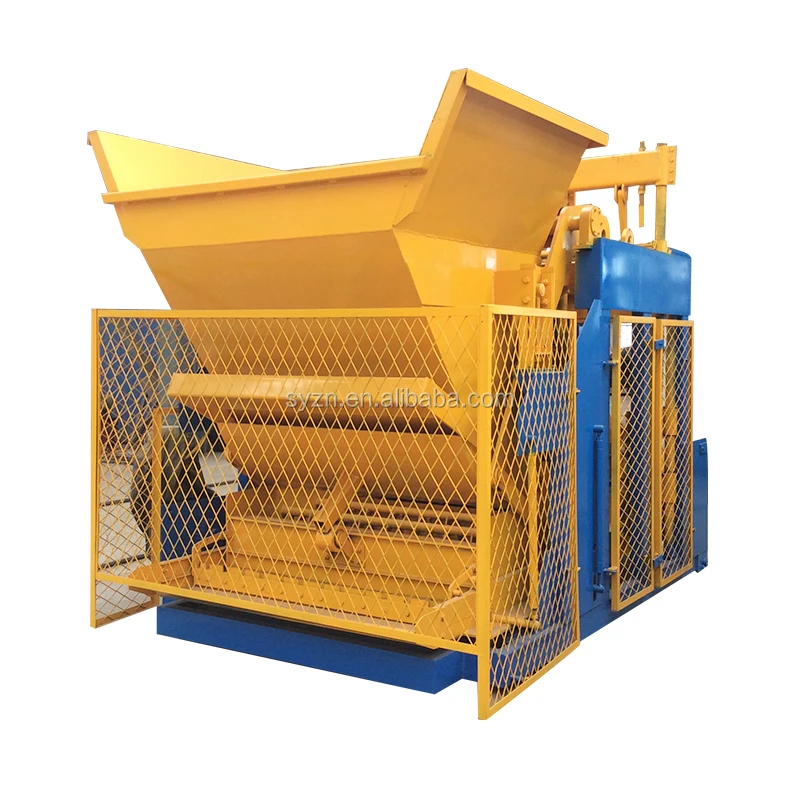

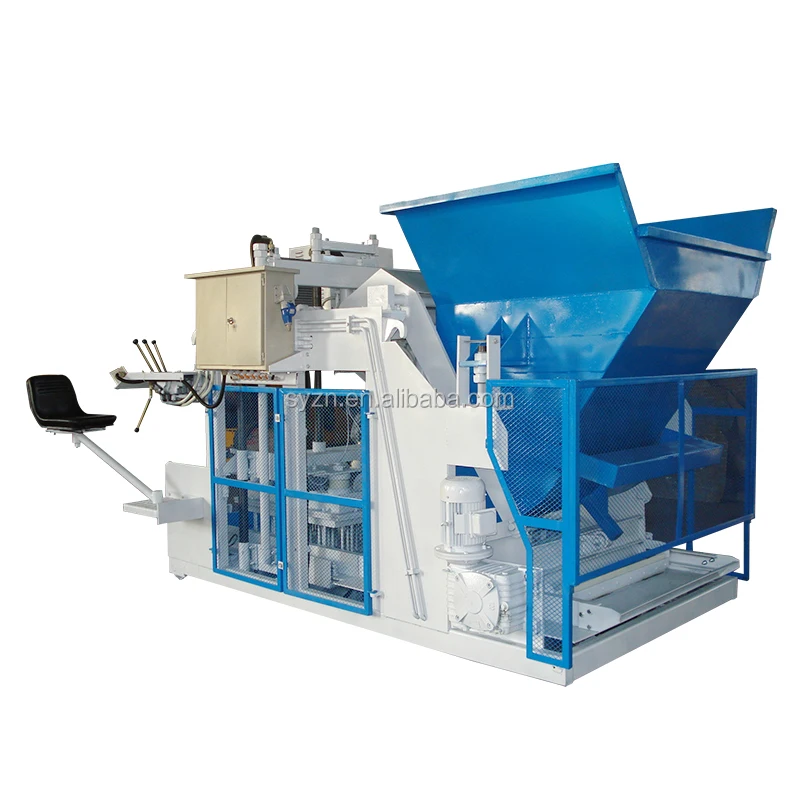

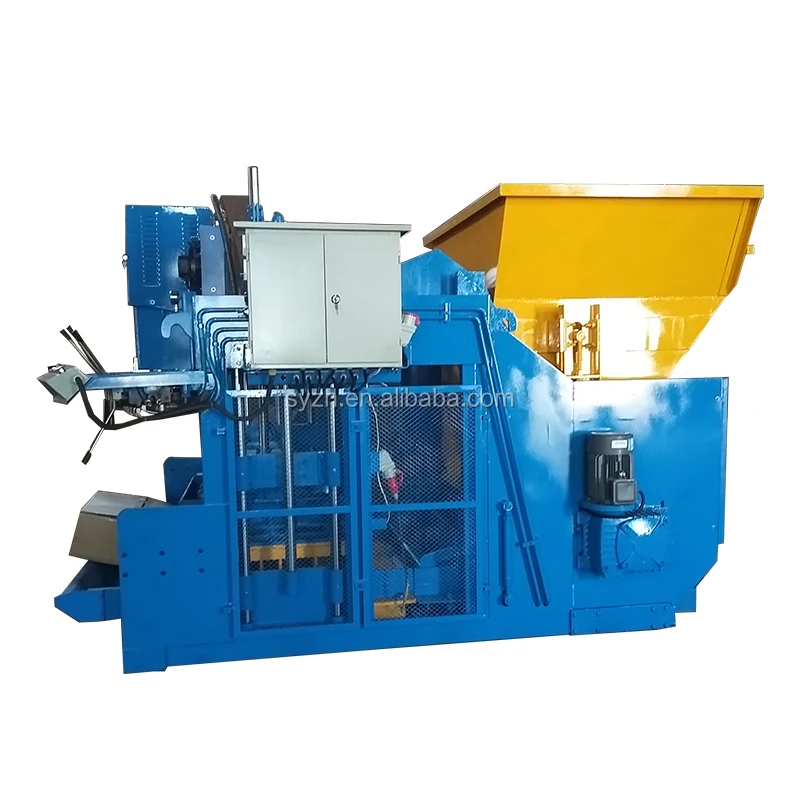

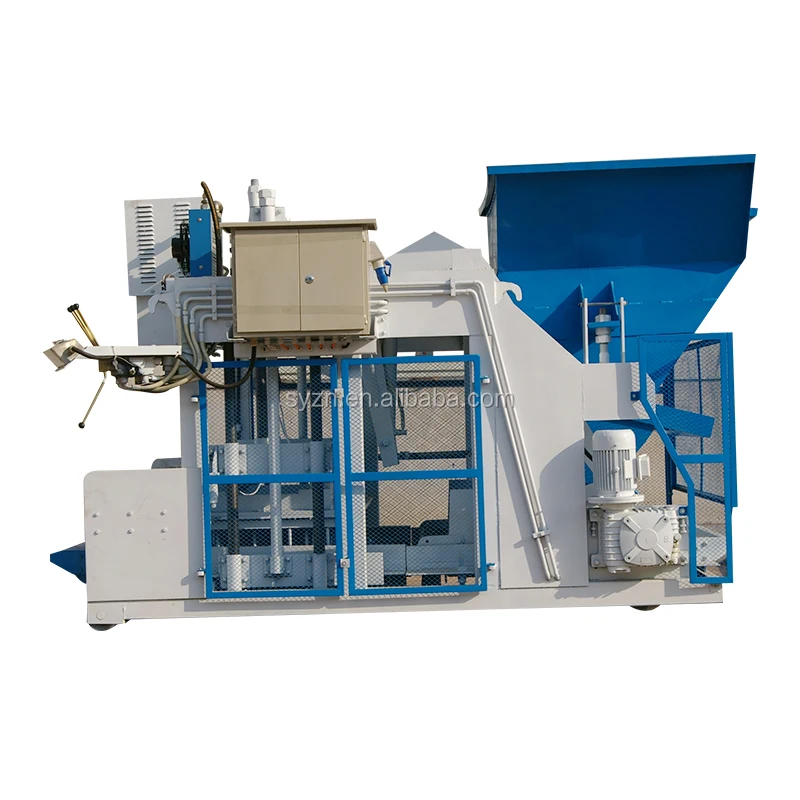

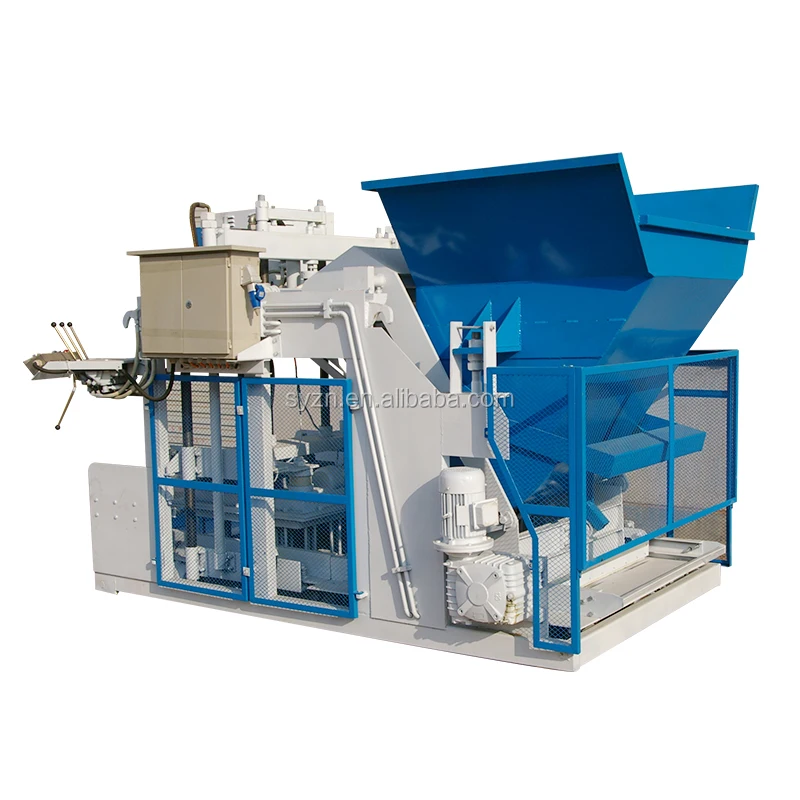

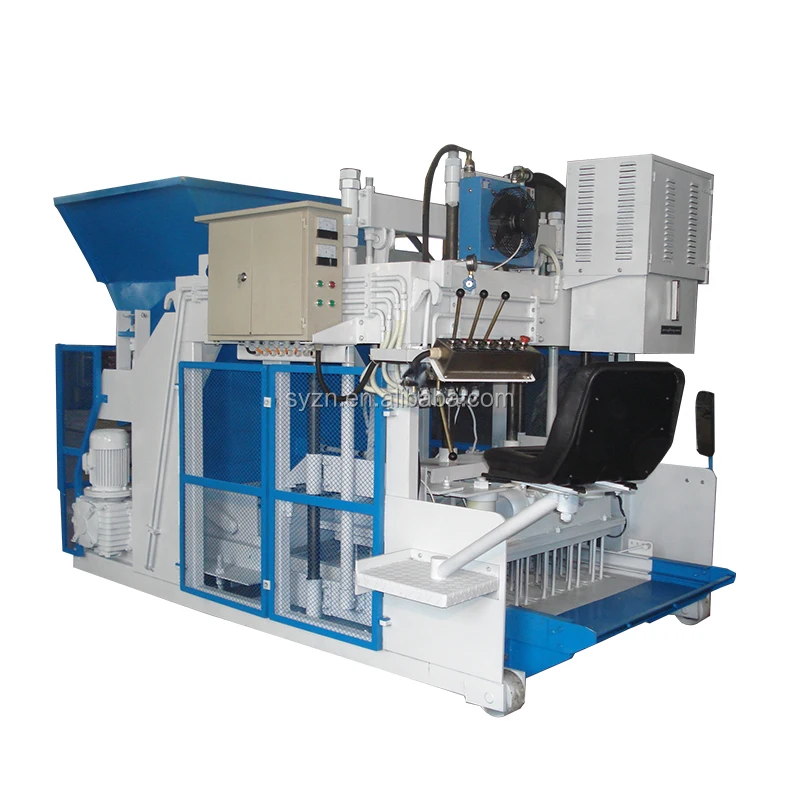

the machine can be painted any color you want
Size Information
the common blocks capacity for reference. it can make various kind blocks by changing moulds
Type | Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) |
Hollow brick | 400x200x200 | 15-20s | 12 | 2880 | 23000 |
Hollow brick | 400x150x200 | 15-20s | 14 | 3360 | 36880 |
Hollow brick | 400x100x200 | 15-20s | 22 | 5280 | 42240 |
Related Products

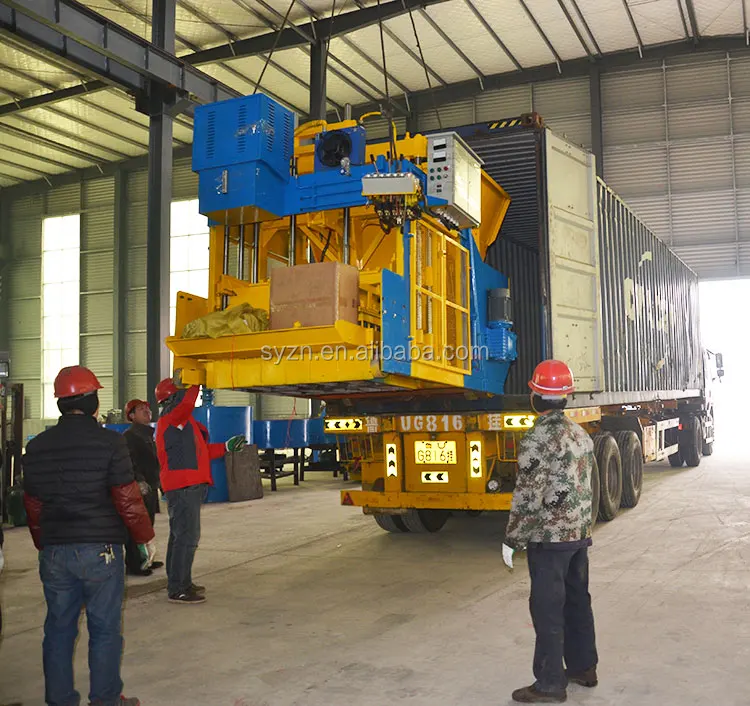

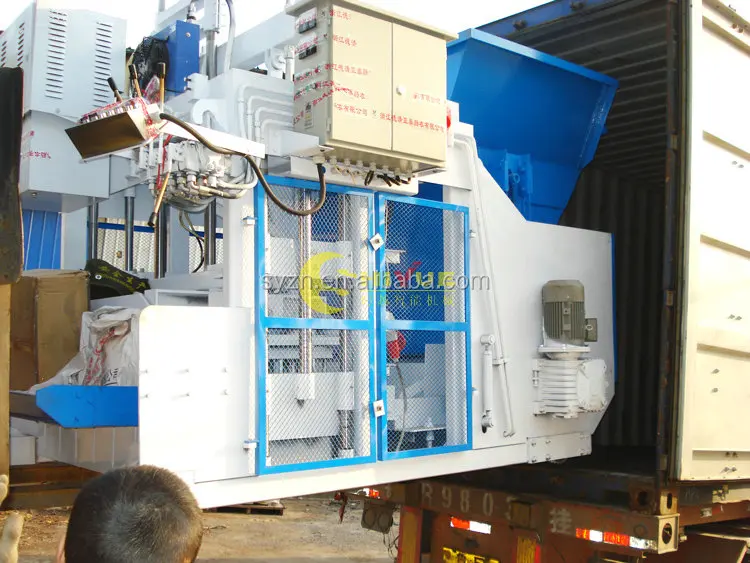

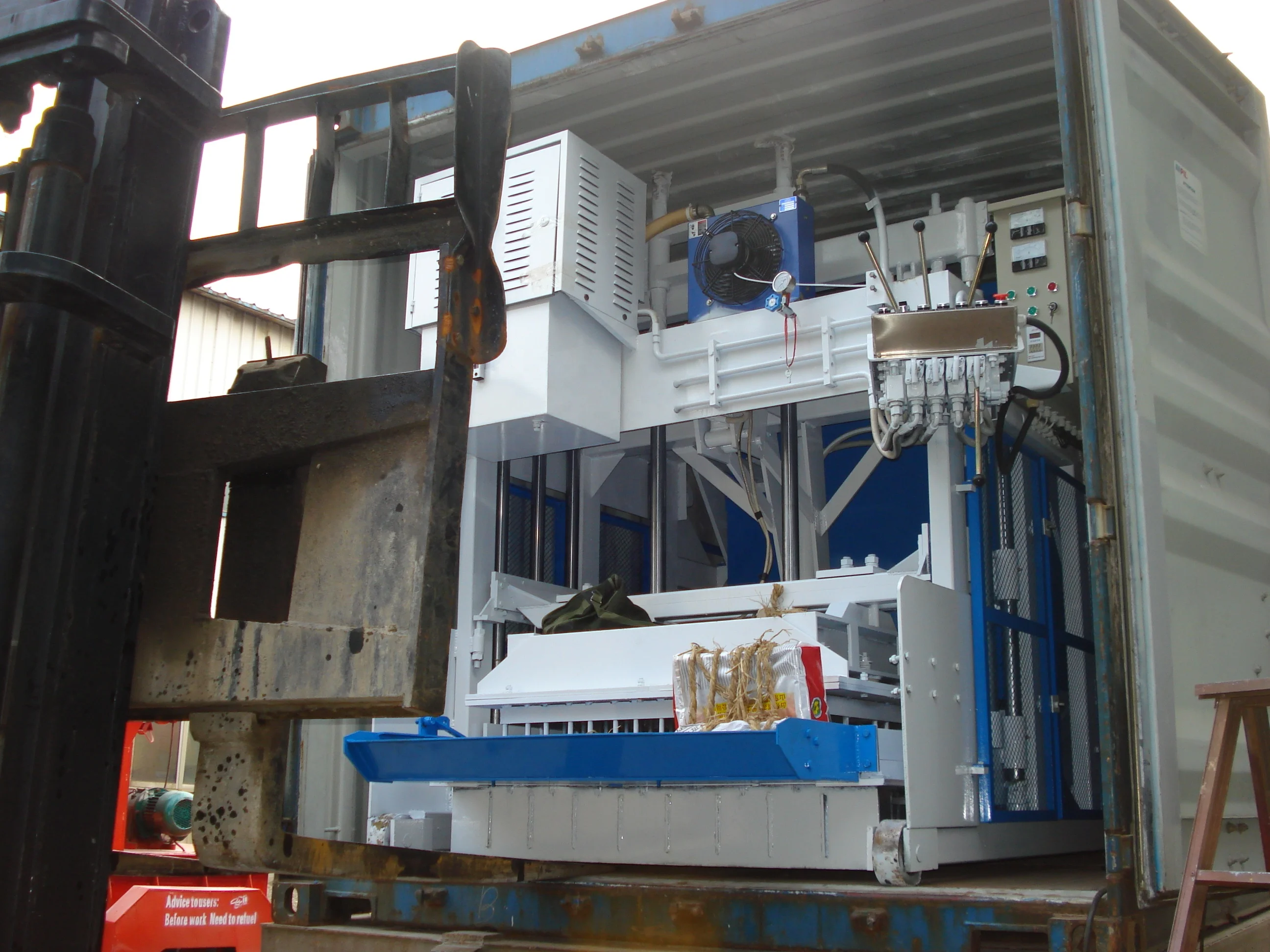

Packing&Shipping
Company Introduction
Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
Our Service
Inquiry service:Accept user’s enquiries by all kinds of ways and establish user’s product cognition.Provide all kinds of product data and let customer understand characteristics of product.Pre-sale service:Accept inquiry of customers .confirmation of investment advice of choice of product .assist the customers to design the workshop In-sale service:Sale of product.help customers build the base .technical training of customers’ workers .practice of operation .help to install .train the operators in the workshop.After-sale service:24 hours service of technology inquiry. instant components supply. regularly technical service guidance of maintain.long distance malfunction control.Unique service:System upgrade.special design according to the customers’ requirement. mould renew .supply new technology and products information.
FAQ
1> Is this block machine suitable for us to use?Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you..2>Which industry did this block machine usually be used in?Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc3>How to use the block machine?Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you purchase the machine.4>How about the after sale service of block machine?Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you. 5>what's your payment termour common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
Customer Visiting and customer working site
