Description

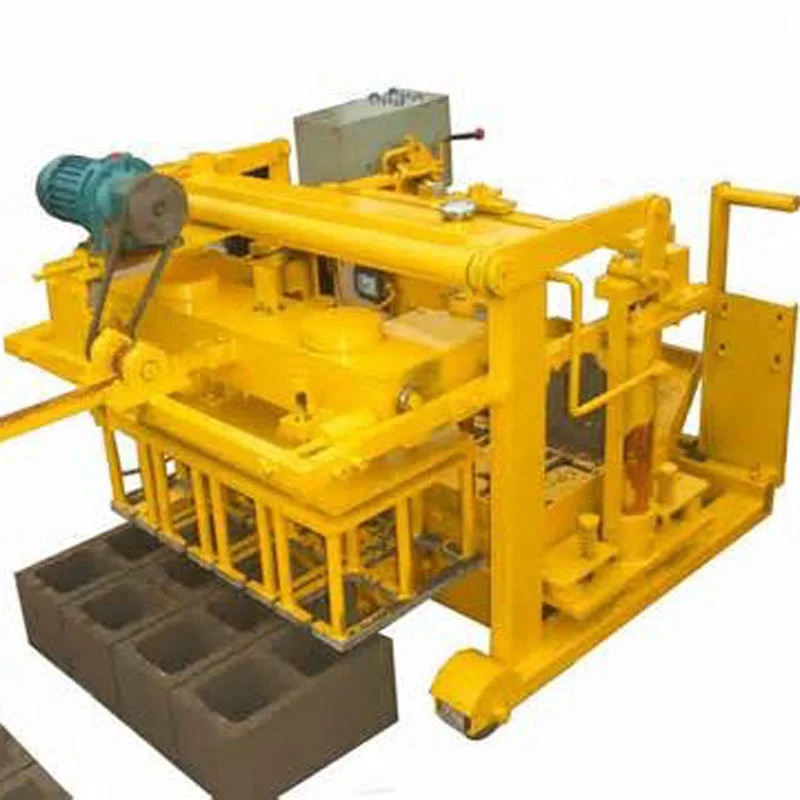

Stocked & Ready — A QMY4-30 block machine in stock means the machine, mould, and spare parts are physically available for immediate container loading, not waiting in a production queue.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QMY4-30 |
| Product Type | Mobile Egg-laying Block Making Machine |
| Overall Dimensions (L×W×H) | 1300 x 1500 x 1000 mm |
| Net Weight | 950 kg – 1000 kg |
| Vibration Method | Mold Vibration |
| Exciting Force | 28.6 kN |
| Excitation Frequency | 4500 r/min |
| Total Power | 5.95 kW |
| Molding Cycle | 30 s |
| Output Capacity | 3000 pcs/day (8 hours) (basis not stated in source — confirm block format / material / thickness) |
| Raw Material Compatibility | Concrete, sand, cement, fly ash, slag, construction waste, stone dust, river sand, coal gangue, mine tailings |
| Control System | Manual handle operation |
| Mould Format | Custom size available per buyer design |
| Automation Level | Manual / egg-laying mobile type |
Application Suitability
| Application | Material or Output |
|---|---|

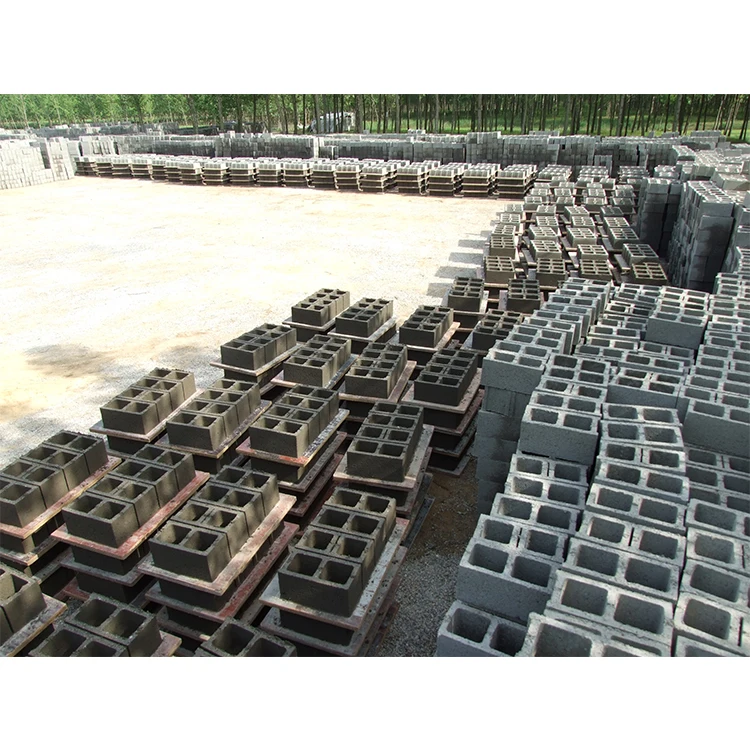

| On-site hollow block production for housing projects | Concrete, sand, cement, stone dust |
| Paving block manufacturing at remote construction camps | Fly ash, slag, river sand |
| Small-scale solid block supply for suburban contractors | Construction waste, coal gangue, mine tailings |
| Coastal or desert project block production | Local aggregate blended with cement and lime |
Why "3,000 Pieces per Day" Needs a Block Format Attached
A capacity number without a block format is a guess, not a guarantee. When buyers see a QMY4-30 block machine in stock and a headline output figure, the first question should be: based on which block size and wall thickness? [NEED_CITE: block format assumptions in capacity quotations]
I have seen project schedules collapse because a contractor planned around a daily output number that assumed a thin solid brick, while the actual job required a thick hollow block with a longer cycle and lower count. The machine ran exactly as specified — the mismatch was in the quotation, not the press. This is why every capacity calculation must state the format it assumes before a purchase order is signed.
Container Loading and What "Ready to Ship" Actually Means
A QMY4-30 block machine in stock is compact enough to fit inside a standard container without partial disassembly of the main frame. The 1300 x 1500 x 1000 mm footprint and sub-one-ton weight keep freight simple. Buyers should still request a loading plan that shows how moulds, pallets if any, and the spare parts crate are positioned around the main unit so nothing shifts during ocean transit.
Dispatch Timing From Warehouse to Port
The value of buying a stocked unit is measured in weeks saved. Once voltage and control language are confirmed, the machine can be crated, photographed for packing records, and moved to the port within a short window. Delays at this stage usually come from unconfirmed destination voltage or missing customs paperwork — not from production backlog. [NEED_CITE: typical export documentation requirements for block machinery]
How Vibration Force and Power Shape Block Density
The 28.6 kN exciting force delivered through mold vibration at 4500 r/min determines how tightly the concrete mix is compacted inside the mould cavity. For an egg-laying machine that deposits blocks directly on the ground, consistent vibration is the primary factor separating a block that cures to target strength from one that crumbles at the edges. The total power draw of 5.95 kW keeps utility demands low enough for temporary site generators, which matters on projects where grid power is unreliable or absent entirely. Manual handle operation means the operator controls each cycle directly, so training focuses on rhythm and mix consistency rather than screen navigation.
The Cost of Skipping the Voltage Conversation
Sending a machine with the wrong voltage or frequency to a job site means either rewinding motors locally or waiting weeks for a replacement — while the crew stands idle. [NEED_CITE: voltage and frequency standards by export market] I once saw a compact mobile unit arrive in South America wired for a frequency that did not match the local grid; the vibration motor overheated within the first shift. A ten-minute confirmation call before crating avoids a month-long headache on site.
Why Buyers Choose This Route
Shandong Shiyue Intelligent Machinery focuses exclusively on block machines, moulds, pallets, and the handling equipment around them, so the QMY4-30 is supplied as a matched set rather than assembled from mismatched sources. Mould design is available to buyer drawings, meaning the block format your market actually sells is the format the machine ships with. Configuration is checked against local aggregate and mix design instead of defaulting to a catalogue assumption. The automation path starts manual and can be upgraded later, protecting the initial investment. Installation support includes operator training so the crew is productive from the first day of production.
Documentation & Verification
- Factory test record running your specified block format before dispatch
- Machine specification sheet matching the exact QMY4-30 unit shipped
- Mould drawing and format list for every cavity included in the order
- Voltage and control language confirmation signed before crating
- Packing photographs documenting crate condition at warehouse exit
- Customs documentation support aligned with destination import rules
Installation, Commissioning & Support
- Level compacted ground required; the 1300 x 1500 mm footprint needs no fixed foundation
- Confirm site power matches the 5.95 kW draw with a dedicated circuit breaker
- Machine ships assembled; only the mould and handle require on-site fitting
- First-cycle commissioning checks vibration consistency across the full mould area
- Operator training covers mix ratios, cycle rhythm, and mould change procedure
- Spare mould springs and wear parts ship in the same crate to prevent downtime
What to Include in Your Inquiry
To size the QMY4-30 correctly for your project, share the target block format and dimensions, the local aggregate and cement you plan to use, and the daily output you need based on that specific format. Confirm your site voltage, frequency, and preferred control language. If the project has a fixed start date, state the required arrival window so dispatch and shipping can be scheduled backward from that deadline.
Frequently Asked Questions
Q: How do you confirm the QMY4-30 block machine in stock is actually available?
A: We provide real-time warehouse photographs of the specific unit, including its serial plate, alongside a packing schedule. Buyers receive a crating date and container booking reference once the order is confirmed, so availability is documented rather than verbal.
Q: What is the realistic dispatch lead time and container loading process?
A: Once voltage and language are confirmed, a stocked QMY4-30 is typically crated and moved to port within a short window. The loading plan covers the main unit, moulds, and spare parts crate inside one container, with photographs taken at each loading stage.
Q: Which voltage and frequency options are available from stock?
A: Common industrial voltage and frequency combinations for export markets are kept in stock. If your destination requires a less common configuration, the motor may need to be swapped before crating, which adds a short delay confirmed at the quotation stage.
Q: What block format was the 3,000 pcs/day capacity figure based on?
A: The published figure is listed with a basis to be confirmed. Buyers should provide their target block dimensions and wall thickness so a per-format capacity calculation can be prepared, reflecting the actual molding cycle for that specific cavity design.
Q: Are moulds and wear parts shipped together with the machine?
A: The primary mould ships with the machine. Spare springs and high-wear components are packed in the same crate so they arrive together. Additional moulds for other block formats can be included in the same container if ordered before crating closes.
