Description
Stocked dispatch — Every QT5-15 block machine in stock ships with dismantling photos, loading records and confirmed arrival timing so your project schedule stays intact.
Technical Specifications
| Parameter | Value |
|---|---|

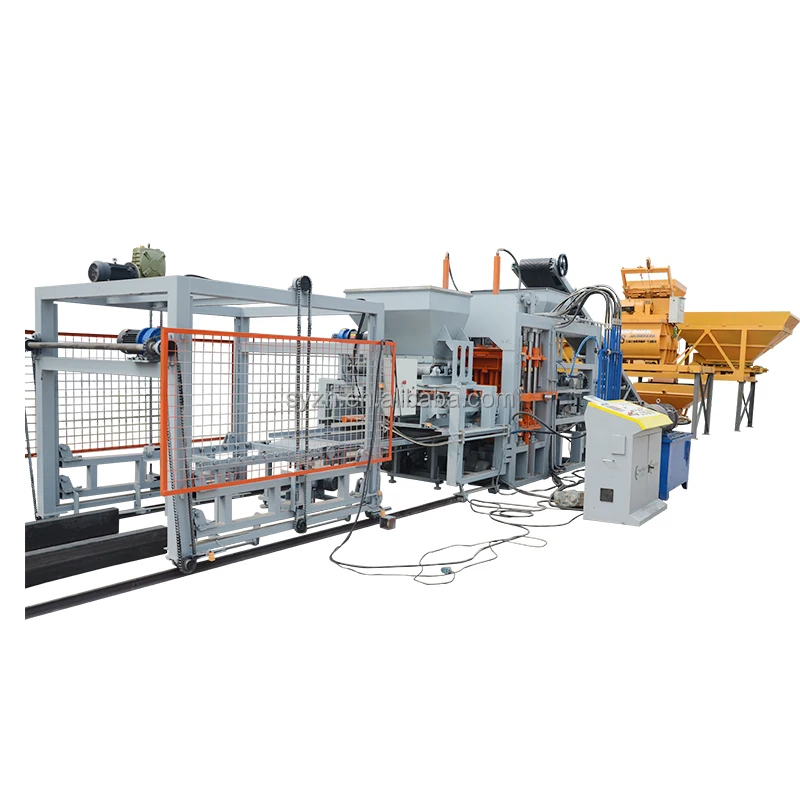

| Model | QT5-15 |
| Product Type | Fully Automatic Concrete Block Making Machine |
| Overall Dimensions (L×W×H) | 7400×1950×2800 mm |
| Vibration Frequency | 0-60 Hz |
| Vibration Form | Platform Vibration |
| Moulding Mode | Load automatically, vibration moulding |
| Pallet Size | 1100×550 mm |
| Molding Cycle | 15-20 s (hollow/solid formats); 20-25 s (pavers) |
| Overall Power | 32 kW |
| Vibration Force | 80 kN |
| Total Mass | 5000 kg |
| Demolding Method | Hydraulic |
| Recommended Factory Area | 1000 m² |
| Control System | PLC with touch screen interface |
| Hydraulic System | Independent integrated hydraulic station |

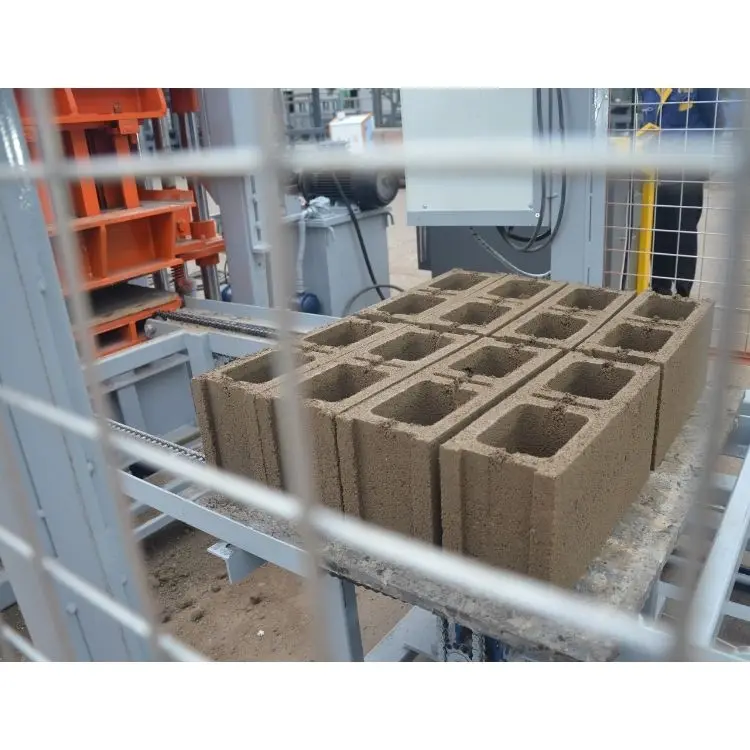

| Output (Hollow block 400×200×200 mm) | 900-1200 pcs/h, 7200-9600 pcs/8hr |
| Output (Hollow block 400×150×200 mm) | 1080-1440 pcs/h, 8640-11520 pcs/8hr |
| Output (Solid brick 240×115×53 mm) | 5760-7680 pcs/h, 46080-61440 pcs/8hr |
| Output (Rectangular paver 200×100×60 mm) | 3600-4500 pcs/h (basis: 20-25s cycle), 28800-36000 pcs/8hr |
| Output (Zigzag paver 225×112.5×60 mm) | 2304-2880 pcs/h (basis: 20-25s cycle), 18432-23040 pcs/8hr |
| Raw Material Compatibility | Fly ash (up to 70%), slag, gangue, sand, crushed stone, cement, water |
| Block Compressive Strength | >15 MPa |
| Mould Change System | Simple mould replacement for multi-format production |
| Voltage & Frequency | Configurable to buyer’s local grid (basis to be confirmed) |
| PLC Display Language | Configurable (basis to be confirmed) |
| Warranty | 1 year for whole machine (excluding spare parts) |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production for building walls | Crushed stone, sand, cement, fly ash blends |
| Solid brick manufacturing | Sand, gangue, slag and cement mixes |
| Paving brick production for walkways and yards | Aggregate and cement for 200×100×60 mm rectangular pavers |
| Interlocking paver production | Cement and fine aggregate for 225×112.5×60 mm zigzag pavers |
| On-site block production for housing projects | Local aggregate with fly ash up to 70% |
| First block plant setup for entrepreneurs | Multi-format output with simple mould changeover |
What "Arrives Next Month" Really Means When a Project Deadline Looms
A QT5-15 block machine in stock fast delivery is only meaningful if dismantling, loading and documentation are already planned before you confirm the order.
I have watched contractors lose entire project milestones because a machine was technically "in production" while their foundation crew sat idle on site. The dispatch date is only half the story. The other half is how the machine is broken down for container loading, whether the hydraulic station is labeled so your technician reassembles it in the correct sequence, and whether voltage and PLC language were locked before the machine left the factory floor. [NEED_CITE: typical project delays caused by equipment commissioning issues]
Container Loading and Dispatch Sequence
When a QT5-15 block machine in stock fast delivery leaves our yard, every major assembly is dismantled according to a documented sequence. The hydraulic station, vibration platform, mould frame and pallet feeder each get tagged with numbered labels that match the reassembly manual. I have personally seen what happens when this step is skipped — a client once reversed the hydraulic station connections on arrival, and commissioning took two extra days in front of an impatient crew.
Stocked Mould Formats and Lead Times
The standard mould inventory covers hollow blocks, solid bricks, rectangular pavers and zigzag pavers listed in the specifications above. A QT5-15 block machine in stock fast delivery ships with the moulds already matched to your order, so there is no waiting for separate tooling fabrication. If your project requires a custom format, that mould enters a separate production queue and the timeline is communicated before you commit. [NEED_CITE: standard mould stock availability for common block formats]
How Vibration Force and Hydraulic Pressure Shape Block Density
The 80 kN vibration force works through platform vibration, meaning the entire pallet surface receives uniform compaction rather than localized shaking. Combined with the independent integrated hydraulic station, the system applies consistent downward pressure during each 15-20 second molding cycle for hollow and solid formats. This pairing determines whether your blocks reach the >15 MPa compressive strength target without over-cementing the mix. The 0-60 Hz adjustable vibration frequency lets you dial the energy input to match local aggregate gradation — coarser crushed stone generally needs lower frequency and longer dwell, while fine sand mixes respond to higher frequency. The 1100×550 mm pallet size should be checked against your curing area layout and forklift capacity before dispatch, because a mismatch here means pallets pile up faster than your team can move them.
The Cost of Skipping Dispatch Verification
Buyers who rush an order without confirming voltage, frequency and PLC display language often discover the problem only when the machine arrives and refuses to power on correctly. I have seen a 400V machine land on a 380V site with no transformer budgeted, pushing commissioning back by weeks while the contractor sourced a step-down unit locally. The same applies to dismantling documentation — without numbered tags and reassembly photos, your installation crew is essentially guessing the sequence, and a misconnected hydraulic line can damage seals before the first test block is even pressed. [NEED_CITE: voltage mismatch consequences for imported industrial machinery]
Why Source a Stocked Machine Through This Channel
Every QT5-15 is specified as a matched system — machine, mould, pallet and handling equipment are quoted together rather than assembled from separate suppliers, which eliminates the gaps that appear when components arrive from different origins.
Configuration is set against your actual mix design and local aggregate, not a default catalogue setting, so the vibration frequency and hydraulic pressure are calibrated before the machine leaves.
Standard and custom mould designs are available to match the formats your market actually sells, with drawings confirmed before production.
Dismantling for container shipment is supervised with packing photographs and loading records, so reassembly on site follows a verified sequence rather than guesswork.
Installation support and operator training are included, with mould and wear parts availability addressed before the first production run.
Documentation & Verification
- Line layout and capacity calculation stating the specific block format assumed
- Machine specification sheet confirming voltage, frequency and PLC language
- Mould drawing and format list for every tooling included in shipment
- Hydraulic and electrical schematic matching the dispatched configuration
- Factory test record on your specified block format before container loading
- Packing photographs and customs documentation support for import clearance
Installation, Commissioning & Support
- Foundation must accommodate 7400×1950 mm footprint and 5000 kg total mass within the recommended 1000 m² factory area
- Dedicated 32 kW power circuit required, with voltage and frequency confirmed before machine leaves factory
- Machine dismantled into numbered assemblies for container loading with reassembly manual provided
- First-cycle commissioning includes vibration frequency tuning to match your local aggregate blend
- Operator training covers PLC touch screen interface, mould changeover and pallet handling sequence
- Wear parts and mould replacement list supplied for scheduling your first reorder
Planning Your Equipment Arrival Window
To confirm whether a QT5-15 configuration is currently stocked and which mould formats can ship with it, share your target block format, daily output requirement and site location. We also need your local voltage, frequency and preferred PLC display language so these are locked before dispatch. If your curing area and forklift are already in place, send the pallet dimensions you are currently using so we can verify compatibility with the 1100×550 mm pallet system.
Frequently Asked Questions
Q: Which QT5-15 configurations and mould formats are currently ready for dispatch?
A: Standard stocked models include hollow block, solid brick, rectangular paver and zigzag paver mould sets matched to the specifications listed above. Availability varies by configuration, so we confirm stock status against your specific block format and automation level before you commit. Custom moulds follow a separate production timeline quoted upfront.
Q: What is the typical lead time from order confirmation to container loading?
A: For stocked QT5-15 machines with standard mould sets, the window from confirmed order to container loading spans several working days, depending on current inventory and whether voltage or PLC language adjustments are needed. Made-to-order configurations carry a longer timeline that is quoted at the inquiry stage so your project schedule can account for it.
Q: How is the machine dismantled for shipment and what container size is required?
A: The QT5-15 is dismantled into major assemblies — hydraulic station, vibration platform, mould frame, pallet feeder and control cabinet — each tagged with numbered labels matching the reassembly manual. Container loading plans are confirmed based on the 5000 kg total mass and 7400×1950×2800 mm overall dimensions, with packing photographs taken before doors close.
Q: Can voltage, frequency and PLC display language be confirmed before the machine leaves the factory?
A: Yes. These parameters must be locked before dispatch to avoid commissioning delays on arrival. We confirm your site voltage, frequency and preferred PLC display language during the order stage so the electrical system and touch screen interface are configured before the machine enters the container.
Q: What customs documentation is provided to support import clearance at destination?
A: Each shipment includes the HS code, certificate of origin and CE declaration where applicable, along with the commercial invoice and packing list. This documentation package is prepared before dispatch so your customs broker can begin clearance procedures while the container is still in transit.
