Shandong Shiyue Intelligent Machinery
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
In Stock · Ready to Ship
CE
Certified
ISO
9001:2015
108+
Countries
Automatic block machine

SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine

This product is currently out of stock and unavailable. SKU: SHIYUE QT8-15 Brick Manufacturer Concrete -35655059 Category: Automatic block machine Description Additional information Description Products Description QT8-15 BLOCK MACHINEThis equipment QT8-15 Block Molding Machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic […]

  • European-Patented Airbag Damping System
  • Four-Motor Synchronous Vibration Technology
  • Siemens PLC Smart Control · Lifetime Tech Support
  • Customized Solution for Local Materials & Voltage
Request Best Price → WhatsApp Chat
Lead Time
30 days
Warranty
12 mo
Sold
500+
Technical Excellence

Engineered for performance, built to last

Every parameter is verified through rigorous factory testing. No exaggeration -- just real production capacity backed by 320+ engineers.

Production Capacity
14,400 blocks/8h
Cycle Time
15-20 seconds
Total Power
88 kW
Operators
2-3 people

Product Description

Products Description
QT8-15 BLOCK MACHINE
This equipment QT8-15 Block Molding Machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic press. mechanical to assist. vibrate and press to finish molding blocks. The comprehensive strength of finished blocks can reach 15 Mpa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation.external dimensions are precise. the blocks are more consistency with low waster rate.
It is mainly composed of pallet feeder. host machine. block conveyor. hydraulic station and PLC controller.
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine

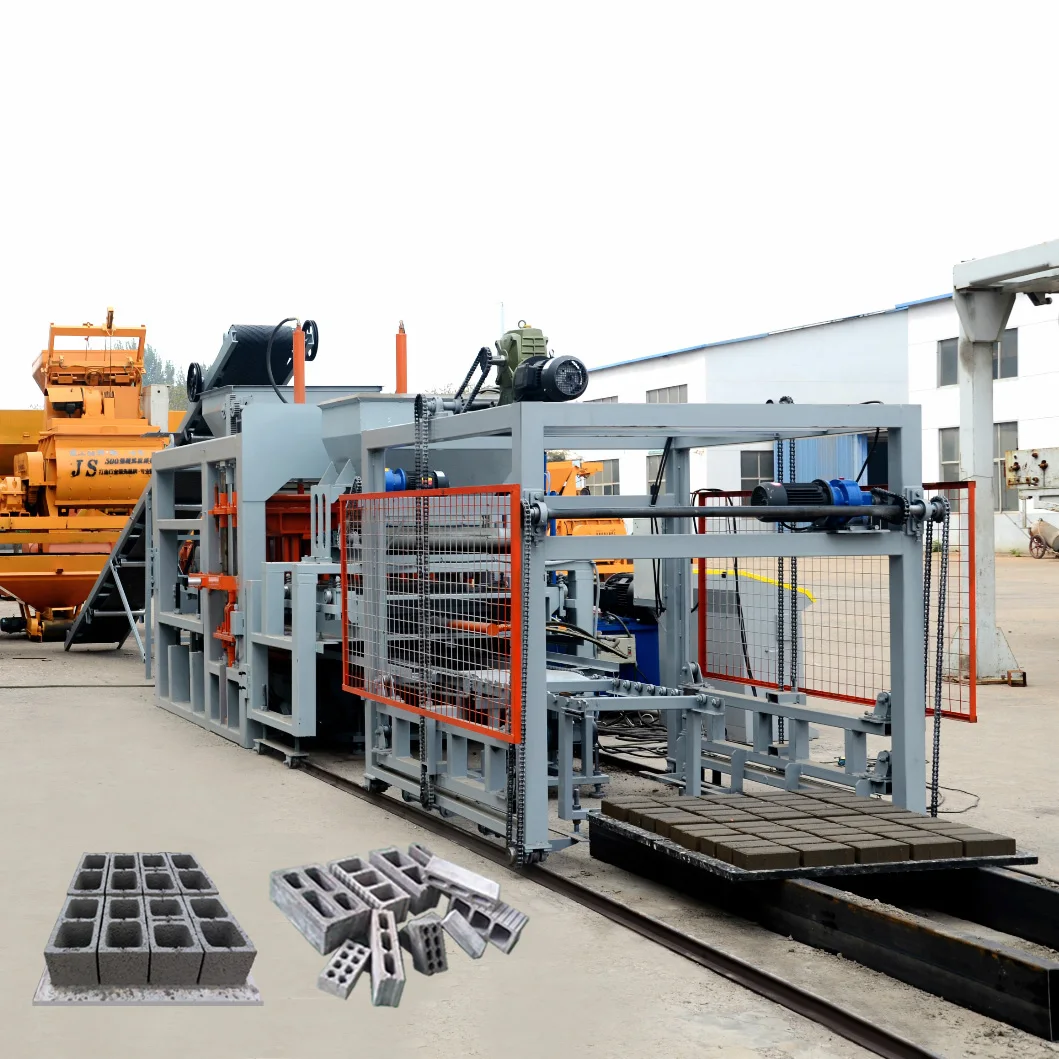

QT8-15 BLOCK MOLDING MACHINE
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
FEATURES:High degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC (Programmable Controller). input and store of process data and touch screen. it have ideal of flexible Human Conversation Interface. Good reliability. Hydraulic system choosing improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system. Make sure process reliability of hydraulic system.The machine is well-adapted. It can produce different blocks by changing mould. maximal degree cater to marketplace. Plays a mechanical maximum functionality.
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
PLC controllerControl system include PLC control box. expand parts. touch screen human-computer interface. intermediate relay. exchange contactor and so on. all parts can work in manual or automatic type. For example. the press head up and down mold box working. material box working. vibrate. molding. demolding. pallet go and back all can control automatically. And can adjust the feeding times and vibration time.Control parts include indicator light. control button. programmable operation panel. Through control the electric component. can know the machine situation. it can transition between manual mode and automatic mode. When changing the technical parameter. or there’s problem about the machine. should cut down electric in time. make sure the machine and person safe.
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
Main technical parameters
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
Dimension
8300 x 1860 x 3000 mm
Rated Pressure
21 Mpa
Vibration Form
Platform Vibration
Pallet Size
950 x 900 mm
Molding Cycle
15-25s
Overall Power
37 KW
Vibration Frequency
2800-4500RPM

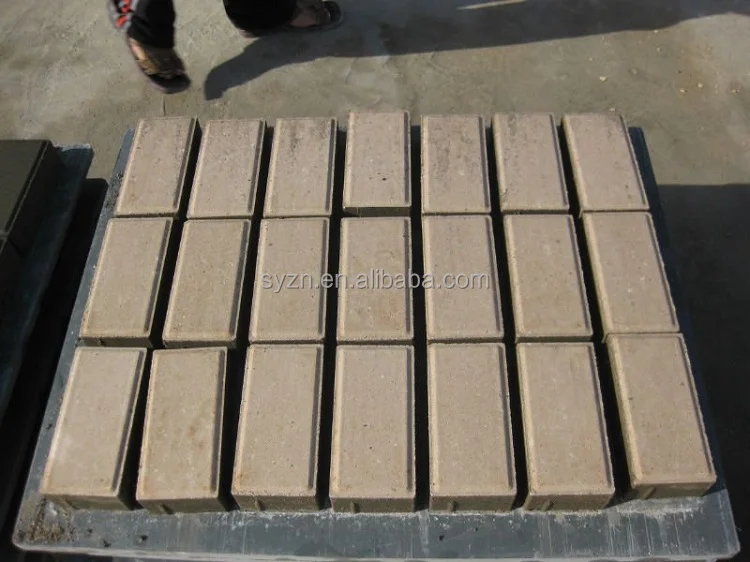

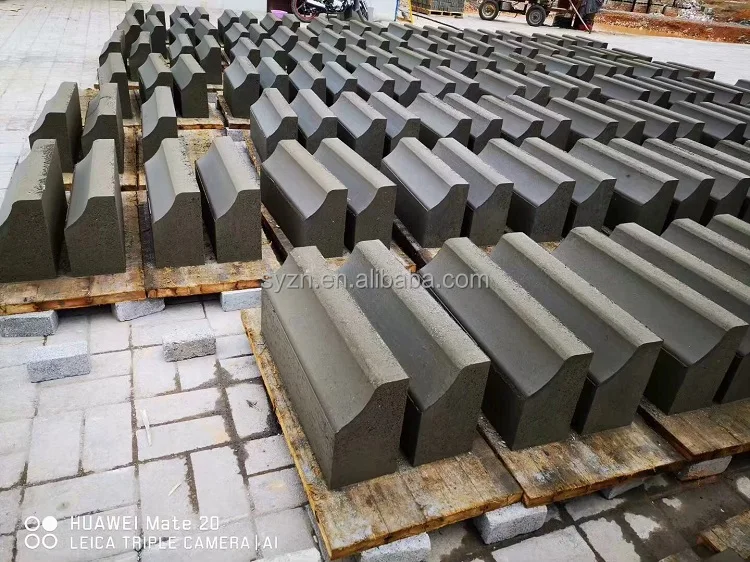

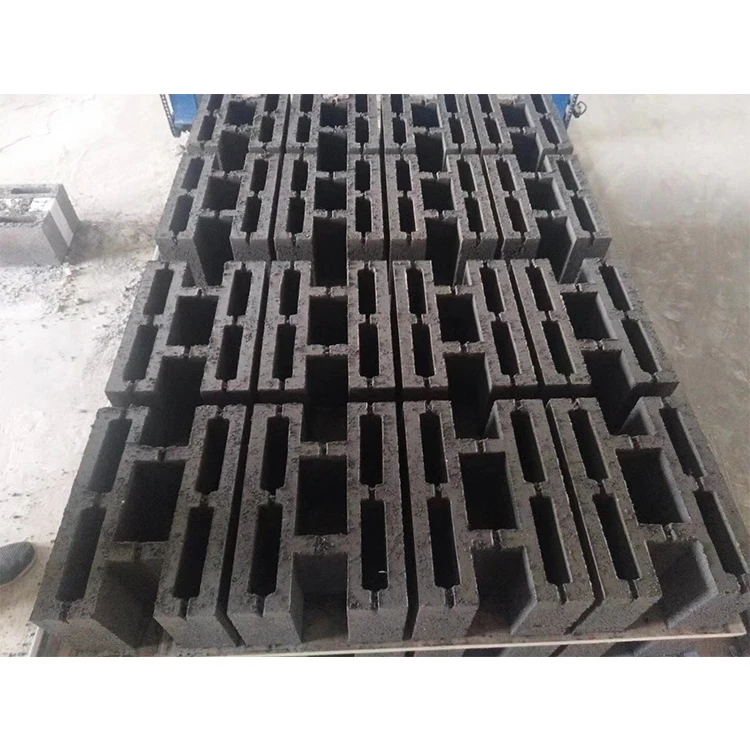

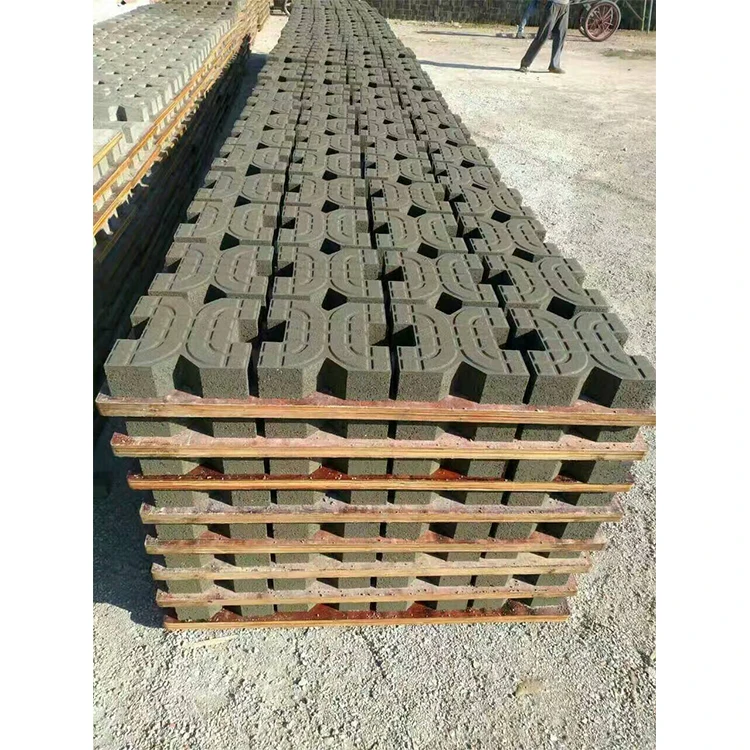

common blocks samples

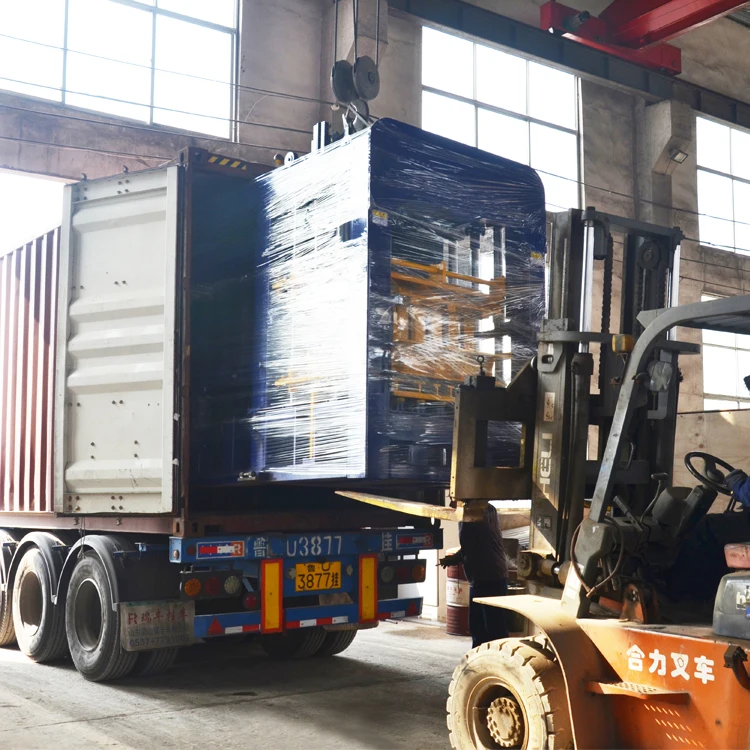

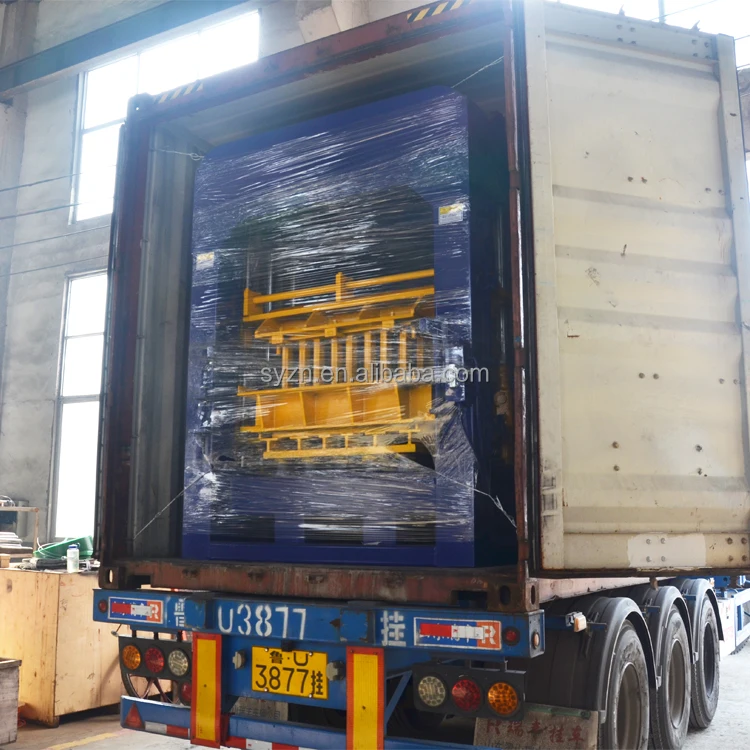

loading and delivery
Company Profile
Recommend Products

Buy with Confidence

From inquiry to commissioning -- 4 transparent steps

  1. 01

    Technical Consultation

    Share your raw materials, capacity goals and voltage. Engineers reply within 24 hours.

  2. 02

    Custom Solution Design

    3D layout, mold drawings, electrical schematics and ROI calculation -- all free of charge.

  3. 03

    Production & Inspection

    Weekly progress photos, video reports, and virtual or on-site factory inspection.

  4. 04

    Installation & Lifetime Support

    On-site commissioning, operator training, spare parts supply and remote diagnostics.

Get a Quote

Talk to a senior engineer about SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine

Response within 24 hours · English / Español / العربية. Our 320+ engineers will tailor a solution to your local market, raw materials and capacity needs.

Send Project Brief

By submitting, you agree to be contacted by Shandong Shiyue. We respect your privacy.
