Description
Proven Dispatch Readiness — QT 8-15 block machine in stock configurations ship with matched moulds and line components, eliminating the weeks of separate sourcing delays that stall site commissioning.
Technical Specifications
| Parameter | Value |
|---|---|

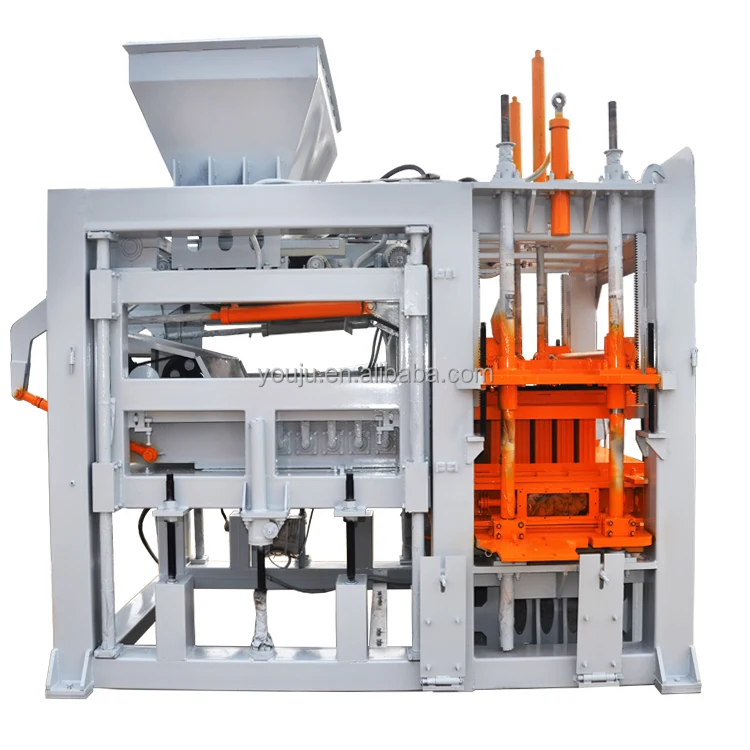

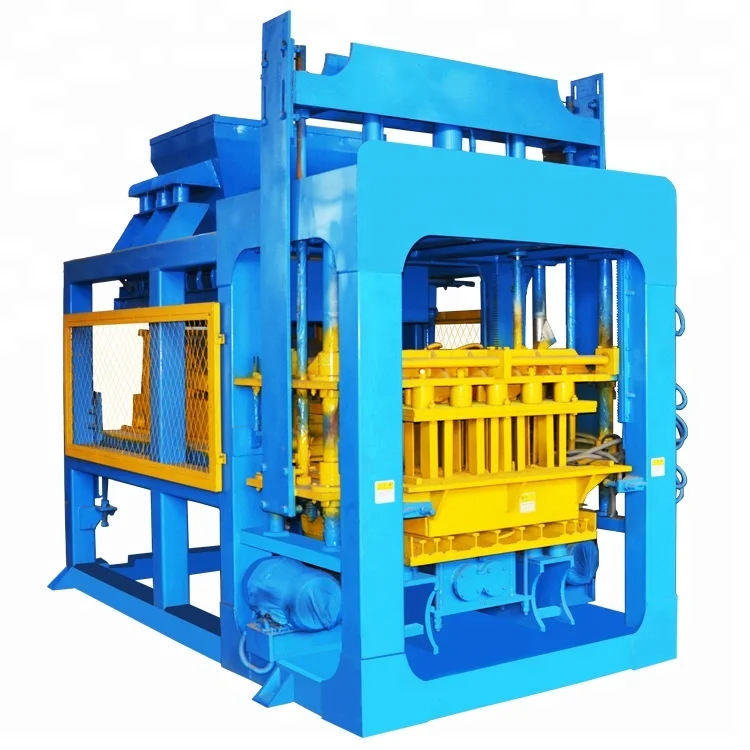

| Model | QT 8-15 |
| Product Type | Semi automatic block machine |
| Overall Dimensions (L×W×H) | 8300 x 1860 x 3000 mm |
| Rated Power | 37 kW |
| Control System | PLC with touch screen HMI |
| Vibration Form | Platform Vibration |
| Vibration Frequency | 2800–4500 RPM |
| Pallet Size | 950 x 900 mm |
| Moulding Cycle | 15–25 s (basis not stated in source — confirm block format and material) |
| Brick Height Range | 50–200 mm |
| Hydraulic System | Independent integrated hydraulic station |
| Raw Materials | Fly ash, slag, gangue, river sand, gravel, cement |
| Output Capacity | 1,912 pcs/h based on 400×200×200 mm hollow block (8 pcs/mould) |
| Output Capacity | 9,360 pcs/h based on 240×115×53 mm solid block (39 pcs/mould) |
| Output Capacity | 3,000 pcs/h based on 225×112.5×60 mm paving block (18 pcs/mould) |

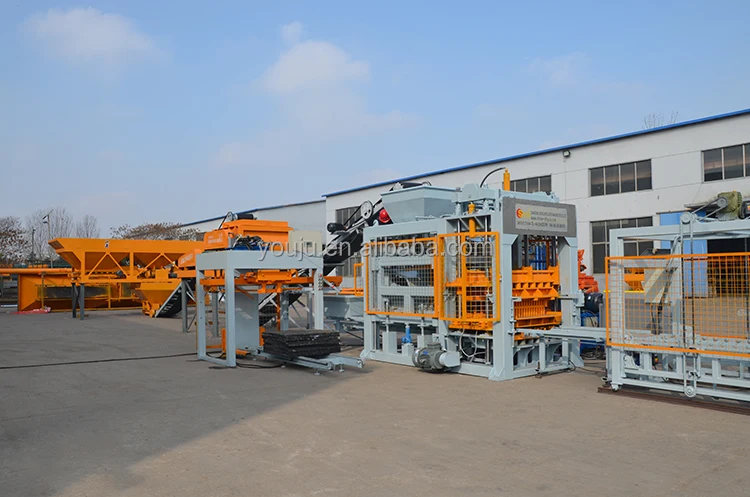

| Simple Line Equipment | Cement silo, host block machine, mixer, batching machine, stacker, forklift |
| Key Features | Color feeding available, multiple mould formats supported |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production for building walls | Fly ash, slag, and cement blends on 400×200×200 mm format |
| Solid brick manufacturing for load-bearing structures | River sand, gravel, and cement on 240×115×53 mm format |
| Paving block production for roads and walkways | Crushed stone and cement on 225×112.5×60 mm or 200×100×60 mm format |
| Porous block and slope-protecting block | Industrial waste and gangue mixed with cement |
| On-site production for housing projects | Locally sourced aggregate with cement, no imported special blends required |
Why "In Stock" Should Mean More Than Just the Host Press
A stocked QT8-15 block machine in stock only accelerates your project if the moulds, pallets, and line components ship in the same container.
I once watched a buyer receive their host press three weeks ahead of schedule, then sit idle for another month because the pallet feed machine and PLC cabinet were on a different production schedule. The machine was technically "in stock," but the line was incomplete. When you are working to a project deadline, the dispatch lead time that matters is the one covering every station from raw material feeding through to stacking [NEED_CITE: typical block line component synchronization requirements]. The QT 8-15 concrete block making machine is only useful on your site when the full consignment arrives together, and that is the commitment to verify before you confirm an order.
Container Loading and Dismantling for the QT 8-15
The QT8-15 block machine in stock configuration is dismantled into major assemblies — host press frame, hydraulic station, PLC control cabinet, and pallet feed unit — for container loading. The 8300 x 1860 x 3000 mm overall footprint requires a specific dismantling scheme and weight distribution plan so that the machine arrives without structural stress from transit. Buyers working to tight deadlines need this loading plan confirmed at order, not improvised at the factory gate.
Arrival Timing Quoted Before You Pay
Dispatch lead time and ocean transit combine into a single arrival estimate. When you source a QT8-15 block machine in stock, the value is speed — and that speed is only real if the arrival estimate accounts for your destination port, customs clearance window, and inland transport [NEED_CITE: shipping transit variability by destination port]. We confirm container type, dispatch date, and estimated arrival in writing before payment so your site team can schedule foundation work and electrical rough-in against a known timeline.
Reading the Specs That Actually Matter on Site
The platform vibration system operates across 2800–4500 RPM, and the independent integrated hydraulic station supplies pressing force in coordination with that vibration. Together, these two parameters determine the density and compressive strength of each block leaving the mould. If your local aggregate is coarse or your mix contains high clay content from river sand, the vibration frequency and hydraulic pressure must be matched to that specific blend — otherwise, blocks crack during curing or fail strength tests on site. The 950 x 900 mm pallet size defines your curing rack layout and the forklift capacity you need; ordering pallets without checking your existing curing area means either wasted floor space or pallets that your forklift cannot handle. The 37 kW rated power demand requires a dedicated circuit with adequate transformer capacity at your site, and the PLC touch screen HMI must be set to your operator’s language before the machine leaves the factory — fixing language and electrical mismatches after arrival adds days of idle time that erase the advantage of buying stocked inventory.
The Hidden Cost of an Incomplete Shipment
A host machine arriving without its matched pallet feed unit or with the wrong pallet size specification means your operators are manually loading pallets and stacking output by hand. That was never the configuration you planned for, and the labour cost quietly erases whatever schedule advantage you gained from buying stock [NEED_CITE: manual pallet handling impact on block plant labour costs]. Moulds ordered separately ship on a different timeline, so the format flexibility you paid for is unavailable at startup. Voltage and frequency left unconfirmed can mean the machine sits under a tarp while a local electrician sources a transformer or rewires the control cabinet.
Why Buyers Source the QT 8-15 Through This Channel
Stocked QT 8-15 configurations ship with standard moulds for hollow, solid, and paving formats already matched to the host press, so your first production run happens days after commissioning, not weeks. The pallet size of 950 x 900 mm is confirmed against your curing layout and existing forklift before dispatch. Voltage, frequency, and PLC display language are locked in writing at order, so the machine powers on correctly the first time. Full line components — cement silo connection, mixer, batching machine, conveyor, and stacker — ship as one consignment with a documented container loading plan. Factory test records on your specific block format accompany the shipment, and customs documentation support is included so clearance at your port does not become a second delay.
Documentation & Verification
- Factory test record on your specified block format and local aggregate blend before dispatch
- Container loading plan with dismantling scheme, weight distribution, and container type confirmed at order
- Pallet specification sheet matched to your curing area dimensions and forklift capacity
- Voltage, frequency, and PLC language confirmation document signed before production release
- CE declaration documentation package where applicable to your import market
Installation, Commissioning & Support
- Foundation pad sized to the 8300 x 1860 mm footprint with level tolerance specified for platform vibration stability
- Dedicated electrical circuit rated for the 37 kW load with voltage and frequency matching your local supply
- Host press, hydraulic station, and PLC cabinet reassembled on site with alignment checks before first run
- Mould change procedure demonstrated with your standard formats during commissioning visit
- Operator training on PLC touch screen HMI in confirmed language, covering cycle adjustment and fault response
- Wear parts and mould maintenance schedule provided with spare hydraulic seal and vibration motor part numbers
What to Share With Your Inquiry
To move from inquiry to dispatch confirmation quickly, share your target block formats and daily output requirement, along with the local aggregate type and any available material test report. Confirm your site voltage and frequency, and the language your operators need on the PLC display. If you have existing curing racks or forklifts, send their dimensions so the pallet specification is matched before the QT 8-15 concrete block making machine ships.
Frequently Asked Questions
Q: Which QT8-15 configurations and mould formats are currently stocked versus built-to-order?
A: Standard stock configurations include the host press with hollow block, solid block, and paving block moulds in common formats. Custom mould designs to buyer drawings and non-standard automation levels are built-to-order. Confirm availability and dispatch lead time at inquiry, and receive written stock status before payment to avoid scheduling surprises.
Q: What is the dispatch lead time from order confirmation to container loading?
A: Stocked QT8-15 units with standard moulds typically dispatch within a shorter window than built-to-order machines, but exact timing depends on pallet specification confirmation and electrical verification. The dispatch date is confirmed in writing at order so your site preparation can be scheduled against a known timeline.
Q: How is the machine dismantled for shipment, and what container type is required?
A: The QT8-15 is dismantled into the host frame, hydraulic station, PLC cabinet, and pallet feed unit. Container type and weight distribution are planned based on the full line components included in your order. A documented loading plan is provided before shipment.
Q: Can arrival timing be estimated upfront based on destination port?
A: Yes. Once dispatch date and destination port are confirmed, an estimated arrival window is provided covering ocean transit and typical clearance timelines. This allows your site team to plan foundation work and electrical installation against a realistic schedule.
Q: Are standard moulds shipped with the stocked machine, or ordered separately?
A: Standard hollow, solid, and paving block moulds ship with the stocked QT8-15 in the same container. Custom mould formats or additional mould sets beyond the standard package may require a separate production timeline and are confirmed at inquiry.
