QT4-20 Block Machine for Concrete Blocks – In Stock82 → 8+5+1+9+2 = 27, 27 % 6 = 3 结构3: [应用或物料] [品类词] – [站点修饰词] Concrete Block Machine QT4-20 – Ready to Ship

Description

Voltage Confirmation at Order Stage — every QT4-20 unit is checked against destination grid requirements before loading, preventing the kind of three-week port delay one West African contractor experienced when standard voltage did not match site supply.

Technical Specifications

Application Suitability

Why Voltage Verification Comes Before Dispatch Timing

The fastest container loading means nothing if the machine cannot be powered on at your site.

I have watched entire project timelines stall because a block machine arrived at port with a motor wound for 380 V / 50 Hz while the buyer’s local supply ran 440 V / 60 Hz. The transformer procurement, rewinding, or panel swap that follows typically consumes weeks, not days. When a construction contractor has a committed build schedule, that idle period cascades through every downstream trade waiting for masonry units. Confirming voltage, frequency, and PLC display language at the inquiry stage is a single email exchange that eliminates the most common commissioning delay we see in the field [NEED_CITE: voltage and frequency standards by export market].

Current Stock Position and What Ships with It

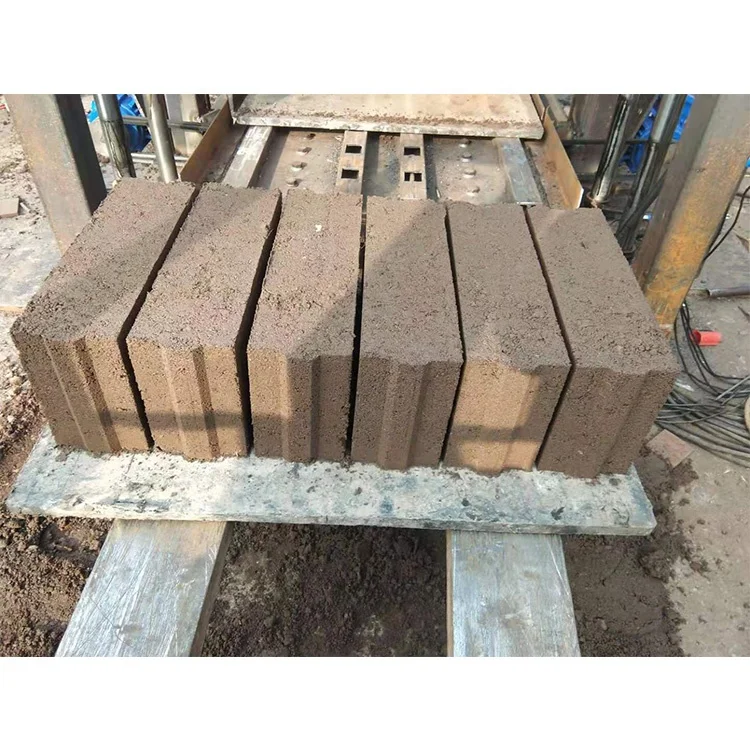

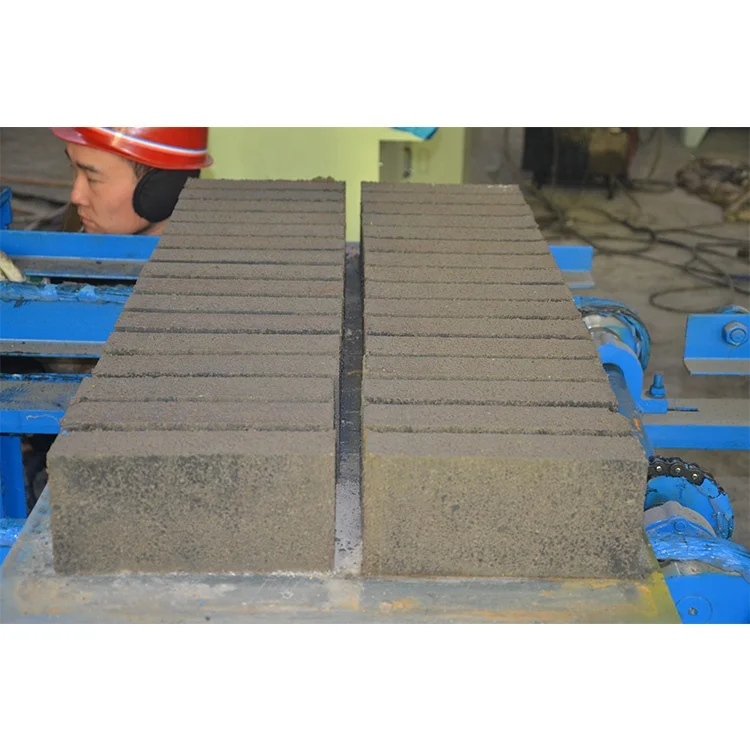

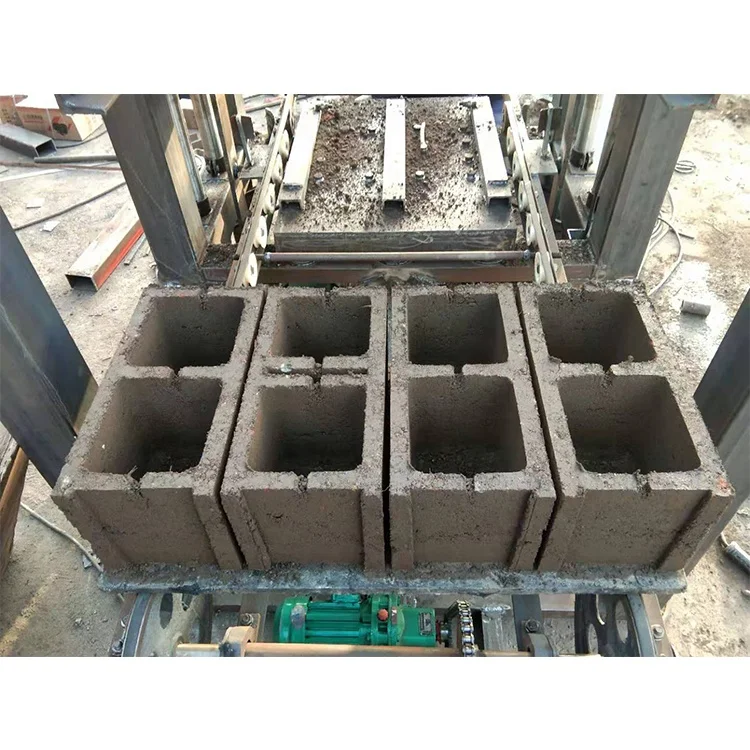

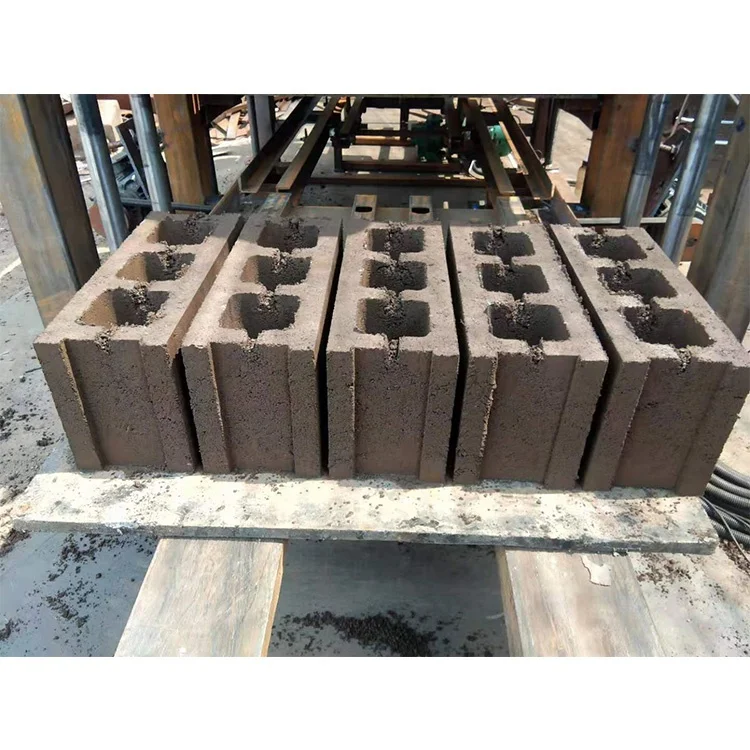

The QT4-20 block machine in stock configuration carries a set of standard moulds suited to common hollow and solid block formats. Because this model moves steadily through our dispatch rotation, a unit is frequently available without waiting for a full production cycle. Buyers working against a committed building contract start date can treat the current stock status as the first data point in their planning sequence rather than an open-ended inquiry.

Container Loading and Dispatch Sequence

Each QT4-20 is dismantled into major assemblies — main frame, hydraulic station, control cabinet, and pallet feeder — before entering a 40HQ container. This breakdown is designed so that the machine can be reassembled on a prepared foundation with standard lifting equipment. Factory testing is completed before dismantling, which means the hydraulic circuits, vibration platform, and PLC logic have already run through a full production cycle under load. The dispatch lead time and estimated arrival window are quoted at the inquiry stage, so buyers on tight project deadlines can align shipping with their site readiness rather than guessing at a timeline [NEED_CITE: typical transit durations from Chinese ports to West African and Southeast Asian destinations].

Reading the Specs That Matter on the Ground

The 16–21 MPa rated pressure combined with 45 kN vibration force determines the density and compressive strength of each block leaving the mould. Higher vibration frequency at 4600 r/min compacts fine aggregate tightly, which matters when your local sand has a high fines content. The 1020 × 570 mm pallet size must align with your existing curing racks and forklift fork spacing — a mismatch here forces a separate investment in handling equipment or leaves blocks curing on the ground. The 20–30 second molding cycle is a range, not a fixed figure; actual cycle time depends on the block format, wall thickness, and whether the mix includes fly ash or slag that alters compaction behaviour. Water consumption at roughly 12 T per day covers mixing and initial curing spray but excludes any secondary curing system you may install.

The Cost of Skipping Pre-Shipment Confirmation

When voltage is left unconfirmed, the buyer faces transformer rental or motor rewinding costs that were never budgeted. When pallet size is chosen without checking the curing yard layout, blocks pile up on the factory floor because the forklift cannot reach the racks. When the PLC display language does not match the operator’s working language, training takes twice as long and early production runs show higher rejection rates from incorrect parameter entry. These are not theoretical risks — they recur in export orders far more often than mechanical failure [NEED_CITE: common causes of commissioning delays in exported industrial machinery].

What Sets This Dispatch Apart

Block machinery is our single focus, so the QT4-20 leaves the factory with machine, mould, pallet, and handling specified as one matched system. We confirm destination voltage and frequency before production or dispatch rather than assuming a default. Mould selection is matched to the block formats your market actually sells, including custom drawings when standard options do not cover your range. Every unit undergoes a factory test recorded on video before container loading. Packing photographs and full customs documentation accompany each shipment so the buyer’s clearing agent can work without delays.

Documentation & Verification

• Factory test record run on your target block format before dismantling
• Machine specification sheet with confirmed voltage and frequency
• Mould drawing and format list matching the unit shipped
• Hydraulic and electrical schematic for on-site troubleshooting
• Packing photographs taken at container loading for insurance reference
• CE declaration where applicable to destination market requirements

Installation, Commissioning & Support

• 500 m² factory area required with level concrete foundation for the 7100 mm frame
• Dedicated power circuit matching confirmed voltage and the 27.5 kW total draw
• Major assemblies rejoin on site with standard crane or forklift equipment
• First production run supervised with parameter tuning to your local aggregate mix
• Operator training covers PLC navigation, mould change sequence, and daily maintenance
• Wear parts and hydraulic seal list provided for local procurement planning
• 1020 × 570 mm pallets inspected for flatness before initial vibration cycles

Before You Request a Quote

Share your destination port, the local voltage and frequency at your site, and the specific block formats you need to produce. Include your daily output target and the raw materials available locally — sand source, cement type, and whether fly ash or slag is accessible. With those details we can confirm the exact stock unit, matching mould set, and realistic dispatch timeline within a single reply.

Frequently Asked Questions

Q: Is the QT4-20 currently in stock, and what standard moulds ship with it?
A: Stock position rotates with order volume, so we confirm availability at the time of your inquiry. Standard mould sets typically include one hollow block and one solid block format. Additional moulds for pavers, interlocking bricks, or curbstones can be added to the same shipment if they are in stock at the time of your order confirmation.

Q: What is the dispatch lead time from order confirmation to container loading?
A: When the QT4-20 block machine in stock is available and your voltage configuration matches our standard offering, loading can occur within a short window after balance payment receipt. Custom voltage or additional mould orders extend this window. We quote the exact lead time in days at the inquiry stage so you can plan around your project deadline.

Q: How is the machine dismantled and loaded into a 40HQ container?
A: The main frame, hydraulic station, control cabinet, pallet feeder, and mould set are separated into major assemblies. Each component is secured with steel bracing and timber blocking inside the container. Reassembly on site requires standard lifting equipment and typically completes within a few working days depending on foundation readiness.

Q: What arrival timeline should I plan for based on my destination port?
A: Ocean transit duration depends on the destination port and current shipping schedules. We provide an estimated arrival window at the quotation stage based on your named port of discharge. This estimate accounts for sailing days but not customs clearance time, which varies by country and should be confirmed with your local agent.

Q: What documents ship with the machine for customs clearance?
A: Each shipment includes a commercial invoice, packing list, bill of lading, and certificate of origin. Where required by your destination market, a CE declaration is also included. The hydraulic and electrical schematics, operation manual, and wear parts list travel inside the control cabinet for immediate access upon arrival.
