Description
Stocked machine matched to your project deadline — we confirm voltage, frequency, and dispatch lead time in writing before you commit, so the QT10-15 arrives ready to run on your local grid.
Technical Specifications
| Parameter | Value |
|---|---|

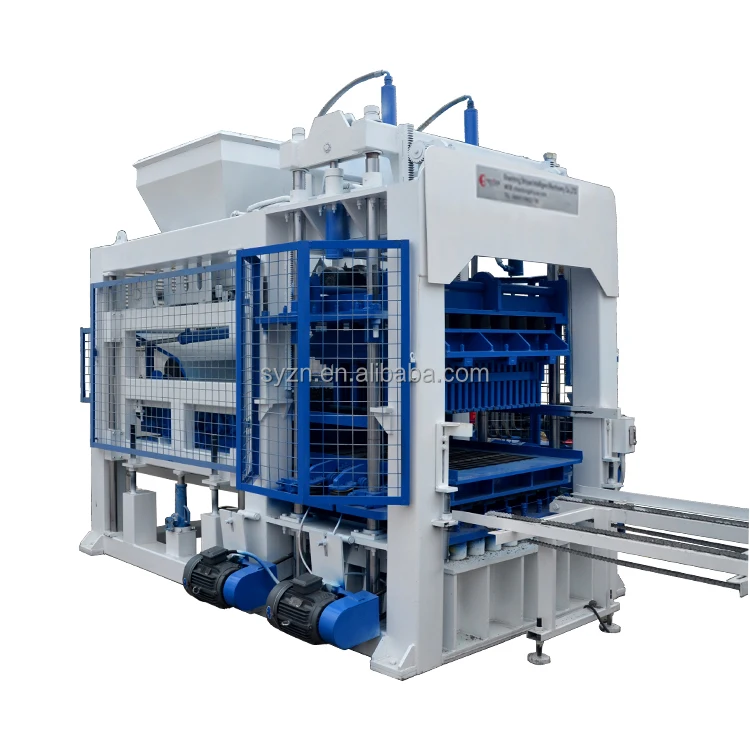

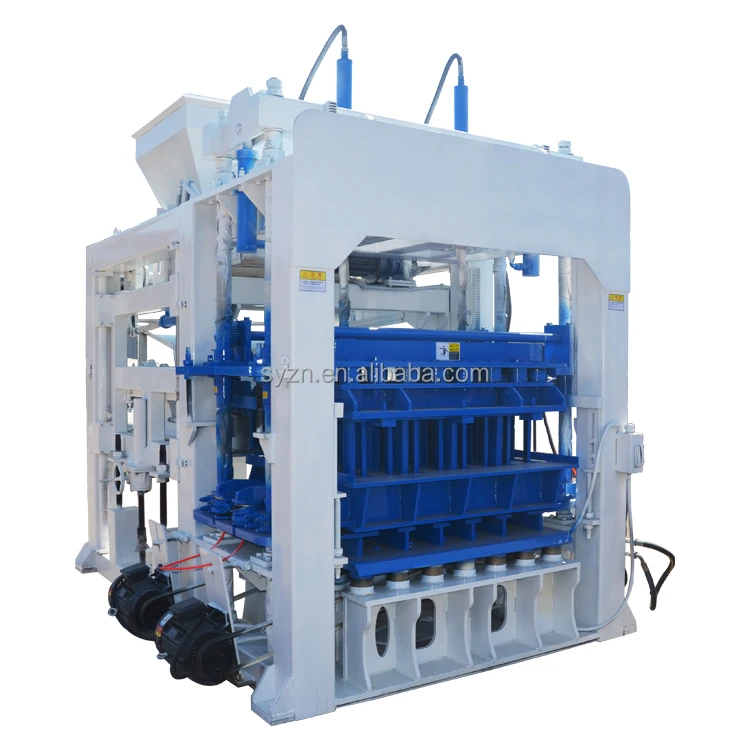

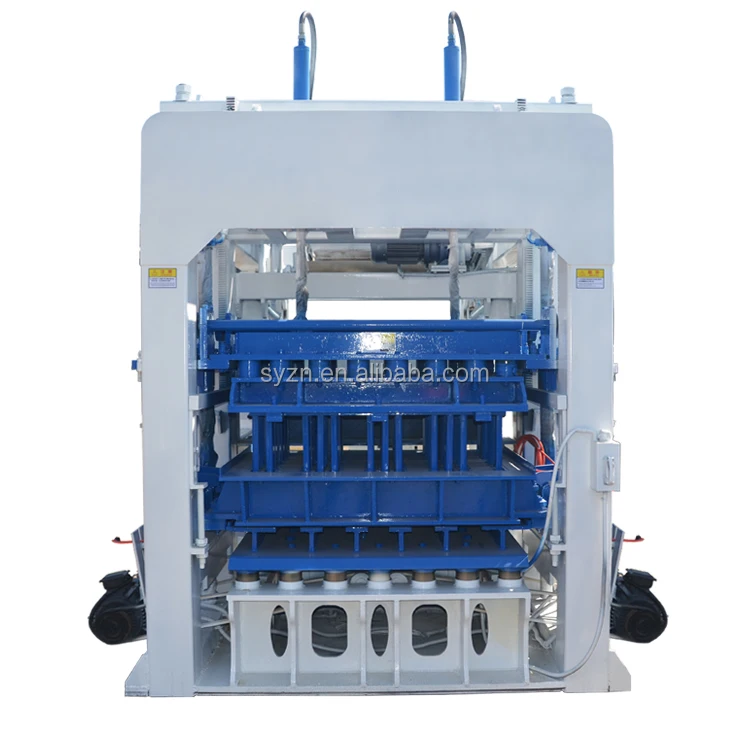

| Model | QT10-15 |
| Product Type | Interlocking Brick Machine |
| Control System | PLC control cabinet |
| Hydraulic System | Independent integrated hydraulic station |
| Vibration Mode | Vertical station mode resonance, automatic FM-AM |
| Output Capacity (400×200×200mm hollow block) | 1800–2400 pcs/hour, 14400–19200 pcs/8hr (cycle 15–20s, 10 pcs/mould) |
| Output Capacity (400×150×200mm hollow block) | 2160–2880 pcs/hour, 17280–23040 pcs/8hr (cycle 15–20s, 12 pcs/mould) |
| Output Capacity (240×115×53mm standard brick) | 8928–11160 pcs/hour, 71424–89280 pcs/8hr (cycle 15–20s, 62 pcs/mould) |
| Output Capacity (200×100×60mm paving block) | 5184–6480 pcs/hour, 41472–51840 pcs/8hr (cycle 20–25s, 27 pcs/mould) |
| Output Capacity (225×112.5×60mm interlocking brick) | 4032–5040 pcs/hour, 32256–40320 pcs/8hr (cycle 20–25s, 24 pcs/mould) |
| Mould Change | Simple replacement, multi-function with one machine |
| Automation Level | Automatic (basis not stated in source) |

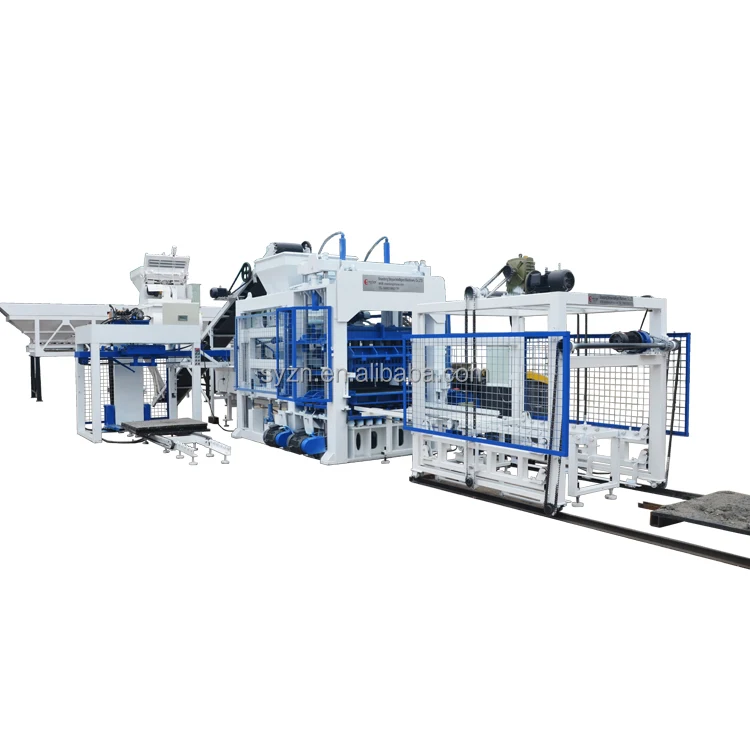

| Component List | Pallet feed machine, block making machine, storage hopper, conveyor, hydraulic unit, PLC control cabinet |
| Warranty | 1 year for whole machine (excluding spare parts) |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production | Crushed stone, sand, cement, fly ash |
| Interlocking brick production | Laterite soil, quarry dust, cement |
| Paving block production | Granite aggregate, sand, cement |
| Standard solid brick production | River sand, stone dust, cement |
| Multi-cellular brick production | Lightweight aggregate, cement |
Why the Voltage Question Must Come Before the Quote
A mismatched frequency rating will stop your QT10-15 interlocking brick machine in stock from running on day one, regardless of how fast it shipped.
I once watched a QT10-15 sit idle on an Indonesian job site for three weeks because the local grid runs at 60Hz and the PLC cabinet had been configured for 50Hz without anyone confirming the site spec before loading [NEED_CITE: voltage and frequency standards by export market]. The concrete pouring schedule slipped, the contractor paid penalties, and the whole delay traced back to a single unchecked line on the nameplate. When your construction phase has a fixed completion date, a fast delivery block machine is only fast if it actually starts when it arrives. That is why every stocked QT10-15 unit we dispatch gets its voltage, frequency, and control panel labels photographed and verified against your site electrical data before the container doors close.
Dispatch Timeline You Can Build a Schedule Around
The value of a QT10-15 interlocking brick machine in stock is only real if the dispatch lead time is confirmed in writing at inquiry stage, not estimated vaguely after payment. We quote your arrival date based on the stocked configuration, container loading schedule, and your destination port before you commit. Standard moulds for hollow block, interlocking brick, and paving block formats are held alongside the press, so the full line ships in one consignment rather than arriving in separate batches weeks apart.
How Dismantling and Loading Protect Your Arrival Window
A QT10-15 is a heavy press with a tall hydraulic frame, and how it is broken down for shipment directly affects whether it fits a standard container and how long reassembly takes on site. The host frame, hydraulic station, and PLC cabinet are separated into lift-ready modules. Each module is photographed in its cradle before the container is sealed, and those photos travel with your shipping documents so the receiving team knows exactly what to expect when the doors open [NEED_CITE: container loading practices for heavy block machinery].
Reading the Specs That Actually Matter on Site
The independent integrated hydraulic station is designed to isolate the host vibration and dust from the valve block, which matters because hydraulic contamination is one of the most common causes of unplanned downtime on continuous block production lines. The vertical station mode resonance with automatic FM-AM vibration adjusts the frequency and amplitude to match the mould cavity, meaning a change from 400×200×200mm hollow blocks to 225×112.5×60mm interlocking bricks does not require manual tuning of the vibration table. The PLC control cabinet governs the pallet feed machine, storage hopper, and conveyor as a coordinated sequence, so cycle times stated in the table above reflect the full automated loop rather than the press stroke alone. Mould change is a simple replacement mechanism that lets one machine cover multiple formats, but the actual changeover time depends on the operator and the lifting equipment available on your floor.
The Hidden Cost of Skipping Site Electrical Confirmation
When the voltage and frequency are assumed rather than verified, the consequences cascade well beyond the machine itself. A motor rated for the wrong supply will overheat and trip its thermal relay within hours, the PLC may refuse to boot or display corrupted HMI text, and the hydraulic solenoid valves may chatter instead of shifting cleanly. On a site where the concrete batching plant is already running and crews are waiting, a three-week delay to source a replacement transformer or rewire the control cabinet burns through labour costs faster than any price saving on the machine purchase [NEED_CITE: common causes of commissioning delays in exported block machinery].
Why Buyers Working to Deadlines Source Here
Block machinery is our single focus, which means the QT10-15 press, moulds, pallets, and handling equipment are specified as one matched system rather than assembled from separate suppliers. Configuration is set against your local aggregate and target block format, not a catalogue default. Standard moulds for the formats your market actually sells are stocked alongside the machine, so you do not wait for a second shipment. Voltage and control language are confirmed before dispatch, not discovered on site. Installation support and operator training are included so the line is producing saleable blocks within the commissioning window, not weeks after.
Documentation & Verification
- Line layout showing pallet flow from feed through stacking for your site footprint
- Factory test record on your target block format before container loading
- Voltage, frequency, and PLC language confirmation sheet signed before dispatch
- Packing photographs of each dismantled module inside the container
- Hydraulic and electrical schematic for on-site troubleshooting
- Customs documentation support for smooth port clearance
Installation, Commissioning & Support
- Foundation plan matched to the QT10-15 vibration load and pallet feed footprint
- Dedicated power circuit sized to the confirmed voltage and frequency rating
- Reassembly sequence with module photos taken at our yard before loading
- First-run parameter setting for your local aggregate and mix design
- Operator training on mould swap and PLC fault reading
- Wear parts list with hydraulic seals and mould liner reorder references
What We Need from You to Quote an Arrival Date
Send us your destination port, your site voltage and frequency, the block formats you need in the first production run, and the date your foundation will be ready. With those four data points we can confirm which stocked QT10-15 configuration matches your requirement, lock the container loading slot, and give you a written arrival estimate before any payment is made.
Frequently Asked Questions
Q: Which QT10-15 configurations are currently in stock and ready to ship?
A: Stocked units cover the standard automation level with PLC control cabinet, independent hydraulic station, pallet feed machine, storage hopper, and conveyor. Standard moulds for hollow block, interlocking brick, and paving block formats are typically held alongside the press. We confirm the exact stocked configuration and available mould set at the inquiry stage based on current inventory.
Q: What is the dispatch lead time and estimated arrival at my port?
A: Dispatch lead time for a stocked QT10-15 interlocking brick machine in stock is confirmed in writing once your voltage, frequency, and destination port are verified. The arrival estimate is calculated from the container loading date and the shipping line schedule to your port. We provide this estimate before order commitment so you can align it with your project timeline.
Q: How is the machine dismantled and loaded for container shipment?
A: The QT10-15 is separated into lift-ready modules — host frame, hydraulic station, PLC cabinet, and ancillary components. Each module is photographed in its loading cradle before the container is sealed. These photographs are shared with your receiving team so reassembly on site follows a documented sequence rather than guesswork.
Q: Are standard moulds for my target block format included in stock?
A: Standard moulds for the five formats listed in the output capacity table are commonly held in stock. If your target format requires a custom mould to your drawing, lead time for that mould is quoted separately. We confirm which moulds ship with the machine at inquiry so there is no gap between press arrival and first production run.
Q: What voltage and frequency options are available from stock?
A: The QT10-15 interlocking brick machine in stock can be configured to your site voltage and frequency before dispatch. We require your exact supply specification — voltage, phase, and Hz — at the inquiry stage. The PLC cabinet labels, motor nameplates, and hydraulic solenoid ratings are then verified against your data before the machine is loaded into the container.
