Description
Stocked for immediate dispatch — QT10-15 configurations are built ahead of confirmed orders, so your block project is not delayed by a 60-day production slot.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QT10-15 |
| Product Type | Hydraulic Concrete Block Making Machine |
| Control System | PLC control cabinet |
| Hydraulic System | Independent integrated hydraulic station |
| Vibration Mode | Vertical station mode resonance, automatic FM-AM |

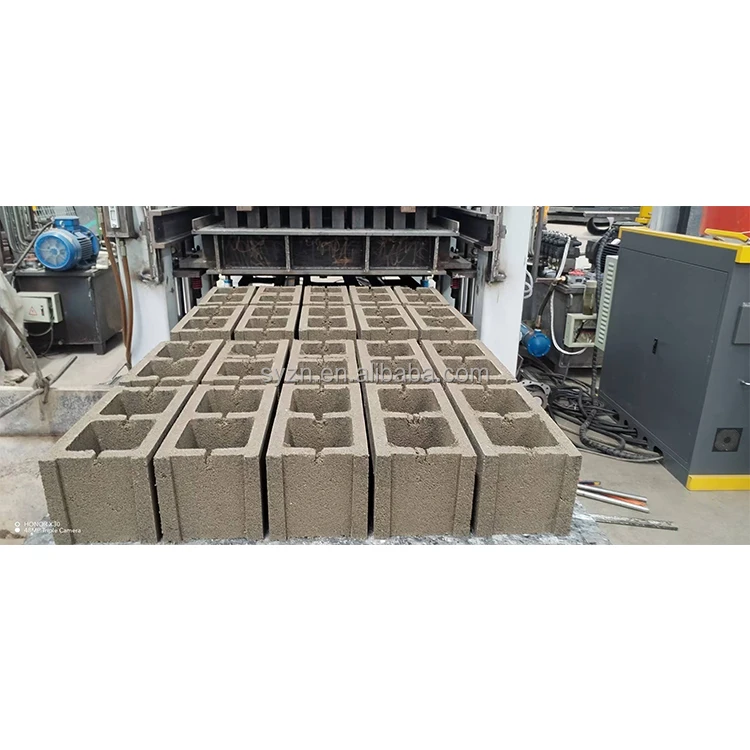

| Cycle Time (400×200×200mm hollow block) | 15–20s |
| Output Capacity (400×200×200mm hollow block, 10 pcs/mould) | 1,800–2,400 pcs/hour; 14,400–19,200 pcs/8hr |
| Cycle Time (200×100×60mm paving block) | 20–25s |
| Output Capacity (200×100×60mm paving block, 27 pcs/mould) | 5,184–6,480 pcs/hour; 41,472–51,840 pcs/8hr |
| Cycle Time (240×115×53mm standard brick) | 15–20s |
| Output Capacity (240×115×53mm standard brick, 62 pcs/mould) | 8,928–11,160 pcs/hour; 71,424–89,280 pcs/8hr |
| Mould Change | Simple replacement for multi-format production |
| Assembly State | Requires on-site installation and commissioning |
| Warranty | 1 year for the whole machine (excluding spare parts) |
| Voltage & Frequency | Configurable (basis to be confirmed with buyer) |
| Pallet Size | (basis to be confirmed with buyer) |
| Overall Dimensions | (basis to be confirmed with buyer) |
| Net Weight | (basis to be confirmed with buyer) |
| Rated Power | (basis to be confirmed with buyer) |
| Hydraulic Pressure | (basis to be confirmed with buyer) |
| Vibration Force | (basis to be confirmed with buyer) |
Application Suitability
| Application | Material or Output |
|---|---|
| Hollow block production | Cement, crushed stone, sand, and water in standard block plant mixes |
| Paving block production | Fine aggregate with pigment layer for interlocking driveway and walkway formats |
| Standard solid brick production | Dense mix design targeting structural walls and partition masonry |
| Interlocking block production | Coarser aggregate blend for retaining walls and slope protection |
| On-site contractor production | Local aggregate sourced from project vicinity, reducing transport distance |
What the Quoted Lead Time Never Tells You
Most block machine quotations promise a production slot, not an arrival date.
When a housing project breaks ground in three weeks, a machine that ships in 45 days is already late. Buyers often see "fast delivery" on a supplier’s page without knowing whether the unit is physically assembled in a warehouse or still on a planning sheet. The gap between factory readiness and port arrival can stretch past six weeks once inland haulage, container booking, and customs clearance are counted [NEED_CITE: typical ocean freight transit times for heavy machinery to African and South Asian ports]. A QT10-15 block machine in stock means the press, hydraulic station, and PLC cabinet are sitting on the floor — not waiting for a component delivery that may slip.
Container Loading That Fits Your Dock Schedule
The QT10-15 block machine in stock is dismantled into major assemblies before container loading. The main frame, hydraulic station, and PLC cabinet each travel as separate secured units. This split allows a standard 40-foot high-cube container to carry the complete press along with an initial set of pallets and standard moulds. Buyers receive a loading plan before the container is sealed, so the forklift team at the destination port knows the offloading sequence.
Arrival Estimates You Can Build a Gantt Chart Around
Once the QT10-15 block machine in stock clears export customs, the transit clock starts. Inland trucking to the port, ocean leg duration, and destination clearance each add a predictable block of days. We quote an arrival estimate that includes these segments rather than quoting only the ship departure [NEED_CITE: container shipping transit variables including port congestion and inland haulage]. Buyers planning a project commissioning date can work backwards from this number instead of guessing.
Why Cycle Time Alone Does Not Define Your Shift Output
The vibration system on the QT10-15 uses vertical station mode resonance with automatic frequency and amplitude adjustment. This lets the PLC match vibration energy to different mould cavities without manual dial-in. A 400×200×200mm hollow block at 15–20 seconds per cycle yields 1,800–2,400 pieces per hour based on 10 cavities per mould. The same machine running 200×100×60mm paving blocks at 27 cavities per mould cycles in 20–25 seconds, producing 5,184–6,480 pieces per hour. The independent integrated hydraulic station sits apart from the vibration zone, which keeps hydraulic fluid temperature stable and extends seal life across long shifts. The PLC control cabinet stores cycle parameters per mould, so an operator switching from hollow blocks to interlocking pavers loads a saved recipe instead of retuning the press from scratch.
When a Missing Pallet Specification Derails Commissioning
A machine can arrive on time and still sit idle for weeks. One of the most frequent reasons is a pallet size that does not match the buyer’s existing curing racks or forklift tine spacing [NEED_CITE: block plant commissioning delays caused by pallet dimension mismatch]. If the curing yard was built for 850×680mm pallets and the machine was configured for 900×700mm, every pallet has to be re-stacked by hand or the racks have to be rebuilt. Voltage is another silent delay: a 380V/50Hz machine landing on a 415V/60Hz grid will not run without a transformer or motor rewind. The QT10-15 block machine in stock ships only after voltage, frequency, and PLC display language are confirmed in writing, so the first power-on at the buyer’s site is also the first production run.
Why Procurement Here Shortens Your Critical Path
Our single-focus approach means the press, mould, pallet, and handling equipment are specified as one matched system rather than sourced from separate vendors and bolted together at the port. Every stocked QT10-15 configuration ships with a factory test record that documents actual cycle times on the included moulds. The mould selection covers the formats that sell in the buyer’s regional market, and custom mould drawings can be added to the same container if lead time allows. Pallet material and size are chosen against the buyer’s curing area dimensions and existing forklift capacity. Installation support includes operator training on mould change procedure, PLC recipe management, and daily maintenance checkpoints — so the line is producing saleable blocks before the technician leaves the site.
Documentation & Verification
- Factory test record showing cycle times on your specified block formats before dispatch
- Container loading plan with dismantling sequence and weight distribution per crate
- Voltage and control language confirmation sheet signed before machine leaves the factory
- Hydraulic and electrical schematic matching the as-built configuration
- Wear parts and mould list with reorder codes for the initial set shipped
- Packing photographs of each major assembly before the container is sealed
Installation, Commissioning & Support
- Foundation plan accounts for the vibration isolation requirements of the QT10-15 hydraulic station
- Dedicated electrical circuit sized to the machine’s rated power with correct breaker rating
- Major assemblies reassembled on-site with alignment checks on the pallet feed track
- First-run parameter tuning matches vibration frequency and hydraulic pressure to your local aggregate
- Operator training covers PLC recipe loading, mould swap procedure, and emergency stop routines
- Wear parts inventory list provided with reorder lead times for high-consumption items
What We Need to Confirm Your Dispatch Window
To match a stocked QT10-15 block machine in stock to your project timeline, share the block formats your market demands, the daily volume you need to sustain, and your site’s voltage and frequency standard. Let us know which pallet size your curing racks accept and whether you need the PLC interface in a specific language. If you have a sample of your local aggregate available, sending it to us before dispatch allows pre-tuning of vibration and pressure parameters.
Frequently Asked Questions
Q: Which QT10-15 configurations are physically in stock and what is the dispatch lead time?
A: Stocked units include the main press, independent hydraulic station, and PLC cabinet, assembled and factory-tested. Once voltage, frequency, and mould selection are confirmed, the machine can be dismantled and loaded into a container within a short window. We quote the dispatch date from the day of confirmation, not from an estimated production start.
Q: How is the machine dismantled for container loading?
A: The QT10-15 frame, hydraulic station, pallet feed machine, and PLC cabinet are separated into major assemblies. Each is secured with bracing inside the container to prevent movement during ocean transit. A loading diagram is shared with the buyer before sealing so the receiving team can plan the offloading sequence and forklift requirements at the destination port.
Q: What arrival estimate can I expect after the container ships?
A: Transit time depends on the destination port, ocean carrier schedule, and inland haulage on both ends. We provide an estimated arrival date that accounts for export customs, ocean leg, and typical port clearance duration at the destination. Buyers use this estimate to schedule foundation work and electrical hookup so the site is ready when the container arrives.
Q: Can I include standard moulds from stock in the same shipment?
A: Yes. Standard moulds for hollow blocks, paving blocks, and interlocking formats are available from stock and can be loaded into the same container as the machine. Custom mould designs require a longer lead time, but if drawings are approved early enough, they may ship together. Each mould is packed separately and listed on the packing document.
Q: What voltage and frequency options are available for immediate shipment?
A: Stocked machines can be configured to common industrial voltage and frequency standards before dispatch. The critical step is confirming your site’s supply specification in writing before the container is booked. The PLC display language is also set at the factory so operators can navigate menus from the first power-on without waiting for a software update on-site.
